User Manual for IOGEAR AVIOR 8-Port HD HDMI Switcher with IR Remote & RS-232 Support Click to enlarge the picture
Contents of the user manual for the IOGEAR AVIOR 8-Port HD HDMI Switcher
- Product category: Routers & Switchers IOGEAR
- Brand: IOGEAR
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for IOGEAR Routers & Switchers
 |
User manual for the IOGEAR AVIOR 8-Port HD HDMI Switcher contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any IOGEAR product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official IOGEAR user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a IOGEAR product will considerably shorten its lifespan!
|

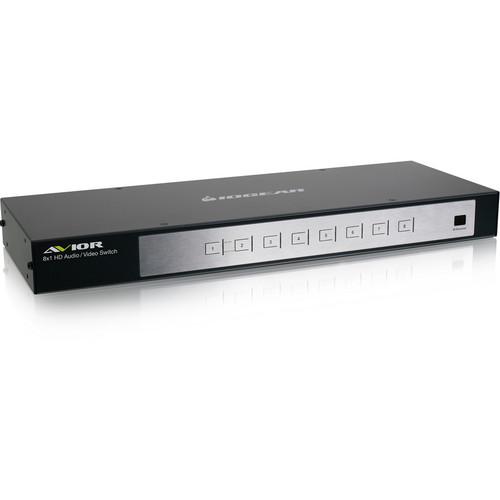

Product description The AVIOR 8-Port HD HDMI Audio / Video Switch with IR Remote & RS-232 Support from IOGEAR is a high-end 8 x 1 HDMI switcher with IR and RS-232 control and support for 3D. It is a switching solution with 8 HDMI inputs for devices such as DVR, set-top boxes, Blu-ray, DVD players, game consoles, and media servers, connected to 1 HDTV display.
The switcher supports full HD 1080p with deep color accompanied with Dolby TrueHD and DTS HD Master Audio for exceptional high-end quality. It includes a built-in serial port with RS-232 bi-directional capabilities along with intuitive front-panel pushbuttons and IR remote control. - Switch between 8 HDMI devices on 1 HDTV
- Works with DVR, set-top boxes, Blu-ray, DVD players, video game consoles, media servers, computers, etc.
- HDTV Resolution: 480p, 720p, 1080i, and 1080p
- Supports 12-bit deep color
- Supports Dolby True HD, and DTS HD Master Audio
- Serial RS-232 bi-directional control port for high-end system control

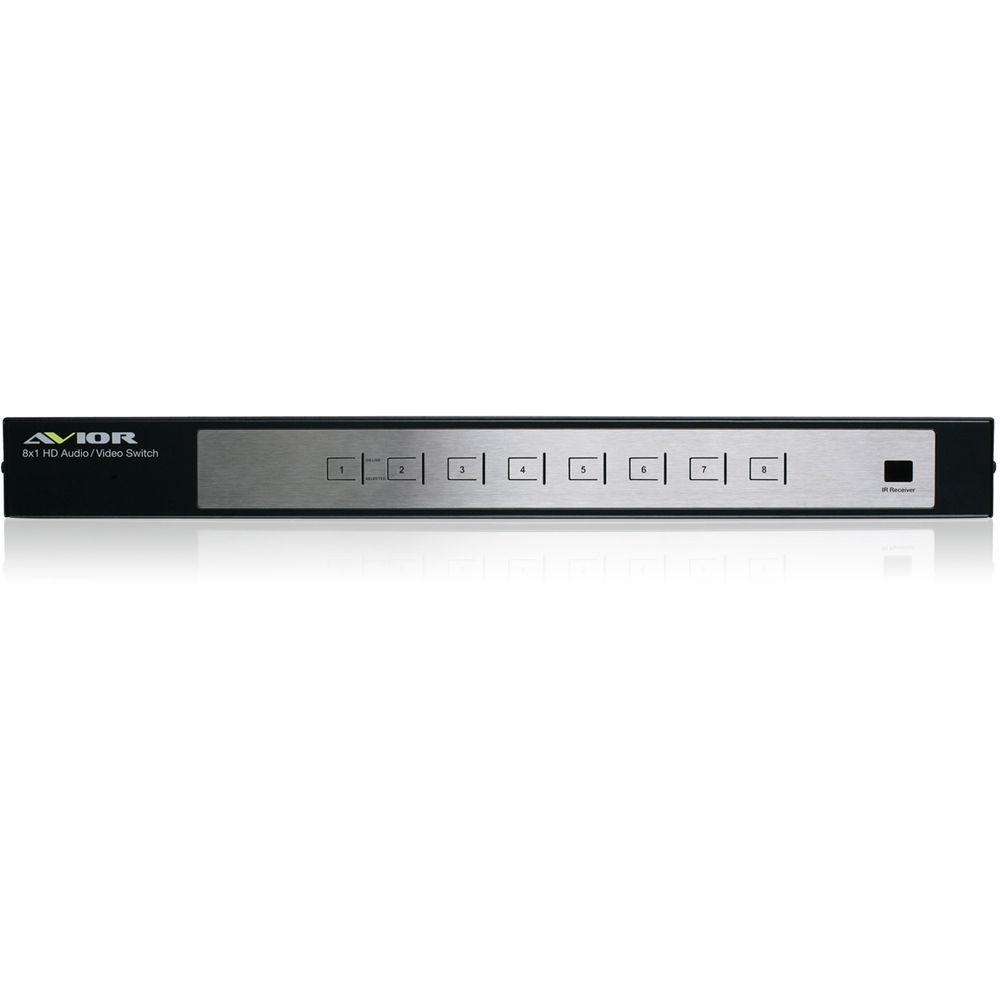

- Front-panel pushbutton and IR remote for convenient switching
- Front-panel LED for port and power status
- Backward compatible with DVI devices with HDMI to DVI adapter 1
Please Note: The adapter is sold separately. close UPC: 881317507143 In the Box IOGEAR AVIOR 8-Port HD HDMI Switcher with IR Remote & RS-232 Support Remote Control Rack Mount Kit Power Adapter Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the IOGEAR AVIOR 8-Port HD HDMI Switcher with IR Remote & RS-232 Support in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

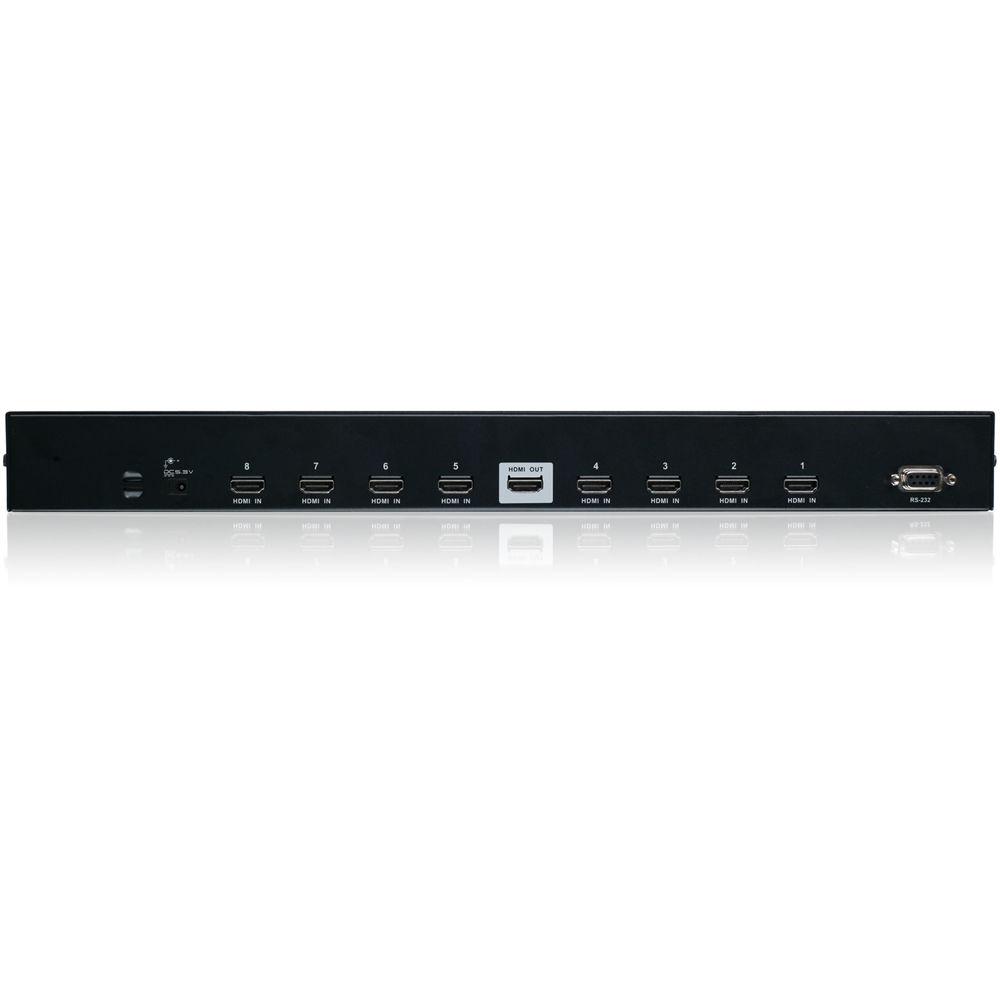

Technical parametersIOGEAR GHSW8181 Specs | Requirements | Display and media source with 1 HDMI output | | Video Connections | Input: 8 x female HDMI type A 19-Pin
Output: 1 x female HDMI type A 19-Pin | | LEDs | Input: 8
Power On: 1 | | Video Resolution | 480i, 480p, 720p, 1080i, and 1080p | | Data Rate | Up to 2.25 Gb/s | | Power Consumption | 3 W (maximum) | | Power Adapter | 5 VDC, 1 A | | Temperature | Operating: 32 to 122°F (0 to 50°C)
Storage: -4 to 140°F (-20 to 60°C) | | Humidity | 0 to 80% RH (non-condensing) | | Dimensions | H x D x L: 17.0 x 2.0 x 6.3" (431.8 x 50.8 x 158.8 mm) | | | | Package Weight | 5.45 lb | | Box Dimensions (LxWxH) | 20.4 x 8.7 x 2.5" |
