User Manual for IOGEAR Bluetooth Serial Adapter Click to enlarge the picture
Contents of the user manual for the IOGEAR Bluetooth Serial Adapter
- Product category: Bluetooth Adapters IOGEAR
- Brand: IOGEAR
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for IOGEAR Bluetooth Adapters
 |
User manual for the IOGEAR Bluetooth Serial Adapter contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any IOGEAR product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official IOGEAR user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a IOGEAR product will considerably shorten its lifespan!
|

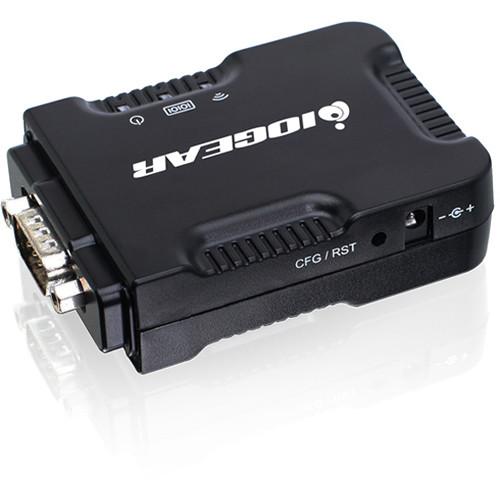

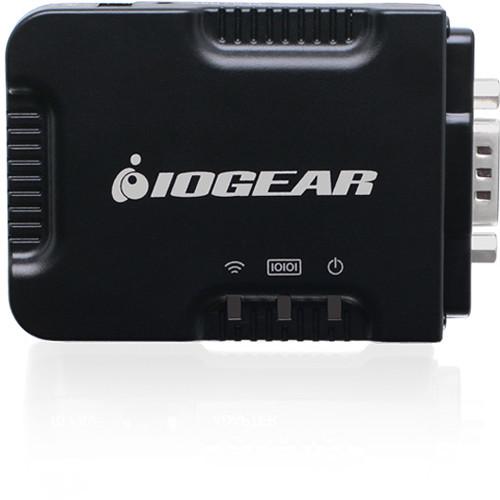

Product description Unchain your devices with the Bluetooth Serial Adapter from IOGEAR. This adapter connects to your RS-232 enabled device and grants it wireless Bluetooth 2.0 connectivity so you're not burdened or limited by its cable length. As a Class 1 Bluetooth device, it can transmit and receive data to another Class 1 Bluetooth device at distance of up to 330' (100 m) away. Furthermore, settings such as Stop Bit, Parity Bit, Security and Hardware Flow Control can all be configured using the device's configuration tool. With support for the COM port interface, it can connect DCE or DTE devices and enable Master or Slave modes. The Bluetooth Serial Adapter is ideal for barcode scanners, point-of-sale terminals, printers, and more. -
- Add Bluetooth connectivity to a Serial RS-232 compatible device
- Bluetooth 2.0 with Enhanced Data Rate (EDR)
- Range of up to 330ft (100m)
- Configurable baud rate (9600 to 921600) DB (9-pin)
- Supports both DCE and DTE devices
- Supports Bluetooth Serial Port Profile (SPP)
UPC: 881317513342 In the Box IOGEAR Bluetooth Serial Adapter RS232 Extension Cable Gender Adapter (Female) Power Adapter Limited 1-Year Warranty Brochure PDF 155.6kb More from Manufacturer Table of Contents
|
Upload User Manual
Have you got an user manual for the IOGEAR Bluetooth Serial Adapter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersIOGEAR GBC232A Specs | Interface | RS-232 DCE/DTE | | Frequency Band | 2.4 to 2.4835 GHz Unlicensed ISM Band | | Standards | Bluetooth v2.0 + EDR | | Transfer Rate | 1,200 to 460,800 bits per second | | Operating Range | Up to 330' (100 m) | | Baud Rate | 9600 to 921600 | | | | Voltage | 7.5V DC | | Modulation | FHSS (Frequency Hopping Spread Spectrum) | | | | Operating Temperature | 32 to 140°F (0 to 60°C) | | Storage Temperature | 14 to 156°F (-10 to 70°C) | | Humidity | 5 to 90% non-condensing | | | | System Requirements | Built-in Bluetooth, Bluetooth USB Adapter, or an additional IOGEAR Bluetooth Serial Adapter | | Dimensions (W x H x D) | 3.125 x 2.125 x 0.875" (7.9 x 5.4 x 2.2 cm) | | Weight | 0.1 lb (0.04 kg) | | | | Package Weight | 0.9 lb | | Box Dimensions (LxWxH) | 8.6 x 5.9 x 2.4" |
