User Manual for IOGEAR DCI 4K 8 x 1 HDMI Switcher

Click to enlarge the picture
IOGEAR DCI 4K 8 x 1 HDMI Switcher Contents of the user manual for the IOGEAR DCI 4K 8 x 1
  • Product category: Routers & Switchers IOGEAR
  • Brand: IOGEAR
  • Description and content of package
  • Technical information and basic settings
  • Frequently asked questions – FAQ
  • Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
  • Authorized service for IOGEAR Routers & Switchers

IOGEAR DCI 4K 8 x 1 HDMI Switcher IOGEAR DCI 4K 8 x 1 HDMI Switcher IOGEAR DCI 4K 8 x 1 HDMI Switcher IOGEAR DCI 4K 8 x 1 HDMI Switcher
User manual for the IOGEAR DCI 4K 8 x 1 contain basic instructions that need to be followed during installation and operation. Before starting your appliance, the user manual should be read through carefully. Follow all the safety instructions and warnings, and be guided by the given recommendations. User manual is an integral part of any IOGEAR product, and if it is sold or transferred, they should be handed over jointly with the product. Following the instructions for use is an essential prerequisite for protecting health and property during use, as well as recognition of liability on the part of the manufacturer for possible defects should you make a warranty claim. Download an official IOGEAR user manual in which you will find instructions on how to install, use, maintain and service your product.

And do not forget – unsuitable use of a IOGEAR product will considerably shorten its lifespan!



Product description

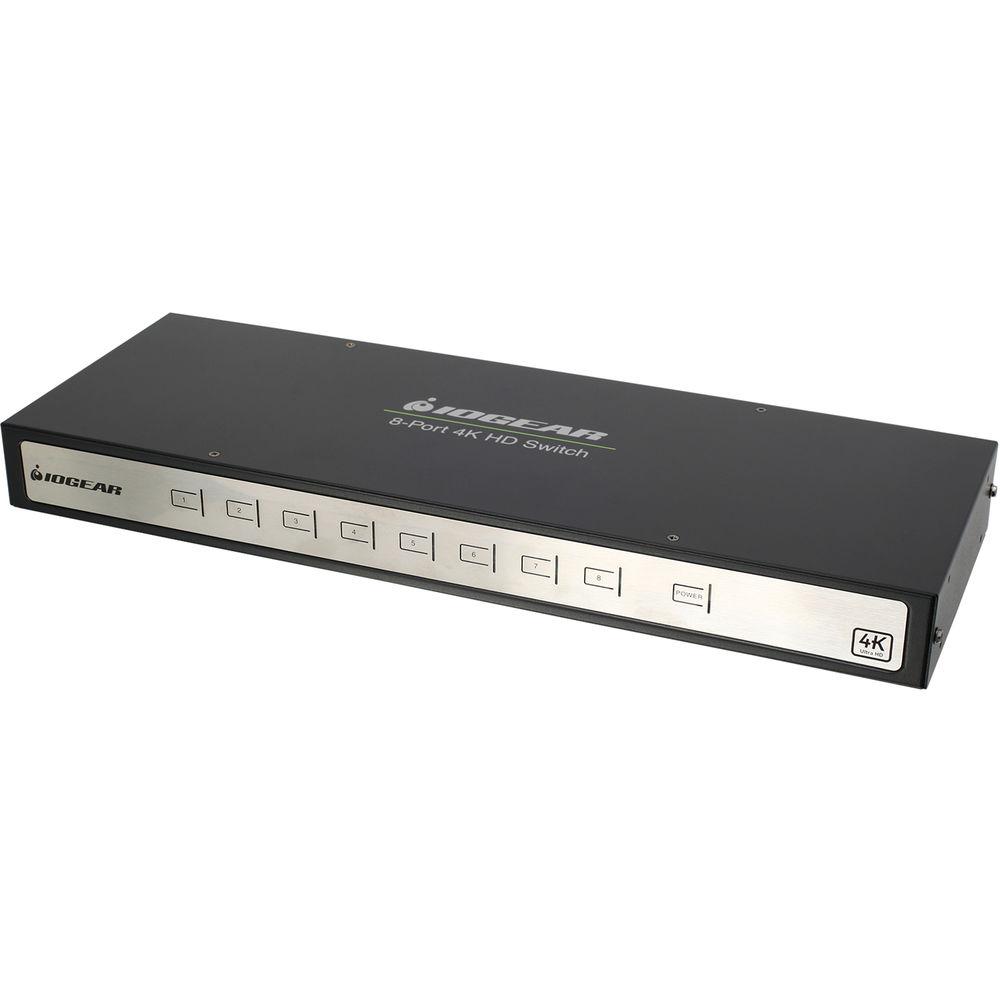

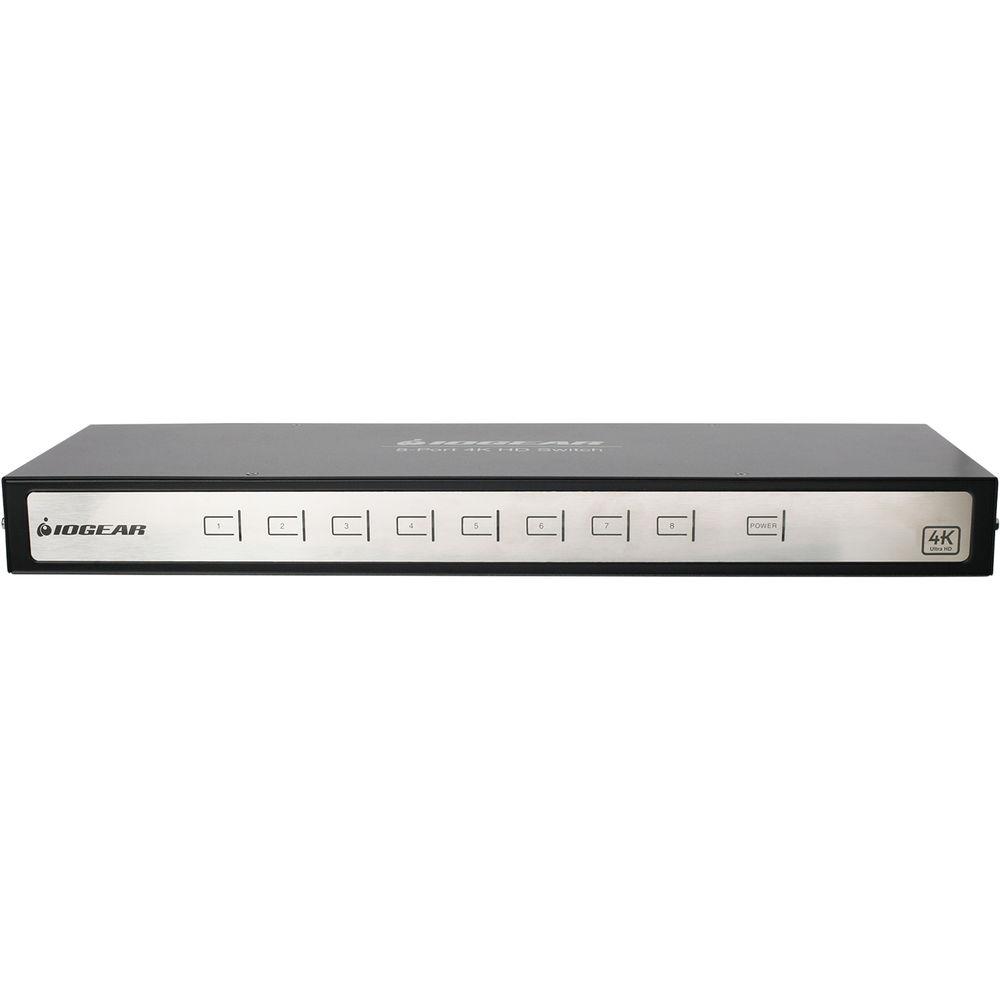

The IOGEAR DCI 4K 8 x 1 HDMI Switcher provides quick, smooth switching between eight HDMI sources for output to a single display. Supporting video resolutions up to DCI 4K, the switcher can be used with a variety of HDMI sources like media players, computers, and cable or satellite receivers. Suitable for conferencing, home theater, and digital signage applications, the switcher can be controlled using the front panel buttons, the included IR remote control, or universal control via the RS-232 port. Switcher features include 4:4:4 chroma subsampling, High Dynamic Range (HDR) support, uncompressed audio transmission, and a maximum data rate of 18 Gb/s. The plug-and-play IOGEAR DCI 4K 8 x 1 HDMI Switcher is HDMI 2.0, HDCP 2.2, and CEC compliant. It cascades to three levels and includes a locking AC power adapter and a rackmount kit.
    Features
    • Quickly switch between eight HDMI 2.0 sources and output to a single display
    • Supports up to DCI 4K video and 4:4:4 chroma subsampling
    • Versatile button, IR remote, and RS-232 control options
    • Supports High Dynamic Range (HDR) display
    • HDMI 2.0, HDCP 2.2, and CEC compliant
    • Transmits uncompressed audio
    • Includes an IR remote control, a rackmount kit, and a locking AC adapter

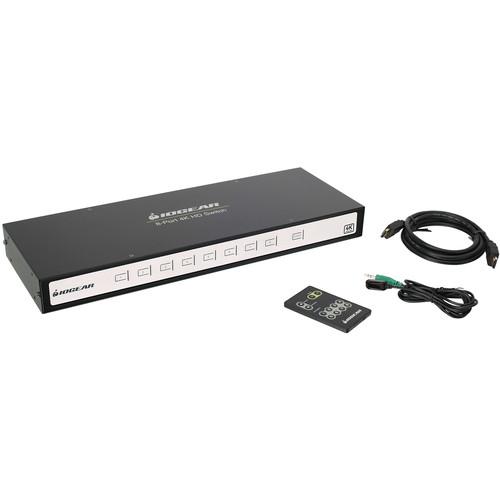

UPC: 881317517289 In the Box IOGEAR DCI 4K 8 x 1 HDMI Switcher
  • IR Remote Control
  • IR Extension Cable
  • HDMI Cable (3.3')
  • Power Adapter
  • Rackmount Kit
  • Limited 3-Year Warranty
  • Table of Contents




    Upload User Manual

    Have you got an user manual for the IOGEAR DCI 4K 8 x 1 HDMI Switcher in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

    To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
    Upload PDF user manual Upload DOC user manual
    Please enter here the link to the user manual of this product:





    OR

    Enter here the file with the user manual of this product from your computer/phone:
    (60MB max; Permitted formats: PDF)

    0%


    Technical parameters

    IOGEAR GHSW8481 Specs

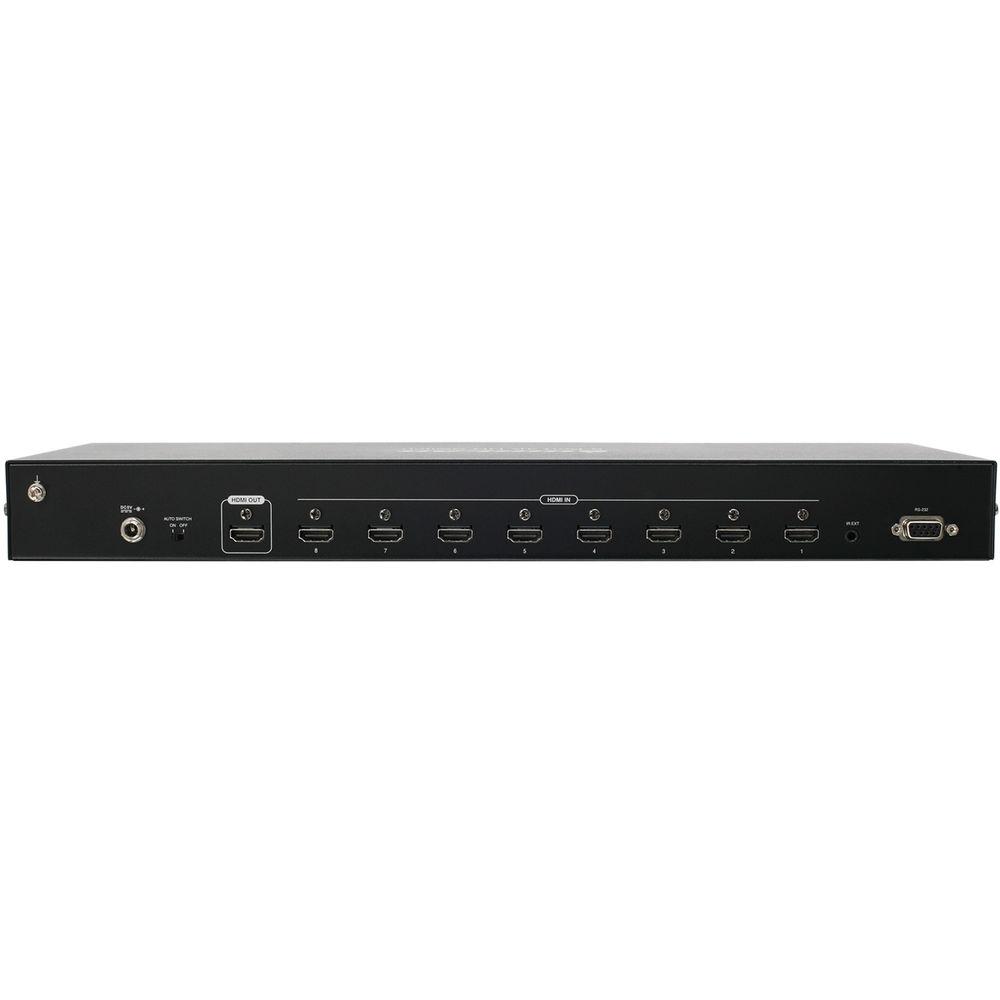

    Video Input HDMI Type A: 8 x HDMI 2.0 (female)
    Video Output HDMI Type A: 1 x HDMI 2.0 (female)
    DIP Switch Auto Switch: x 1 (on/off)
    RS-232 DB-9: x 1 (female)
    DC Power Input Locking Barrel: x 1
    Maximum Resolution 4096 x 2160, 60 Hz
    Color Space 4:4:4
    Maximum Bit Rate 18 Gb/s
    Maximum Cable Distance 9.8' / 3 m
    Power Adapter 5.3 VDC, 1 A
    Power Consumption 3.73 W
    Operating Temperature 32 to 104°F / 0 to 40°C
    Storage Temperature -4 to 140°F / -20 to 60°C
    Humidity (Non-Condensing) 10 to 80% RH
    Dimensions 17.25 x 6.25 x 1.75" / 43.8 x 15.9 x 4.5 cm
    Weight 3.95 lb / 1.8 kg
    Package Weight 5.65 lb
    Box Dimensions (LxWxH) 21.4 x 9.2 x 4.6"
