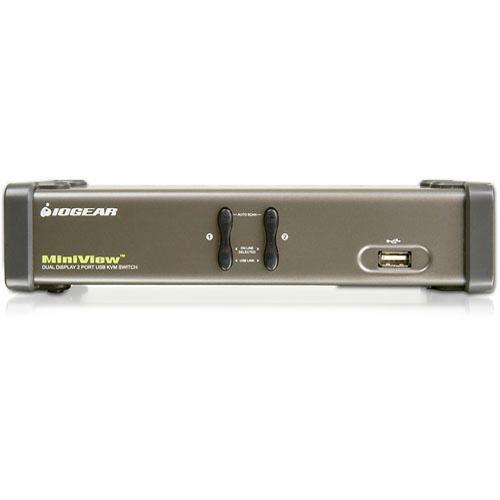

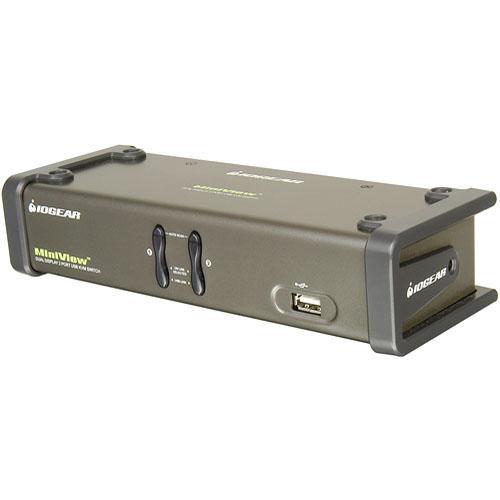

User Manual for IOGEAR Dual View GCS1742 2-Port USB KVM Switch with Dual Monitor Support and Stereo Earphone Connectors

Click to enlarge the picture
IOGEAR Dual View GCS1742 2-Port USB KVM Switch with Dual Monitor Support and Stereo Earphone Connectors Contents of the user manual for the IOGEAR Dual View GCS1742 2-Port USB
  • Product category: KVM Switches IOGEAR
  • Brand: IOGEAR
  • Description and content of package
  • Technical information and basic settings
  • Frequently asked questions – FAQ
  • Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
  • Authorized service for IOGEAR KVM Switches

IOGEAR Dual View GCS1742 2-Port USB KVM Switch with Dual Monitor Support and Stereo Earphone Connectors IOGEAR Dual View GCS1742 2-Port USB KVM Switch with Dual Monitor Support and Stereo Earphone Connectors IOGEAR Dual View GCS1742 2-Port USB KVM Switch with Dual Monitor Support and Stereo Earphone Connectors
User manual for the IOGEAR Dual View GCS1742 2-Port USB contain basic instructions that need to be followed during installation and operation. Before starting your appliance, the user manual should be read through carefully. Follow all the safety instructions and warnings, and be guided by the given recommendations. User manual is an integral part of any IOGEAR product, and if it is sold or transferred, they should be handed over jointly with the product. Following the instructions for use is an essential prerequisite for protecting health and property during use, as well as recognition of liability on the part of the manufacturer for possible defects should you make a warranty claim. Download an official IOGEAR user manual in which you will find instructions on how to install, use, maintain and service your product.

And do not forget – unsuitable use of a IOGEAR product will considerably shorten its lifespan!



Product description

Multi-Monitors: Maximizing Multitasking Read More This Dual-Display USB KVMP-USB Switch by IOGEAR allows up to two Mac or PC monitors, and two peripherals to be controlled with one console. That's means ultimate control with one USB keyboard and mouse, and two VGA/SVGA/MultiSync monitors. IOGEAR's 2-port USB KVMP Switch provides powerful resolutions up to 2048 x 1536. It also utilizes status-monitoring LEDs, Push Button, Hot Keys, and Hot-Pluggable support to ensure easier function for all of your extended computer environments.The IOGEAR 2-port KVMP USB is designed with multi-platform support, which allows you to control Windows- and Mac-based computers with a single KVM switch; however, support for Linux/UNIX/USB supported systems might require additional drivers. IOGEAR supports this advanced USB KVMP Switch with its outstanding 3-Year Warranty. Never go wrong; go IOGEAR.
    Dual-Head Video Functionality
  • Connect two dual-display computers can be controlled via a single console. Now, get the most for your dual graphics/video/desktop display with one USB keyboard, USB mouse, and two VGA/SVGA/MultiSync monitors.
    Expanded Platform Support
  • The IOGEAR 2-port USB KVMP is designed with multi-platform support, which allows you to control Windows- and Mac-based computers with a single KVM switch. Support for Linux/UNIX/USB supported systems might require additional drivers.
    Ease of Multi-Tasking
  • It is truly an all-in-one ultimate device. It features independent switching of KVM, USB and audio, which allows the KVM to focus on one computer while the USB peripheral focus is on another device. This advanced capacity gives users USB hub- and peripheral-sharer function with one little device.
    Multi-Computer Precision
  • Utilize IOGEAR's status-monitoring LEDs, Push Button, Hot Keys, and Hot-Pluggable support to ensure easier function for all of your extended computer environments.
    Features Superior Video Resolution Digital/Analog
  • IOGEAR's 2-port USB KVMP Switch provides powerful dual-display resolutions of up to 2048 x 1536. For all of your video environments, IOGEAR is there.
    IOGEAR's Three-Year Warranty
  • Your prosumer tool is protected by IOGEAR's guaranteed three-year warranty.
UPC: 881317003638 In the Box IOGEAR Dual View GCS1742 2-Port USB KVM Switch with Dual Monitor Support and Stereo Earphone Connectors
  • 2 x 6-foot Custom USB/Video Cable
  • 2 x 6-foot Custom Audio/Video Cable
  • Firmware Upgrade Cable
  • User Manual
  • Power Adapter
  • Quick Start Guide
  • Table of Contents




    Upload User Manual

    Have you got an user manual for the IOGEAR Dual View GCS1742 2-Port USB KVM Switch with Dual Monitor Support and Stereo Earphone Connectors in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

    To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
    Upload PDF user manual Upload DOC user manual
    Please enter here the link to the user manual of this product:





    OR

    Enter here the file with the user manual of this product from your computer/phone:
    (60MB max; Permitted formats: PDF)

    0%


    Technical parameters

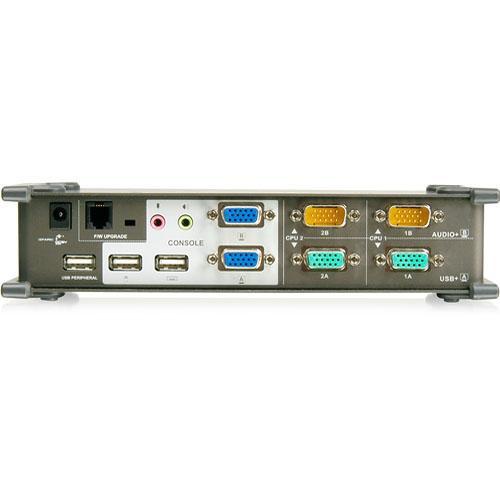

    IOGEAR GCS1742 Specs

    Max Computer Connections 2
    PC Connectors Monitor: USB/Video1: SPHD-15 Female x 2; Audio/Video2: SPHD-15 Male x 2
    Peripheral: USB Type A Female x 2
    Console Connectors Keyboard: USB Type A socket x 1
    Monitor: HDB15 Female x 2
    Audio: Earphone Jack Female x 1; Microphone Jack Female x 1
    Mouse: USB Type A socket x 1
    Flash ROM Upgrade: RJ11 Socket x1
    Video Resolution 2048 x 1536
    Scan Interval 1-99 seconds
    Port Selection Push Button; Hot Keys
    Enclosure Metal
    System Requirements Console:
    2 x VGA Monitors
    1 x USB mouse
    1 x USB keyboard
    Computer:
    2 x VGA, SVGA, or MultiSync ports
    1 x Type A USB port
    Operating Systems: Windows 98, 98SE, ME, 2000, XP; Mac OS 8.6 or greater; Linux, UNIX and other USB supported systems Audio:
    Requires 2-piece powered speaker system NOTE: Additional drivers and support For Linux, UNIX, and other USB systems may be needed
    Power Requirements DC 5V
    Dimensions (WxHxD) 2.93 x 1.65 x 7.87" (7.4 x 4.2 x 19.99 cm)
    Weight 4.7 lbs (2.1 kg) (Weight of package)
    Warranty 3-Year Warranty
    Package Weight 4.55 lb
    Box Dimensions (LxWxH) 10.7 x 8.9 x 3.9"
