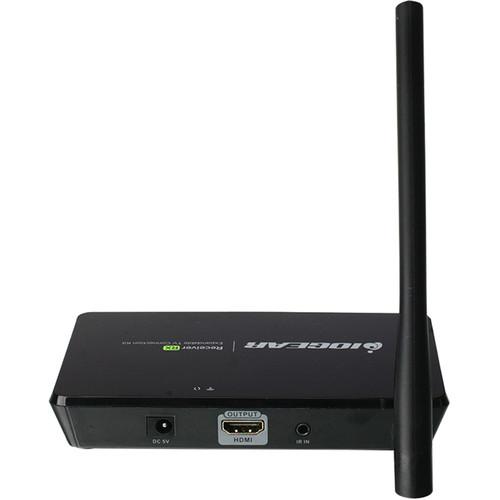

User Manual for IOGEAR Expandable Wireless TV Connection Receiver Click to enlarge the picture
Contents of the user manual for the IOGEAR Expandable Wireless TV Connection Receiver
- Product category: PC to TV IOGEAR
- Brand: IOGEAR
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for IOGEAR PC to TV
 |
User manual for the IOGEAR Expandable Wireless TV Connection Receiver contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any IOGEAR product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official IOGEAR user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a IOGEAR product will considerably shorten its lifespan!
|

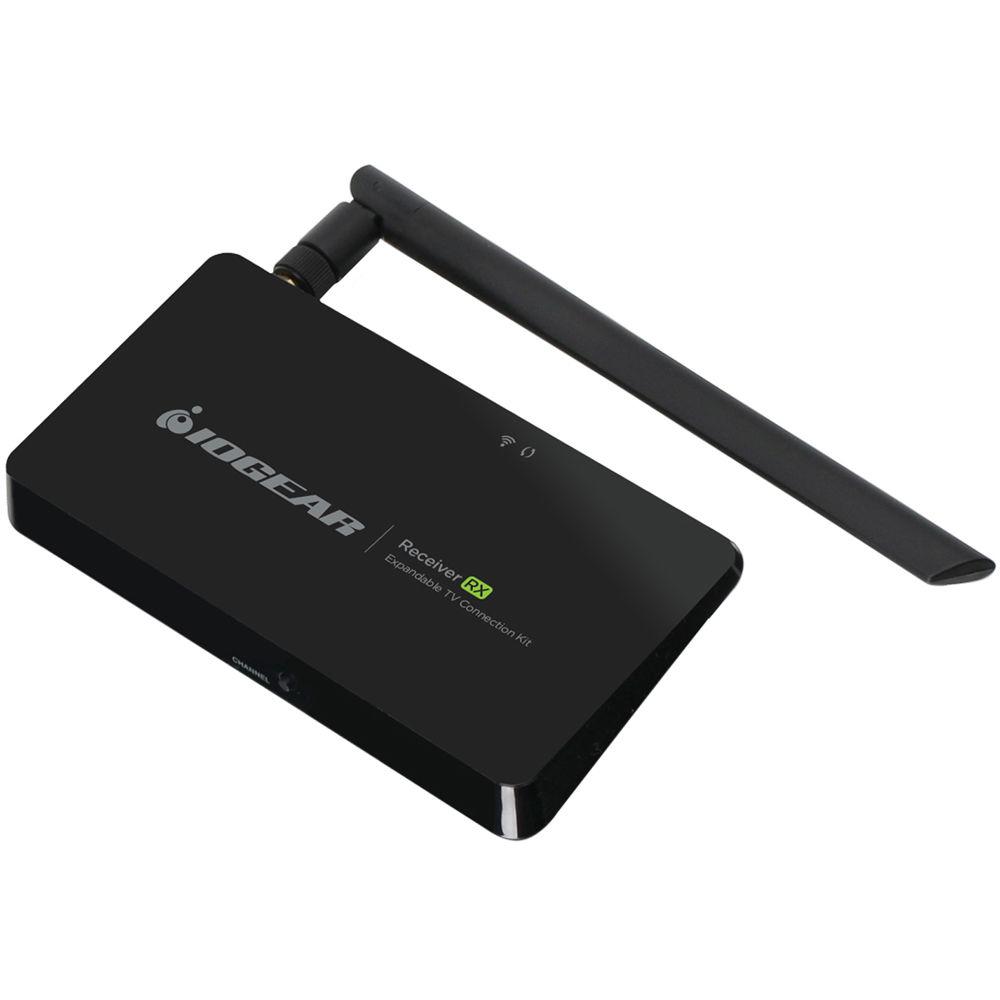

Product description The Expandable Wireless TV Connection Receiver from IOGEAR is an add-on to their GWMHDKIT22 Expandable Wireless TV Connection Kit that allows users to wirelessly stream video to another HDTV or projector. It is able to receive Full HD 1080p video at 60 Hz with digital audio from up to 150' away. It does not require line-of-sight placement. Up to three of these receivers can be used on one transmitter to enable a user-friendly and flexible means of installing multi-room or multi-display setups and provides freedom in placing additional displays in less common areas.
IOGEAR has designed this receiver to be compatible with cable boxes, Blu-ray players, laptops, and more. It can be expanded up to ten televisions from ten selectable HDMI sources and uses ten independent 5 GHz 802.11ac Wi-Fi channels with WPA-2 security. No wireless pairing is required, as the receiver creates its own signal. Just match the receiver to the transmitter's channel. Included is a 3.3' HDMI cable, an IR receiver extension cable, and a 5 VDC / 2A switching power supply. Protection is provided by a limited 1-year warranty.
Note: Operating distances may vary depending on the environment. Solid and non-porous materials such as steel, concrete, brick, and glass (varies depending on coating and thickness) may cause shorter viewing distances or loss of signal. Line of sight is recommended for better performance. General Features - Add a second or a third TV/projector to your existing wireless video connection
- Plug-and-play, simply match your GWMHDRX receiver channel to your existing transmitter channel of GWMHDKIT22
- Watch the same video content on the 2nd or 3rd TV/projector
- Penetrates walls for a flexible setup, with a range of up to 150'
- High-fidelity H.264 video compression
- Makes its own wireless connection, no existing Wi-Fi network required
- Uses 5 GHz 802.11ac wireless technology
- Applications
- Multi-room set ups, digital signage, entertainment rooms, sports bars, churches, schools, tradeshows, expos, and more
UPC: 881317517937 In the Box IOGEAR Expandable Wireless TV Connection Receiver HDMI Cable (3.3' / 1.0m) IR Receiver Extension Cable 5 VDC / 2 A Switching Power Supply Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the IOGEAR Expandable Wireless TV Connection Receiver in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersIOGEAR GWMHDRX Specs | Video Resolution | 1080p @ 60 Hz | | Video Streaming | H.264 <200 ms latency | | Video Output | 1 x HDMI 1.3 port | | Audio Output | PCM Stereo | | Antenna Type | External 5 DBi | | Power Supply | 5 VDC / 2 A | | Power Consumption | Tx 7 W, RX 6.5 W | | Infrared Frequency | 20 to 60 Hz | | Operating Range | Up to 150' / 45.7 m | | Operating Temperature | 32 to 122°F / 0 to 50°C | | System Requirements | 1 x HDMI display | | Dimensions | 0.875 x 3.125 x 5.75" / 2.223 x 7.938 x 14.6 cm | | Weight | 0.25 lb / 0.11 kg | | | | Package Weight | 1.17 lb | | Box Dimensions (LxWxH) | 8.0 x 5.9 x 3.35" |
