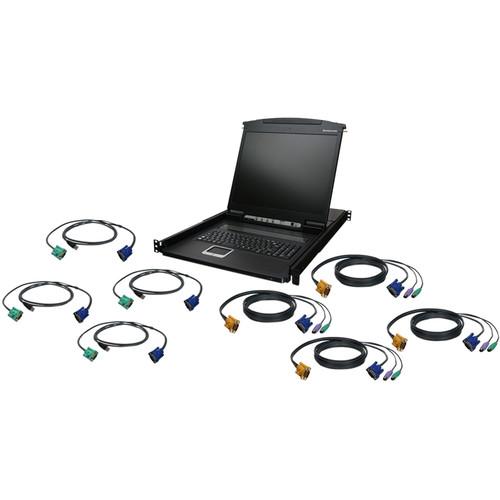

Product description The GCL1908KIT 8-Port 19" LCD KVM Drawer Kit with PS/2 and USB KVM Cables from Iogear is an integrated LCD console with an 8-port KVM (keyboard, video, and mouse) switch that offers secure access to eight VGA, USB, or PS/2 computers. It features a convenient rack-mountable sliding/retractable 19" TFT LCD active matrix monitor and keyboard with built-in touchpad for a space-saving and streamlined integration. The switch fits into a universal 1 RU rack mount space.The switch supports both PS/2 and USB keyboards and mice for the connected computers, and supports USB peripheral devices for the attached computers. A single GCL1908 can control up to eight computers, but as many as eight additional compatible KVM switches can be cascaded to reach up to 128 computers controlled from a single keyboard, monitor, and mouse console.This kit includes an additional three PS/2 cables (1 x 6', 2 x 10') and three USB KVM cables (1 x 6', 2 x 10'). Combining high signal capacity with low signal loss, the cables deliver high-quality video output even after long-distance transmission or in electronically noisy environments such as server cabinets. The keyboard and mouse cables are made of double-sealed 22-gauge wire and are neatly wrapped with a heavy-duty video cable for simplified connections. Note: Can only be cascaded with other IOGEAR KVMs (GCS1808 or GCS1716) - Integrated 8-port KVM console featuring a 19" TFT LCD active matrix monitor, keyboard, and touchpad
- 1280 x 1024 resolution on 19" rack mount LCD provides a sharp video display
- Adjustable mounting rail to fit different sizes of racks
- Multiplatform OS support—Windows, Mac, and Linux
- Computer selection via front panel pushbutton LEDs, intuitive OSD (on-screen display), or hotkeys
- External USB or PS/2 with VGA console port
- Cascade up to two levels to control up to 128 computers from a single console
- Two-level password protection for OSD
- DDC emulation—video settings of each computer are automatically adjusted for optimal output to the monitor
- Rack mountable in a 19" 1 RU system rack
- Custom ASIC provides an auto-sensing function that recognizes the position of each station on the installation
UPC: 881317513366 In the Box IOGEAR GCL1908KIT 8-Port 19" LCD KVM Drawer Kit with PS/2 and USB KVM Cables 8-Port 19" LCD Combo KVM Switch 6' PS/2 KVM Cable 2 x 10' PS/2 KVM Cable 6' USB KVM Cable 2 x 10' USB KVM Cable Firmware Upgrade Cable Standard Long Rack Mount Kit Power Cord Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the IOGEAR GCL1908KIT 8-Port 19" LCD KVM Drawer Kit with PS 2 and USB KVM Cables in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersIOGEAR GCL1908KIT Specs | LCD Size | 19" / 485.6 mm | | Video Resolution | 1280 x 1024 at 75 Hz
DDC2B | | Computer Connections | Direct: 8
Daisy Chain or Cascading: 128 (via Cascade) | | Connectors | Power: 1 x 3-Prong AC Socket
Computer/KVM: 8 x SPHD-17 Female (Yellow) | | Switches | F/W Upgrade: 1 x Slide Switch
Port Selection: 8 x Pushbuttons
Power: 1 x Rocker Switch
Reset: 1 x Semi-Recessed Pushbutton
LCD Power: 1 x Pushbutton
LCD Adjustment: 4 x Pushbuttons | | Power | Current: 2.4 A
Voltage: 5.3 VDC | | Scan Interval | 1 to 255 Seconds | | Environment | Operation Temperature: 32 to 122°F / 0 to 50°C
Storage Temperature: -4 to +140°F / -20 to +60°C
Relative Humidity: 0 to 80%, Non-Condensing | | Case | Metal | | Port Selection | Hotkeys, OSD, Buttons | | Port Selection | On Line: 8 (Orange)
Selected: 8 (Green)
Power On:
Dark Green (KVM)
Orange (LCD) | | Dimensions (L x H x D) | 17.75 x 27.00 x 1.75" / 45.09 x 68.58 x 4.45 cm | | Weight | 27.75 lb / 12.58 kg | | | | Package Weight | 49.5 lb | | Box Dimensions (LxWxH) | 37.0 x 30.0 x 7.0" |
