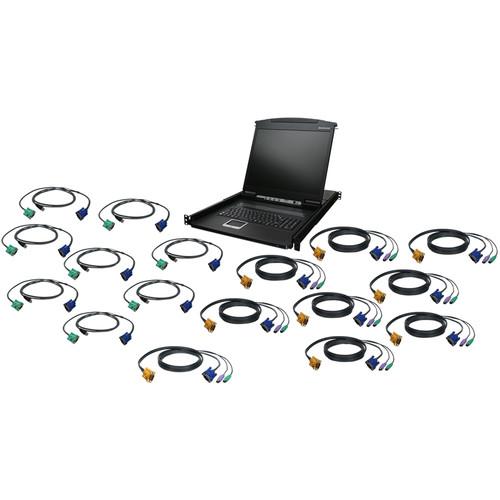

User Manual for IOGEAR GCL1916KITU 16-Port 19" LCD KVM Drawer Kit with USB KVM Cables Click to enlarge the picture
Contents of the user manual for the IOGEAR GCL1916KITU 16-Port 19" LCD KVM
- Product category: LCD KVM Consoles IOGEAR
- Brand: IOGEAR
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for IOGEAR LCD KVM Consoles
|
User manual for the IOGEAR GCL1916KITU 16-Port 19" LCD KVM contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any IOGEAR product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official IOGEAR user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a IOGEAR product will considerably shorten its lifespan!
|
Product description The GCL1916KITU 16-Port 19" LCD KVM Drawer Kit with USB KVM Cables from Iogear is an integrated LCD console with 16-port KVM (keyboard, video, and mouse) switch that offers secure access to 16 VGA, USB or PS/2 computers. It features a convenient rack mountable sliding / retractable 19" TFT LCD active matrix monitor and keyboard with built-in touchpad for a space-saving and streamlined integration. The switch fits into a universal 1U rack mount space.The switch supports both PS/2 and USB keyboards and mice for the connected computers, and supports USB peripheral devices for the attached computers. A single GCL1916 can control up to 16 computers, but as many as 16 additional compatible KVM switches can be cascaded to reach up to 256 computers controlled from a single keyboard, monitor and mouse console.This kit includes an additional 15 USB KVM cables (7 x 6', 8 x 10'). The cables provide high signal capacity with low signal loss. This important technology produces high-quality video output - even after long distance transmission or in electronically noisy environments such as server cabinets. The keyboard and mouse cables are made of double-sealed 22-gauge wire and are neatly wrapped with a heavy-duty video cable for simplified connections. - Integrated 16-port KVM console featuring a 19" TFT LCD active matrix monitor, keyboard, and touchpad
- 1280x1024 resolution on 19" rack mount LCD provides a sharp video display
- Adjustable mounting rail to fit different sizes of racks
- Multi-platform OS support - Windows, Mac and Linux
- Easy to operate - computer selection via front panel pushbutton LED's, intuitive OSD (on-screen display) and hotkeys
- External USB or PS/2 with VGA Console port
- Cascade up to 2 levels - control up to 128 computers from a single console
- Security - 2 level password protection for OSD
- DDC Emulation - Video settings of each computer are automatically adjusted for optimal output to the monitor
- Rack mountable in a 19" (1U) system rack
- Custom ASIC provides an auto-sensing function that recognizes the position of each station on the installation
UPC: 881317513397 In the Box IOGEAR GCL1916KITU 16-Port 19" LCD KVM Drawer Kit with USB KVM Cables 8-Port 19" LCD KVM 7 x 6' USB KVM Cable 8 x 10' USB KVM Cable Firmware Upgrade Cable Standard Long Rack Mount Kit Power Cord Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the IOGEAR GCL1916KITU 16-Port 19" LCD KVM Drawer Kit with USB KVM Cables in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersIOGEAR GCL1916KITU Specs | Requirements | Computers
VGA, SVGA, or MultiSync video graphics card with an HDB-15 port
PS/2 mouse and keyboard ports (6-pin mini DIN) or 1 USB port | | Dimensions (W x H x D) | 26.75 x 32.5 x 5.25" (67.95 x 82.55 x 13.34 cm) | | Weight | 28.05 lb (12.68 kg) |
