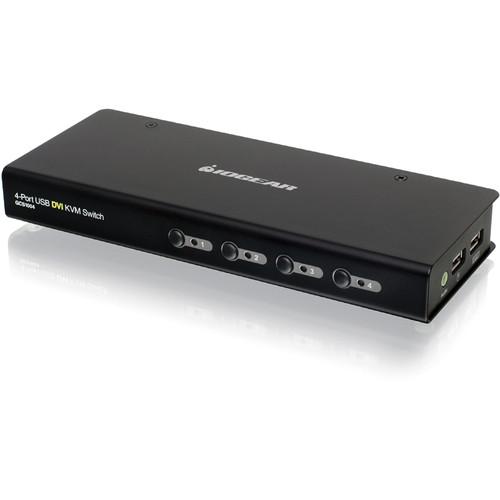

User Manual for IOGEAR GCS1004 4-Port USB DVI KVM Switch Click to enlarge the picture
Contents of the user manual for the IOGEAR GCS1004 4-Port USB DVI KVM
- Product category: KVM Switches IOGEAR
- Brand: IOGEAR
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for IOGEAR KVM Switches
 |
User manual for the IOGEAR GCS1004 4-Port USB DVI KVM contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any IOGEAR product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official IOGEAR user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a IOGEAR product will considerably shorten its lifespan!
|
Product description Multi-Monitors: Maximizing Multitasking Read More The GCS1004 4-Port USB DVI KVM Switch from IOGEAR is designed to support up to four computer connections and one console connection. In addition to computer connections you also benefit from one USB keyboard, one USB mouse, one DVI-D video, and one mini stereo jack to connect all of your peripherals directly to the switch.
With this USB, DVI, KVM switch you can access up to four computers directly through the switch from one keyboard, mouse, and monitor. With support for resolutions up to 1920 x 1080 at 60 Hz the video signal will remain clear while the integrated audio jack allows you to stream audio from any of the attached computers. - One DVI console controls up to four USB interface computers
- Fully compliant with DVI specification (digital only)
- Supports multi-function and wireless mouse/keyboard
- Audio enabled for full bass response providing a rich experience for 2.1 channel surround sound systems
- Video resolution for supporting resolutions up to 1920 x 1200 at 60Hz (1080p Full HD)
- Auto Scan Mode for monitoring all computers
- Multiplatform support - Windows, Linux, Mac, FreeBSD and Oracle Solaris
- Console mouse port emulation/bypass feature supports most mouse drivers and multifunction mice
- Hot Pluggable to easily add or remove computers for maintenance without powering down the switch
- Video DynaSync technology to eliminate boot-up display problems and optimize resolutions when switching between ports
- Power on Detection automatically switches to the next powered-on computer when the other is turned off

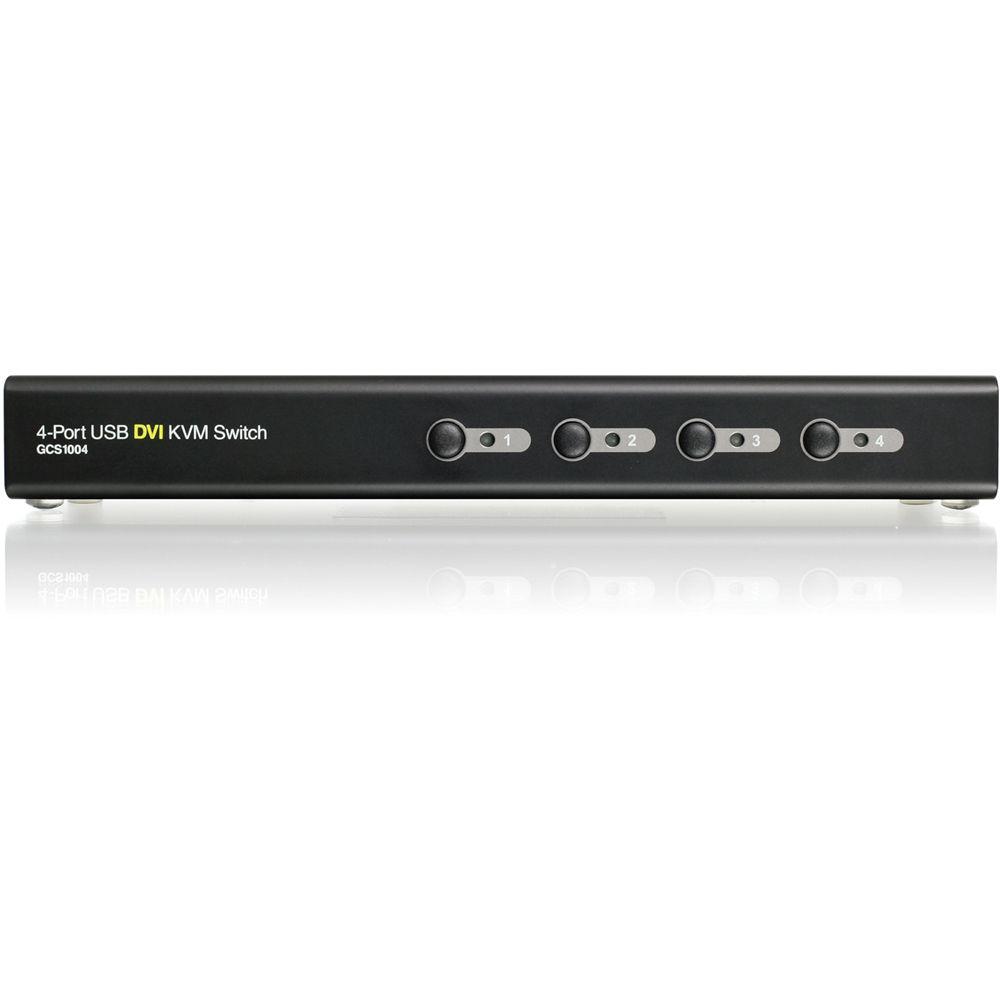

- Computer selection via front panel pushbuttons, hotkeys, and mouse switching function
- USB 2.0 mouse port can be used for USB hub and USB peripheral sharing
- Complete keyboard emulation for error-free booting
- Mac/Sun keyboard support and emulation

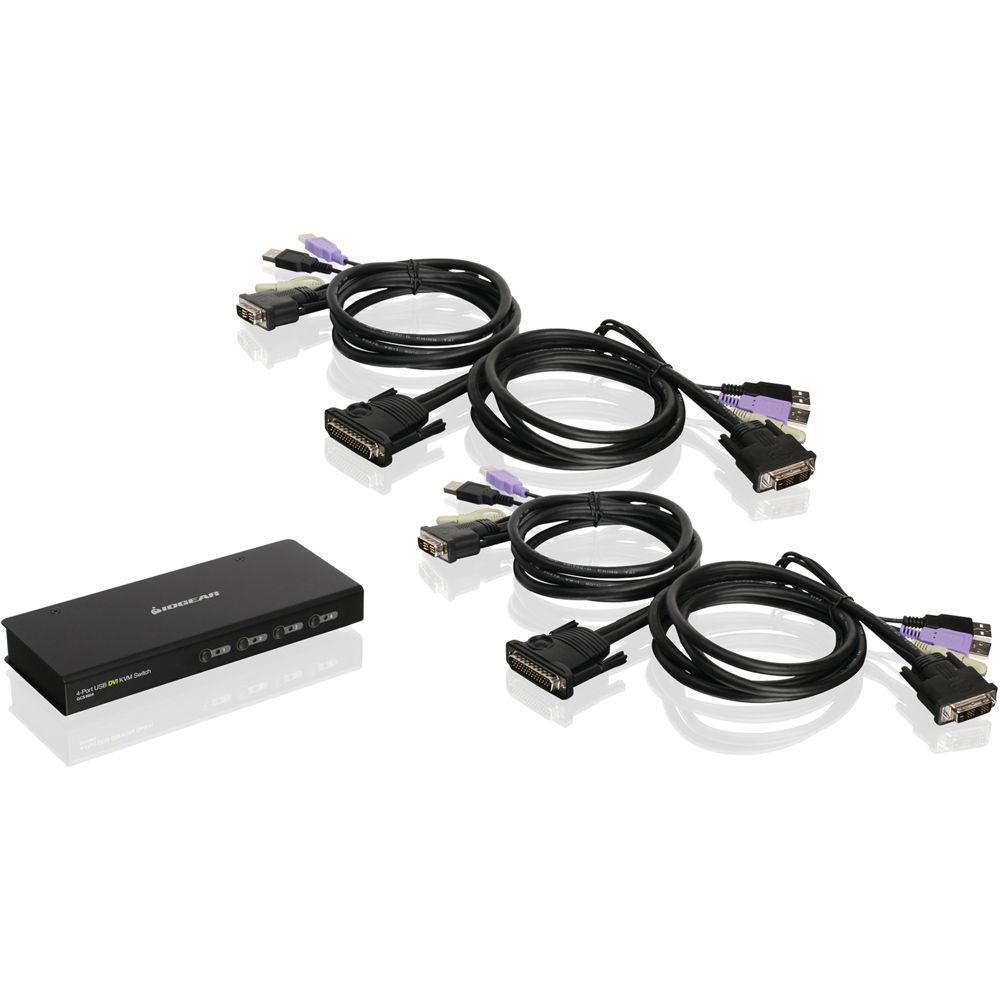

UPC: 881317511782 In the Box IOGEAR GCS1004 4-Port USB DVI KVM Switch 4ft 44-pin Custom KVM Cable set 6ft 44-pin Custom KVM Cable set Power Adapter Limited 3-Year Manufacturer Warranty Guides & Manuals Table of Contents
|
Upload User Manual
Have you got an user manual for the IOGEAR GCS1004 4-Port USB DVI KVM Switch in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Download User ManualThe user manual for the IOGEAR GCS1004 4-Port USB DVI KVM Switch can be downloaded in PDF format at the link stated below.

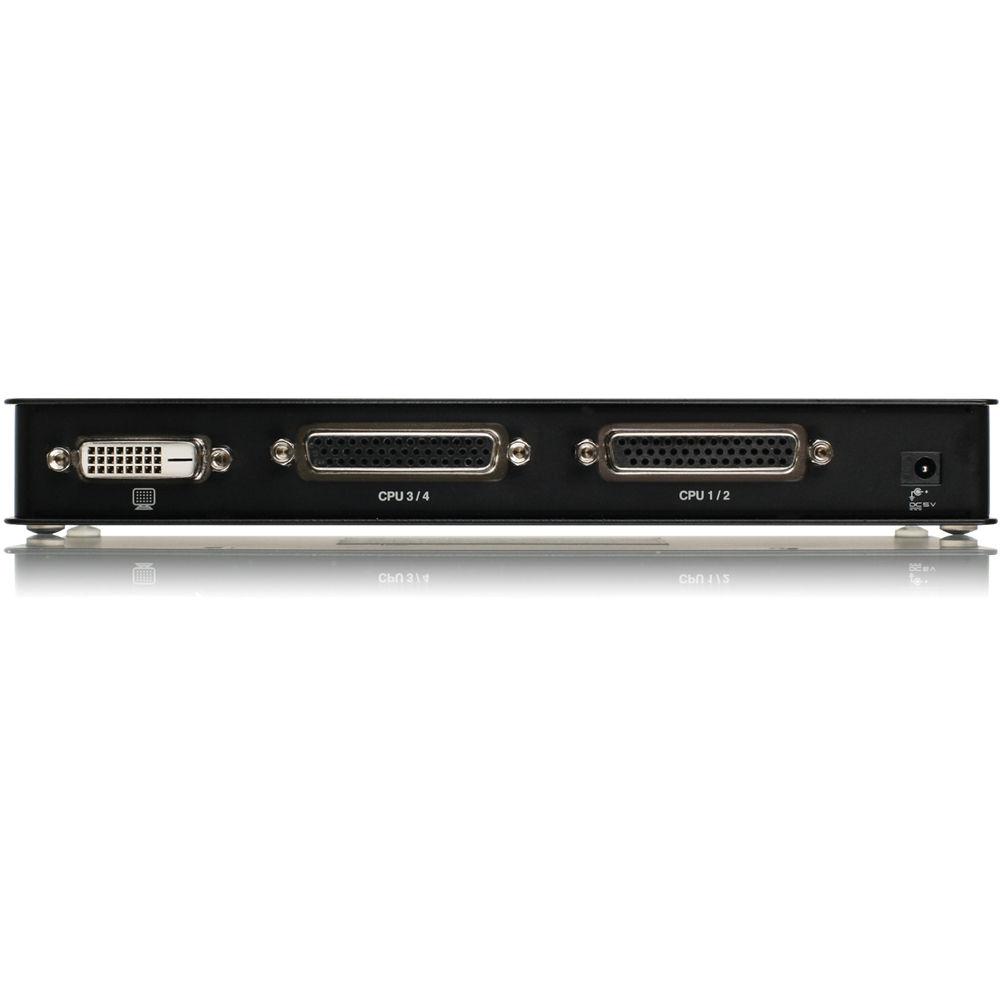

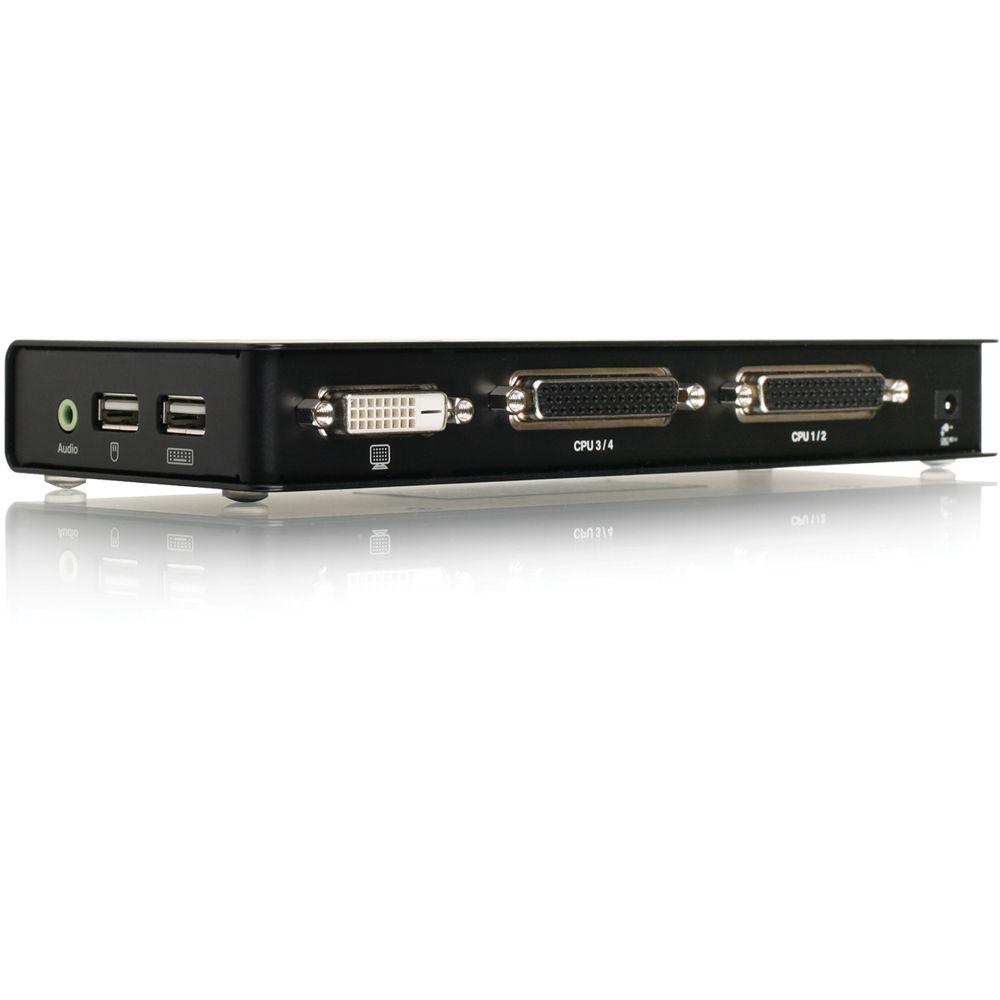

Technical parametersIOGEAR GCS1004 Specs | | | # of Systems Supported | 4 | | CPU Connections | 4 x DVI-D
4 x USB 2.0 Type-A (Mouse)
4 x USB 2.0 Type-A (Keyboard)
4 x 3.5 mm Audio | | Console Connections | 1 x DVI-D, Female
1 x USB (Unspecified Version) Type-A (Keyboard)
1 x USB (Unspecified Version) Type-A (Mouse)
1 x 3.5 mm Audio | | Scan Interval Range | 3 to 20 secs (5 secs Default) | | Supported Resolutions | 1920 x 1080 @ 60 Hz | | USB Keyboard/Mouse Emulation | Yes | | | | DC Input Power | 5.3 VDC at 1 A | | Power Consumption | 5.3 W | | | | Operating Temperature | 32 to 122°F / 0 to 50°C | | Operating Humidity | 0 to 80% | | Storage Temperature | -4 to 140°F / -20 to 60°C | | | | Cable Length | 4' / 1.2 m (KVM)
6' / 1.8 m (KVM) | | Dimensions | 7.8 x 3.0 x 0.9" / 19.8 x 7.5 x 2.3 cm | | Weight | 1.1 lb / 0.5 kg | | | | Package Weight | 3.85 lb | | Box Dimensions (LxWxH) | 11.3 x 7.2 x 4.0" |
