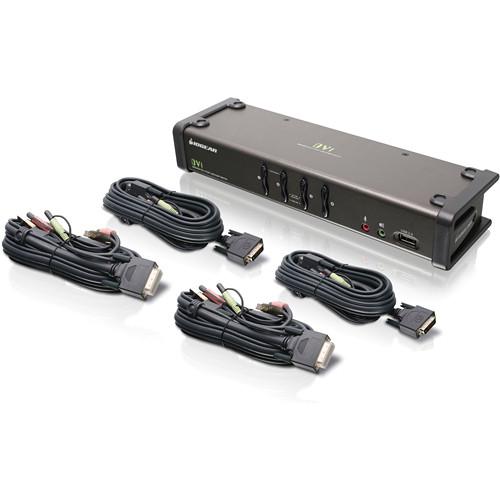

User Manual for IOGEAR GCS1104 4-Port USB DVI KVMP Switch with Audio and Cables Click to enlarge the picture
Contents of the user manual for the IOGEAR GCS1104 4-Port USB DVI KVMP
- Product category: KVM Switches IOGEAR
- Brand: IOGEAR
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for IOGEAR KVM Switches
 |
User manual for the IOGEAR GCS1104 4-Port USB DVI KVMP contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any IOGEAR product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official IOGEAR user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a IOGEAR product will considerably shorten its lifespan!
|

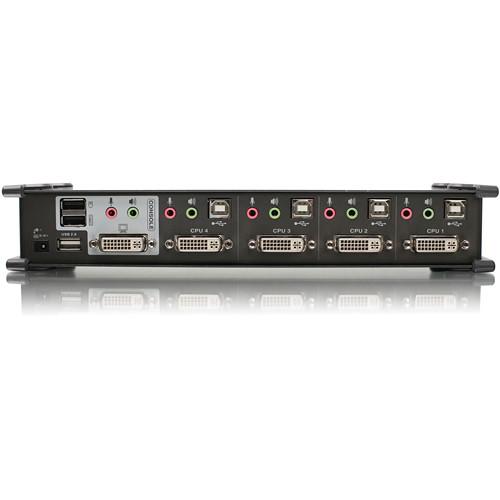

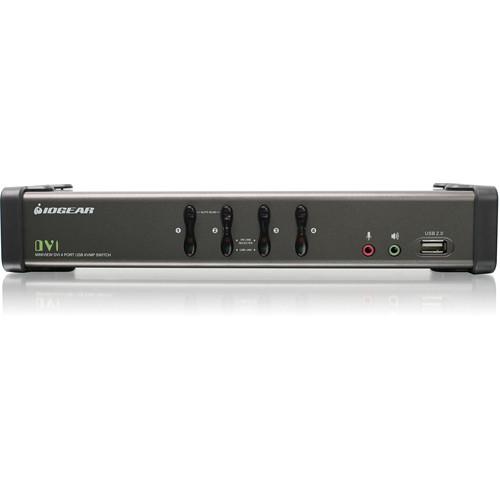

Product description Multi-Monitors: Maximizing Multitasking Read More The GCS1104 4-Port USB DVI KVMP Switch with Audio and Cables from Iogear allows a single user to manage 4 separate workstations with one keyboard, mouse, and monitor. Switch between the computers via the switch on the front panel or by hotkey. Asynchronous switching allows you to use peripherals from one computer while the switch targets another one, allowing you to switch without interrupting printing or another peripheral device in use. With support of single-link DVI resolutions up to 1920 x 1200 and full 2.1 stereo audio support, the 4-Port DVI KVMP Switch provides a versatile and convenient way to manage 4 computers from one station. - One console controls 4 USB DVI computers
- Single link DVI resolution up to 1920 x 1200 @ 60Hz; DDC2B
- 2-port USB 2.0 hub for peripherals sharing
- IOGEAR's Display Emulation Technology reads and remembers the monitor's parameters (EDID) so there is no delay or change of video resolution when switching between, or booting computers
- Independent (Asynchronous) Hotkey switching between KVM focus, USB peripherals, and audio ports
- 2.1 Stereo audio and microphone support
- Computer selection via front panel switches or hotkeys
- LED display for easy status monitoring
- Auto Scan Mode - For monitoring all computers
- Complete keyboard emulation for error free booting
- Hot Pluggable - Add or remove computers for maintenance without powering down the switch
- Supports Windows and Mac host systems
- Power-On Detection - Automatically switches to the next powered-on computer when the other is turned off
- Plug & Play - No software installation required
UPC: 881317504326 In the Box IOGEAR GCS1104 4-Port USB DVI KVMP Switch with Audio and Cables 4 x USB DVI-D KVM Cables (6.0' / 1.8m) Power Adapter Installation Guide 3-Year Limited Warranty User Manual PDF 1.5mbrurxdayd More info from IOGEAR Table of Contents
|
Upload User Manual
Have you got an user manual for the IOGEAR GCS1104 4-Port USB DVI KVMP Switch with Audio and Cables in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersIOGEAR GCS1104 Specs | | | # of Systems Supported | 4 | | Scan Interval Range | 1 to 99 secs (5 secs Default) | | Supported Resolutions | 1920 x 1200 | | Operating System Support | Linux, Solaris, Windows, macOS/OS X | | | | Dimensions | 10.6 x 1.9 x 3.1" / 26.9 x 4.8 x 7.9 cm | | Weight | 2.1 lb / 0.9 kg | | | | Package Weight | 5.5 lb | | Box Dimensions (LxWxH) | 13.4 x 8.4 x 4.1" |
Rating94% users recommend this product to others. And what about you?
This product has already been rated by 78 owners. Add your rating and experience with the product.
