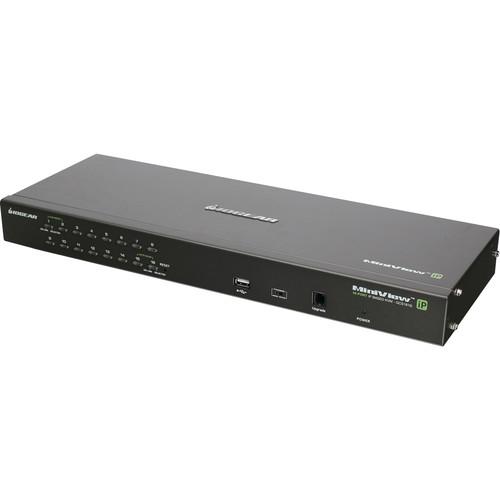

Product description Multi-Monitors: Maximizing Multitasking Read More fyxxytawwzczsbetswdyfbdxs The 16-port GCS1816I IP Based KVM Switch from IOGEAR allows local operators to monitor and access multiple computers. Via the web browser, it also allows remote users to access the switch. GCS1816I supports up to 64 user accounts and allows 32 concurrent user logins for a single-bus computer access. The Message Board, a built-in feature that resembles an Internet chat program, lets users communicate with each other. The ability to exchange information in real-time allows users to manage the KVM switch and connected computers in a smooth and efficient manner. The GCS1816I features many security tools such as 128-bit SSL encryption for browser access and RC4 128-bit encryption for secure data transmission. It also supports third-party authentication such as RADIUS, LDAP, LDAPS, and MS Active Directory. In addition, IP and Mac filters provide added security against unauthorized access. The Log Server, a Windows-based administrative utility, records all the events that take place on the GCS1816I and writes them to a searchable database. Once logged in to the KVM, users can manage the computers via the virtual remote desktop window. Mouse DynaSync optimizes the remote and local cursors synchronization. General Features - 16-port IP-based KVM switch allows you to monitor and control up to 16 computers from both local and remote KVM consoles
- Since the switch is hot-pluggable, you can add or remove computers without having to power down the switch
- It supports multiple platforms like Windows, Linux, and Mac

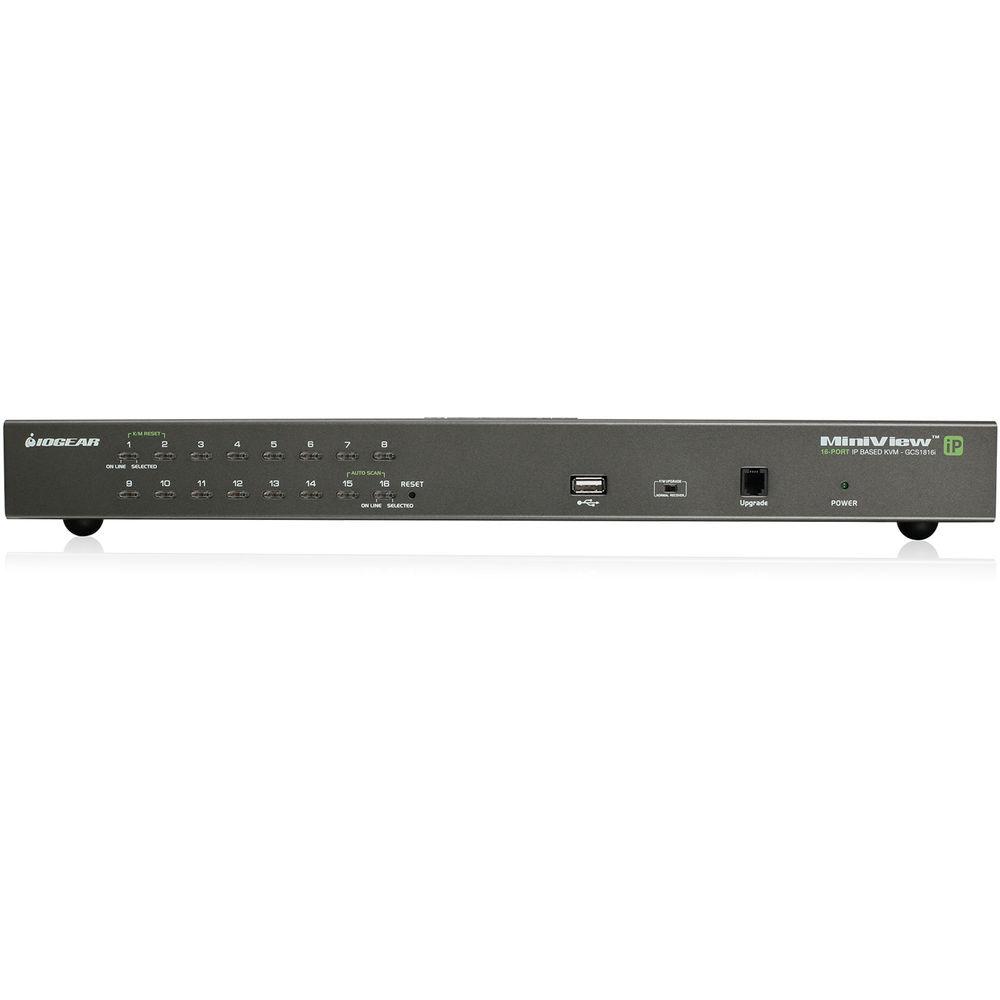

- Front panel USB port allows connected computers to access USB peripherals such as USB flash drives or hard drives 1
Please Note: Only systems connected with the USB KVM cables will be able to access the front USB port for system upgrades and shared peripherals close - The automatic interface detection supports computers with either PS/2 or USB connections
- Supports USB keyboards for Windows and Mac
- Provides up to 2048 x 1536 DDC2B resolution for local console and up to 1600 x 1200 resolution for remote access
- Video DynaSync stores the local monitor's EDID (extended display identification data) to optimize display resolution
Easy-to-Use Interface - Browser-based or AP GUIs, including a menu-driven OSD for the remote console
- Windows client and Java client software support
- Supports multiple browsers like IE, Mozilla, Firefox, Safari, Opera, and Chrome 2
Please Note: The Chrome browser will not work when trying to connect to GCS1816I from Windows OS close - Panel array mode enables user to monitor multiple servers from a single screen
Advanced Security - Secure keyboard/mouse/video transmission via RC4 128-bit encryption
- Supports SSL 128-bit data encryption and RSA 1024-bit certificates for secure user logins from a browser
- Two-level password security (administrator and users) - up to 64 user accounts with separate profiles for each
- Supports third-party authentication like RADIUS, LDAP, LDAPS, MS Active Directory
- Supports IP and MAC filters
- Log in authentication required for both local and remote access
Virtual Remote Desktop - Resizable remote desktop window
- Message board allows logged in users to communicate with each other and allows a user to take exclusive control of the KVM functions
- On-screen keyboard with multi-language support

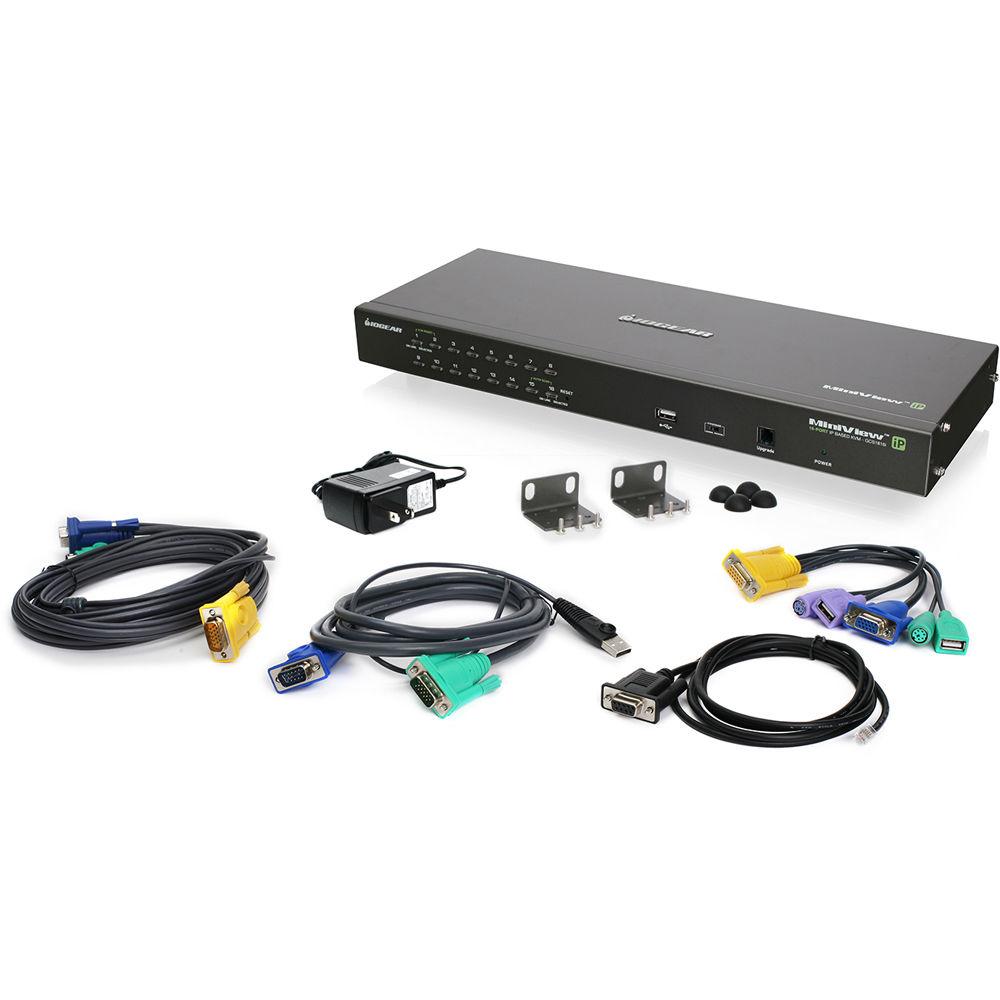

In the Box IOGEAR GCS1816I IP Based KVM Switch (16-Port) PS/2 Cable USB Cable Console Cable Firmware Upgrade Cable Power Adapter Mounting Kit 4 x Foot Pad Software CD Limited 3-Year Warranty Brochure PDF 249.5kbfyxxytawwzczsbetswdyfbdxs Table of Contents
|
Upload User Manual
Have you got an user manual for the IOGEAR GCS1816I IP Based KVM Switch in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

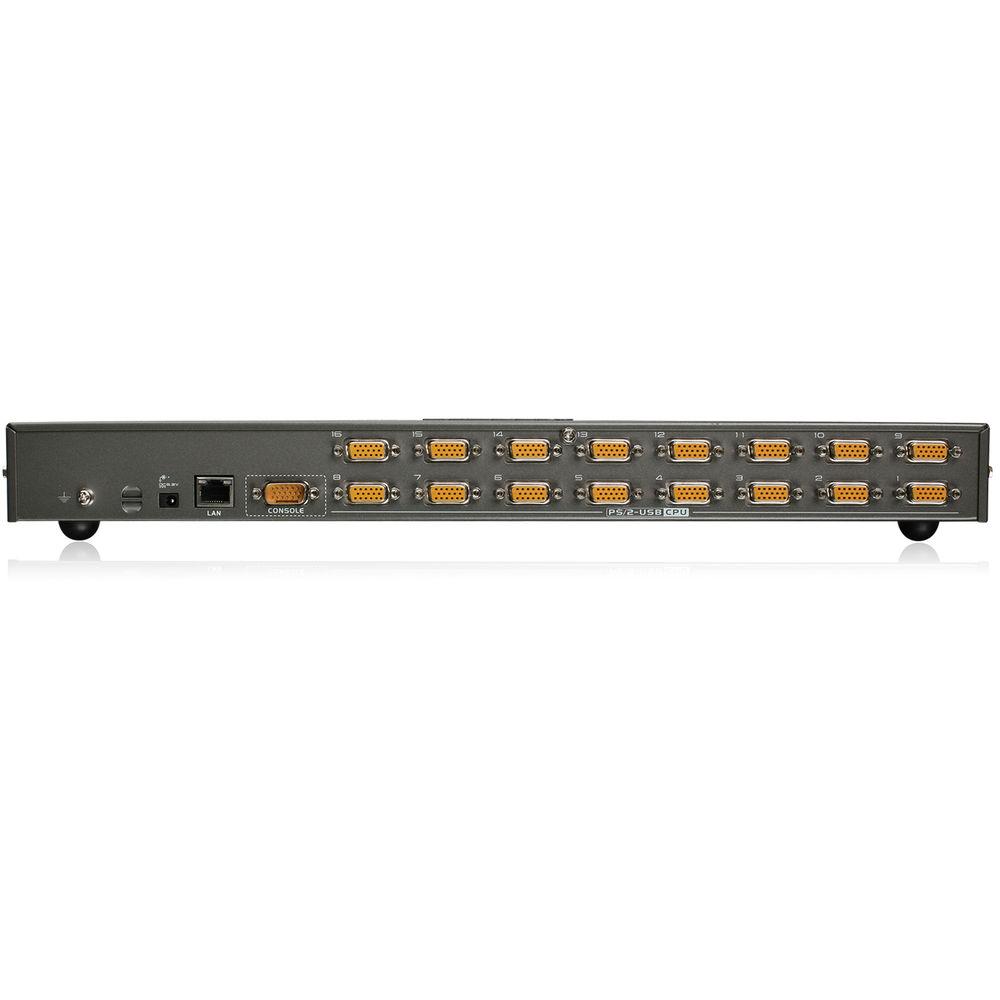

Technical parametersIOGEAR GCS1816I Specs | | | Direct | 16 | | Port Selection | OSD; Hotkey; Push button | | | | Keyboard / Mouse | 1 x SPHD-18 male for keyboard, mouse, and monitor | | Power | 1 x DC jack | | LAN | 1 x RJ45 female | | USB | 1 x USB type-A | | Computer/KVM | 16 x SPDH-17 female | | | | Reset | 1 x Semi-recessed pushbutton | | Port Selection | 16 x Pushbutton | | Firmware Upgrade | 1 x Slide | | | | Keyboard | USB, PS/2 | | Mouse | USB, PS/2 | | | | Local Playback | 2048 x 1536; DDC2B | | Remote Playback | 1600 x 1200 @ 60 Hz / 24-bit color depth | | Scan Interval | 1 to 255 sec | | | | LEDs | On Line: 16 (Orange) Selected: 16 (Green) Power On: 1 (Dark green) 10/100 Mbps: 1 (Orange/Green-at LAN port) | | Power Consumption | 5.3 VDC; 11 W | | Housing | Metal casing | | | | Humidity | 0 to 80% RH, non-condensing | | Operation Temperature | 32 to 122°F (0 to 50°C) | | Storage Temperature | -4 to 140°F (-20 to 60°C) | | | | Dimensions | 1.75 x 6.25 x 17.00" (4.45 x 15.88 x 43.18 cm) | | Weight | 6.1 lb (2.8 kg) |
