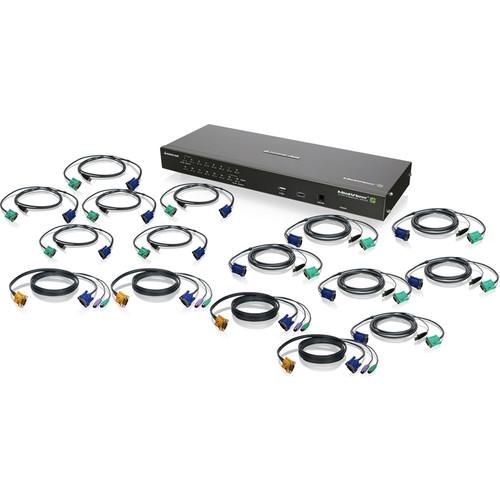

User Manual for IOGEAR GCS1816iKIT 19" Rack Mount 16-Port IP Based KVM Switch Kit with PS 2 & USB KVM Cables Click to enlarge the picture
Contents of the user manual for the IOGEAR GCS1816iKIT 19" Rack Mount 16-Port
- Product category: KVM Switches IOGEAR
- Brand: IOGEAR
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for IOGEAR KVM Switches
|
User manual for the IOGEAR GCS1816iKIT 19" Rack Mount 16-Port contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any IOGEAR product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official IOGEAR user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a IOGEAR product will considerably shorten its lifespan!
|
Product description Multi-Monitors: Maximizing Multitasking Read More The GCS1816iKIT 19" Rack Mount 16-Port IP Based KVM Switch Kit with PS/2 & USB KVM Cables from Iogear allows both local and remote operators to monitor and access multiple computers. Remote users access the switches over the Internet through a web browser using TCP/IP protocol. This switch supports up to 64 user accounts and allows 32 concurrent user logins for single-bus computer access. The Message Board, a built-in feature that resembles an Internet chat program, lets users communicate with each other. The ability to exchange information in real time allows users to manage the KVM switch and connected computers in a smooth and efficient manner.The unit features many security tools such as 128-bit SSL encryption for browser access and RC4 128-bit encryption for secure data transmission. It also supports third party authentication such as RADIUS, LDAP, LDAPS, and MS Active Directory. In addition, IP and Mac filters provide added security against unauthorized access. The Log Server, a Windows-based administrative utility, records all the events that take place on the switch and writes them to a searchable database. Once logged in to GCS1816i, users can manage the computers via a virtual remote desktop window. Mouse DynaSync optimizes the remote and local cursors synchronization. This kit includes additional PS/2 cables (1 x 6', 2 x 10') and USB KVM cables (5 x 6', 6 x 10') to help produce high quality video output - even after long distance transmission or in the most electronically noisy environments such as server cabinets. The cables guarantee optimum signal integrity for high-grade server needs. The keyboard and mouse cables are made of double-sealed 22-gauge wire and are neatly wrapped with a heavy-duty video cable for simplified connections. - Hot-pluggable lets you add or remove computers without having to power down the switch
- Multi-platform support - Windows, Linux and Mac - front panel USB port allows connected computers to access USB peripherals such as USB flash drives or hard drives 1
Please Note: Only systems connected with the USB KVM cables will be able to access the front USB port for system upgrades and shared peripherals close - Dual Interface - the automatic interface detection supports computers with either PS/2 or USB connections
- Complete keyboard and mouse emulation for error free booting
- Supports USB keyboards for Windows and Mac
- Superior video quality - up to 2048 x 1536 DDC2B for the local console; up to 1600 x 1200 @ 60Hz/24-bit color depth for remote access
- Video DynaSync - stores the local monitor's EDID (Extended Display Identification Data) to optimize display resolution
- 19" rack mountable; a mounting kit is included
- Browser-based or AP GUIs, including a menu-driven OSD for the remote console
- Windows client and Java client software support
- Menu-driven OSD for the local console
- Multi-platform client support (Windows, Mac OS X, Linux)
- Multi-browser support (IE, Mozilla, Firefox, Safari, Opera, Chrome) 2
Please Note: Chrome browser will not work when trying to connect to the switch from Windows OS close - Panel array mode enables user to monitor multiple servers from a single screen
- Secure keyboard/mouse/video transmission via RC4 128-bit encryption
- Supports SSL 128-bit data encryption and RSA 1024-bit certificates for secure user logins from a browser
- Two level password security (administrator and users) - up to 64 user accounts with separate profiles for each
- Third party authentication supported: RADIUS, LDAP, LDAPS, MS Active Directory
- Supports IP and MAC filters
- Log in authentication required for both local and remote access
- Resizable remote desktop window
- Message board allows logged in users to communicate with each other and allows a user to take exclusive control of KVM functions
- On-screen keyboard with multi-language support
UPC: 881317513427 In the Box IOGEAR GCS1816iKIT 19" Rack Mount 16-Port IP Based KVM Switch Kit with PS/2 & USB KVM Cables GCS1816i 16-Port IP Based KVM Switch 6' KVM PS/2 Cable 2 x 10' KVM PS/2 Cable 5 x 6' KVM USB Cable 6 x 10' KVM USB Cable Console Cable Firmware Upgrade Cable Foot Pad Set (4 pcs) Power Adapter Mounting Kit Software CD Limited 3-Year Warranty Brochure PDF 312.7kbwqcwsbddfefv Table of Contents
|
Upload User Manual
Have you got an user manual for the IOGEAR GCS1816iKIT 19" Rack Mount 16-Port IP Based KVM Switch Kit with PS 2 & USB KVM Cables in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersIOGEAR GCS1816IKIT Specs | | | Additional Hardware/Software | For best results during remote access: Computers used to access the switch should have at least a P III 1 GHz processor and screen resolution should be set to 1024x768
Internet connection speed of at least 128 kb/s
Browsers must support 128-bit data encryption
To run the Windows client, DirectX 8.0 or higher is required
To run the Java client, Sun's Java Runtime Environment (JRE) 6, Update 3, or higher is required
To run the Log Server, Microsoft Jet OLEDB 4.0 (or higher) driver is required
Local Console: 1 VGA monitor
1 USB or PS/2 Mouse
1 USB or PS/2 Keyboard
Local Computers:
Video graphics card with an HDB-15 VGA port
Type A USB port and USB host controller or 6-pin mini-DIN keyboard and mouse port
Operating System
Windows Vista (32-/64-bit), Windows 7 (32-/64-bit), Windows 8.x (32-/64-bit)
Apple Mac OS X 9.0 to 10.X
Linux | | Dimensions (L x D x H) | 17 x 6.25 x 1.75" (43.18 x 15.88 x 4.45 cm) | | Weight | 6.1 lb (2.76 kg) |
