User Manual for IOGEAR GearPower QuadSmart USB 4.2A Wall Charger Click to enlarge the picture
Contents of the user manual for the IOGEAR GearPower QuadSmart USB 4.2A Wall
- Product category: Wall Chargers IOGEAR
- Brand: IOGEAR
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for IOGEAR Wall Chargers
 |
User manual for the IOGEAR GearPower QuadSmart USB 4.2A Wall contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any IOGEAR product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official IOGEAR user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a IOGEAR product will considerably shorten its lifespan!
|

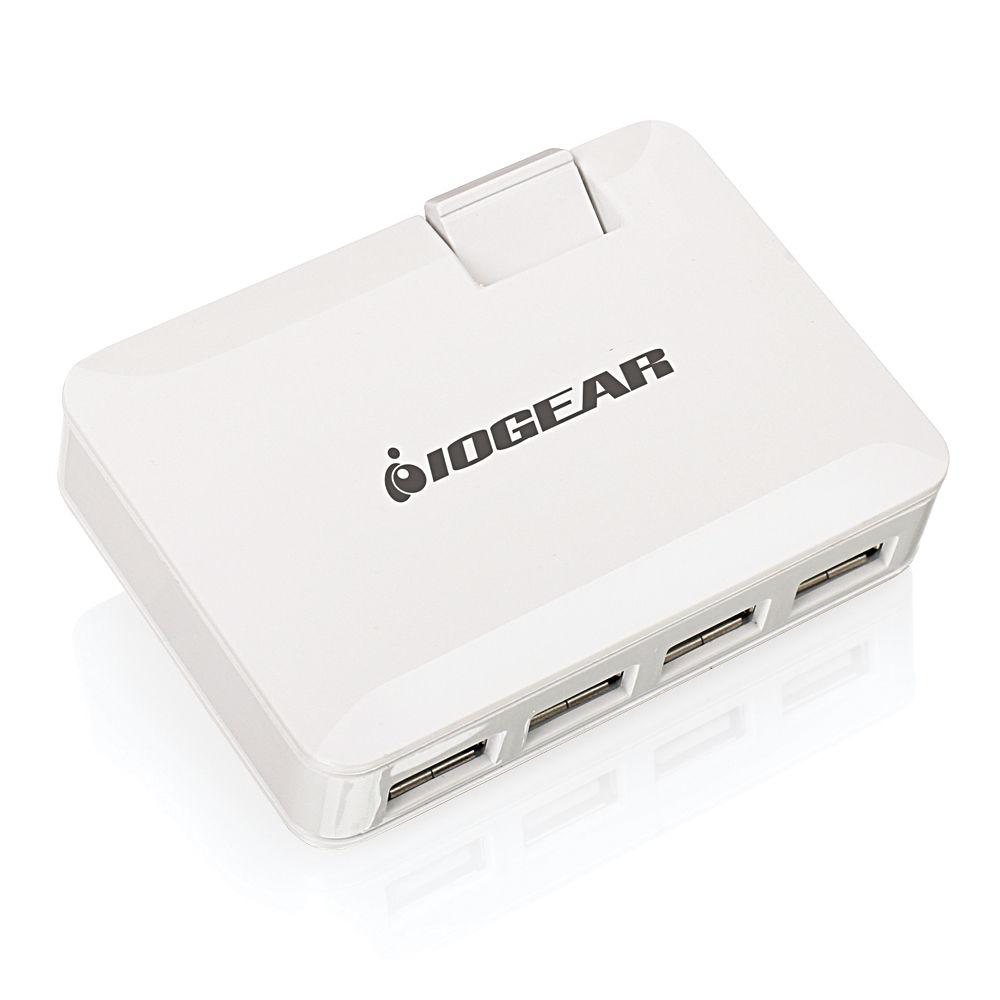

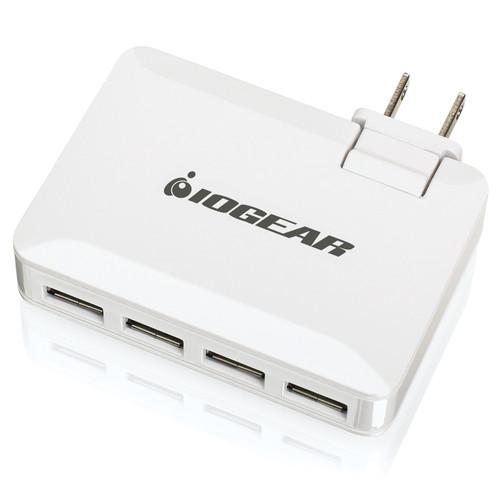

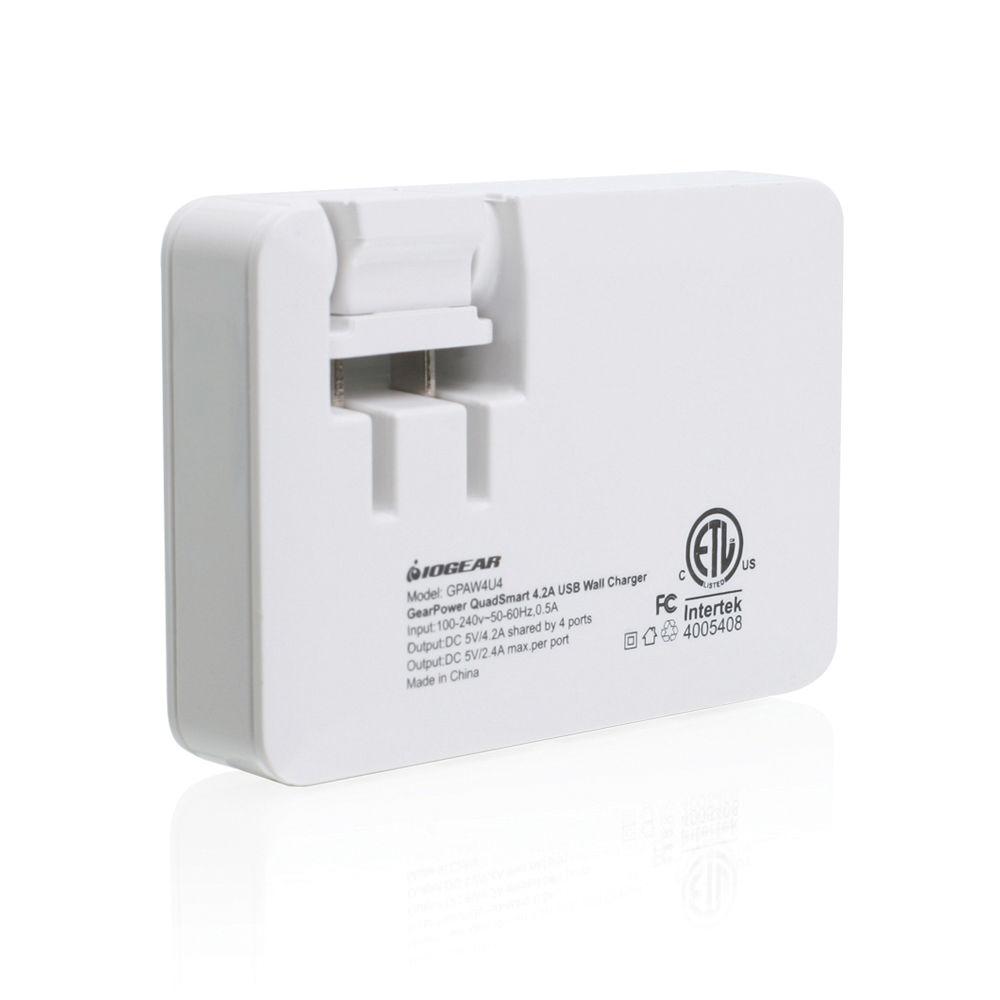

Product description If you have several mobile devices and not enough places to plug in all the chargers, or travel and don't want to carry a charger for each device, the IOGEAR GearPower QuadSmart USB 4.2A Wall Charger could be useful. It provides four USB outputs for simultaneous charging of tablets, smartphones, and other mobile devices. SmartPower balancing technology divides 4.2A total output among devices as needed, with up to 2.4A on any one port. Quick-charge up to two iPads or charge four devices simultaneously. The wall charger has plugs that fold for a compact form factor for easy portability. - Four-Port USB Wall Charger
- The charger plugs into any standard outlet and allows you to connect up to four devices to charge at the same time, including iPhone and iPad. The four built-in USB outputs are controlled by a microprocessor that intelligently balances the total 4.2A output between the devices to maximize the charging rate. With SmartPower built into the GearPower QuadSmart, you can plug into any of the USB outputs without worrying if it is the right port for your device
- Charge Multiple Devices at Once
- Connect two iPads into any two QuadSmart ports and each will fast charge at up to 2.4A, or connect four iPhones or other smartphones and each will charge at their normal 1A rate. When you mix devices, like charging one iPad and two smartphones, the QuadSmart power balancing feature divides the available power according to device demand. In this case, the iPad would receive up to 2.4A and the remaining power would be divided between each smartphone. When the request for power exceeds 4.2A, as when connecting three or four iPads, SmartPower equally divides the charging current to all devices. So, even four iPads can simultaneously charge at the lower 1A rate. iPad mini users will see an upgrade to their charging speed over the originally included charger and even charge a second device at the same time
- Compact Form Factor
- In addition to its compact form factor, the charger has folding plugs and fits in a pocket - making it easy to carry to work, school, or stow away while traveling. When you need to use it, simply connect your USB charging cables and simultaneously charge up to four devices
- Charges Most USB Devices
- While it will charge most USB devices, there are some products with proprietary charging configurations (such as certain BlackBerry and Samsung models, and others) which are not compatible with aftermarket chargers
UPC: 881317512178 In the Box IOGEAR GearPower QuadSmart USB 4.2A Wall Charger Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the IOGEAR GearPower QuadSmart USB 4.2A Wall Charger in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersIOGEAR GPAW4U4 Specs | | | Output Ports | 4 x USB Type-A: 5 VDC at 4.2 A Shared | | | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz at 0.5 A | | | | Operating Temperature | 32 to 104°F / 0 to 40°C | | Storage Temperature | -4 to 140°F / -20 to 60°C | | | | Dimensions | 2.38 x 1.31 x 3.38" / 6.03 x 3.33 x 8.57 cm | | Weight | 3.36 oz / 95.25 g | | | | Package Weight | 0.3 lb | | Box Dimensions (LxWxH) | 5.7 x 4.4 x 1.3" |
Rating94% users recommend this product to others. And what about you?
This product has already been rated by 16 owners. Add your rating and experience with the product.
