Product description The Iogear GVE320 HD Audio/Video Extender System With CAT5e/6 And HDMI extends the connection between a media source and a display unit by up to 130' at 1080p resolution via two Cat 5e or Cat 6 cables.
The sophisticated system supports HD and 3D, and 12-bit deep color. It offers Dolby TrueHD and DTS-HD Master Audio pass-through support and features manually-adjustable equalization.

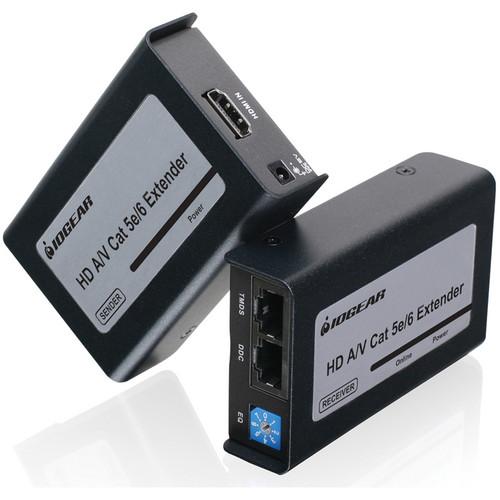

Useful for home-entertainment, commercial, and security purposes, the GVE320's sender and receiver units are each equipped with two Ethernet ports that the Cat 5e/6 cables connect into. Each unit also has one HDMI port -- an input on one, an output on the other. Via HDMI, a media source connects to the sender, a display unit to the receiver, and the sender and receiver connect via Cat 5e/6. A Blu-ray player and a TV can thus be connected yet kept in separate rooms, with the TV on display in one room and the Blu-ray out of sight in another.
The sender and receiver are metal-cased and conveniently rack-mount and wall-mount with included mounting kits. The units are backward compatible with DVI devices by way of HDMI to DVI adapters. The system is HDCP-compliant.
Please note that HDMI and Cat 5e/6 cables are not included. Two identical, solid Cat5e or Cat 6 cables would be required. And extension range may vary with different devices and different Cat 5e/6 cables. - Up to 130' extension at 1080p
- Up to 200' extension at 1080i (may vary depending on the devices and Cat cables used)
- Supports HD, 3D, and 12-bit deep color.
- Offers pass-through support for Dolby TrueHD and DTS-HD codecs, and features manually-adjustable equalization.
- Features HDMI input and output, Cat5e/6 Ethernet ports, and is backward compatible with DVI devices.
- Metal cased and conveniently rack-mounts and wall-mounts with included mounting kits.

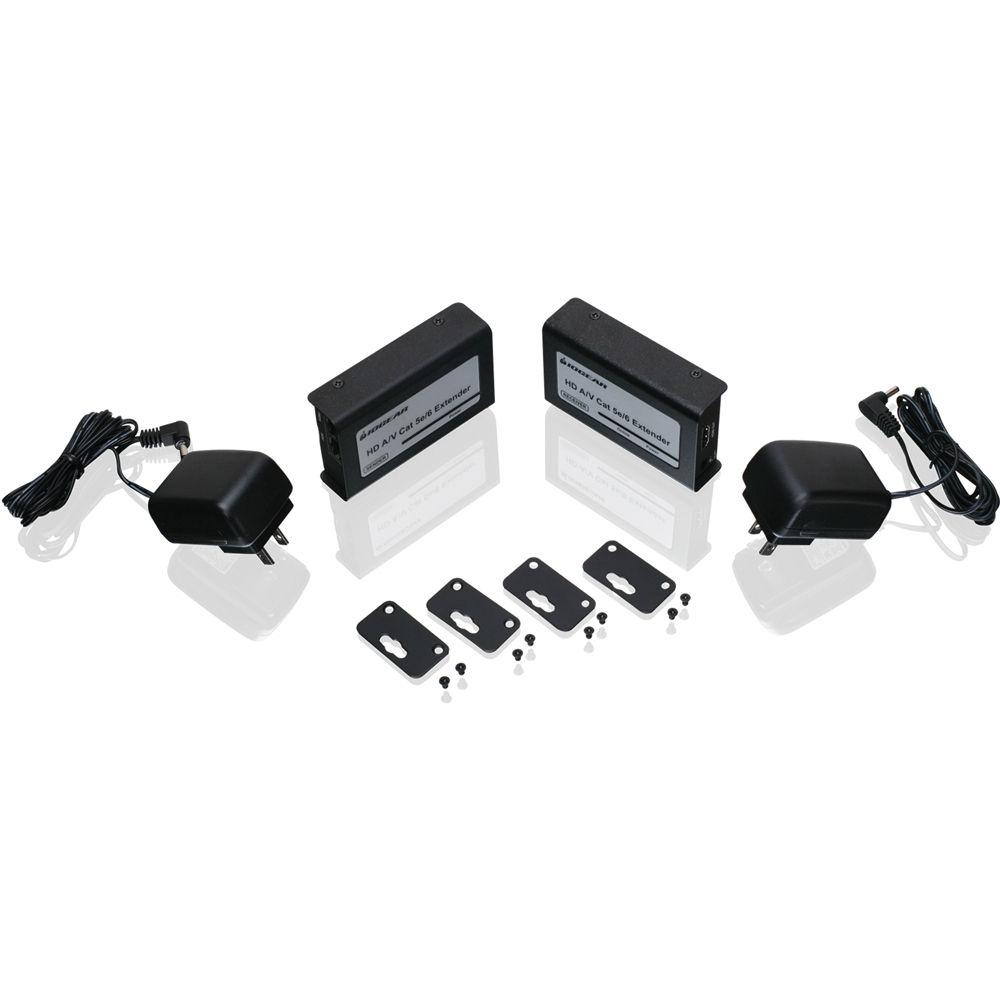

UPC: 881317508812 In the Box IOGEAR GVE320 HD Audio/Video Extender System With CAT5e/6 And HDMI 2 x Power Adapter 2 x Wall/Rack Mount Kit Quick Start Guide 3-Year Warranty Card Table of Contents
|
Upload User Manual
Have you got an user manual for the IOGEAR GVE320 HD Audio Video Extender System With CAT5e 6 And HDMI in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersIOGEAR GVE320 Specs | Cable Type | 2 x solid CAT5e/6 (for extension) | | Cable Distance | Up to 130' / 40 m in 1080p

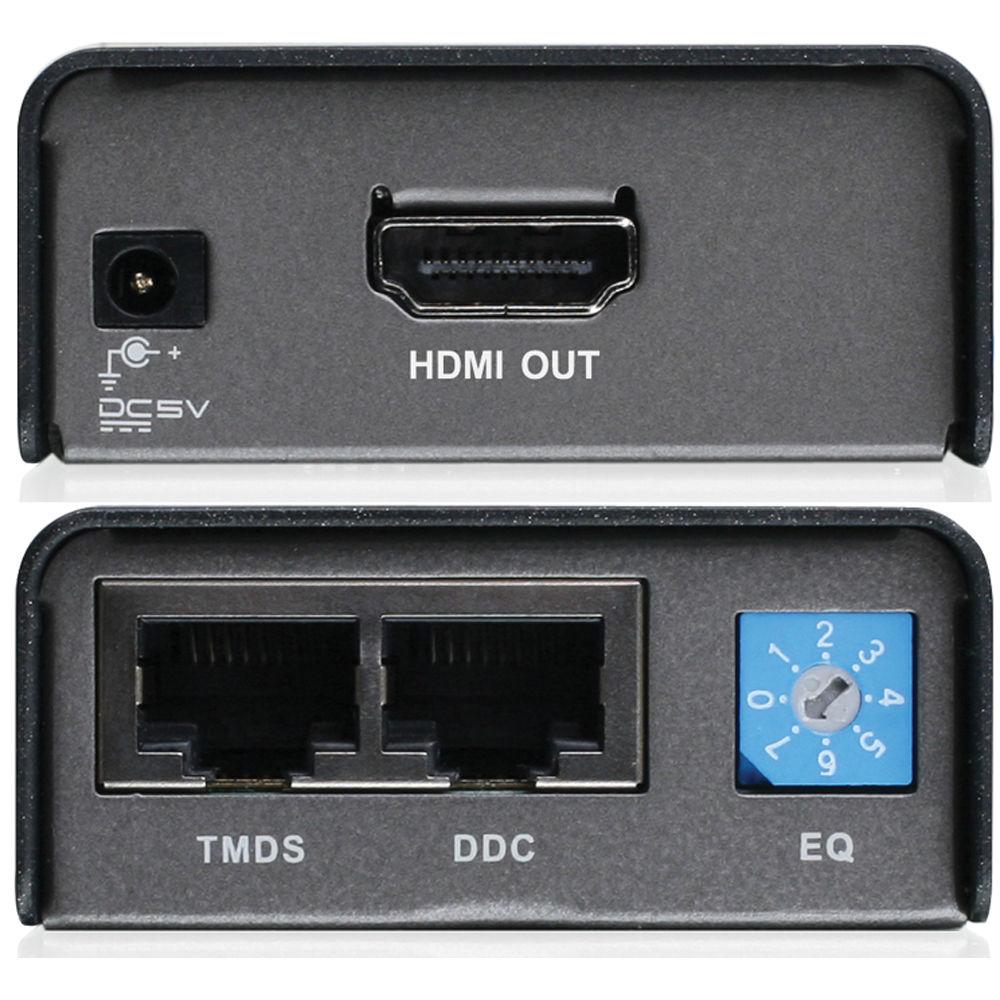

Up to 200' / 60 m in 1080i (range may vary depending on devices and Cat cables used) | | Connections | Input: HDMI Type A 19 pin female
Output: HDMI Type A 19 pin female
Link: 2 x Cat 5e/6 | | LEDs | Power on: 1 (local and remote unit)
On line: 1 (remote unit) | | Resolution | 480i, 480p, 720p, 1080i and 1080p | | Data Rate | Up to 2.25 Gb/s | | Housing | Metal case | | Dimensions | Unit:
2.3 x 1 x 3.5" / 5.8 x 2.5 x 9 cm
Peg Hooks:
4 measuring 10" / 25 cm
2 measuring 6" / 15 cm | | Weight | Unit weight with accessories: 1.1 lb / 0.5 kg | | | | Package Weight | 1.5 lb | | Box Dimensions (LxWxH) | 9.8 x 6.4 x 2.3" |
