User Manual for IOGEAR GW4K30GH60 HDR 4K UHD Wireless HDMI Extender Click to enlarge the picture
Contents of the user manual for the IOGEAR GW4K30GH60 HDR 4K UHD Wireless
- Product category: HDMI Signal Extenders IOGEAR
- Brand: IOGEAR
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for IOGEAR HDMI Signal Extenders
 |
User manual for the IOGEAR GW4K30GH60 HDR 4K UHD Wireless contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any IOGEAR product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official IOGEAR user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a IOGEAR product will considerably shorten its lifespan!
|

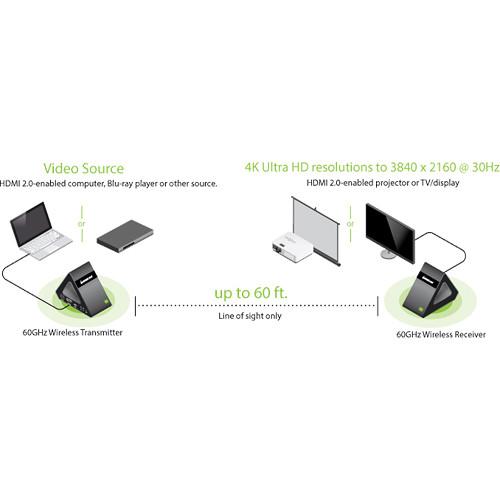

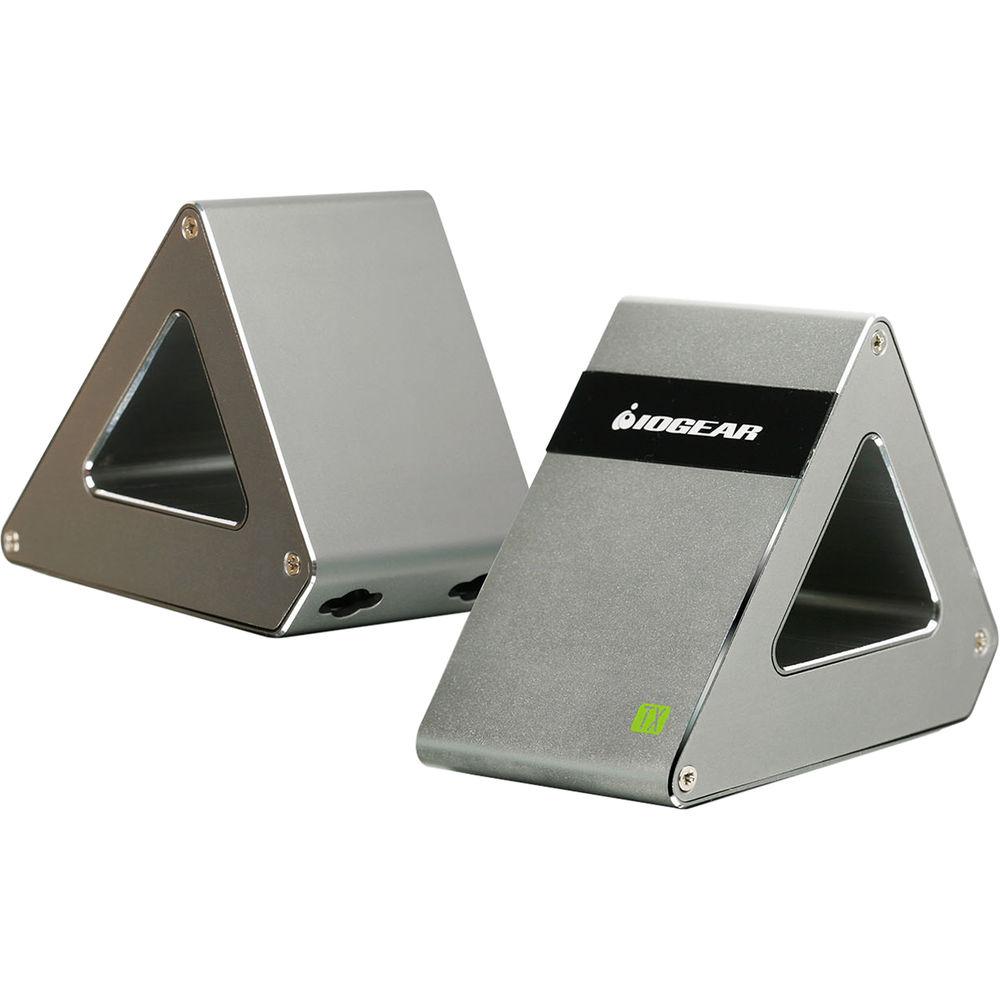

Product description Install your UHD display or projector up to 60' from your A/V source with the IOGEAR GW4K30GH60 4K UHD Wireless HDMI Extender. It allows you to transmit audio and video signals from an HDMI-equipped source device to a UHD display or projector up to 60' away, within line of sight. It supports resolutions of up to 2160p at 30 Hz, so you'll get the same picture and sound quality without the wiring. Uncompressed 7.1-channel audio and HDR are supported, and the keyhole mounting options let you mount the transmitter and receiver near your source equipment and display or projector. - Stream Wireless Audio and 4K Video up to 60'
- Transmit 4K UHD video and up to 7.1-channel audio up to 60' with near-zero latency.
- Provides Flexible Display or Projector Placement
- The GW4K30GH60 allows you to place your display and source equipment wherever convenience allows, within approximately 60' of each other.
- Supports Gaming and Streaming
- The extender sends audio and video with near-zero latency thanks to high-speed wireless technology, enabling UHD resolution with HDR support.
- High-Fidelity Audio Performance
- In addition to high video resolution, the GW4K30GH60 supports Dolby TrueHD and DTS-HD Master Audio for movie-quality soundtracks and clear LPCM digital audio streaming, plus 7.1-channel audio support.
- Designed for Limited Interference

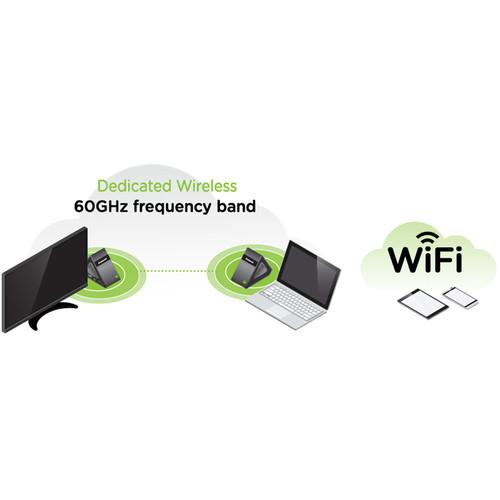

- Using the 60 GHz frequency band for audio and video helps prevent interference from common wireless devices that transmit on the 2.4 or 5 GHz frequency bands, such as smartphones, laptops, IoT devices, and Wi-Fi devices. The extender provides a dedicated, closed connection for your content, does not require an existing Wi-Fi network, and is engineered for a quick and easy, plug-and-play setup. The transmitter and receiver are pre-paired.
- Additional Features
-
- LED status lights for source/display connections and wireless link
- Supports dual power option via USB or the included AC adapters
- Keyhole mounting design for easy placement
UPC: 881317518323 In the Box IOGEAR GW4K30GH60 HDR 4K UHD Wireless HDMI Extender (60') 2 x 3' HDMI 2.0 Cables 2 x Power Supplies Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the IOGEAR GW4K30GH60 HDR 4K UHD Wireless HDMI Extender in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

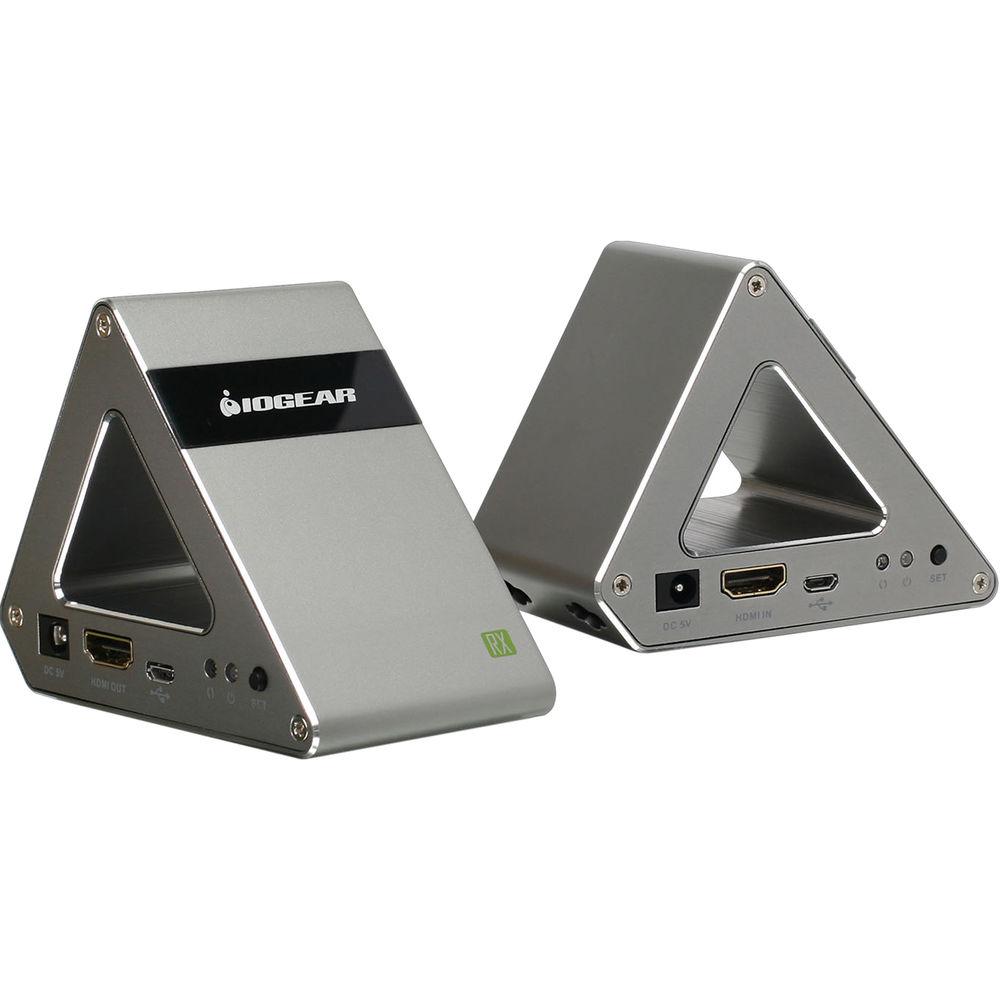

Technical parametersIOGEAR GW4K30GH60 Specs | Transmitter Input Ports | 1 x HDMI
1 x Micro-USB (Power) | | Receiver Output | 1 x HDMI
1 x Micro-USB (Power) | | HDMI Version | 2.0 | | HDCP Version | 2.2 | | HDR Support | Yes | | Maximum Video Resolution | 4K UHD 3840 x 2160 @ 30 Hz | | Audio Output | Dolby TrueHD, DTS-HD Master Audio, LPCM Digital Audio Streaming up to 7.1 Channels HBR Lossless Audio | | Transmission Frequency | 60 GHz | | Transmission Range | Up to 60' / 18.3 m | | Speed | Up to 18 Gbps | | Video Streaming | Uncompressed | | Antenna Type | Printed Circuit Board | | System Requirements | Source Device with HDMI Output
Display Device with HDMI Input
AC or USB Power Source | | Housing Material | Aluminum | | Operating Temperature | 32 to 122°F / 0 to 50°C | | Storage Temperature | 14 to 158°F / -10 to 70°C | | Humidity | 10 to 90% | | Power Requirements | 5 VDC, 1 A | | Power Consumption | 3 W | | Dimensions (W x H x D) | Transmitter, Receiver: 1.13 x 3 x 4" / 2.86 x 7.62 x 10.16 cm | | Weight | Transmitter, Receiver: 8 oz / 226.8 g | | | | Package Weight | 2.09 lb | | Box Dimensions (LxWxH) | 8.2 x 6.1 x 4.5" |
