User Manual for IOGEAR GWHDKIT11 Wireless HDMI Extender with 3-Port HDMI Switch Click to enlarge the picture
Contents of the user manual for the IOGEAR GWHDKIT11 Wireless HDMI Extender with
- Product category: HDMI Signal Extenders IOGEAR
- Brand: IOGEAR
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for IOGEAR HDMI Signal Extenders
 |
User manual for the IOGEAR GWHDKIT11 Wireless HDMI Extender with contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any IOGEAR product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official IOGEAR user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a IOGEAR product will considerably shorten its lifespan!
|

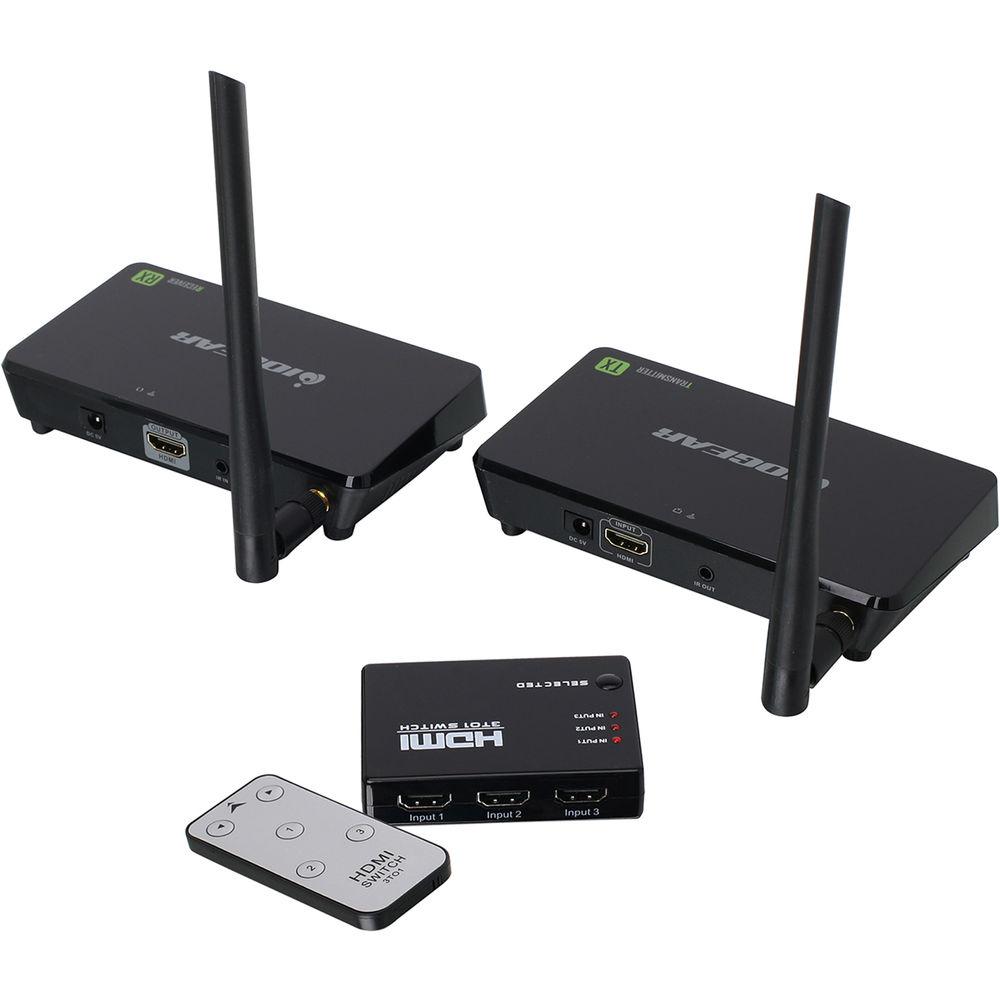

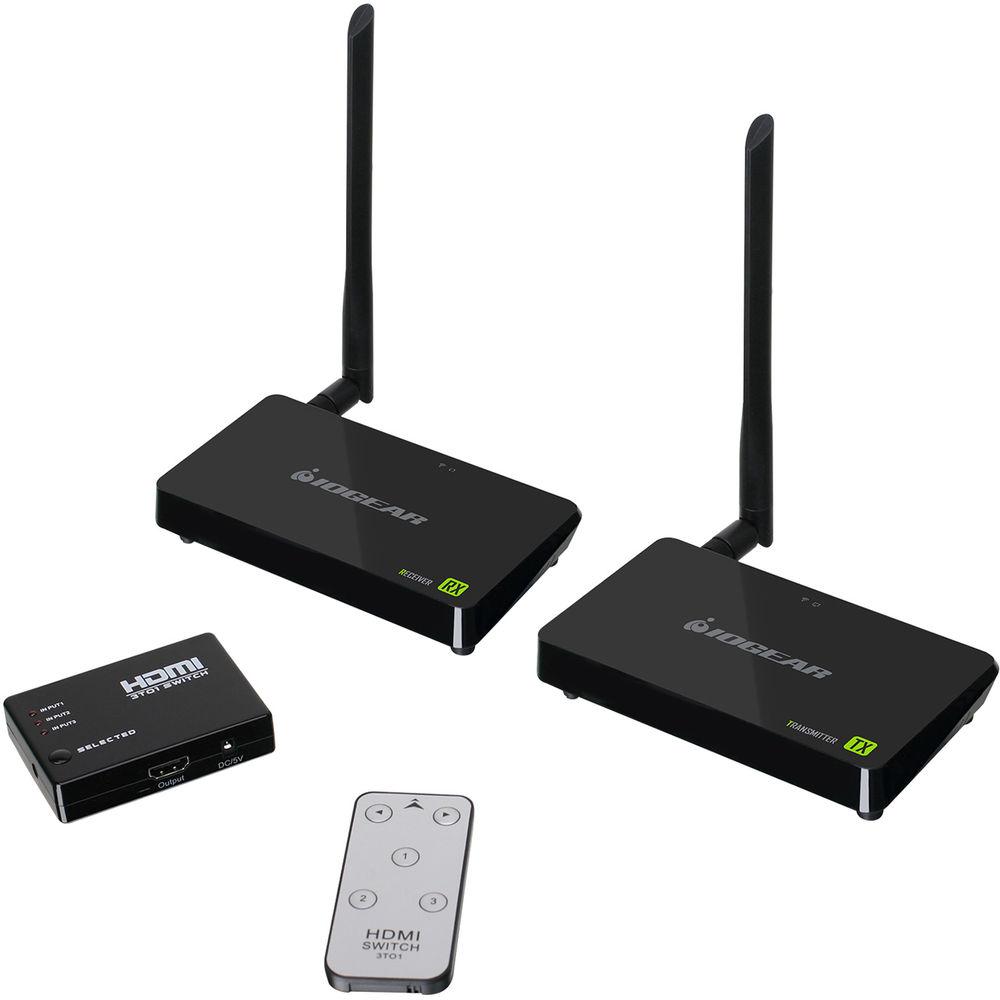

Product description Install your display device up to 150' from your A/V source with the IOGEAR GWHDKIT11SW Wireless HDMI Extender. It allows you to transmit audio and video signals from an HDMI-equipped source device to an HD display or projector up to 150' away, within line of sight. It supports resolutions of up to 1080p at 60 Hz, so you'll get the same picture and sound quality without the wiring. It comes with an IR blaster cable and IR extension cable to allow for remote control pass-through, as well as 2 HDMI cables and a 3-port HDMI switch. - Wireless HDMI Video up to 150'
- With support for HDCP and Full HD resolutions up to 60 fps, you can place your HD display or projector up to 150' from the video source without sacrificing picture and sound quality. Enjoy the Full HD experience with the convenience of wireless HDMI, minimizing cable clutter, and allowing you to move your display to the patio or den for the big game or party, or hide your A/V equipment across the room. Save the time and expense of hiring installers to run HDMI cables through your ceiling and walls.
- Plug & Play
- The Wireless HDMI TV Connection Kit comes with everything you need inside the box to get started quickly. The kit includes two HDMI cables, so you won't have to worry about shopping for the right cable. Connect one HDMI cable between your source video device and the HDMI transmitter, and the other cable between the HDMI receiver and your display or projector. Plug in power, and you're ready to enjoy your content with no network or security configuration required; the transmitter and receiver are already paired together over an independent wireless network connection with their own WPA security enabled.
- Control Your Source Device with IR (Infrared) Support
- You can control your source A/V device directly from your display or projector – just point your remote at it with the included IR blaster and receiver installed. Change the channel, pause, fast-forward, and control any other function of your cable/satellite box, DVD/Blu-ray player, or any other piece of A/V equipment in your system.
UPC: 881317517067 In the Box IOGEAR GWHDKIT11 Wireless HDMI Extender with 3-Port HDMI Switch (150') 3-Port HDMI Switch 2 x HDMI Cables IR Blaster Extension Cable IR Receiver Extension Cable 2 x Antennas 2 x Power Adapters Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the IOGEAR GWHDKIT11 Wireless HDMI Extender with 3-Port HDMI Switch in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersIOGEAR GWHDKIT11SW Specs | Connectors | Transmitter: 1 x HDMI in
1 x 1/8" / 3.5 mm IR out
Receiver: 1 x HDMI out
1 x 1/8" / 3.5 mm IR in | | HDMI Version | 1.4 | | Maximum Video Resolution | 1080p @ 60 Hz | | Supported Audio Codecs | PCM | | Transmission Type | WLAN | | Wireless Security | WPA | | IR Frequency Range | 20 to 60 Hz | | Radio Frequency | 5.8 GHz | | Transmission Range | Up to 150' / 45.7 m | | Transmission Speed | Up to 10.2 Gbps | | System Requirements | Source Device: HDMI output
Display Device: HDMI input | | Housing Material | Plastic | | Operating Temperature | 32 to 122°F / 0 to 50°C | | Storage Temperature | 14 to 158°F / -10 to 70°C | | Power Requirements | 5 VDC, 2 A | | Power Consumption | Transmitter: 7 W
Receiver: 5 W | | Dimensions (W x H x D) | 4.72 x 0.91 x 3.15" / 12 x 2.31 x 8 cm each | | Weight | 6.4 oz / 181.4 g each | | | | Package Weight | 2.2 lb | | Box Dimensions (LxWxH) | 9.8 x 7.0 x 3.2" |
