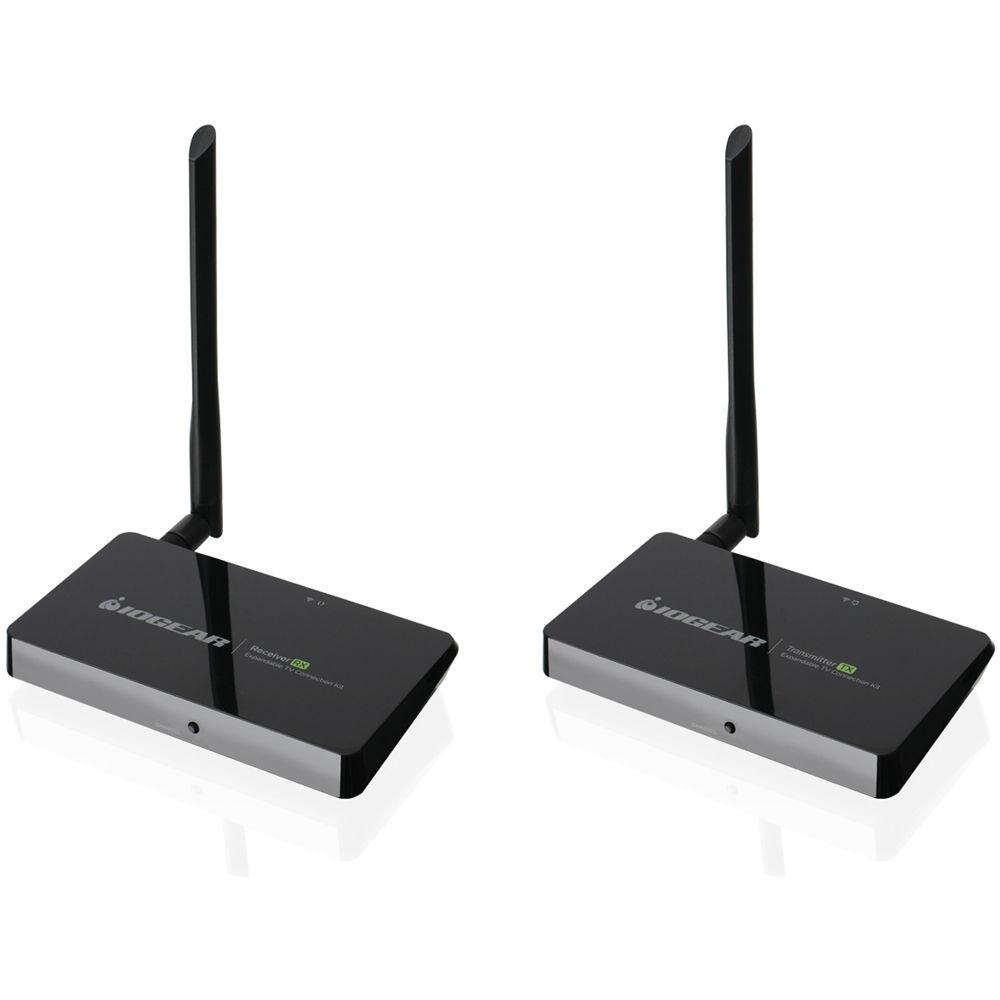

User Manual for IOGEAR GWMHDKIT22 Expandable Wireless HDMI Kit Click to enlarge the picture
Contents of the user manual for the IOGEAR GWMHDKIT22 Expandable Wireless HDMI Kit
- Product category: Wireless A/V Transmitters & Receivers IOGEAR
- Brand: IOGEAR
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for IOGEAR Wireless A/V Transmitters & Receivers
 |
User manual for the IOGEAR GWMHDKIT22 Expandable Wireless HDMI Kit contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any IOGEAR product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official IOGEAR user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a IOGEAR product will considerably shorten its lifespan!
|
Product description Install your display device up to 150' from your A/V source with the IOGEAR GWMHDKIT22 Expandable Wireless HDMI Kit. It allows you to transmit audio and video signals from an HDMI-equipped source device to an HD display or projector up to 150' away. It supports resolutions of up to 1080p at 60 Hz, so you'll get the same picture and sound quality without the wiring. It comes with an IR blaster cable and IR extension cable to allow for remote control pass-through, as well as two HDMI cables. Note: Wireless range may vary depending on environment; please see the manufacturer's website for more information. - Wireless HDMI Video up to 150'
- This wireless solution is designed to set up quickly and not require a Wi-Fi network. Connect your HDMI-enabled source device, such as a cable box, satellite receiver, laptop, or game console, to an HDMI-enabled display and transmit audio and HD video up to 150'. With support for resolutions up to 1080p, you can eliminate long HDMI cable runs.
- Expand Wirelessly
- This kit is expandable to allow you to connect up to 10 displays to 10 different selectable HDMI video sources with optional additional kits or separate transmitters or receivers. Enjoy your content wirelessly with the flexibility to connect your environment nearly any way you want.
- Engineered for Fast, Plug & Play Setup
- Since this kit doesn't require an existing Wi-Fi network, there's no need for complicated security configurations. It sends video using its own dedicated 802.11ac wireless connection, and the transmitter and receiver come pre-paired with wireless security enabled.
- Control Your Source Remotely
- You can control each A/V source with your existing remote control. The included IR blaster cable and IR extension cable allow signal transmission between your remote and A/V equipment. Once set up, just point your remote at the kit's receiver and click to control.
- Electrostatic Protection
-
- Contact & air discharge level 3
- Standard EC61000-4-2
- Additional Features
-
- 10 independent wireless channels with virtually no interference
- No wireless pairing required – just match the receiver's channel to the transmitter's channel
- H.264 video compression
UPC: 881317516732 In the Box IOGEAR GWMHDKIT22 Expandable Wireless HDMI Kit (150') Remote Control 2 x 3.3' HDMI Cables IR Blaster Cable IR Receiver Extension Cable 2 x Antennas 2 x Power Adapters Limited 1-Year Warranty More from Manufacturer Table of Contents
|
Upload User Manual
Have you got an user manual for the IOGEAR GWMHDKIT22 Expandable Wireless HDMI Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

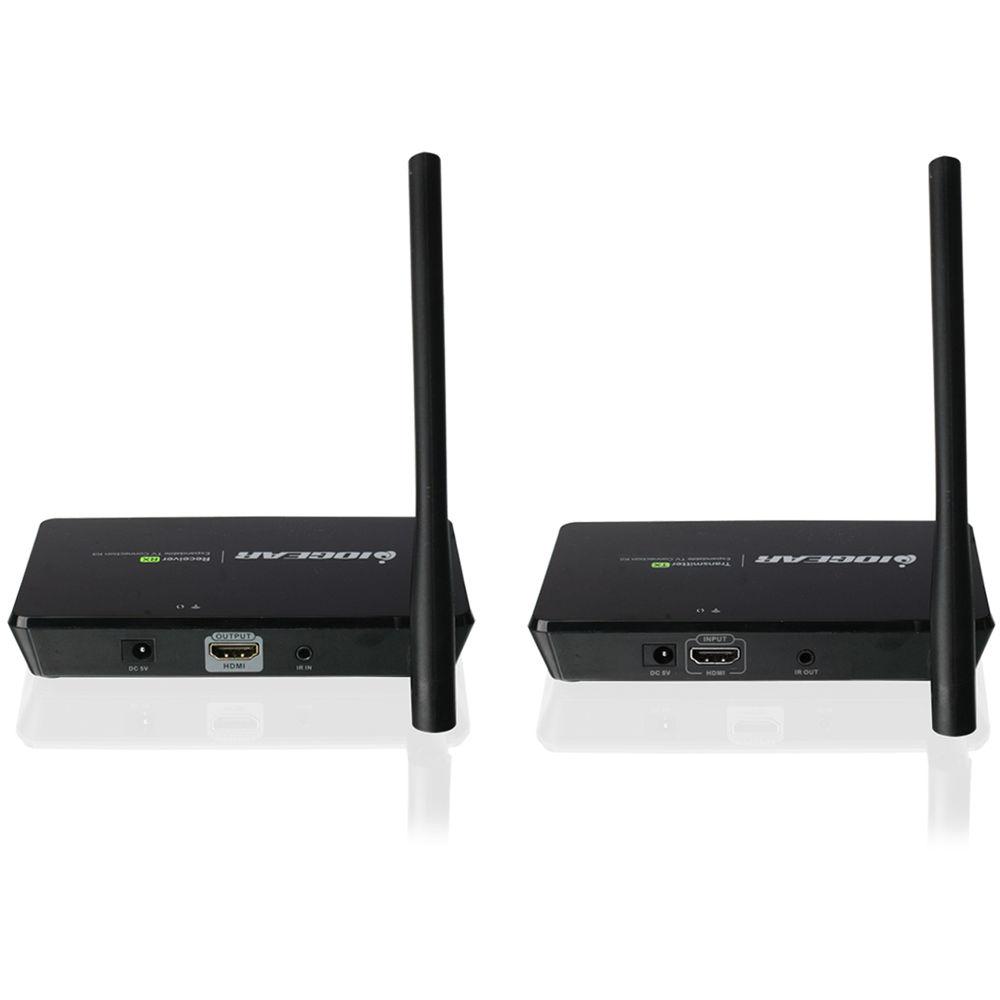

Technical parametersIOGEAR Wireless HDTV Connection Specs | Connectors | Transmitter:
1 x HDMI in
1 x 1/8" / 3.5 mm IR out
1 x antenna
Receiver:
1 x HDMI out
1 x 1/8" / 3.5 mm IR in
1 x antenna | | HDMI Version | 1.3 | | HDCP Version | 1.2 | | Maximum Video Resolution | 1080p @ 60 Hz | | Supported Audio Codecs | PCM stereo | | TMDS | 0.5 to 1.5 Vp-p | | DDC | 5 Vp-p (TTL) | | Cable Lengths Supported | Input/Output: ≤16.4' / 5m (26 AWG HDMI 1.3 cable standard) | | Transmission Type | 5.8 GHz 802.11ac Wi-Fi | | Latency | ≤200 ms | | Wireless Security | WPA-2 | | Antenna Type | External, 5 dBi | | Transmission Range | Up to 150' / 45.7 m | | Transmission Speed | Up to 10.2 Gb/s | | IR Frequency | Not specified by manufacturer | | System Requirements | Source Device: HDMI output
Display Device: HDMI input | | Housing Material | Plastic | | MTBF | >30,000 hours | | Operating Temperature | 32 to 122°F / 0 to 50°C | | Storage Temperature | 14 to 158°F / -10 to 70°C | | Humidity | 0 to 90% (no condensation) | | Power Requirements | 5 VDC, 2 A | | Power Consumption | Transmitter: <7 w
Receiver: <5 W | | Dimensions (W x H x D) | Not specified by manufacturer | | Weight | 6.4 oz / 181.4 g each | | | | Package Weight | 2.05 lb | | Box Dimensions (LxWxH) | 9.6 x 7.0 x 3.3" |
