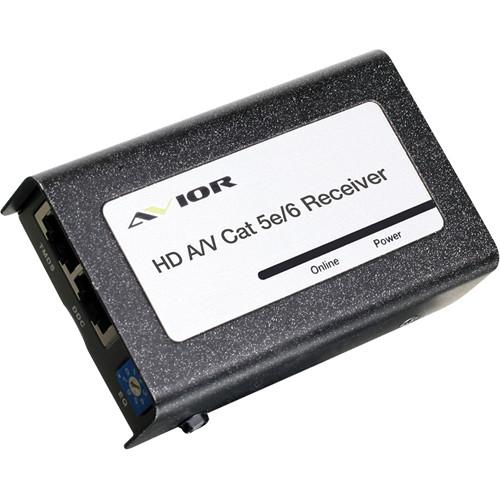

Product description The AVIOR Series HD Audio/Video CAT5e/6 Receiver from IOGEAR gives you the distance between a 1080p media source and an HD display unit by up to 130’ (39.62m) with 3D support and up to 200’ (60.96m) at 1080i resolution. The receiver is designed to be used with the AVIOR 4 or 8-Port HDMI CAT5e/6 Audio/Video Splitter to provide long distance video and audio transmission over 2 CAT5e/6 350 MHz twisted-pair solid shielded Ethernet cables.
When used with 4 or 8-Port CAT5e/6 Splitters, the HD CAT5e/6 Receiver is suitable for home installation, retro-fitting, retail environments, show rooms, and large worship centers where multiple remote displays are required. The HD CAT5e/6 Receiver is also useful for control and security purposes, where you can have the system unit kept in a secure area. However, you can also put the display in an area that is convenient for viewing. - Works with 4 or 8-Port HDMI CAT5e/6 Audio/Video Splitter
- Connects to the IOGEAR transmitter unit via CAT5e/6 cables
- High Resolution Support:
Up to 130' (39.62m) for 1080p resolution
Up to 196' (59.74m) for 1080i resolution 1 Please Note: Extension range may vary with different devices and CAT5e/6 cables. close - Supports 12-bit deep color
- Dolby TrueHD & DTS-HD Master Audio

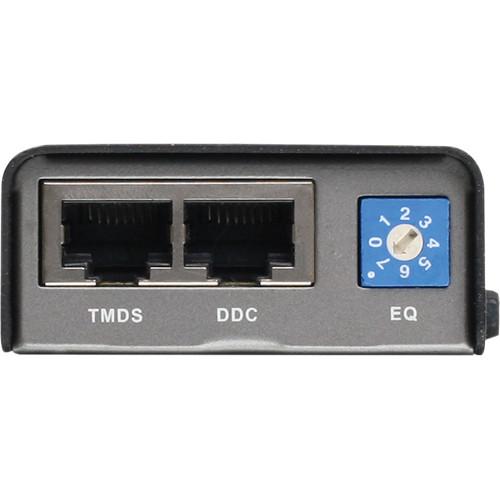

- Equalization can be adjusted manually
- Power LED and active signal LED for easy monitoring and troubleshooting
- Backwards compatible with DVI devices with HDMI to DVI adapter 2
Please Note: The HDMI (female) to DVI (male) adapter is sold separately. close - Plug-n-play; No software is needed
UPC: 881317509680 In the Box IOGEAR HD Audio/Video CAT5e/6 Receiver Power Adapter Wall Mount Kit Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the IOGEAR HD Audio Video CAT5e 6 Receiver in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersIOGEAR GH8201ER Specs | Requirements | Hardware:
1 x GHSP8214E 4-Port HDMI CAT5e/6 Audio/Video Splitter
1 x GHSP8218E 8-Port HDMI CAT5e/6 Audio/Video Splitter
Display:
1 HDMI display
Cables:
2 x identical solid CAT5e/6 cables
1 x HDMI cable Cables are sold separately. | | Cable Type | 2 x identical solid CAT5e/6 for extension | | Cable Distance | Up to 200.00’ (60.96 m) | | Cable Connection | Input & Output:

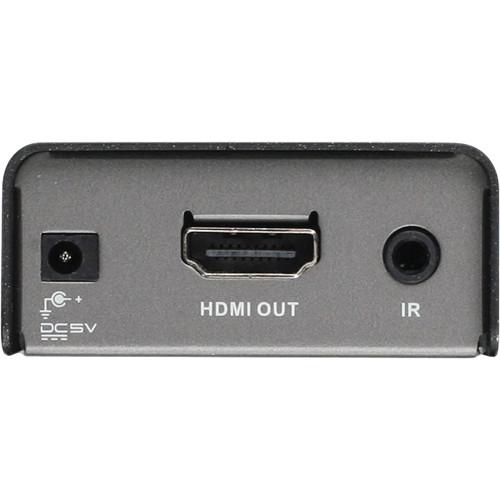

HDMI type A 19-pin female | | Connectors | Link: 2 x CAT5e/6 | | LEDs | Power On: 1 x local and remote unit
On Line: 1 x remote unit | | Resolution | 480i, 480p, 720p, 1080i, and 1080p | | Data Rate | Up to 2.25 Gb/s | | Housing | Metal case | | Dimensions (W x H x D) | 4.75 x 6.25 x 2.37" (120.65 x 158.75 x 60.19 mm) | | Weight | 0.75 lb (0.34 kg) | | | | Package Weight | 0.75 lb | | Box Dimensions (LxWxH) | 6.4 x 4.8 x 2.5" |
