User Manual for IOGEAR Miniview KVM Switch Kit with Two DisplayPort Adapters Click to enlarge the picture
Contents of the user manual for the IOGEAR Miniview KVM Switch Kit with
- Product category: KVM Switches IOGEAR
- Brand: IOGEAR
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for IOGEAR KVM Switches
 |
User manual for the IOGEAR Miniview KVM Switch Kit with contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any IOGEAR product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official IOGEAR user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a IOGEAR product will considerably shorten its lifespan!
|

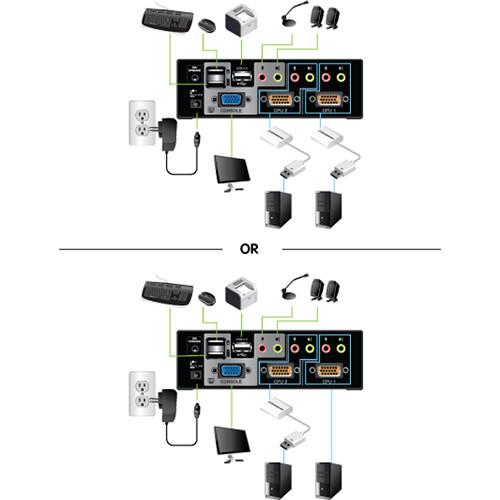

Product description Multi-Monitors: Maximizing Multitasking Read More This IOGEAR kit provides one 2-Port Miniview KVM Switch as well as two DisplayPort adapters, so you can control two DisplayPort desktop computers with a single console system that has one VGA-capable monitor. The adapters convert the ends of the KVM cables from a VGA connection to a DisplayPort interface. - Miniview KVM Switch The Miniview KVM Switch from IOGEAR allows you to share a single keyboard, mouse, stereo speaker system, and monitor between two computers. Housed in a compact desktop form factor, the KVM Switch can work with computers that use USB connections for the keyboard and mouse and a VGA connection for the display.
It installs easily, with clearly labeled ports to connect cables. The KVM switch supports VGA resolutions of up to 2048 x 1536 pixels, allowing you to use the switch with large displays. This is a great solution for system administrators who need to access multiple computers with a single mouse, keyboard, and monitor. - 2 Computers; 1 Desk
- Web designers who often have to test pages on PCs and Macintosh computers, and video editors who use the Macintosh platform can still see the appeal of the gaming options available on Windows PCs. This KVM switch allows you to easily share a single monitor, keyboard, and mouse between multiple computers, regardless of your reasons.
- USB and VGA Support
- The KVM Switch works with computers that feature standard USB connections for input devices and VGA for display output. VGA resolution of up to 2048 x 1536 pixels is supported, making this a great solution even for large displays.
- USB 2.0 Hub
- The switch includes an integrated 2-port USB 2.0 hub. This allows you to share USB devices, such as hard drives, printers, and scanners, among connected computers.
- Easy Switching
- You can easily switch from one computer to another using physical push buttons, programmable hot keys, or an on-screen display. Not everyone works in the same environment, so offering different options for switching between this many computers is essential.

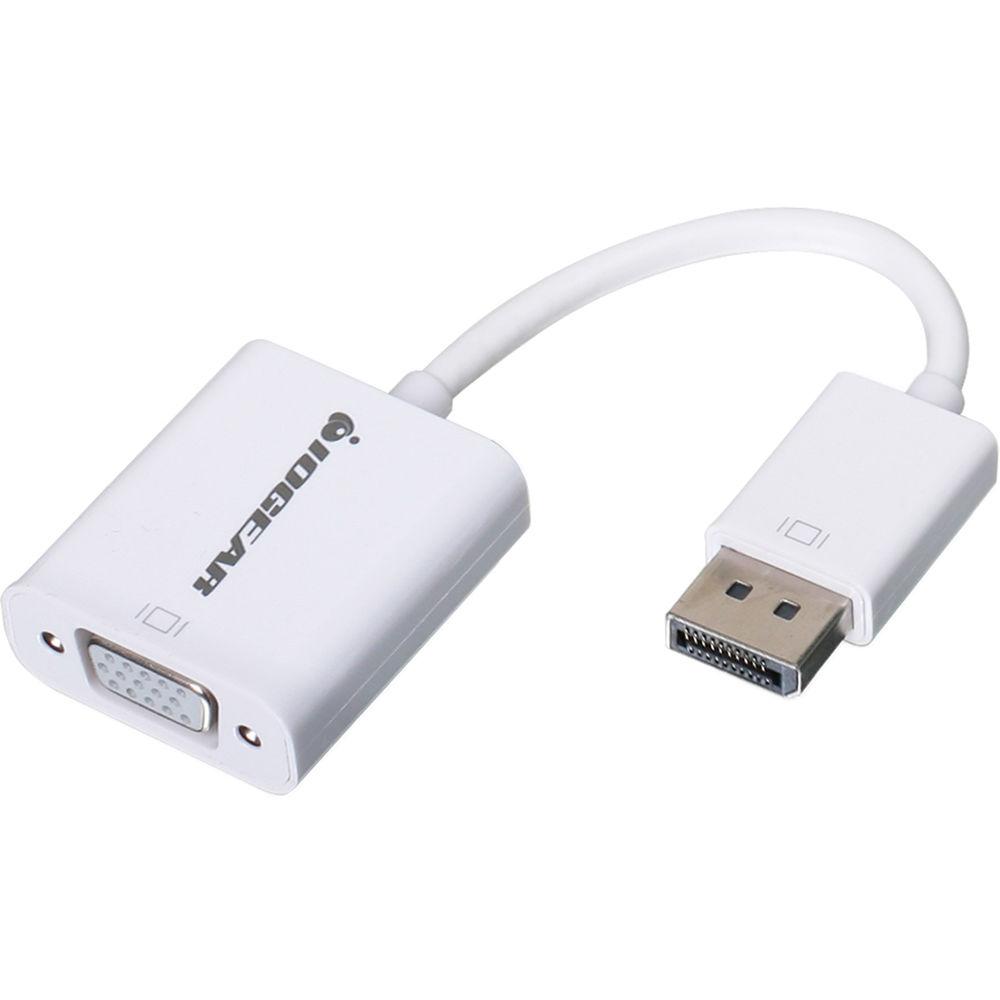

UPC: 881317009500 - DisplayPort to VGA Adapter Cable The DisplayPort to VGA Adapter Cable from Iogear allows you to connect a DisplayPort equipped computer to an external VGA projector or monitor. It supports resolutions up to 1920 x 1200 to deliver high-quality images and videos.
- The adapter cable converts the DisplayPort to VGA, allowing you to connect a DisplayPort computer system to a VGA projector, TV, or monitor.
- Compatible with computer systems using DisplayPort
- Compliant with DisplayPort specification 1.1a for both 1.62 Gb/s and 2.7 Gb/s speeds
- Supports full DisplayPort link tracking
- Supports interrupt request output for expansion function
- Supports Deep Sleep Mode (suspend mode)

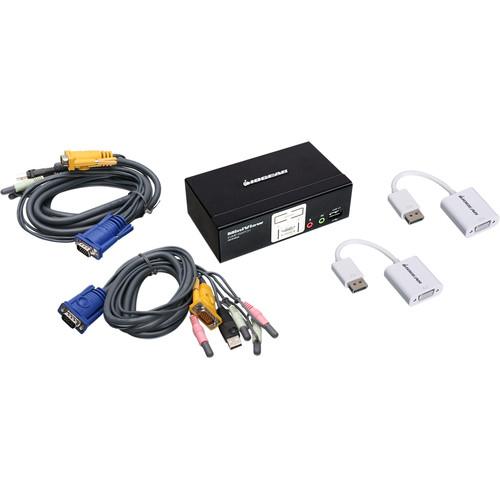

UPC: 881317511362 In the Box Bundle Items Miniview KVM Switch yxctrdavzurxxc - 2 x 6' (1.8 m) Custom KVM Cable Sets
2 x DisplayPort to VGA Adapter Cable - Limited Lifetime Warranty
Table of Contents
|
Upload User Manual
Have you got an user manual for the IOGEAR Miniview KVM Switch Kit with Two DisplayPort Adapters in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - Miniview KVM Switch

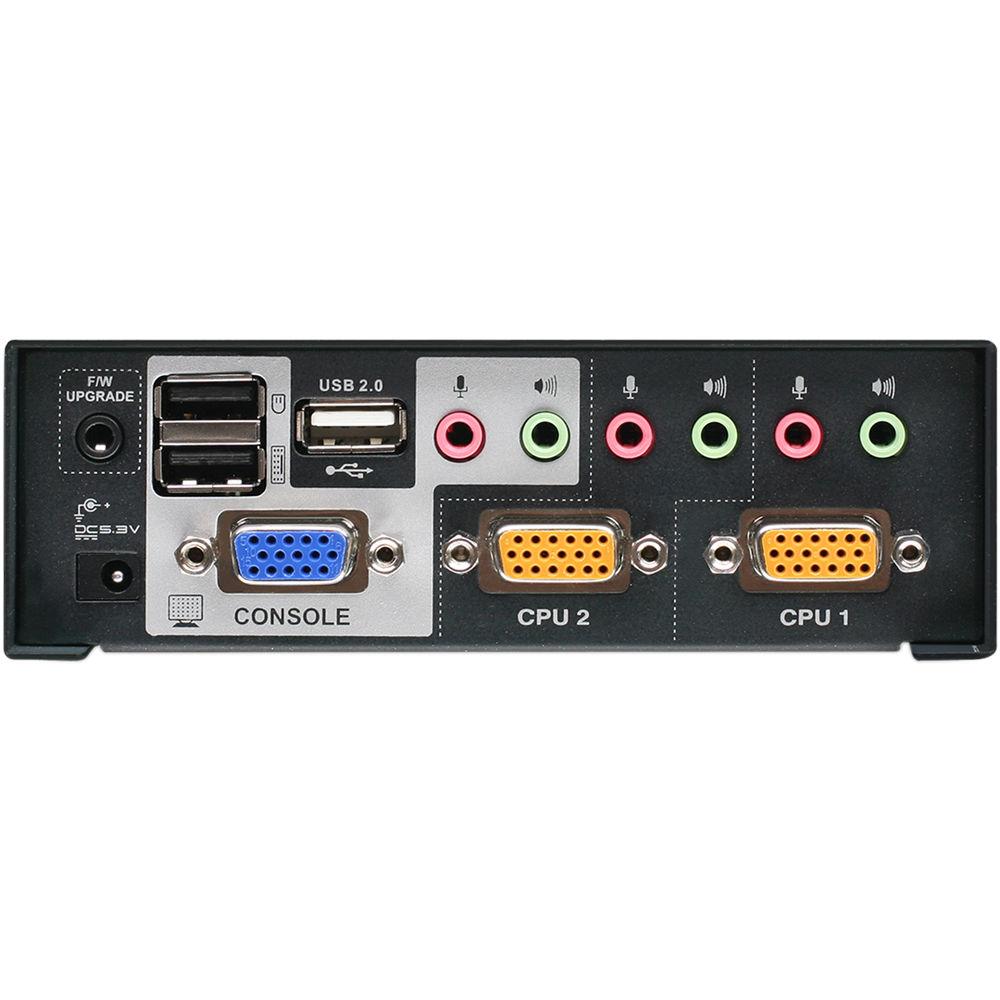

| Max Computer Connections | 2 | | PC Connectors | 2x KVM CPU
2x 1/8" (3.5mm) for Stereo Audio
2x 1/8" (3.5mm) Mic | | Console Connectors | 1x VGA
2x USB (Keyboard/Mouse)
2x USB 2.0 Hub
1x 1/8" (3.5mm) for Stereo Audio
1x 1/8" (3.5mm) Mic | | Video Resolution | 2048 x 1536 | | Scan Interval | None | | Port Selection | Push Buttons, Hot Keys, OSD | | Enclosure | Desktop | | System Requirements | VGA Monitor, USB Keyboard, and Mouse for console
Computers with USB keyboard and mouse connections and VGA monitor connections are supported by the KVM switch | | Power Requirements | DC: 5VDC, 2A | | Dimensions (WxHxD) | 5 x 1.6 x 2.9" (12.7 x 4.1 x 7.4cm) | | Weight | 1 lb (0.45kg) | | | | Box Dimensions (LxWxH) | 10.6 x 9.0 x 4.1" | - DisplayPort to VGA Adapter Cable
| | | Connector 1 | DisplayPort Male | | Connector 2 | VGA Female | | | | Maximum Resolution Support | 1920 x 1200 | | | | Dimensions | 7.3 x 1.5 x 0.6" / 184.9 x 3.7 x 14.9 mm | | Weight | 0.8 oz / 22.6 g | | | | Box Dimensions (LxWxH) | 9.6 x 4.2 x 0.8" |
