User Manual for IOGEAR Miniview Symphony Multi-function 4-Port KVM Switch with USB 2.0 Hub, Ethernet Switch and Audio Switch Click to enlarge the picture
Contents of the user manual for the IOGEAR Miniview Symphony Multi-function 4-Port KVM
- Product category: KVM Switches IOGEAR
- Brand: IOGEAR
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for IOGEAR KVM Switches
 |
User manual for the IOGEAR Miniview Symphony Multi-function 4-Port KVM contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any IOGEAR product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official IOGEAR user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a IOGEAR product will considerably shorten its lifespan!
|
Product description Multi-Monitors: Maximizing Multitasking Read More Why not make your computer environment truly multifunctional? With IOGEAR's 4-Port Miniview Symphony Multi-function KVM Switch for USB 2.0, Ethernet and audio, you can. Attach up to two USB 2.0 peripherals, up to five Ethernet connections, a microphone and speakers, and up to four computers--and share them all! Navigate them all through a single VGA monitor. You gain complete control of your working environment with this simple KVM switch.KVM switches make it possible to have less clutter and more versatility in complex networking or video environments, and with server arrangements. High-resolution support is available, up to 2048 x 1536, a high bandwidth of 480Mbps is possible, and every attached device is easily controlled via front push buttons and hot keys. The IOGEAR KVMP Symphony works with Windows-, Sun- and Mac-based computers and it backs this advanced switch with an outstanding 3-year warranty. Never go wrong: go IOGEAR. - Expanded Platform Support
- The IOGEAR 4-port USB KVMP Switch features multiple operating platforms support, which allows you to control Windows-, Mac- and Sun-based computers with a single KVM switch. Control several USB 2.0 or 1.1 devices on a wide-range of computers, with which you will never have to worry about compatibility issues. Just plug in and begin!
- Share 10/100 Ethernet Connections
- Get a built-in 5-port 10/100Mbps Ethernet switch for networking, file sharing, and loads of freedom through LAN IEEE 802.3. The KVM Symphony offers users sharing capabilities beyond a USB hub alone; users can combine World Wide Web forces with five sharable 10/100 Ethernet ports.
- Sound Check: 1 -- 2
- Hear it all with the KVM Symphony. Create premium workstations and share audio via the Symphony; all it requires is a 2-piece powered speaker system.
- Ease of Multi-Tasking
- It is truly an all-in-one ultimate device. It features independent switching of KVM, USB and audio, which allows the KVM to focus on one computer while the USB peripheral's focus is on another task. This advanced capacity gives users USB hub- and peripheral-sharer function with one little device.
- Multi-Computer Precision

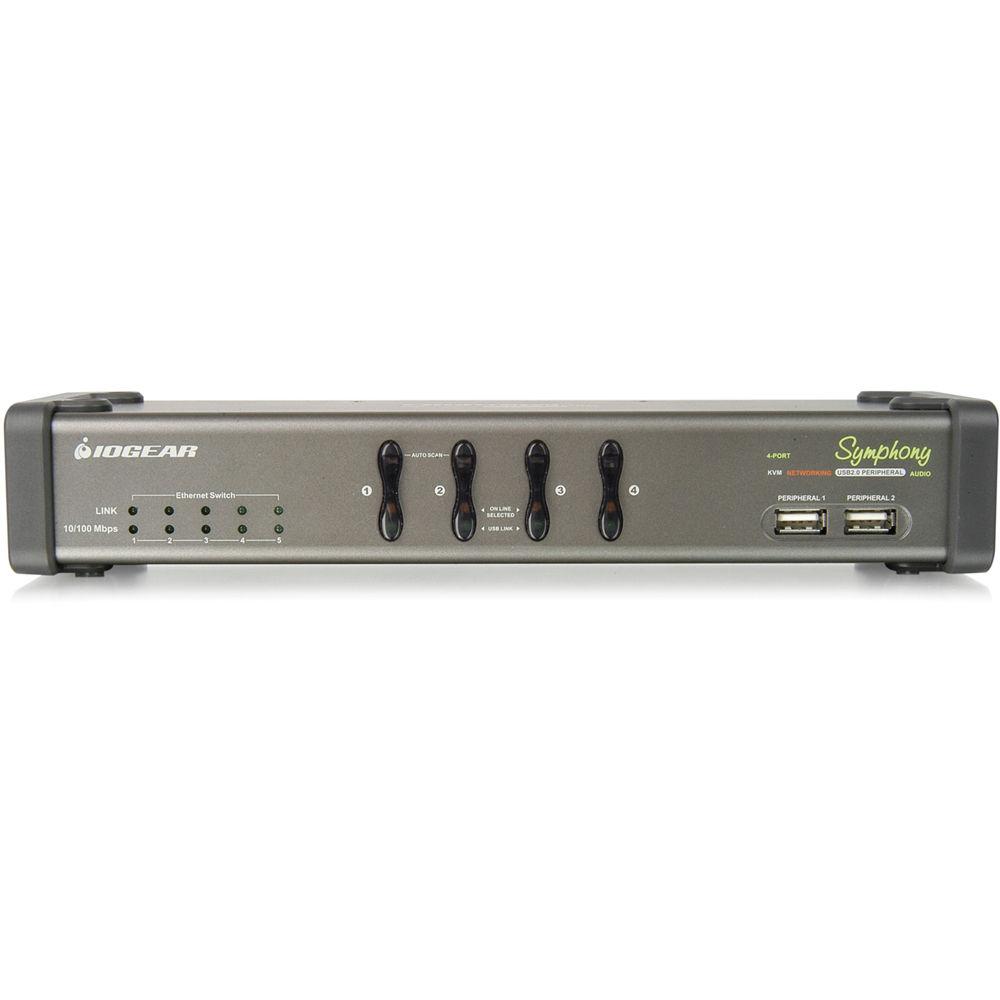

- Utilize IOGEAR's status-monitoring LEDs, front push buttons, hot keys, and hot-pluggable support to ensure easier function for all of your extended computer environments.
- Features Superior Video Resolution Digital/Analog
- IOGEAR's 4-port USB KVMP Switch provides 2048 x 1536 resolution support for your monitor; use with two, or even four, monitors for an expanded network/server/workstation. In all of your video and intense graphics environments, IOGEAR is there.
UPC: 881317004529 In the Box IOGEAR Miniview Symphony Multi-function 4-Port KVM Switch with USB 2.0 Hub, Ethernet Switch and Audio Switch 4 x Custom 6-foot (1.8 m) KVM Cable Firmware Upgrade Cable User Manual Quick Start Guide Table of Contents
|
Upload User Manual
Have you got an user manual for the IOGEAR Miniview Symphony Multi-function 4-Port KVM Switch with USB 2.0 Hub, Ethernet Switch and Audio Switch in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

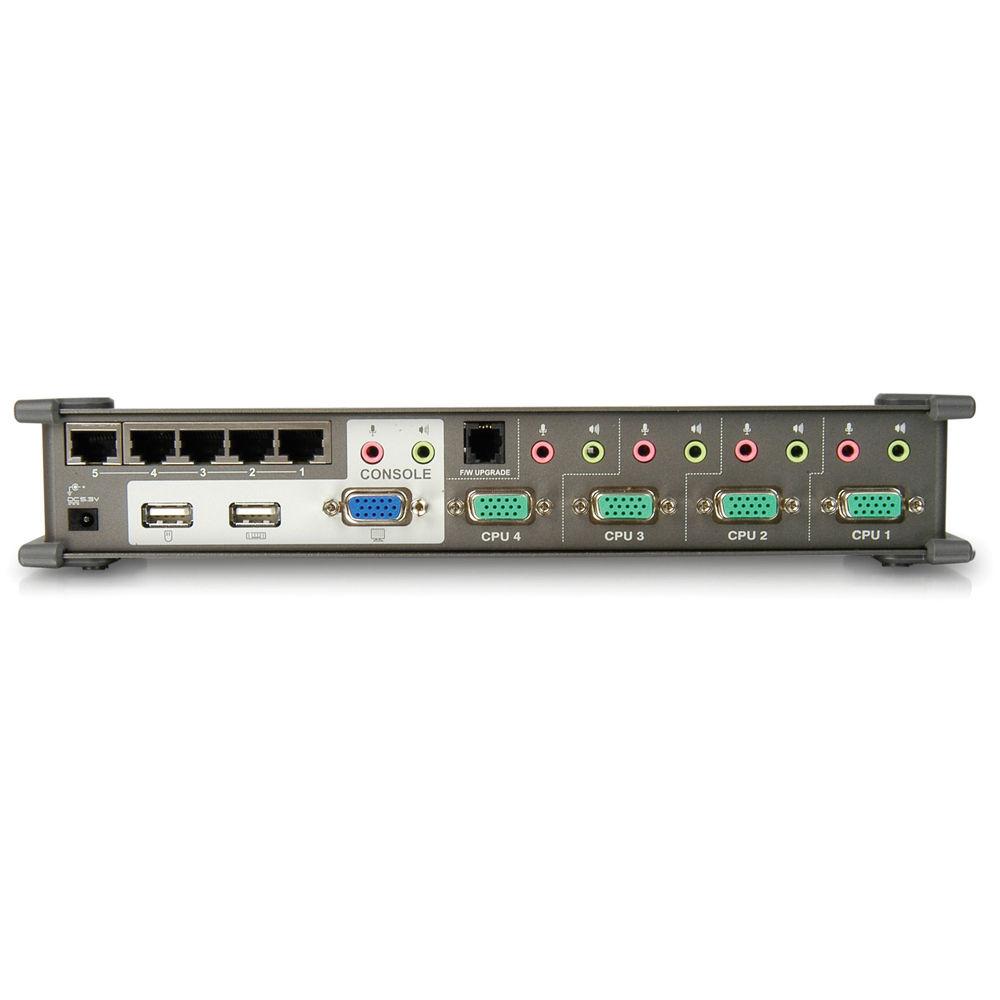

Technical parametersIOGEAR GCS1774 Specs | Max Computer Connections | Direct: 4
Daisy Chained: Up to 127 | | PC Connectors | Monitor: HDB-15 x1
Peripheral: USB 2.0 x4
Keyboard: USB x4
Mouse: USB x4
10/100 Ethernet: RJ45 x5
Flash ROM Upgrade: RJ11 Socket x1
Audio: Speaker x4; Microphone Jack x4 | | Console Connectors | Keyboard: USB Type A socket x1
Monitor: HDB15 Female x1
Audio: Speaker x1; Microphone Jack x1
Mouse: USB Type A socket x1 | | Video Resolution | 2048 x 1536 | | Scan Interval | 1-99 seconds (5 sec default) | | Port Selection | Hot keys and front panel switches | | Enclosure | Metal | | System Requirements | Console:
VGA/SVGA Monitor
1x USB mouse
1x USB keyboard
Computer:
1x VGA, SVGA or MultiSync ports
1x Type A USB port for keyboard/mouse cable
1x Type A USB 2.0 port for USB hub cable
Audio:
Requires 2-piece powered speaker system Operating Systems:
Supports Windows 98SE/ME/2000/XP; Mac OS 8.6 or higher; Solaris; Linux | | Power Requirements | DC 5.3V; 4.5W; 900mA | | Dimensions (WxHxD) | 3.5 x 2.2 x 10.6" (8.9 x 5.6 x 26.9 cm) | | Weight | 2.0 lbs (0.9 kg) | | Warranty | 3-Year Warranty | | | | Package Weight | 6.06 lb | | Box Dimensions (LxWxH) | 13.0 x 8.5 x 4.0" |
