User Manual for IOGEAR Quantum Thunderbolt 3 Docking Station Pro 85W Click to enlarge the picture
Contents of the user manual for the IOGEAR Quantum Thunderbolt 3 Docking Station
- Product category: Docking Stations & Port Replicators IOGEAR
- Brand: IOGEAR
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for IOGEAR Docking Stations & Port Replicators
 |
User manual for the IOGEAR Quantum Thunderbolt 3 Docking Station contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any IOGEAR product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official IOGEAR user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a IOGEAR product will considerably shorten its lifespan!
|
Product description Transform your Thunderbolt 3 laptop into a full 4K/5K professional workstation with the IOGEAR Quantum Thunderbolt 3 Docking Station Pro 85W. Use the included Thunderbolt 3 cable to hook-up your laptop to this docking station, giving you access to a host of high-speed ports.

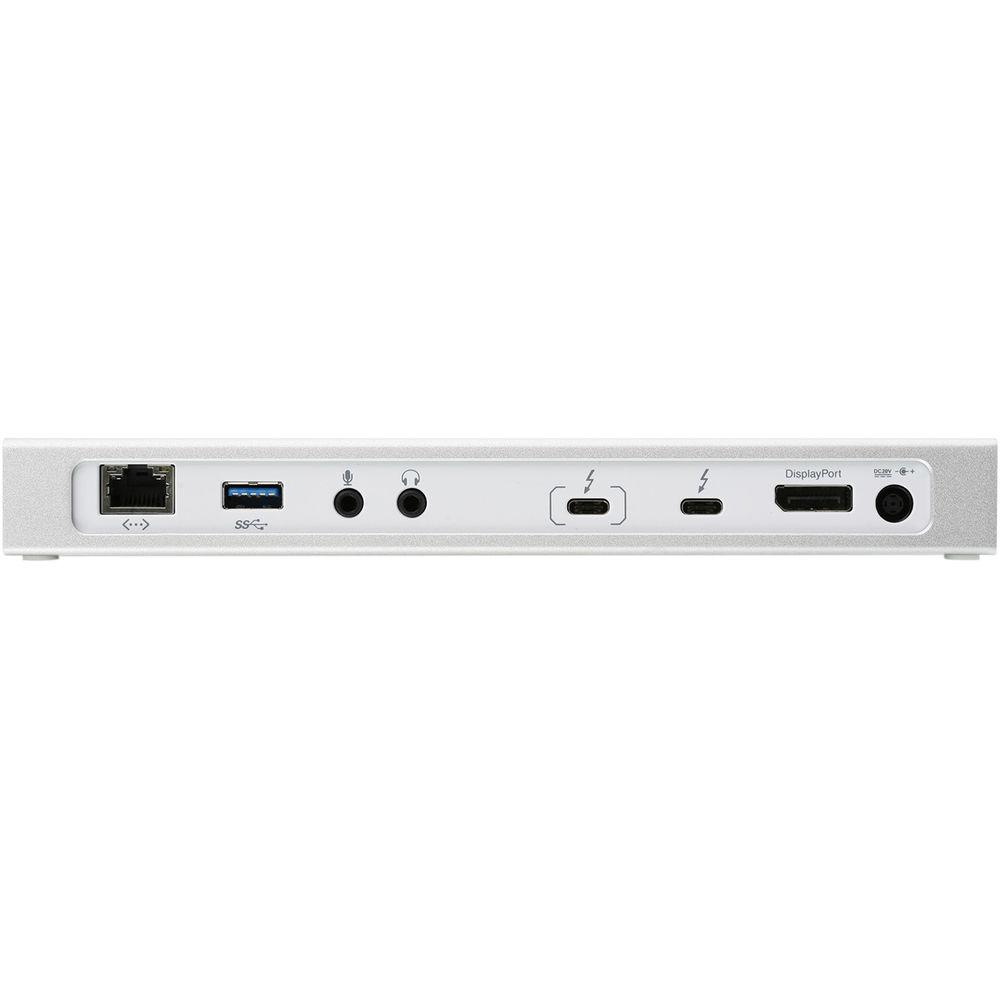

At the rear of the docking station you'll find a DisplayPort and Thunderbolt 3 port. They can be used together to give you a dual 4K display setup, or if you need 5K support, just use the Thunderbolt 3 port for your display. One USB 3.0 Type-C port, one Gigabit Ethernet, and one 3.5mm input and output round out the available ports to give your laptop the connectivity normally enjoyed by desktop computers.

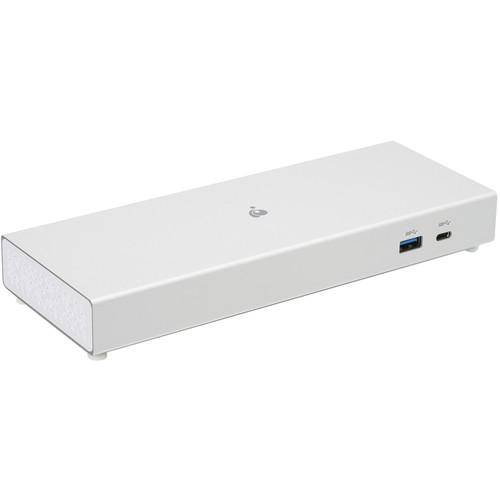

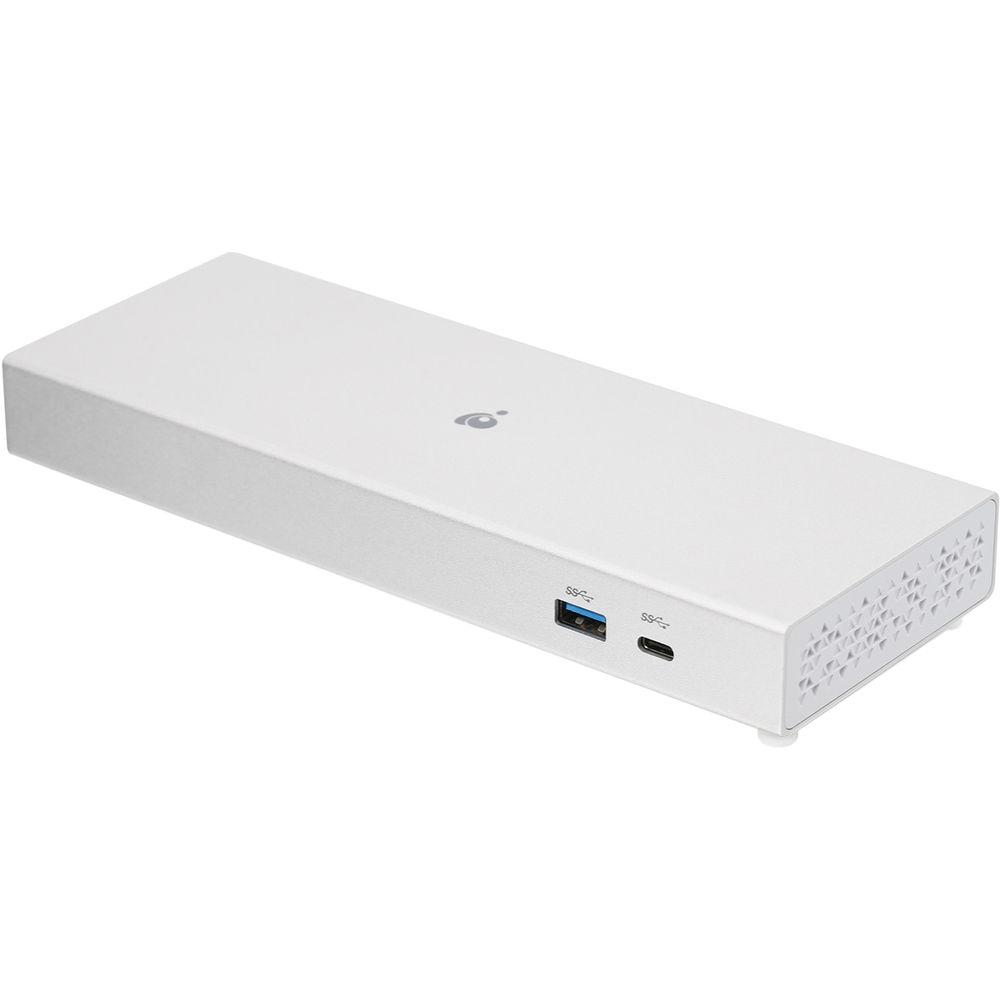

At the front of the dock are two USB 3.0 Type-A ports. They both feature BC 1.2 Fast Charging technology. Use both ports to charge a smartphone and tablet, or save one for a full-size keyboard & mouse combo. - High-End Graphics - 5K or Dual 4K
- The Docking Station Pro has high-end display support, outputting 5K resolution graphics and video at 60 Hz via the Thunderbolt 3 port, or 4K resolution at 60 Hz to a dual-monitor setup via the Thunderbolt 3 port and DisplayPort.

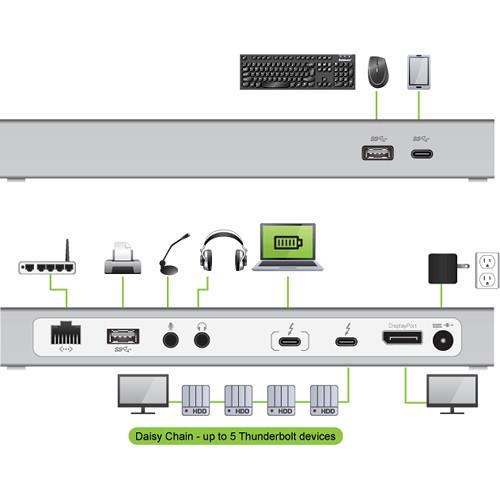

- Daisy-Chain Thunderbolt 3 Devices
- Use the Thunderbolt 3 port for a single device, or daisy-chain up to five peripherals simultaneously.
You can use this capability to string together five external hard drives for a massive amount of storage, while you use the DisplayPort for a 5K monitor. Or you can string four external hard drives and one 4K monitor together, using the DisplayPort for a second 4K monitor.
Whether you decide to daisy-chain or not, you will be able to take advantage of the impressive 40 Gb/s data transfer rate of Thunderbolt 3. That's twice as fast as Thunderbolt 2, and eight times as fast as USB 3.0. A great option to have if you're video editing and need to consistently move massive amounts of data. - Charge While You Work
- This docking station delivers 85W of power to your laptop and USB-connected devices.

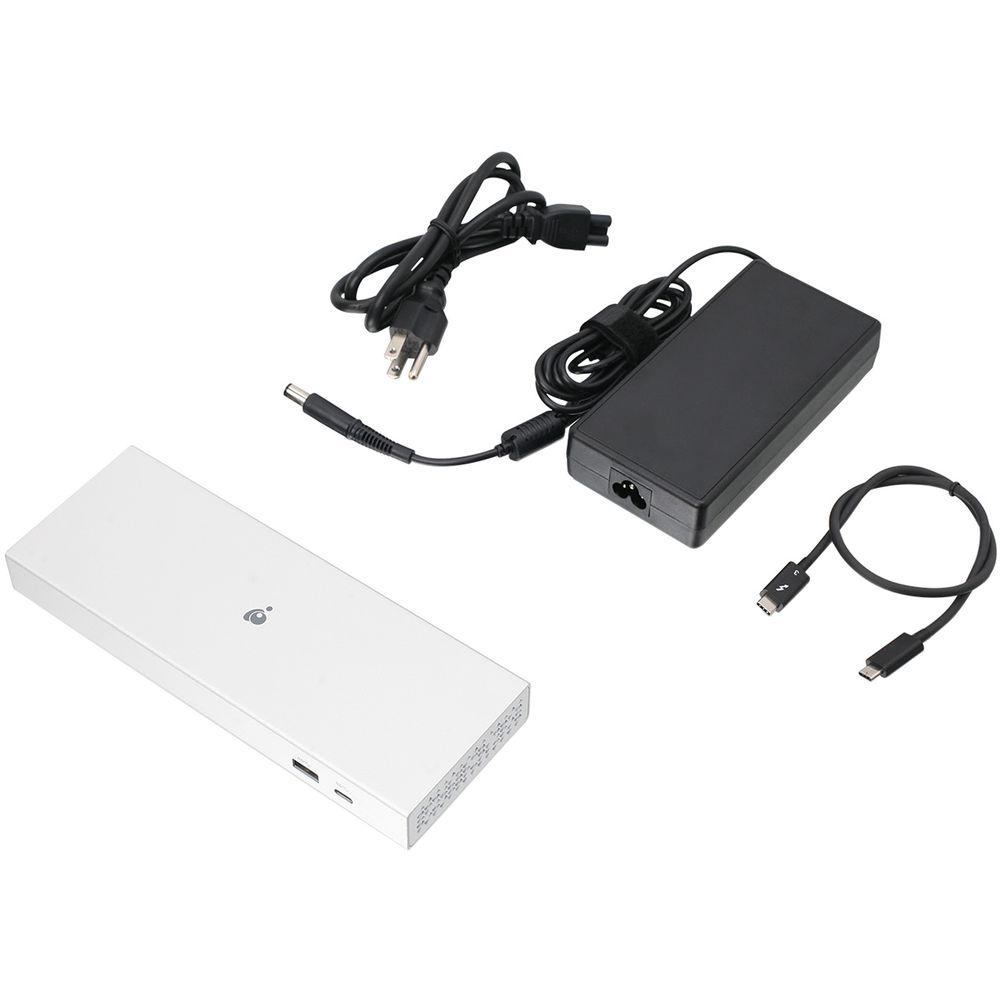

UPC: 881317516206 In the Box IOGEAR Quantum Thunderbolt 3 Docking Station Pro 85W 1.6' (0.5 m) Thunderbolt 3 Cable AC Power Adapter Limited 1-Year Warranty More from Manufacturer cdyczxscsafbcdxfuayvudaxfrwrbwuvrqda Table of Contents
|
Upload User Manual
Have you got an user manual for the IOGEAR Quantum Thunderbolt 3 Docking Station Pro 85W in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersIOGEAR Quantum Docking Station Specs | | | USB | 1 x USB 3.1 Gen 1 Type-C
2 x USB 3.1 Gen 1 Type-A | | Thunderbolt | 1 x Thunderbolt 3 | | Ethernet | 1 x RJ45 (10/100/1000 Mbps) | | FireWire | None | | Display | 1 x DisplayPort 1.2 | | Audio | 1 x 1/8" / 3.5 mm Headphone
1 x 1/8" / 3.5 mm Line-In | | Memory Card Slots | None | | | | Operating System Support | Windows, macOS/OS X | | | | Dimensions | 1 x 3.2 x 8.7" / 3 x 8.1 x 22.1 cm | | Weight | 13.6 oz / 385.6 g | | | | Package Weight | 3.05 lb | | Box Dimensions (LxWxH) | 9.7 x 5.8 x 3.4" |
