User Manual for IOGEAR Thunderbolt 2 Docking Station Bundle Click to enlarge the picture
Contents of the user manual for the IOGEAR Thunderbolt 2 Docking Station Bundle
- Product category: Docking Stations & Port Replicators IOGEAR
- Brand: IOGEAR
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for IOGEAR Docking Stations & Port Replicators
 |
User manual for the IOGEAR Thunderbolt 2 Docking Station Bundle contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any IOGEAR product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official IOGEAR user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a IOGEAR product will considerably shorten its lifespan!
|

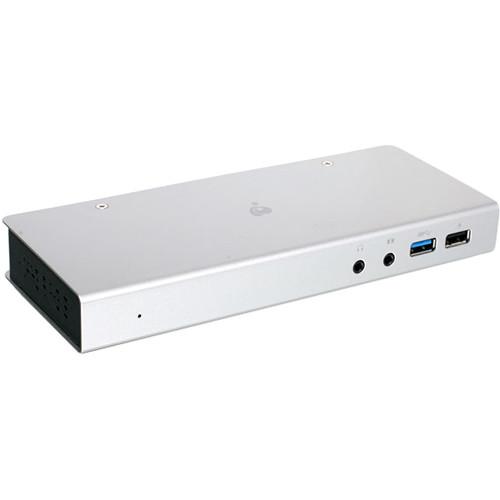

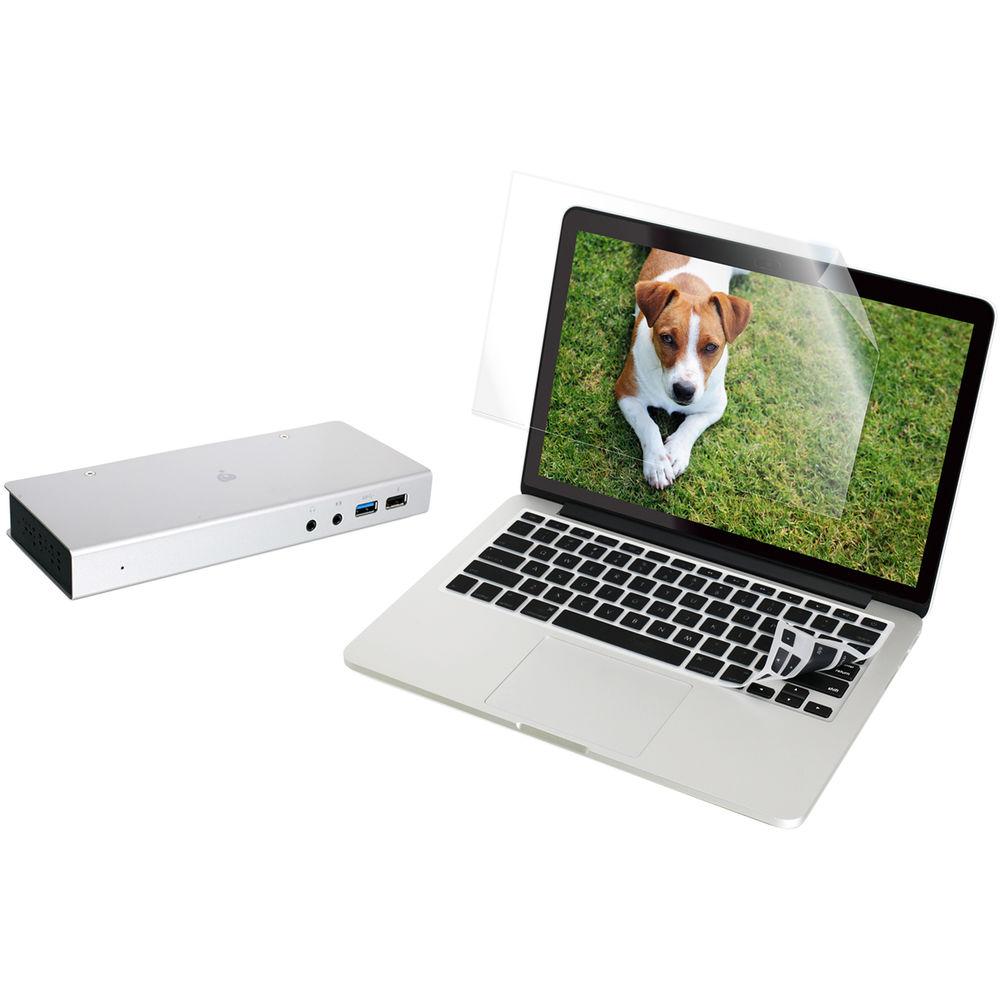

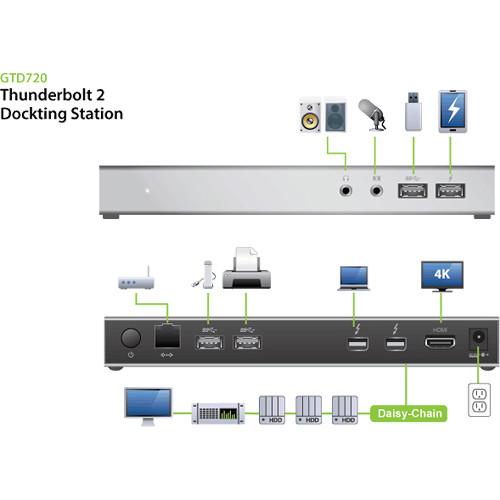

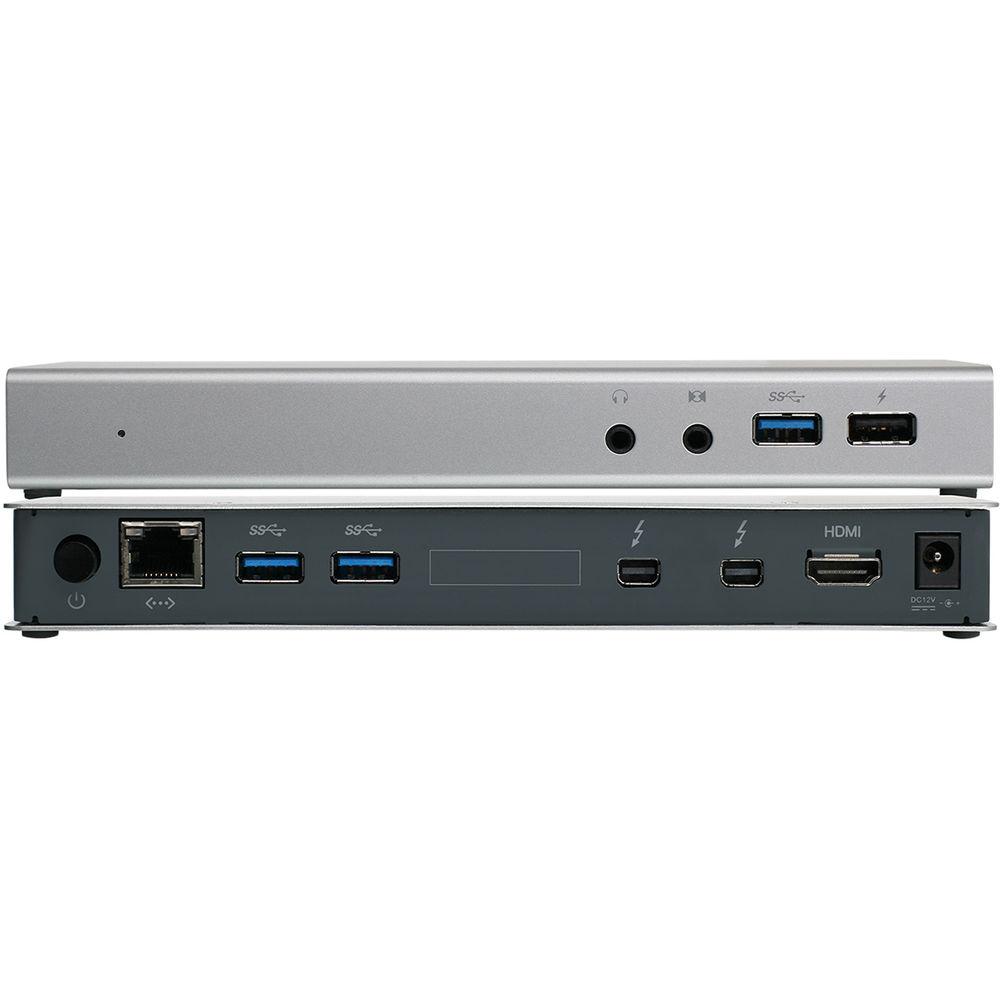

Product description With the Thunderbolt 2 Docking Station Bundle from IOGEAR you get the Thunderbolt 2 docking station, a 13" MacBook Pro Retina Keyboard Skin, and a Screen Protector for the 13" MacBook Pro Retina. The docking station included in this bundle features dual USB ports on the front of the dock, one of these being a USB 3.0 port and one that supports fast charging capabilities to quickly charge devices like smartphones and tablets. Also on the front are dual 3.5mm audio jacks. On the back you will find dual USB 3.0 ports, one Thunderbolt 2 input, one Thunderbolt 2 output, one HDMI port, and one RJ45 Gigabit Ethernet port.
Also included with the Thunderbolt 2 Docking Station is a screen protector for the 13" MacBook Pro with Retina Display and a keyboard skin. The screen protector is designed to resist fingerprints while helping to guard your eyes against harmful blue light emissions. The keyboard skin is composed of a silicone material and helps protect the keyboard against spills and wear and tear. - Thunderbolt 2 Docking Station
-
- Operates at a rate of up to 20 Gbps with Thunderbolt 2
- Ultra-high speed bandwidth expansion for 4 times faster data transfer than USB 3.0, 40 times faster than USB 2.0, and 25 times faster than FireWire 800
- Supports up to 4K (3840 x 2160) resolution on both HDMI and Thunderbolt 2 ports
Maximum resolution is dependent on the capability of the video display and its computer source - Supports dual displays for HDMI and Thunderbolt display monitors
- Ability to connect up to 8 devices directly to the dock and daisy chain up to 4 additional Thunderbolt devices (5 total)
- Dedicated USB charging port for tablets or smartphones
- Optical audio line-in/line-out port provides 5.1 digital audio editing and playback capabilities
For use with amplified headsets or speakers - Free Thunderbolt Gateway file transfer software for quick and easy data transfer
- Compatible with Thunderbolt 3
An Apple Thunderbolt 3 (USB Type-C) to Thunderbolt 2 (mDP) adapter is required - Backward compatible with Thunderbolt 1
- TAA Compliant

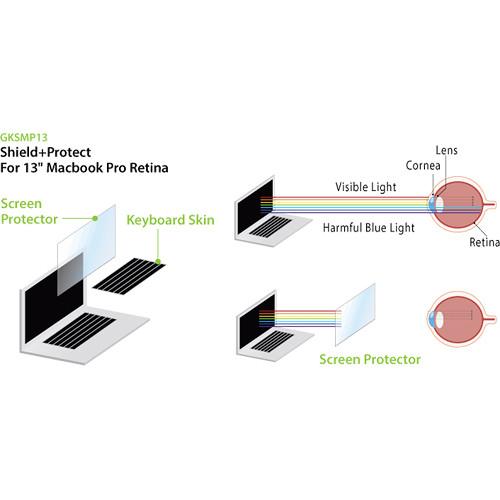

- GKSMP13 Screen Protector
-
- Protects 13" MacBook Pro Retina screen from scratches, dust, and dirt
- Fingerprint resistant and easy to apply

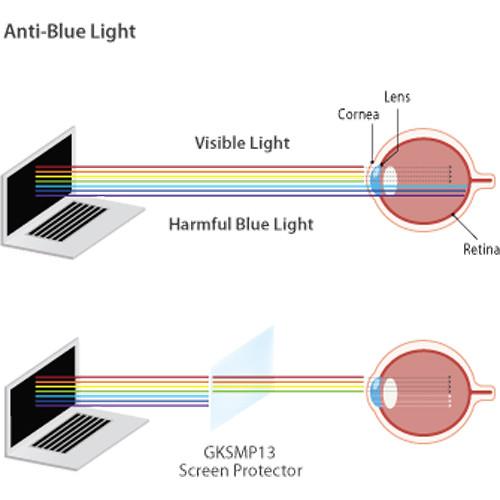

- Protects the eyes against the damaging effects of blue light coming from the screen
- Keyboard Skin
-
- Protects the keyboard from accidental spills, dust, key wear and more
- Soft durable silicone material ensures a comfortable typing experience
- Flexible, washable, and easy to apply and remove for cleaning or disinfecting
UPC: 881317515728 In the Box IOGEAR Thunderbolt 2 Docking Station Bundle 10-Port Thunderbolt 2 Docking Station Screen Protector (MacBook Pro 13" with Retina display) Silicone Keyboard Skin Micro Fiber Cleaning Cloth Anti-Dust Sticker Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the IOGEAR Thunderbolt 2 Docking Station Bundle in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersIOGEAR Station GTD720GKSMP13KIT Specs | | | USB | 3 x USB 3.1 Gen 1 Type-A (1.5 A) | | Thunderbolt | 1 x Thunderbolt 2 | | Ethernet | 1 x RJ45 (10/100/1000 Mbps) | | FireWire | None | | Display | 1 x HDMI | | Audio | 1 x Mini-TOSLINK Output
1 x Mini-TOSLINK Input | | Memory Card Slots | None | | | | Compatibility | MacBook Pro 15.4"
MacBook Pro 13.3" | | | | DC Input Power | 12 VDC at 6.5 A | | | | Cable Length | 3.3' / 1 m | | LED Indicator | Power | | | | Package Weight | 5.15 lb | | Box Dimensions (LxWxH) | 20.1 x 10.4 x 6.7" |
