IOGEAR Thunderbolt 2 Docking Station Kit

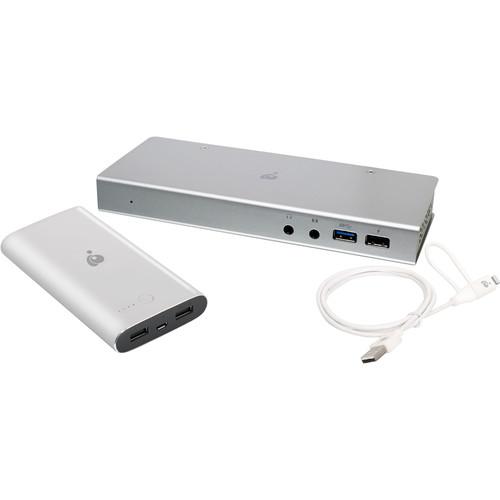

User Manual for IOGEAR Thunderbolt 2 Docking Station Kit with GearPower DuoLinq Mobile Power Station

• Product category: Docking Stations & Port Replicators IOGEAR
• Brand: IOGEAR
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for IOGEAR Docking Stations & Port Replicators

Product description

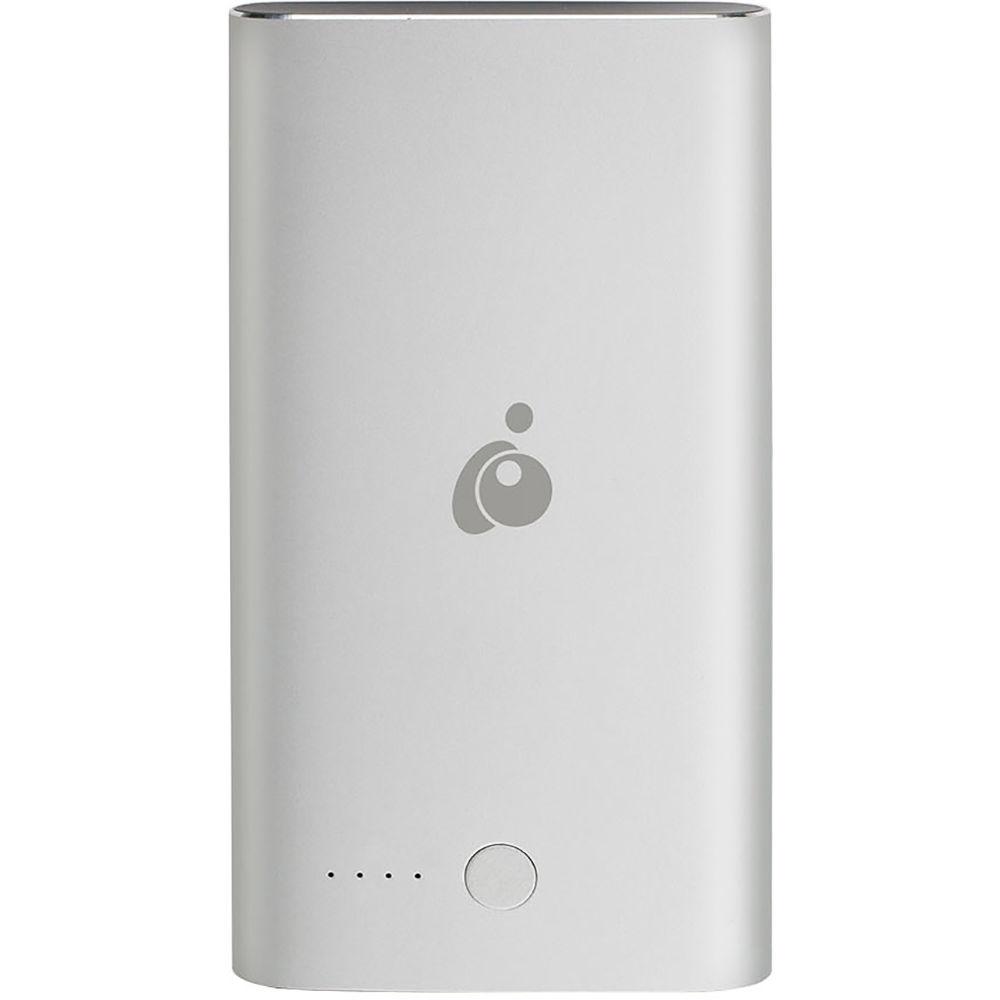

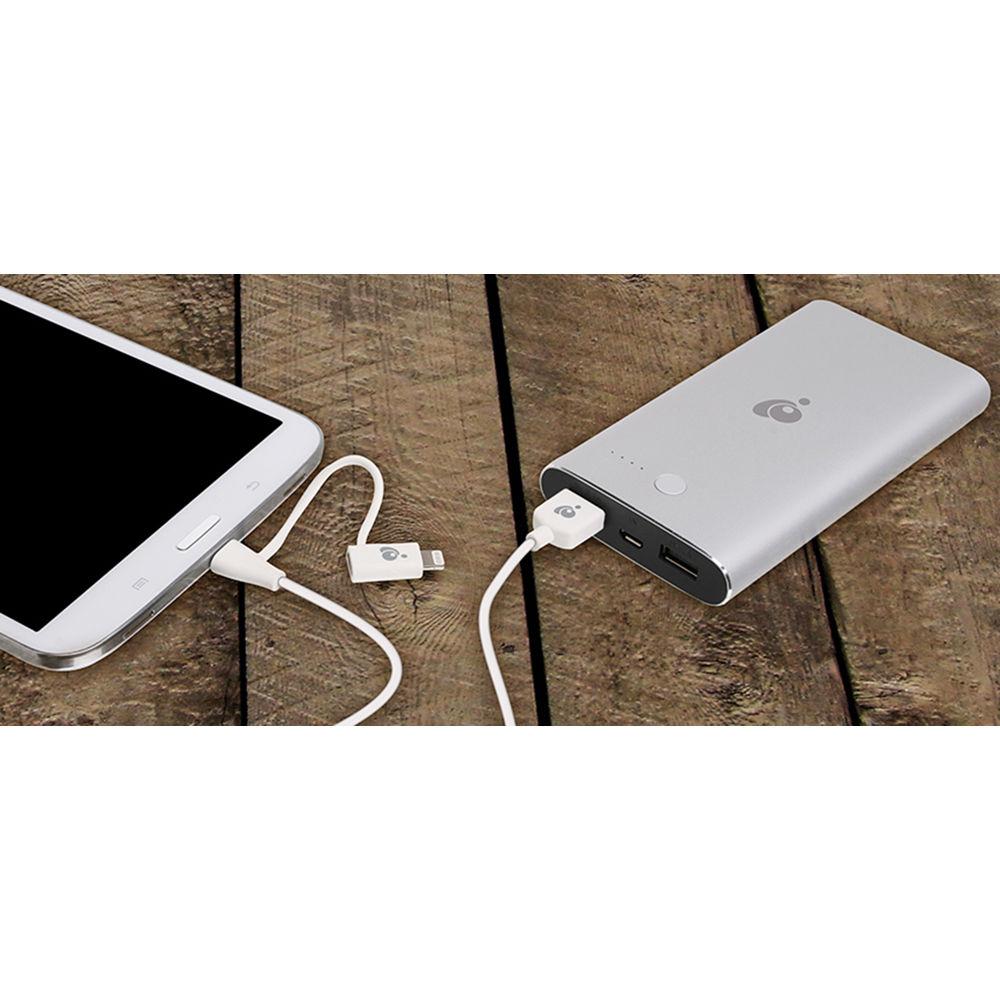

• GearPower DuoLinq 10,000mAh Portable Battery Pack with 2-in-1 Charging Cable The GearPower DuoLinq 10,000mAh Portable Battery Pack from IOGEAR features a lithium-ion battery to charge up to two mobile devices. This aluminum power station can recharge your smartphone, tablet, digital camera, or other USB battery-operated devices. It is built with two USB ports that provide 1A and 2.1A to charge two devices at the same time. The GearPower DuoLinq keeps your electronics safe with short-circuit, over-charge, and temperature protection. Included with the power station is a carrying pouch and the DuoLinq cable, which offers both a micro-USB and an Apple Lightning connector for use with a wide variety of devices.

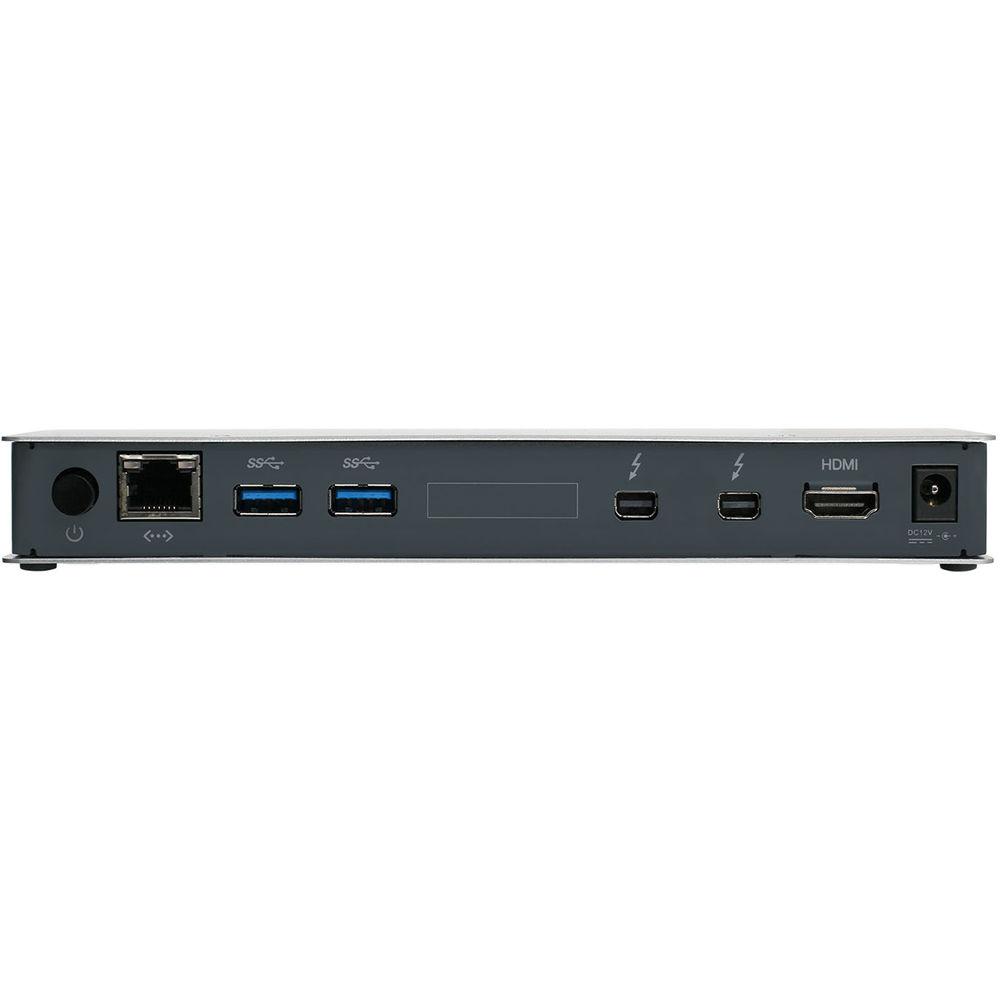

• 10-Port Thunderbolt 2 Docking Station Connect a variety of devices to your computer with the 10-Port Thunderbolt 2 Docking Station from IOGEAR. It is designed to give you access to all of the connectivity that many compact and super-portable computers lack. Connecting to the host computer via a single Thunderbolt-2 cable, the docking station provides 2 x Thunderbolt-2 ports, 4 x USB 3.0 Type-A ports, 1 x optical audio line-in jack, 1 x optical audio line-out jack, 1 x Gigabit Ethernet jack, and 1 x HDMI port.The docking station has a total of four powered USB 3.0 ports allowing you to charge and connect multiple peripherals and devices to your computer at once. The front-right USB 3.0 port features high-power charging capabilities which will charge devices much faster than the other ports will. The charging feature remains active as long as the docking station is plugged into a power outlet regardless of whether it is connected to a computer.Use the microphone and headphone jacks to connect audio components such as speakers, headphones, microphones, and even headsets. If your computer lacks wired networking capability, a Gigabit Ethernet port is provided for situations where Wi-Fi is either unavailable or insecure.To set up dual displays, connect one display via HDMI and the other via Thunderbolt or Thunderbolt 2. For dual displays, at least one display has to be Thunderbolt or Thunderbolt 2 compliant. For displays that are not Thunderbolt technology-ready, the Thunderbolt port is backwards-compatible with Mini DisplayPort. The dock supports either HDMI or Mini DisplayPort, but not both, and supports only one display at 4K resolution.
  • • Connects to host computer via single Thunderbolt-2 connection
    • A total of four USB 3.0 connections for your external devices

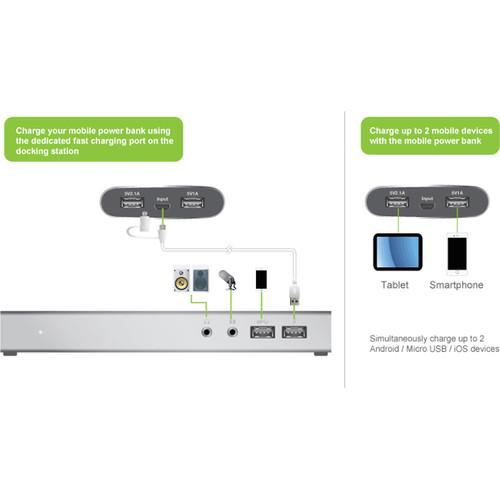

    • One of these is a USB charging port for tablets or smartphones
    • Supports dual displays for HDMI and Thunderbolt display monitors
    • Optical audio line-in and line-out port provides 5.1 digital audio editing and playback capabilities
    • Gigabit Ethernet jack adds wired networking capability
    • Ability to connect up to 8 devices directly to the dock and daisy chain up to 4 additional Thunderbolt devices (5 total)

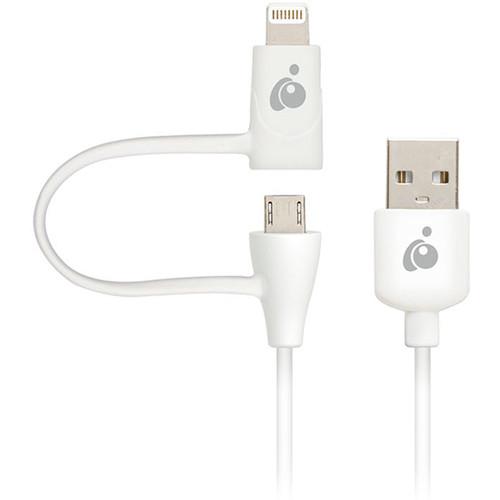

• 2-in-1 DuoLinq Cable

• Carry Pouch

• Limited 1-Year Warranty

• 3' Thunderbolt Cable

• AC Power Adapter

• Limited 1-Year Warranty

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• GearPower DuoLinq 10,000mAh Portable Battery Pack with 2-in-1 Charging Cable

  Input Charging Port	Micro-USB
  Output Ports	2 x USB Type-A

  Battery Chemistry	Lithium-Ion
  Capacity (mAh)	10,000 mAh

  DC Input Power	5 VDC at 1.7 A
  Port Output Power	5 V, 1 A 5 V, 2.1 A

  Dimensions (W x H x D)	5.1 x 0.7 x 2.6" / 13.0 x 1.8 x 6.6 cm
  Weight	8.8 oz / 249.5 g

  Box Dimensions (LxWxH)	7.8 x 4.8 x 1.2"

• 10-Port Thunderbolt 2 Docking Station

  USB	2 x USB 3.1 Gen 1 Type-A 1 x USB 3.1 Gen 1 Type-A 1 x USB 3.1 Gen 1 Type-A (1.5 A)
  Thunderbolt	2 x Thunderbolt 2
  Ethernet	1 x RJ45 (10/100/1000 Mbps)
  FireWire	None
  Display	1 x HDMI
  Audio	1 x Mini-TOSLINK Output 1 x Mini-TOSLINK Input
  Memory Card Slots	None

  DC Input Power	12 VDC at 6.5 A

  Dimensions	7.9 x 3.2 x 1.1" / 20 x 8 x 2.8 cm
  Weight	1.2 lb / 0.5 kg

  Box Dimensions (LxWxH)	10.2 x 5.5 x 4.6"
