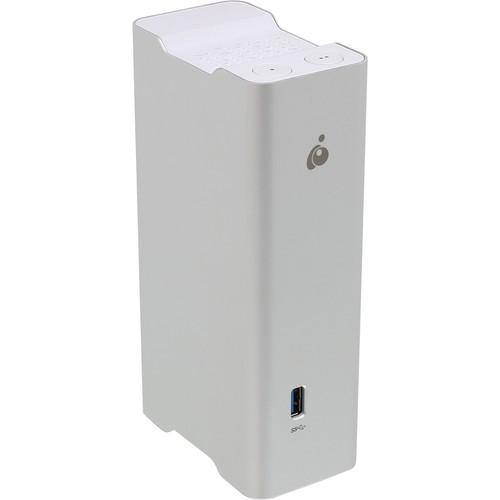

User Manual for IOGEAR Thunderbolt 2 KVM Docking Station Click to enlarge the picture
Contents of the user manual for the IOGEAR Thunderbolt 2 KVM Docking Station
- Product category: Docking Stations & Port Replicators IOGEAR
- Brand: IOGEAR
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for IOGEAR Docking Stations & Port Replicators
 |
User manual for the IOGEAR Thunderbolt 2 KVM Docking Station contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any IOGEAR product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official IOGEAR user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a IOGEAR product will considerably shorten its lifespan!
|

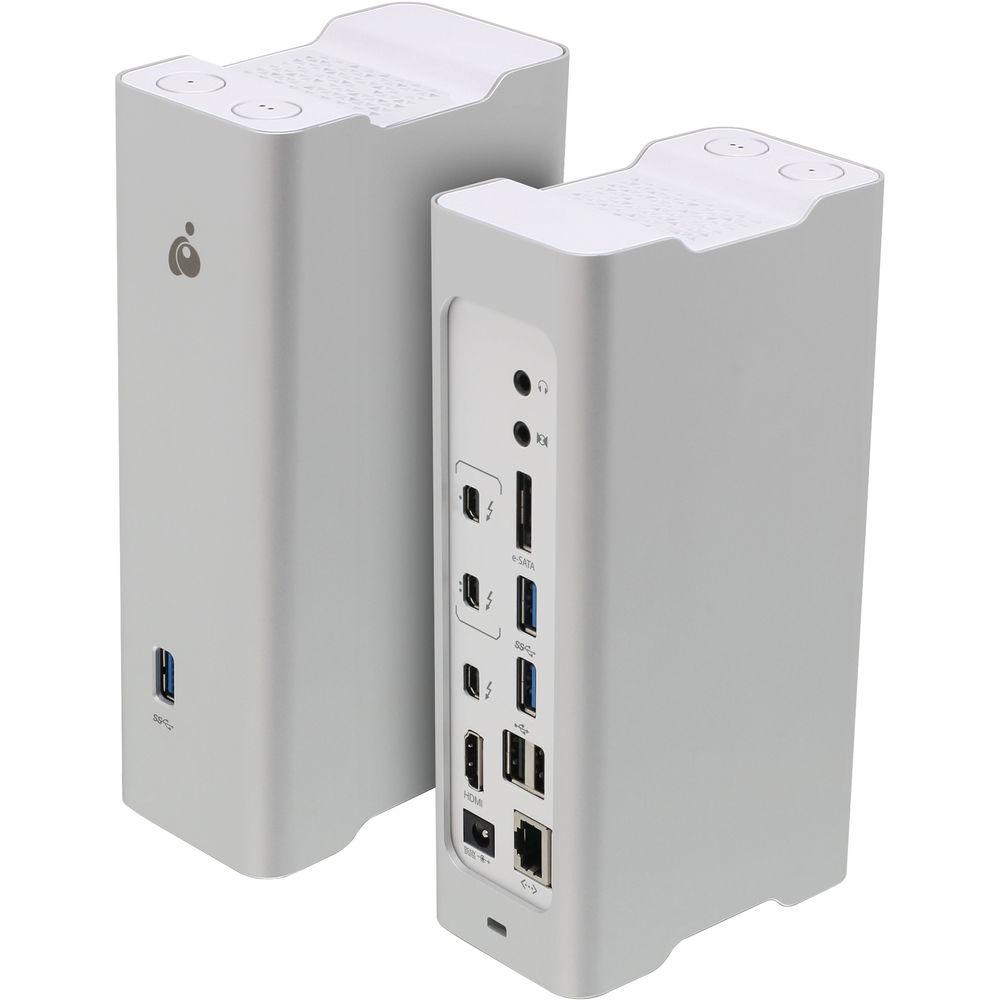

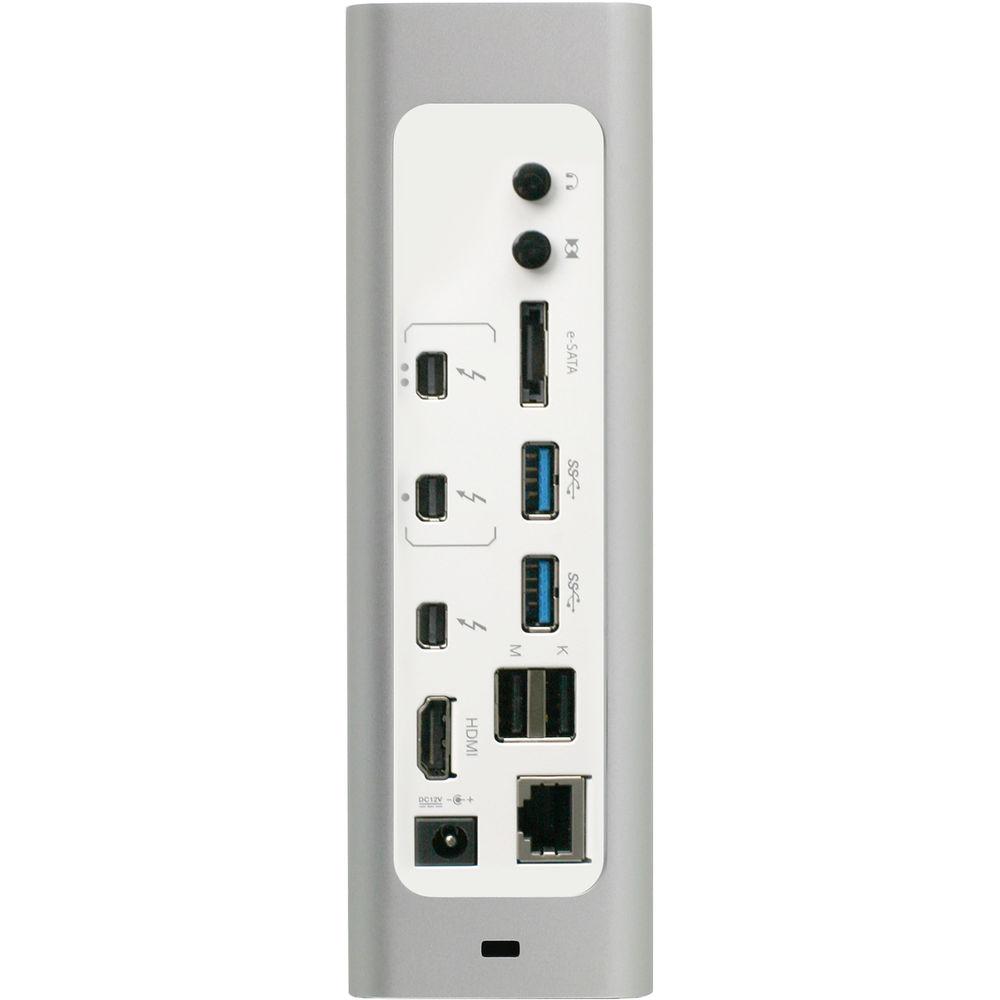

Product description Connect a variety of Thunderbolt 2, USB 3.1 Gen 1, USB 2.0, eSATA, HDMI, Mini DisplayPort, Gigabit Ethernet, and optical audio peripherals to your Mac system using the Thunderbolt 2 KVM Docking Station from IOGEAR. This dock contains 2 x Thunderbolt 2 (20 Gb/s) ports, 3 x USB 3.1 Gen 1 Type-A ports (5 Gb/s) ports, 2 x USB 2.0 Type-A ports (480 Mb/s), 1 x eSATA port, 1 x HDMI port, 1 x Mini DisplayPort (via Thunderbolt 2), 1 x Gigabit Ethernet port, and optical audio line-in and line-out jacks. All in all, you'll be able to connect up to 10 devices and peripherals directly to this dock.
In addition to connecting peripherals to your system, this dock can also expand your system's device connectivity beyond its native limits. For example, its Thunderbolt 2 ports allow the daisy-chaining of up to five additional Thunderbolt devices, including a Thunderbolt display, and its HDMI and Mini DisplayPort protocols can support dual displays at Full HD (1920 x 1080) and UHD 4K (3840 x 2160) resolutions. Each Thunderbolt 2 port supports bi-directional transfer speeds of up to 20 Gb/s, which is also backwards compatible with Thunderbolt technology at speeds up to 10 Gb/s. When used with an adapter, this dock can also support Thunderbolt 3 peripherals, although they will operate at Thunderbolt 2 speeds.
The Thunderbolt 2 KVM Docking Station is compatible with the MacBook Pro, MacBook Air, Mac mini, iMac, and Mac Pro, as well as other Thunderbolt 2-equipped systems. It operates using an included 12V / 7.5A power adapter and also includes a 3.3' / 1.0m Thunderbolt 2 cable and a base stand. General Features - Compatible with Thunderbolt 3 computers via a Thunderbolt 3 to Thunderbolt 2 Adapter.
- Share your peripherals and Thunderbolt 2 devices between two computers.
- Supports up to UHD 4K (3840 x 2160) resolution on both HDMI and Thunderbolt 2 ports. The maximum resolution is dependent on the capability of the video display and its computer source.
- Supports dual displays with HDMI and Thunderbolt 2 monitors. The dual display feature is only available on HDMI and Thunderbolt 2 connections. If connecting to an external display via a Mini DisplayPort cable, then only one external display will work at a time.
- Daisy-chain up to four additional Thunderbolt devices plus one Thunderbolt monitor (5 total).
- High-speed bandwidth expansion for data transfers that are four times faster than USB 3.1 Gen 1 and 25 times faster than FireWire 800.
- Connect up to 15 devices or peripherals to the dock (10 on dock + 5 via Thunderbolt expansion)
- Integrated 3-port USB 3.1 Gen 1 Type-A and 2-port USB 2.0 Type-A hub for external USB drives, cameras, and phones
- Optical audio-in/audio-out ports provide 5.1 digital audio editing and playback capabilities.
- Gigabit Ethernet port (RJ45), eSATA interface, and TAA-compliant.
- Backwards compatible with Thunderbolt 1.
Compatiblity - 13" MacBook Pro (Retina, Late 2012 and later)
- 15" MacBook Pro (Retina, Mid 2012 and later)
- 13" & 15" MacBook Pro (Early 2011 and later)
- 11" & 13" MacBook Air (Mid 2011 and later)
- iMac (Mid 2011 and later)
- Thunderbolt 2-enabled computers
UPC: 881317514561 In the Box IOGEAR Thunderbolt 2 KVM Docking Station 3.3' / 1.0m Thunderbolt 2 Cable 12V / 7.5A AC Power Adapter Base Stand Limited 1-Year Warranty More from Manufacturer ewveqrrrwvax More info from IOGEAR ewveqrrrwvax Table of Contents
|
Upload User Manual
Have you got an user manual for the IOGEAR Thunderbolt 2 KVM Docking Station in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersIOGEAR GTD732 Specs | | | USB | 3 x USB 3.1 Gen 1 Type-A
2 x USB 2.0 Type-A | | Thunderbolt | 2 x Thunderbolt 2 | | Ethernet | 1 x RJ45 (10/100/1000 Mbps) | | FireWire | None | | Display | 1 x HDMI | | Audio | 1 x 1/8" / 3.5 mm Line-In
1 x 1/8" / 3.5 mm Headphone | | Memory Card Slots | None | | Legacy | 1 x eSATA | | | | System Connection | 1 x Thunderbolt 2 Female | | | | DC Input Power | 12 VDC at 7.5 A | | | | Cable Length | 3.3' / 1 m | | LED Indicator | Power | | Dimensions | 7.22 x 3.84 x 2.24" / 18.34 x 9.75 x 5.69 cm | | | | Package Weight | 4.15 lb | | Box Dimensions (LxWxH) | 8.74 x 6.378 x 5.591" |
