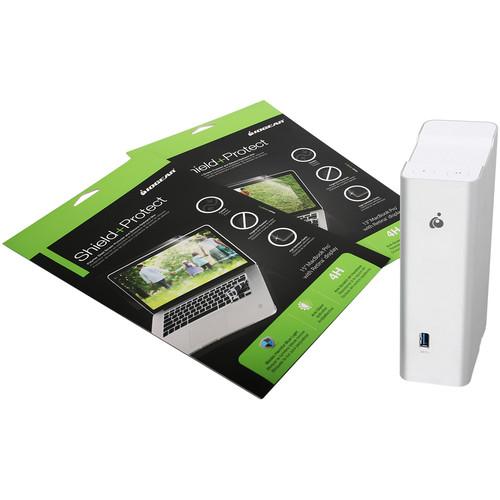

Product description The Thunderbolt 2 KVM Docking Station with Screen Protector Bundle from IOGEAR combines their Thunderbolt 2 KVM Docking Station with two keyboards skins and screen protectors - one for the 13" MacBook Pro with Retina Display and one for the 15" MacBook Pro with Retina Display. - Thunderbolt 2 KVM Docking Station Connect a variety of Thunderbolt 2, USB 3.1 Gen 1, USB 2.0, eSATA, HDMI, Mini DisplayPort, Gigabit Ethernet, and optical audio peripherals to your Mac system using the Thunderbolt 2 KVM Docking Station from IOGEAR. This dock contains 2 x Thunderbolt 2 (20 Gb/s) ports, 3 x USB 3.1 Gen 1 Type-A ports (5 Gb/s) ports, 2 x USB 2.0 Type-A ports (480 Mb/s), 1 x eSATA port, 1 x HDMI port, 1 x Mini DisplayPort (via Thunderbolt 2), 1 x Gigabit Ethernet port, and optical audio line-in and line-out jacks. All in all, you'll be able to connect up to 10 devices and peripherals directly to this dock.
In addition to connecting peripherals to your system, this dock can also expand your system's device connectivity beyond its native limits. For example, its Thunderbolt 2 ports allow the daisy-chaining of up to five additional Thunderbolt devices, including a Thunderbolt display, and its HDMI and Mini DisplayPort protocols can support dual displays at Full HD (1920 x 1080) and UHD 4K (3840 x 2160) resolutions. Each Thunderbolt 2 port supports bi-directional transfer speeds of up to 20 Gb/s, which is also backwards compatible with Thunderbolt technology at speeds up to 10 Gb/s. When used with an adapter, this dock can also support Thunderbolt 3 peripherals, although they will operate at Thunderbolt 2 speeds.
The Thunderbolt 2 KVM Docking Station is compatible with the MacBook Pro, MacBook Air, Mac mini, iMac, and Mac Pro, as well as other Thunderbolt 2-equipped systems. It operates using an included 12V / 7.5A power adapter and also includes a 3.3' / 1.0m Thunderbolt 2 cable and a base stand. General Features - Compatible with Thunderbolt 3 computers via a Thunderbolt 3 to Thunderbolt 2 Adapter.
- Share your peripherals and Thunderbolt 2 devices between two computers.
- Supports up to UHD 4K (3840 x 2160) resolution on both HDMI and Thunderbolt 2 ports. The maximum resolution is dependent on the capability of the video display and its computer source.
- Supports dual displays with HDMI and Thunderbolt 2 monitors. The dual display feature is only available on HDMI and Thunderbolt 2 connections. If connecting to an external display via a Mini DisplayPort cable, then only one external display will work at a time.
- Daisy-chain up to four additional Thunderbolt devices plus one Thunderbolt monitor (5 total).
- High-speed bandwidth expansion for data transfers that are four times faster than USB 3.1 Gen 1 and 25 times faster than FireWire 800.
- Connect up to 15 devices or peripherals to the dock (10 on dock + 5 via Thunderbolt expansion)
- Integrated 3-port USB 3.1 Gen 1 Type-A and 2-port USB 2.0 Type-A hub for external USB drives, cameras, and phones
- Optical audio-in/audio-out ports provide 5.1 digital audio editing and playback capabilities.
- Gigabit Ethernet port (RJ45), eSATA interface, and TAA-compliant.
- Backwards compatible with Thunderbolt 1.
Compatiblity - 13" MacBook Pro (Retina, Late 2012 and later)
- 15" MacBook Pro (Retina, Mid 2012 and later)
- 13" & 15" MacBook Pro (Early 2011 and later)
- 11" & 13" MacBook Air (Mid 2011 and later)
- iMac (Mid 2011 and later)
- Thunderbolt 2-enabled computers

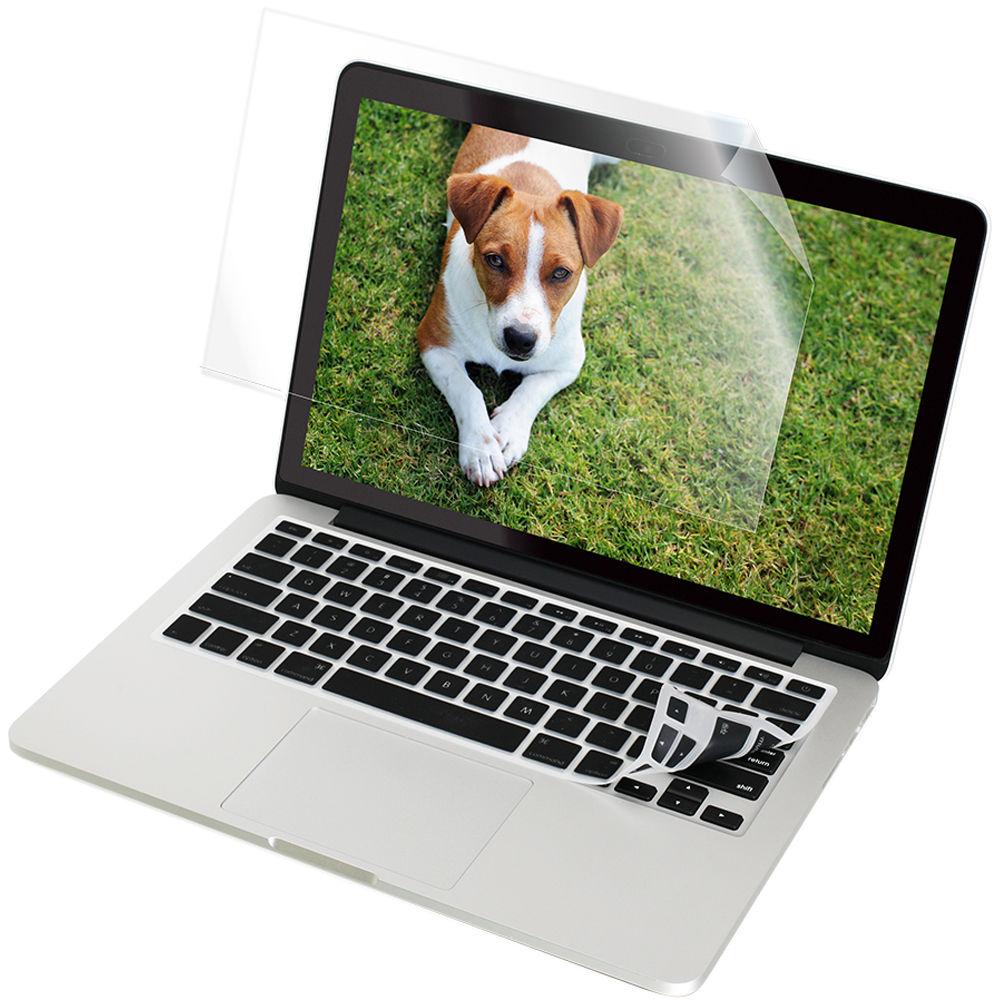

UPC: 881317514561 - 13" MacBook Pro Retina Shield+Protect Keyboard Skin and Screen Protector Protect the display and keyboard of your 13" MacBook Pro Retina using the fingerprint resistant Shield+Protect Keyboard Skin and Screen Protector from IOGEAR. Equipped with transparence and HD clarity, the screen protector features a 6-layer protective design that measures 0.01" / 0.22mm in thickness. Not only does the screen protector and its six layers help to protect your system's display from scratches, dust, and dirt, it also helps safeguard your eyes from harmful blue light that can be emitted from the display. Additionally, the screen protector helps to reduce glare.
The keyboard protector is 0.02" / 0.40mm thick and helps to protect the keys from spills, dust, and key wear, while also allowing any backlit keys to still be visible. Constructed from soft yet durable silicone, this keyboard protector is flexible and easy to apply or remove for cleaning and disinfecting.
Included with the Keyboard Skin and Screen Protector is a micro-fiber cleaning cloth and an anti-dust sticker. It is protected by a limited 90-day warranty. Screen Protector - Protects the 13" MacBook Pro Retina's display from scratches, dust, and dirt
- Fingerprint resistant and easy to apply
- Helps protects the eyes against the damaging effects of blue light coming from the screen
Keyboard Skin - Helps protects the keyboard from accidental spills, dust, key wear, and more
- Soft durable silicone material helps to ensure a comfortable typing experience
- Flexible, washable, and easy to apply and remove for cleaning or disinfecting
UPC: 881317513984 - 15" MacBook Pro Retina Shield+Protect Keyboard Skin and Screen Protector Protect the display and keyboard of your 15" MacBook Pro Retina using the fingerprint resistant Shield+Protect Keyboard Skin and Screen Protector from IOGEAR. Equipped with transparence and HD clarity, the screen protector features a 6-layer protective design that measures 0.01" / 0.22mm in thickness. Not only does the screen protector and its six layers help to protect your system's display from scratches, dust, and dirt, it also helps safeguard your eyes from harmful blue light that can be emitted from the display. Additionally, the screen protector helps to reduce glare.
The keyboard protector is 0.02" / 0.40mm thick and helps to protect the keys from spills, dust, and key wear, while also allowing any backlit keys to still be visible. Constructed from soft yet durable silicone, this keyboard protector is flexible and easy to apply or remove for cleaning and disinfecting.
Included with the Keyboard Skin and Screen Protector is a micro-fiber cleaning cloth and an anti-dust sticker. It is protected by a limited 90-day warranty. Screen Protector - Protects the 15" MacBook Pro Retina's display from scratches, dust, and dirt
- Fingerprint resistant and easy to apply
- Helps protects the eyes against the damaging effects of blue light coming from the screen
Keyboard Skin - Helps protects the keyboard from accidental spills, dust, key wear, and more
- Soft durable silicone material helps to ensure a comfortable typing experience
- Flexible, washable, and easy to apply and remove for cleaning or disinfecting

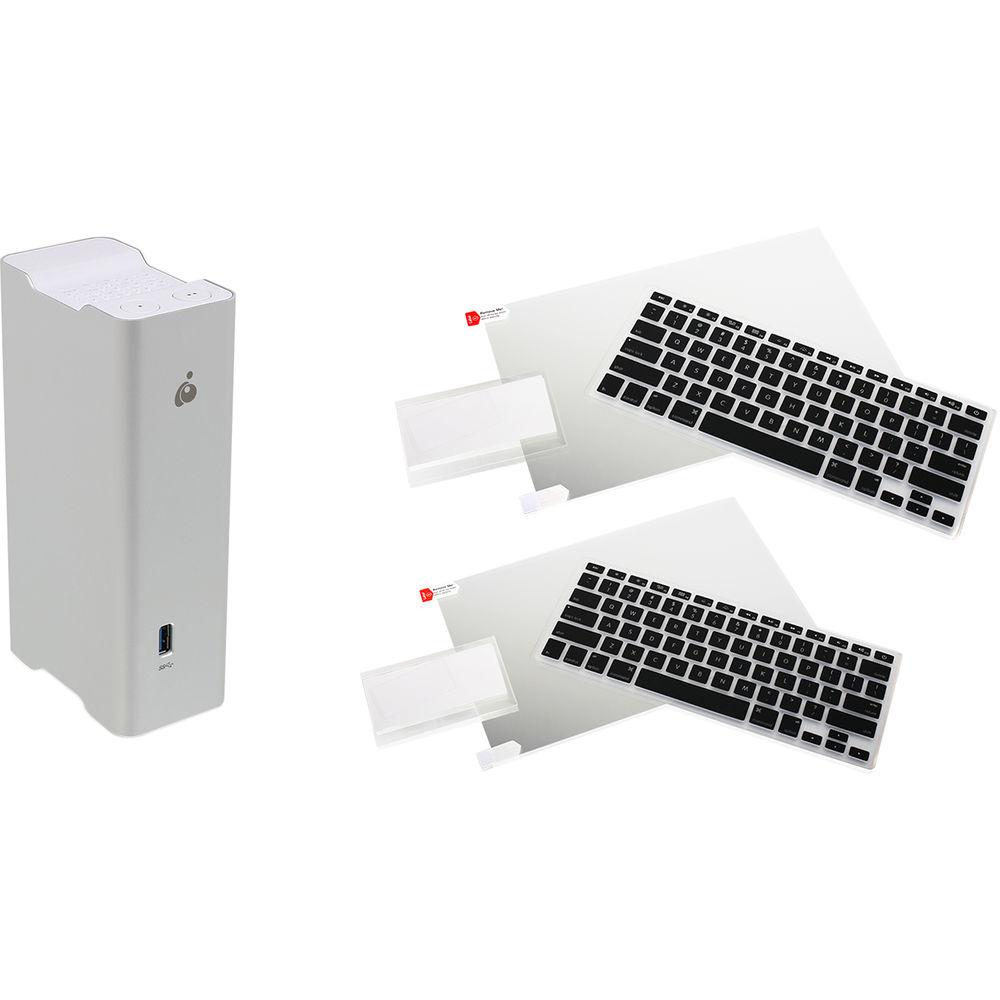

In the Box Bundle Items Thunderbolt 2 KVM Docking Station fwtvyrxxcrwdryusydaeys - 3.3' / 1.0m Thunderbolt 2 Cable
- 12V / 7.5A AC Power Adapter
13" MacBook Pro Retina Shield+Protect Keyboard Skin and Screen Protector fwtvyrxxcrwdryusydaeys - Micro-Fiber Cleaning Cloth
15" MacBook Pro Retina Shield+Protect Keyboard Skin and Screen Protector fwtvyrxxcrwdryusydaeys - Micro-Fiber Cleaning Cloth
Also Includes - Thunderbolt 2 Cable (3.3')
- AC Power Adapter
- Base Stand
- Limited 1-Year Warranty
Table of Contents
|
Upload User Manual
Have you got an user manual for the IOGEAR Thunderbolt 2 KVM Docking Station with Screen Protector Bundle in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - Thunderbolt 2 KVM Docking Station
| | | USB | 3 x USB 3.1 Gen 1 Type-A
2 x USB 2.0 Type-A | | Thunderbolt | 2 x Thunderbolt 2 | | Ethernet | 1 x RJ45 (10/100/1000 Mbps) | | FireWire | None | | Display | 1 x HDMI | | Audio | 1 x 1/8" / 3.5 mm Line-In
1 x 1/8" / 3.5 mm Headphone | | Memory Card Slots | None | | Legacy | 1 x eSATA | | | | System Connection | 1 x Thunderbolt 2 Female | | | | DC Input Power | 12 VDC at 7.5 A | | | | Cable Length | 3.3' / 1 m | | LED Indicator | Power | | Dimensions | 7.22 x 3.84 x 2.24" / 18.34 x 9.75 x 5.69 cm | | | | Box Dimensions (LxWxH) | 8.74 x 6.378 x 5.591" | - 13" MacBook Pro Retina Shield+Protect Keyboard Skin and Screen Protector
| Dimensions | 0.02" / 0.40 mm thick | | Weight | 0.25 lb / 0.11 kg | | | | Box Dimensions (LxWxH) | 16.0 x 9.2 x 0.4" | - 15" MacBook Pro Retina Shield+Protect Keyboard Skin and Screen Protector
| Dimensions | 0.02" / 0.40 mm thick | | Weight | 0.30 lb / 0.14 kg | | | | Box Dimensions (LxWxH) | 16.0 x 9.2 x 0.5" |
