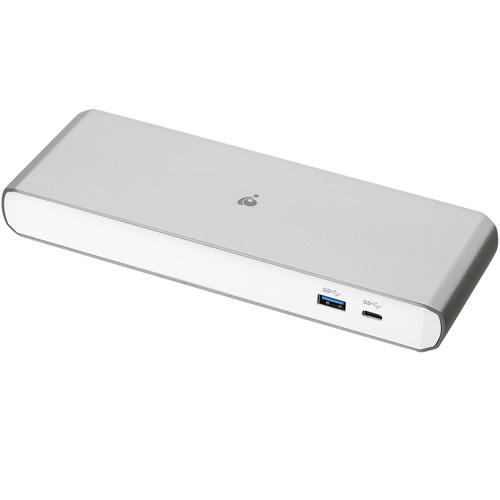

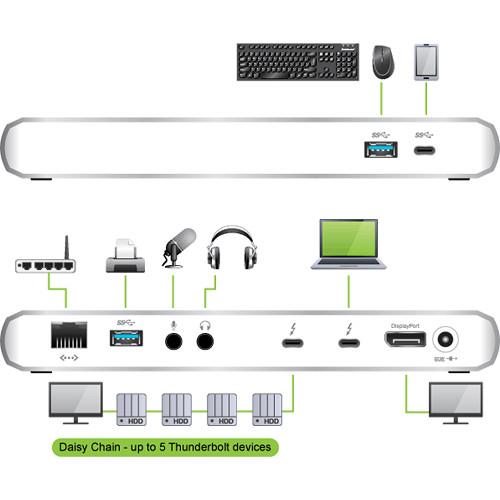

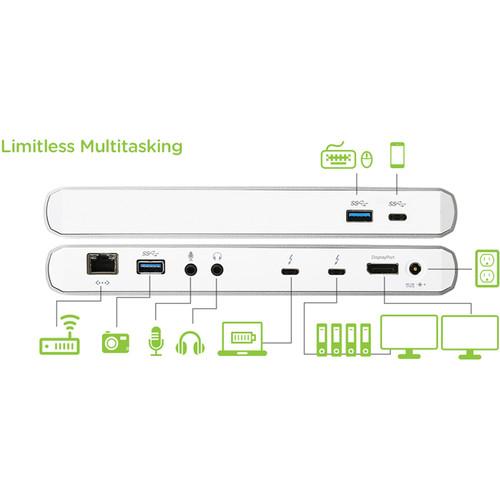

Product description With support for a single 5K or dual 4K displays, the Thunderbolt 3 Quantum Docking Station with Extra Ports from IOGEAR allows you to see your photos, videos, and other multimedia content with enhanced clarity. The enhanced resolutions up to 4096 x 2160 are supported using the DisplayPort and Thunderbolt 3 / USB Type-C ports. In addition to video outputs, this docking station also features dual USB 3.0 Type-A ports, a single Gigabit Ethernet port, one 3.5mm audio input, and one 3.5mm audio output. Once configured, users can take advantage of up to 40 Gbps of data bandwidth to virtually eliminate any lag, and with up to 15-watts of power delivery on the USB Type-C port, you can even power devices directly from the dock. -
- 5K resolution or dual 4K resolution
Please note maximum resolution of one 5K or dual 4K is dependent on the capability of the video display and its computer source - Display Port Video Output (4K)
- 15W Power Delivery via USB-C
- Thunderbolt 3 / USB-C expansion port
- 40 Gbps data bandwidth
- USB 3.0 Type-C port
- 2 x USB 3.0 Type-A ports
- Gigabit Ethernet Port
- 3.5mm audio input and output
UPC: 881317514950 In the Box IOGEAR Thunderbolt 3 Quantum Docking Station with Extra Ports 72W AC Adapter Thunderbolt 3 Cable Limited 1-Year Warranty More from Manufacturer bavsxwzvdavswrzbtfrxezfdvezduxzxv More info from IOGEAR Table of Contents
|
Upload User Manual
Have you got an user manual for the IOGEAR Thunderbolt 3 Quantum Docking Station with Extra Ports in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersIOGEAR Docking Station GTD733 Specs | | | USB | 1 x USB 3.1 Gen 1 Type-C
2 x USB 3.1 Gen 1 Type-A | | Thunderbolt | 1 x Thunderbolt 3 | | Ethernet | 1 x RJ45 (10/100/1000 Mbps) | | FireWire | None | | Display | 1 x DisplayPort | | Audio | 1 x 1/8" / 3.5 mm Line-In
1 x 1/8" / 3.5 mm Line-Out | | Memory Card Slots | None | | | | System Connection | 1 x Thunderbolt 3 Female | | | | Maximum Resolution Supported | 4096 x 2160 at 60 Hz | | | | DC Input Power | 12 VDC at 6 A | | | | Cable Length | 1.6' / 0.5 m | | Dimensions | 1.1 x 3.13 x 8.75" / 2.8 x 8 x 22.2 cm | | Weight | 1 lb / 0.5 kg | | | | Package Weight | 2.7 lb | | Box Dimensions (LxWxH) | 9.9 x 5.2 x 4.4" |
