User Manual for IOGEAR Ultra Long Range Wireless DVI Receiver Click to enlarge the picture
Contents of the user manual for the IOGEAR Ultra Long Range Wireless DVI
- Product category: Video Extenders & Repeaters IOGEAR
- Brand: IOGEAR
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for IOGEAR Video Extenders & Repeaters
 |
User manual for the IOGEAR Ultra Long Range Wireless DVI contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any IOGEAR product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official IOGEAR user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a IOGEAR product will considerably shorten its lifespan!
|

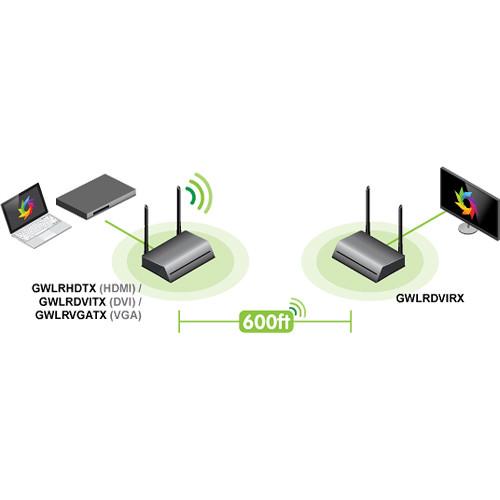

Product description The IOGEAR Ultra Long Range Wireless VGA Receiver is compatible with the DVI, HDMI, and VGA transmitters of the Ultra Long Range lineup and supports transmission from up to 600' away in up to 1080p60 resolution. The signal comes in wirelessly over the free 5 GHz frequency band and can then be output to any monitor or projector with a DVI connection.

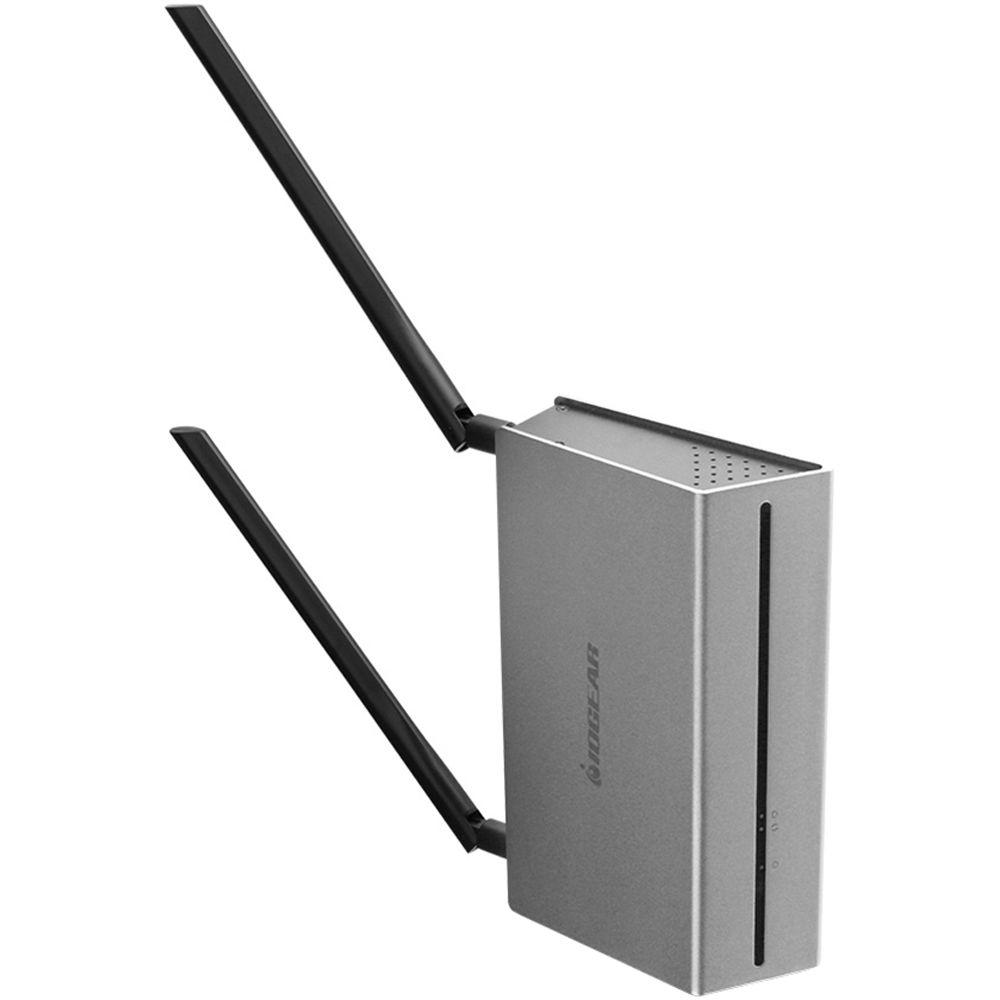

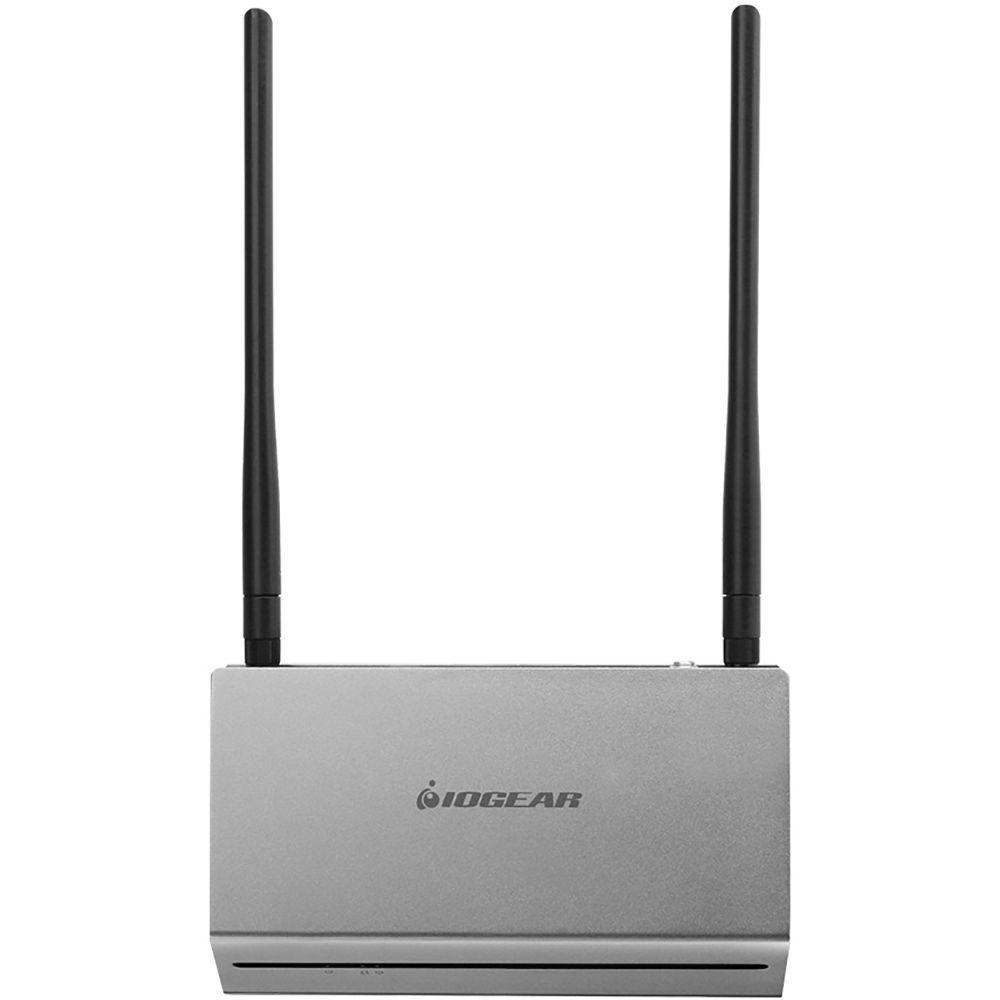

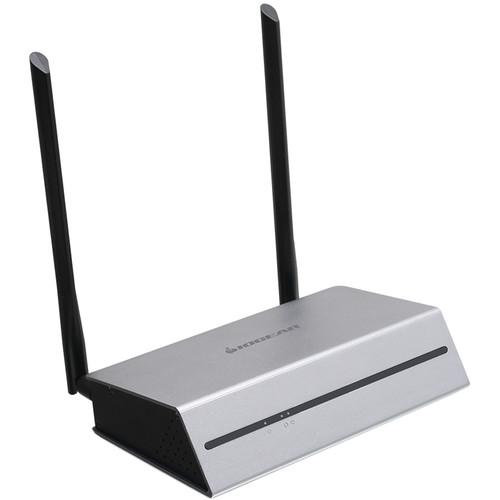

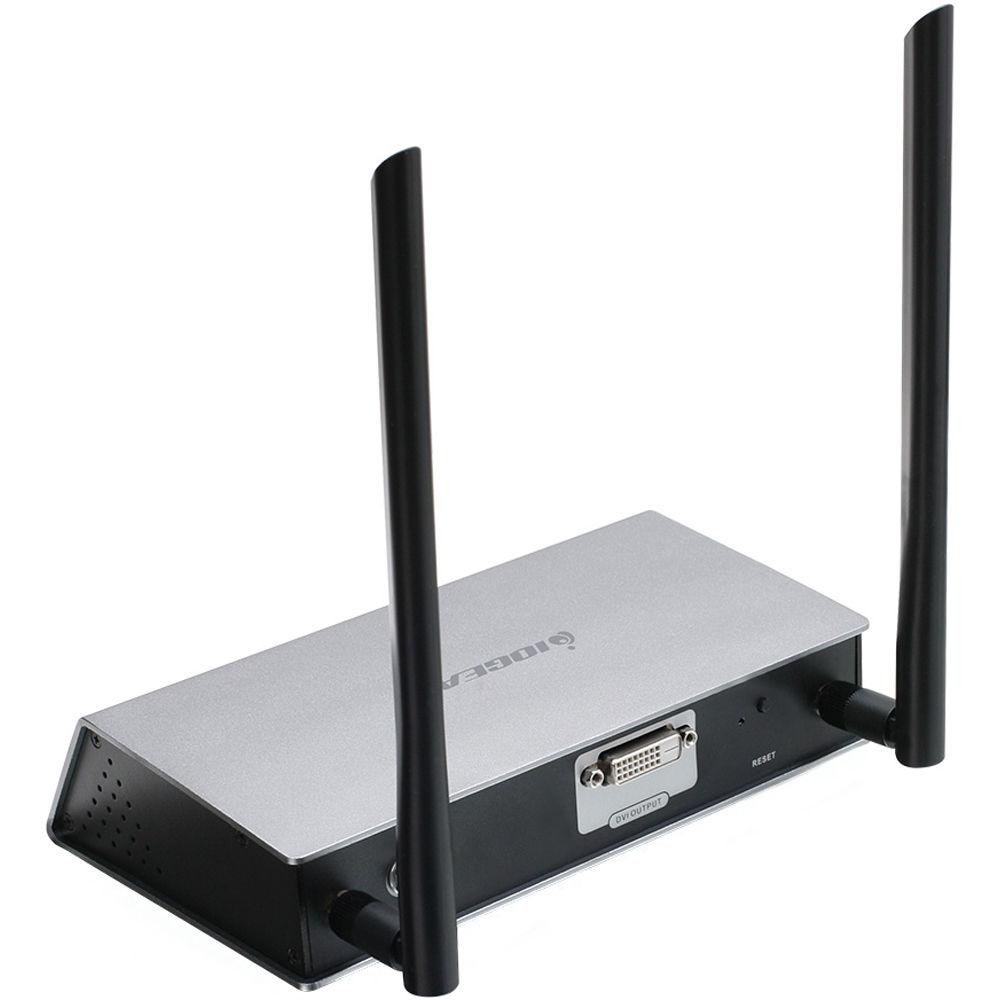

Like the rest of the lineup, this receiver features a sleek and minimalist design with simply a DVI output and two large antennas on the rear and LED indicators on the front. Complementing the design, the wireless capability of the Ultra Long Range lineup eliminates the need for long cables and prevents cable clutter. Moreover, the Ultra Long Range lineup is a plug-and-play solution, providing for additional efficiency and convenience.

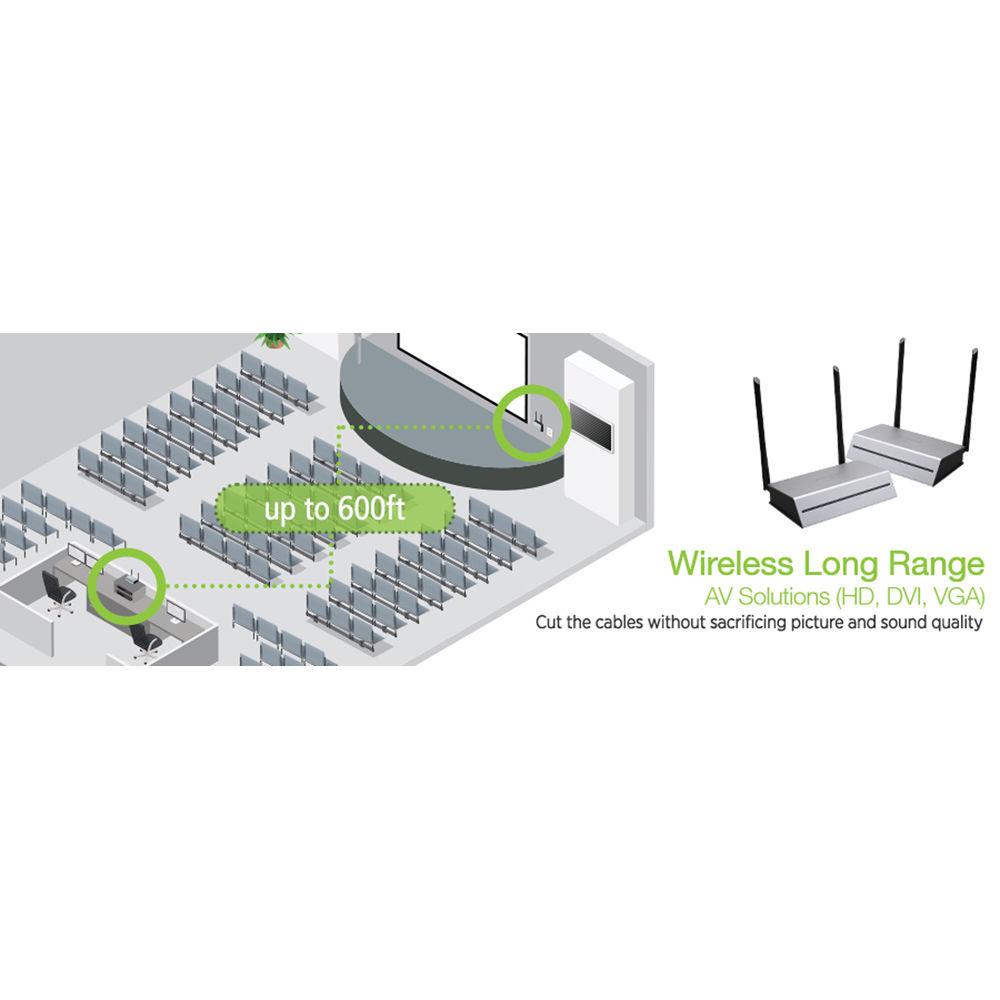

Designed for digital signage applications, the receiver is suitable for use in restaurants, retail stores, airports, houses of worship, concerts, sports venues, and office environments to display signals from devices such as computers and Blu-ray players. Note: The DVI receiver only accepts video (and the DVI transmitter, sold separately, only transmits video). Although this receiver can be paired with all three Ultra Long Range transmitters, it will not accept audio from any of them. - Key Features
-
- Compatible with DVI, HDMI, and VGA Ultra Long Range transmitters
- 600' range
- Up to 1080p60 resolution support
- 5 GHz frequency band
- Plug-and-play solution
UPC: 881317514707 In the Box IOGEAR Ultra Long Range Wireless DVI Receiver DVI Cable Power Adapter Limited 1-Year Warranty More from Manufacturer Table of Contents
|
Upload User Manual
Have you got an user manual for the IOGEAR Ultra Long Range Wireless DVI Receiver in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersIOGEAR GWLRDVIRX Specs | Wireless Range | 600' (183 m) line of sight | | Supported Resolutions | 1920 x 1080 at 60 Hz
1680 x 1050 at 60 Hz
1440 x 900 at 60 Hz
1360 x 768 at 60 Hz
1280 x 1024 at 60 Hz
1280 x 960 at 60 Hz
1280 x 720 at 60 Hz
1024 x 768 at 60 Hz
800 x 600 at 60 Hz | | Connection | DVI Output: 1 x DVI-D 1.0 | | Video Streaming | 230 ms HDbitT | | Frequency | 5 GHz | | Antenna Type | Dual high-gain 5 DBi antennas | | Enclosure | Metal | | Power | 5 V, 3 A
1 x power port | | Power Consumption | < 10 W | | Operating Temperature | 32 - 140°F (0 to 60°C) | | Humidity | 10-95% non-condensing | | Dimensions | 1.75 x 4.5 x 7.6" (4.5 x 11.4 x 19.3 cm) | | Weight | 1.4 lb (0.64 kg) | | | | Package Weight | 2.6 lb | | Box Dimensions (LxWxH) | 10.2 x 6.2 x 3.8" |
