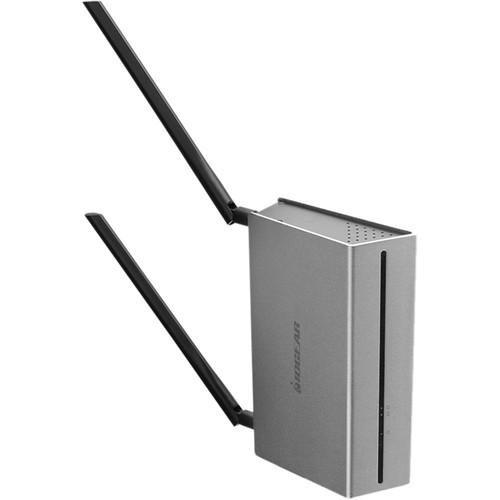

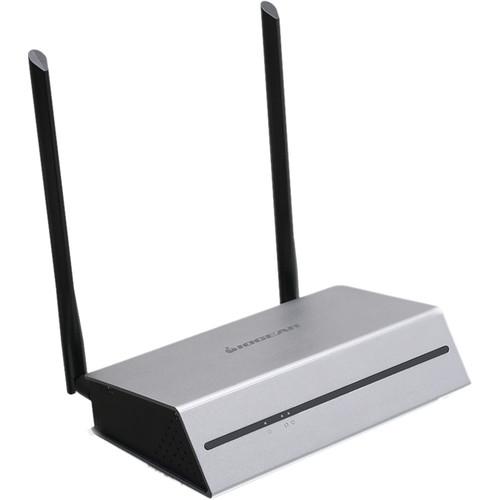

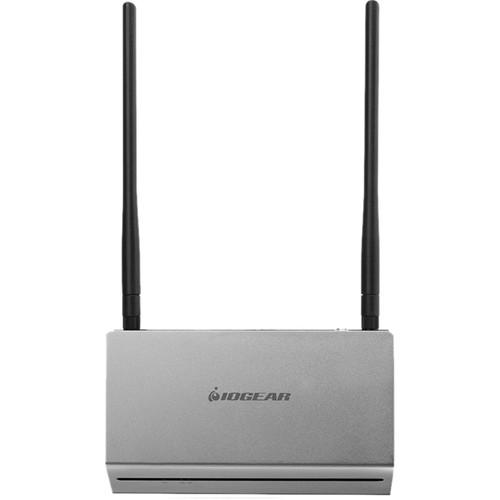

Product description The IOGEAR Ultra Long Range Wireless VGA Transmitter is compatible with the VGA, HDMI, and DVI receivers of the Ultra Long Range lineup and transmits from up to 600' in up to 1080p60 resolution. The signal is transmitted wirelessly over the free 5 GHz frequency band.

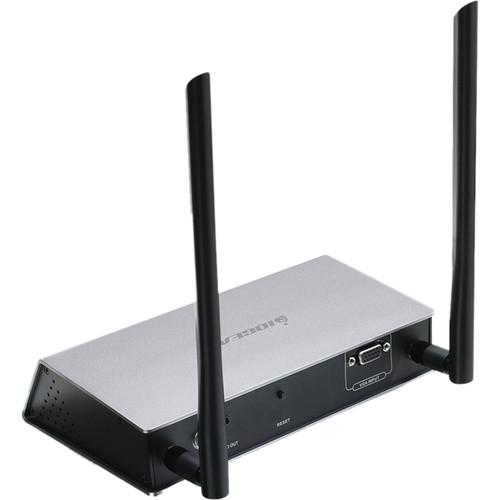

Like the rest of the lineup, this transmitter features a sleek and minimalist design with simply VGA and audio inputs and two large antennas on the rear and LED indicators on the front. Complementing the design, the wireless capability of the Ultra Long Range lineup eliminates the need for long cables and prevents cable clutter. Moreover, the Ultra Long Range lineup is a plug-and-play solution, providing for additional efficiency and convenience.
Designed for digital signage applications, the transmitter is suitable for use in restaurants, retail stores, airports, houses of worship, concerts, sports venues, and office environments to deliver signals from devices such as laptops/computers. - Key Features
-
- Compatible with VGA, HDMI, and DVI Ultra Long Range receivers
- 600' range
- Up to 1080p60 resolution support
- Independent 3.5mm audio input (the audio signal gets transmitted wirelessly as well; audio is not transmitted to the DVI receiver because it doesn't support audio)
- 5 GHz frequency band
- Plug-and-play solution
UPC: 881317514714 In the Box IOGEAR Ultra Long Range Wireless VGA Transmitter VGA Cable Audio Cable Power Adapter Limited 1-Year Warranty More from Manufacturer Table of Contents
|
Upload User Manual
Have you got an user manual for the IOGEAR Ultra Long Range Wireless VGA Transmitter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersIOGEAR GWLRVGATX Specs | Wireless Range | 600' (183 m) line of sight (20-60 Hz frequency) | | Connection | VGA Input: 1 x DE-15
Stereo Analog Audio Input: 1 x 3.5 mm | | Supported Resolutions | 1080p: 60
1680 x 1050: 60
1440 x 900: 60
1360 x 768: 60
1280 x 1024: 60
1280 x 960: 60
1280 x 720: 60
1024 x 768: 60
800 x 600: 60 | | Video Streaming | 230 ms HDbitT | | Audio | Stereo audio in PCM codec supported | | Frequency | 5 GHz | | Antenna Type | Dual high gain 5 DBi antennas | | Enclosure | Metal | | Power | 5 V, 3 A
1 x power port | | Power Consumption | < 9 W | | Operating Temperature | 32 - 140°F (0 to 60°C) | | Humidity | 10-95% non-condensing | | Dimensions | 1.75 x 4.5 x 7.6" (4.5 x 11.4 x 19.3 cm) | | Weight | 1.4 lb (0.64 kg) | | | | Package Weight | 2.75 lb | | Box Dimensions (LxWxH) | 10.1 x 6.3 x 3.8" |
