User Manual for IOGEAR USB 2.0 4-Port BoostLinq Ethernet Kit Click to enlarge the picture
Contents of the user manual for the IOGEAR USB 2.0 4-Port BoostLinq Ethernet
- Product category: USB Extenders IOGEAR
- Brand: IOGEAR
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for IOGEAR USB Extenders
 |
User manual for the IOGEAR USB 2.0 4-Port BoostLinq Ethernet contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any IOGEAR product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official IOGEAR user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a IOGEAR product will considerably shorten its lifespan!
|
Product description Extend the length of your USB 2.0 and 1.1 connections up to 164' away from your computer via Cat5, Cat5e, and Cat6 Ethernet using the USB 2.0 4-Port BoostLinq Ethernet Kit from IOGEAR. Designed for use in classrooms, labs, office, conference rooms, and more, this device offers users a means of operating up to four USB devices at an extended distance. Connected devices, such as scanners, printers, cameras, and more are able to maintain their data transfer rate of up to 480 Mb/s with USB 2.0 or 12 Mb/s with USB 1.1.
This USB extender operates by converting a USB 2.0 or 1.1 connection to RJ-45 Ethernet and then sending that data over a Cat5, Cat5e, or Cat6 Ethernet cable at a distance of up to 164'. This USB extender is also an active repeater, meaning that it uses a small power supply to amplify the USB signal and help preserve data integrity over long distances. The power supply also helps maintain enough current to power any connected USB devices, such as webcams and hard drives.

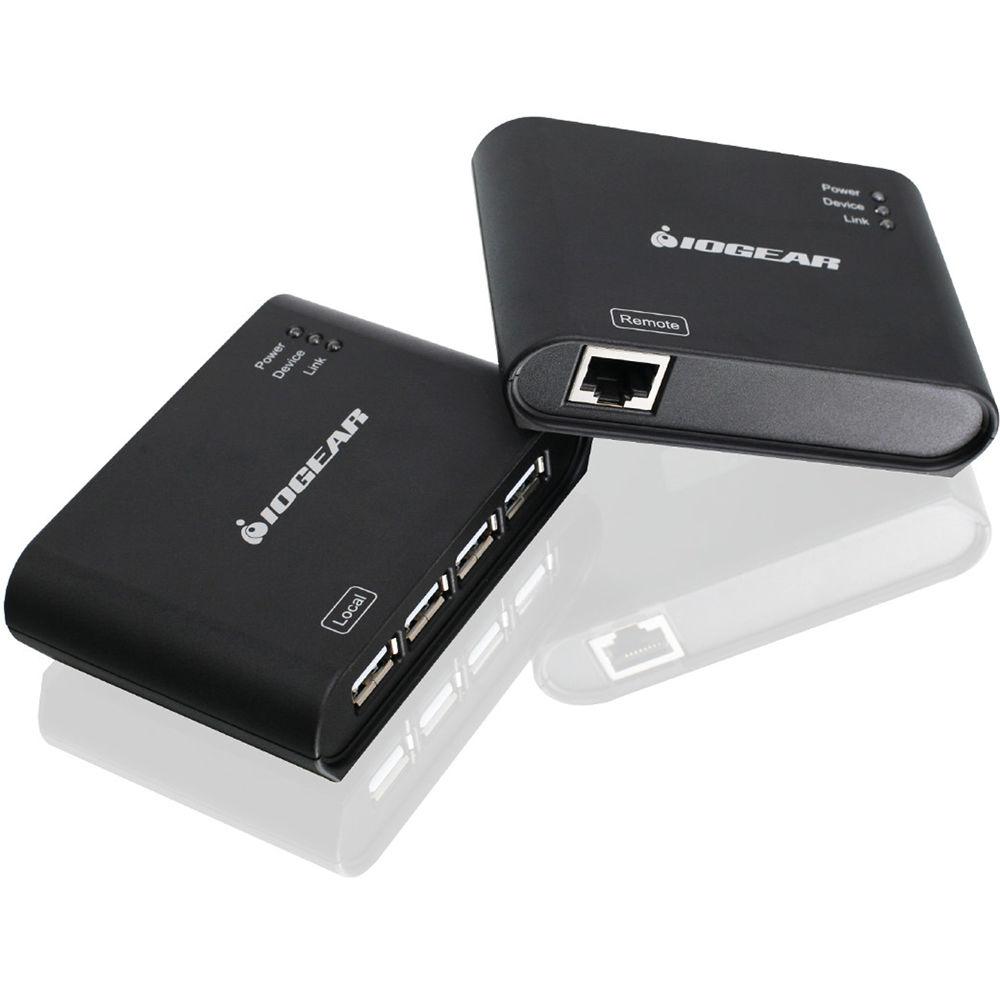

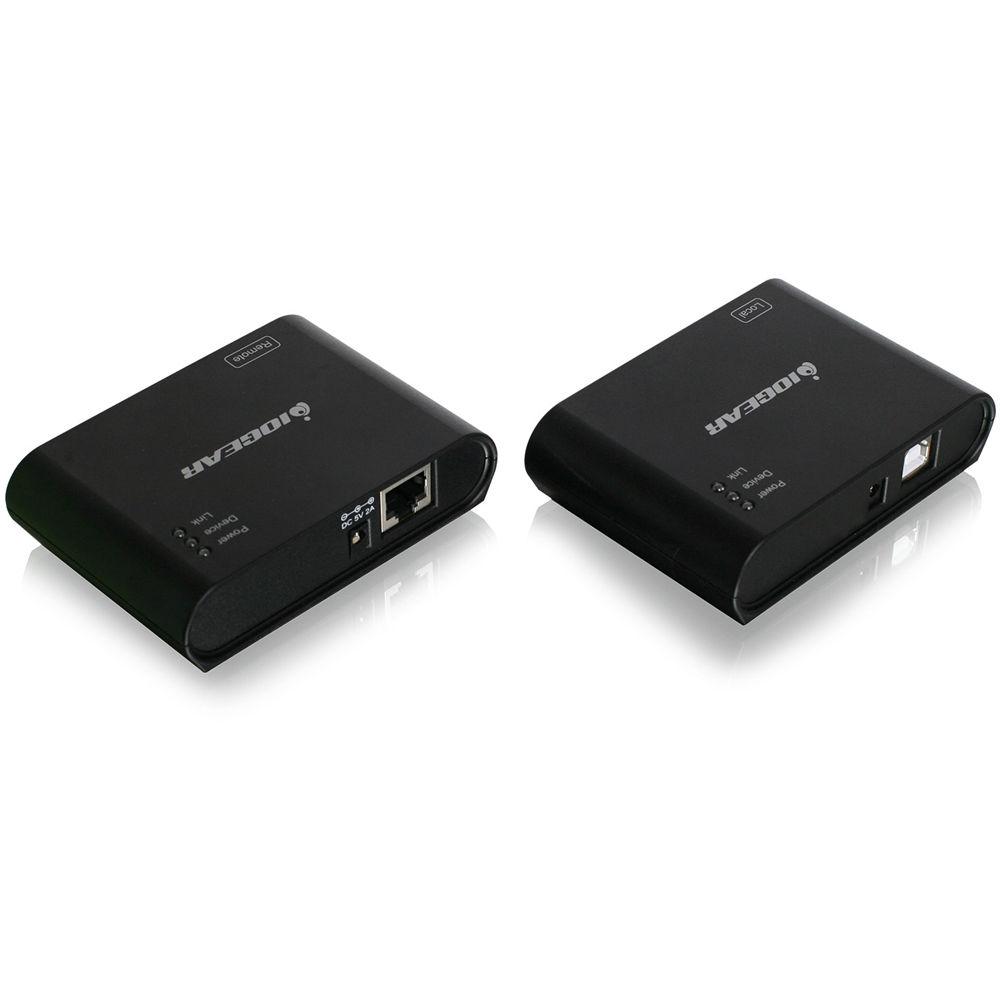

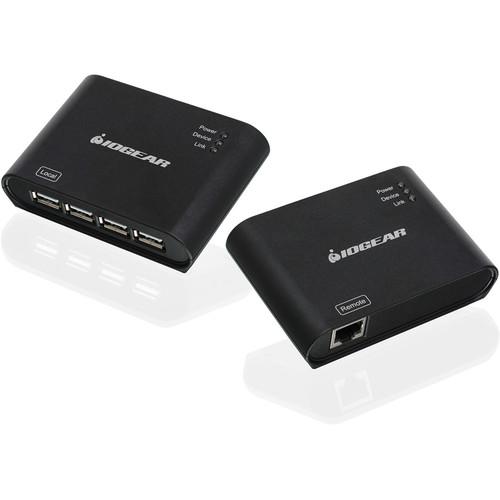

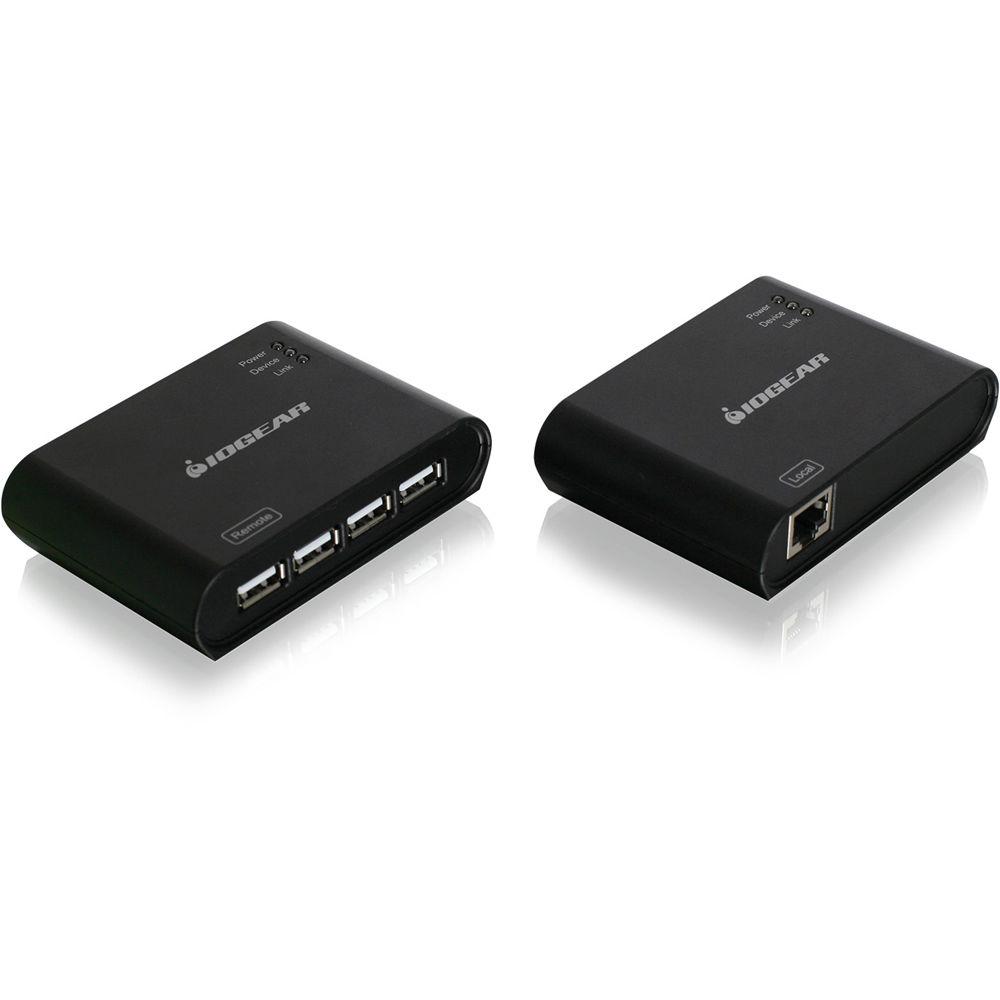

The USB 2.0 4-Port BoostLinq Ethernet Kit is made up of a local unit and a remote unit. The local unit connects directly to your computer, while the remote unit connects the USB devices. The local and remote units are connected using Ethernet cabling and feature a user-friendly plug-and-play setup. In addition to the power supply, a USB Type A to B cable is also included. A USB 2.0 port is required for use and the supported operating systems are Windows, Mac OS X, Linux Kernel, and Google Chrome. - Extend four USB 2.0 or USB 1.1 devices up to 164' over Cat5, Cat5e or Cat6 Ethernet cable
- USB 2.0 High Speed (480 Mb/s), backwards compatible with USB 1.1 Full Speed (12 Mb/s)
- Built-in hub to connect up to 4 x USB 2.0 or USB 1.1 devices
- Supports suspend / resume detection
- Plug & Play - no drivers required

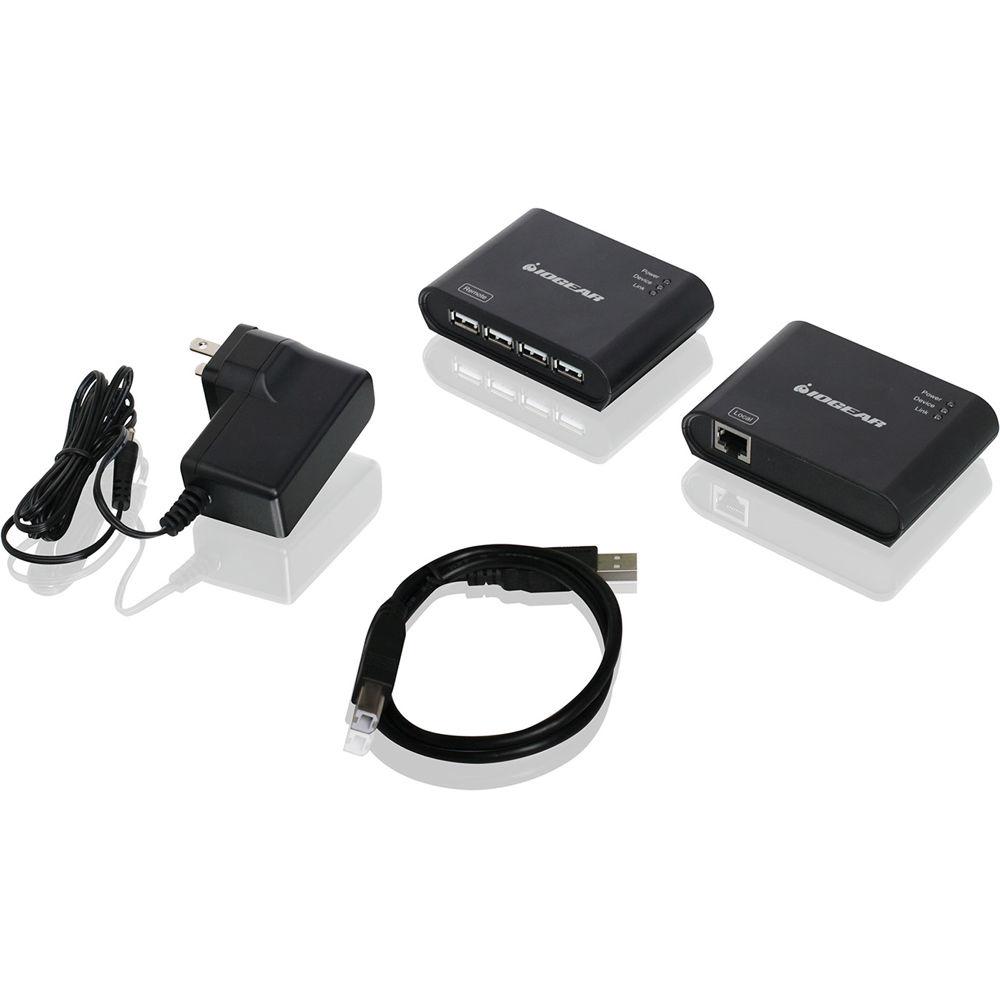

UPC: 881317513199 In the Box IOGEAR USB 2.0 4-Port BoostLinq Ethernet Kit USB Type A to B Cable Power Adapter Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the IOGEAR USB 2.0 4-Port BoostLinq Ethernet Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersIOGEAR GUCE64 Specs | Operating System | Windows 8.1, 8, 7, and Vista
Mac OS X 10.3.9 and later
Linux Kernel
Google Chrome OS | | USB Specification | USB 2.0 port
USB 2.0 or 1.1 device | | Cable Connections | Input:
Transmitter: USB Type B Female x 1; Receiver: RJ45 Ethernet Connector
Output:
Transmitter: RJ45 Ethernet connector; Receiver: USB Type A Female x 4 | | Transfer Rate | Up to 480 Mb/s | | Cable Length | Transmitter: 1.0' / 0.3 m USB Cable (included)
Receiver: Cat 5, Cat 5e, or Cat 6 cable (not included) up to 164.0' / 50.0 m | | Cable Distance | Maximum Cable Distance from Transmitter to Receiver: 164.0' / 50.0 m | | Cable Type | Ethernet Cat 5, Cat 5e, or Cat 6 required for connections between the receiver and transmitter | | Connectors | AC Power Inlets: Barrel type | | Max Output Power | 500 mA @ 5 V | | Power Supply | 2 A @ 5 VDC | | LEDs | Power On | | Operating Temperature | 32 to 122°F / 0 to 50°C | | Dimensions | 0.9 x 2.7 x 3.7" / 2.3 x 6.9 x 9.4 cm | | Weight | 0.39 lb / 0.18 kg | | | | Package Weight | 0.75 lb | | Box Dimensions (LxWxH) | 4.9 x 3.9 x 3.2" |
