User Manual for IOGEAR USB 3.1 Gen 1 Type-C Travel Dock with Power Delivery 3.0 Click to enlarge the picture
Contents of the user manual for the IOGEAR USB 3.1 Gen 1 Type-C
- Product category: Docking Stations & Port Replicators IOGEAR
- Brand: IOGEAR
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for IOGEAR Docking Stations & Port Replicators
 |
User manual for the IOGEAR USB 3.1 Gen 1 Type-C contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any IOGEAR product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official IOGEAR user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a IOGEAR product will considerably shorten its lifespan!
|

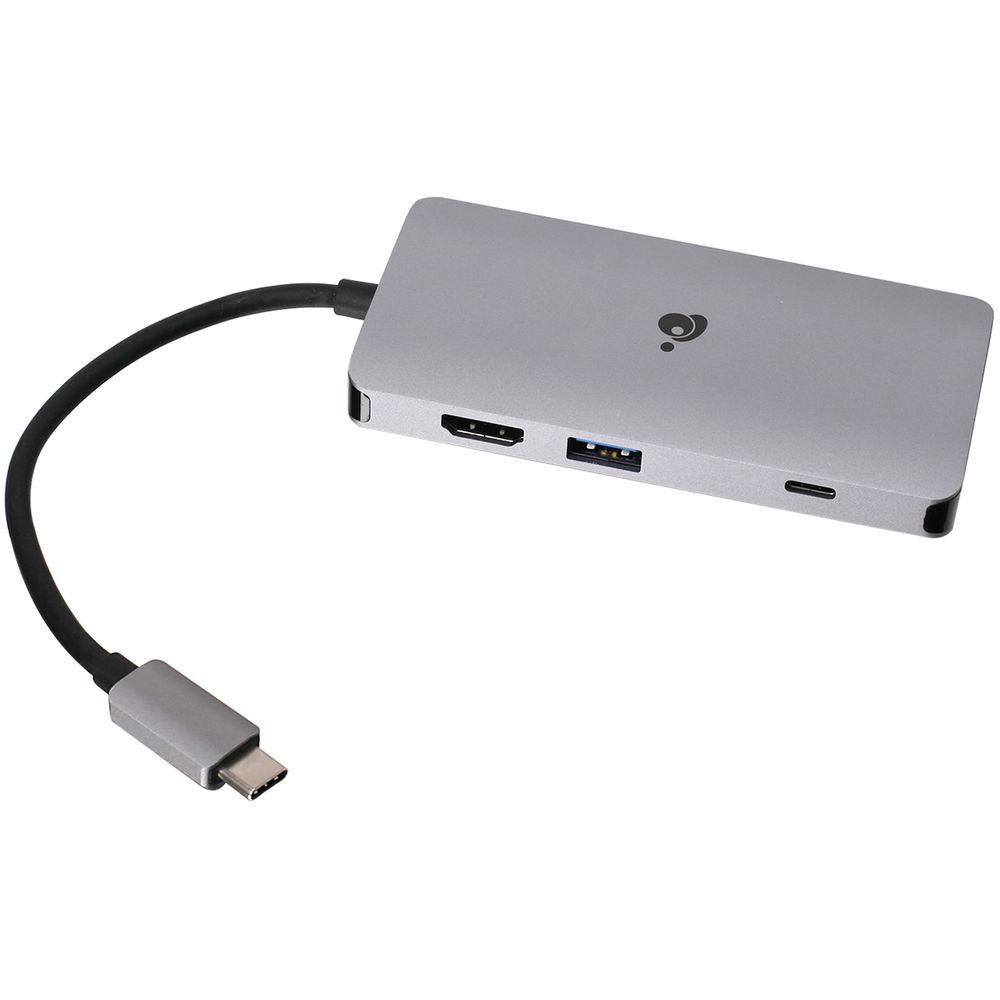

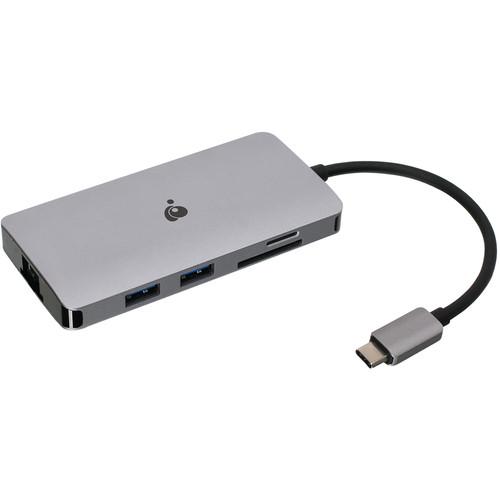

Product description Built for mobile professionals using a rugged aluminum housing, the USB 3.1 Gen 1 Type-C Travel Dock from IOGEAR allows users to connect to a variety of USB 3.1 Gen 1 Type-C, USB 3.1 Gen 1 Type-A, Ethernet, HDMI, SD, and microSD peripherals to their compatible Windows or Mac system. This dock connects to your host system using an integrated USB 3.1 Gen 1 Type-C cable that supports Power Delivery 3.0 and is also compatible with Thunderbolt 3.
IOGEAR's dock features three USB 3.1 Gen 1 Type-A ports; one of those ports supports BC1.2 fast charging at 1.5A, one USB 3.1 Gen 1 Type-C port that supports Power Delivery 3.0, one UHS-I SD card reader, one UHS-I microSD card reader, one Gigabit Ethernet port for network connectivity, and one HDMI 1.4 port that supports a maximum resolution of 4K x 2K @ 30 Hz. Please be aware that your system must support DP Alt Mode to use additional displays. General Features - For Traveling Professionals

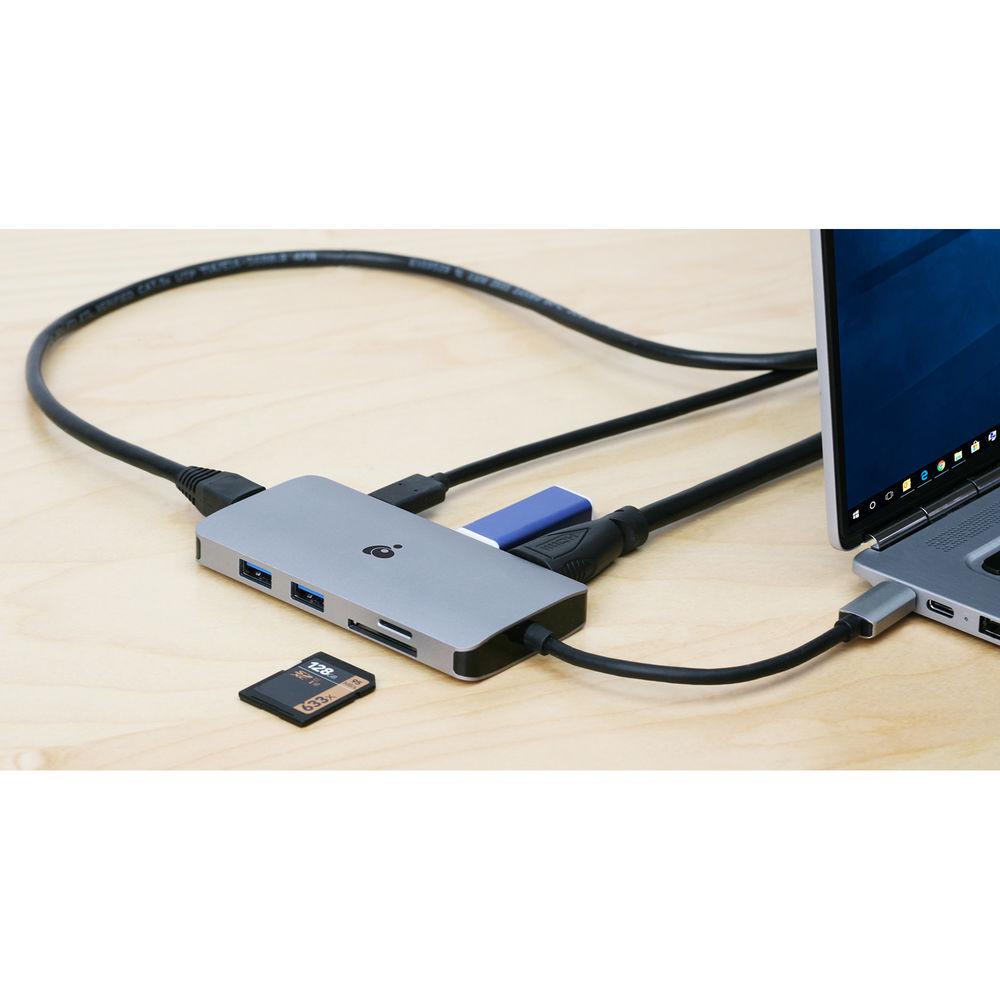

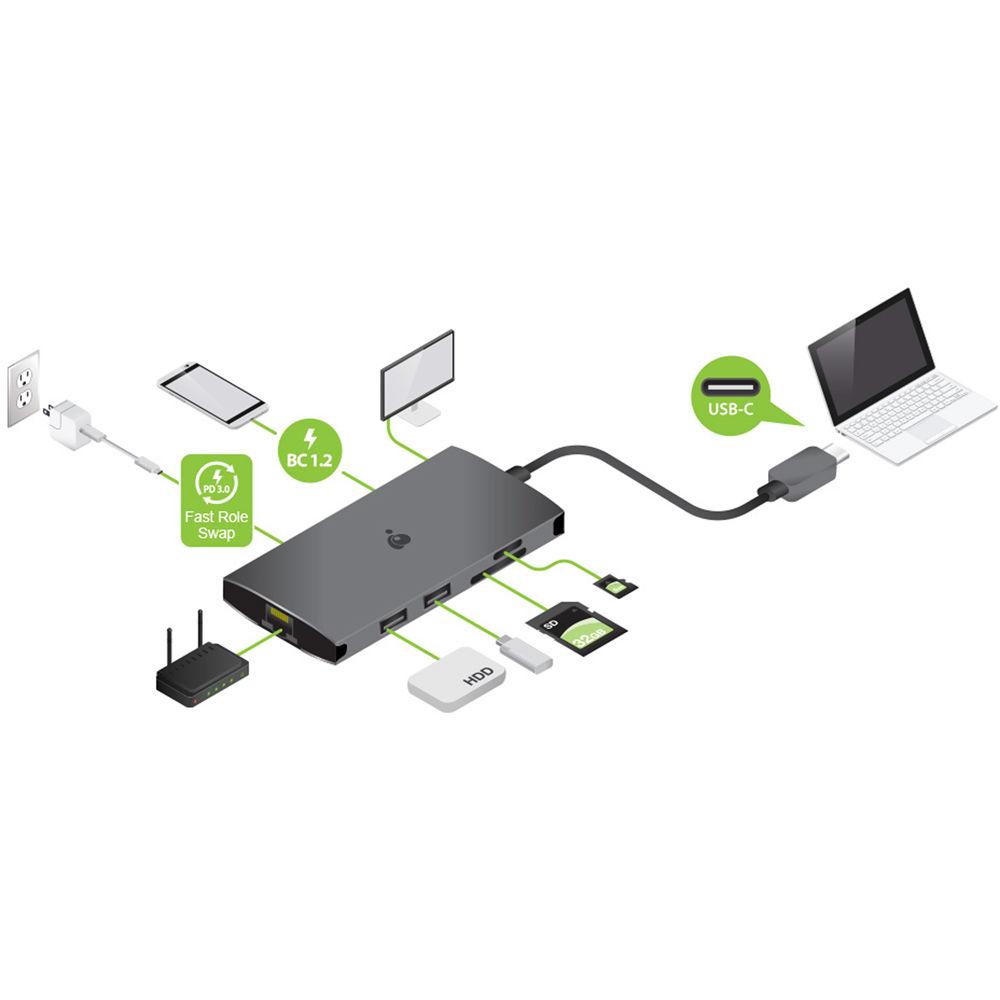

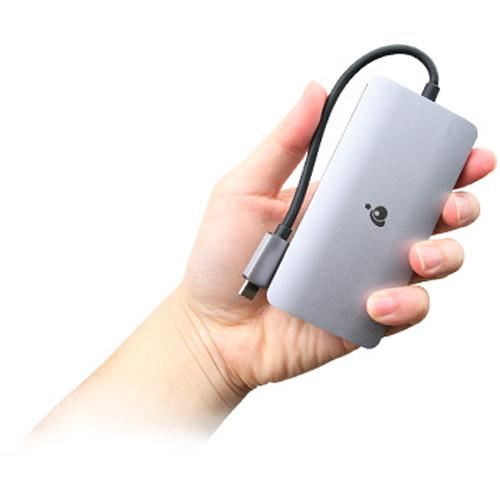

- IOGEAR's USB 3.1 Gen 1 Type-C Travel Dock expands the connectivity of your laptop or tablet's USB Type-C port. Travel lighter with this portable, 8-in-1 dock and leave your bulky accessories at home. The dock is equipped with a USB Type-C power charging pass-through port, three USB 3.1 Gen 1 Type-A expansion ports, a Gigabit Ethernet port, an SD/microSD card reader/writer, and a 4K HDMI port.
- Charge Laptop & Devices with 100W Power Delivery
- Attach your laptop or tablet's original USB Type-C AC charger to the dock's USB Type-C port to deliver up to 100W of power to all dock-connected devices.
- 4K Resolution Video Output
- Extend your viewing workspace by adding an HDMI monitor for a more complete visual experience. The Travel Dock supports up to 4K resolution video for sharp and crystal-clear images.
- USB Type-C to SD/microSD Card Reader
- Read and write both SD and microSD card content and efficiently transfer full-resolution photos, documents, and videos between mobile, computer, and external storage devices.
- Add USB Ports
- Expand your laptop or tablet's USB Type-C port with three USB 3.1 Gen 1 Type-A ports. Use your existing USB peripherals like keyboards, mice, printers, or hard drives with your mobile device. The Travel Dock is capable of transferring pictures, video, and music at data rates reaching 5 Gb/s and is backwards compatible with USB 2.0 and 1.1 devices.
- Maintain Power
- Fast Role Swap is a feature in the USB Power Delivery 3.0 specification which ensures the docking station will maintain power anytime it drops below a set threshold, such as while unplugging the USB Type-C power adapter from the dock or during an unexpected loss of building power. This feature provides a smooth, safer operation of connected devices, so your work does not get interrupted.
UPC: 881317515186 In the Box IOGEAR USB 3.1 Gen 1 Type-C Travel Dock with Power Delivery 3.0 Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the IOGEAR USB 3.1 Gen 1 Type-C Travel Dock with Power Delivery 3.0 in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersIOGEAR GUD3C06 Specs | | | USB Type-C | USB 3.1 Gen 1 supports data and Power Delivery 3.0 | | | | Card Reader | Supports SD and microSD, Secure Digital v3.0 UHS-I (Ultra High Speed) - SDR12 (12.5 MB/s, SDR25 (25 MB/s), SDR50 (50 MB/s), DDR50 (50 MB/s), and SDR104 (104 MB/s) | | Ethernet | Supports 10/100/1000 Mb/s | | HDMI | HDMI 1.4 compliant, resolution up to 4K x 2K @ 30 Hz, 16:9 aspect ratio | | USB Type-A | 3 x USB 3.1 Gen 1 (5 Gb/s), 1 port supports BC1.2 fast charging | | USB Type-C | 1 x USB 3.1 Gen 1 (5 Gb/s) supports data and Power Delivery 3.0 | | | | Power Delivery Pass-Thru | Power Delivery 3.0 spec with up to 100 W power pass-thru | | | | Humidity | 10 to 90 % RH (no condensation) | | Operating Temperature | 32 to 113°F / 0 to 45°C | | | | Connectivity | USB Type-C / Thunderbolt 3 device with DP Alt Mode support | | Windows | Windows 10, 8.1, 8, and 7 | | Mac | Mac OS X 10.7 and later | | | | Dimensions | Without USB Type-C Cord: 2 x 0.4 x 4.1" / 5.1 x 0.9 x 10.4 cm
With USB Type-C Cord: 2 x 0.4 x 13.6" / 5.1 x 0.9 x 34.5 cm | | Weight | 0.2 lb / 0.1 kg | | | | Package Weight | 0.3 lb | | Box Dimensions (LxWxH) | 5.9 x 5.4 x 1.8" |
