Product description - USB-C Docking Station [GUD3C01]

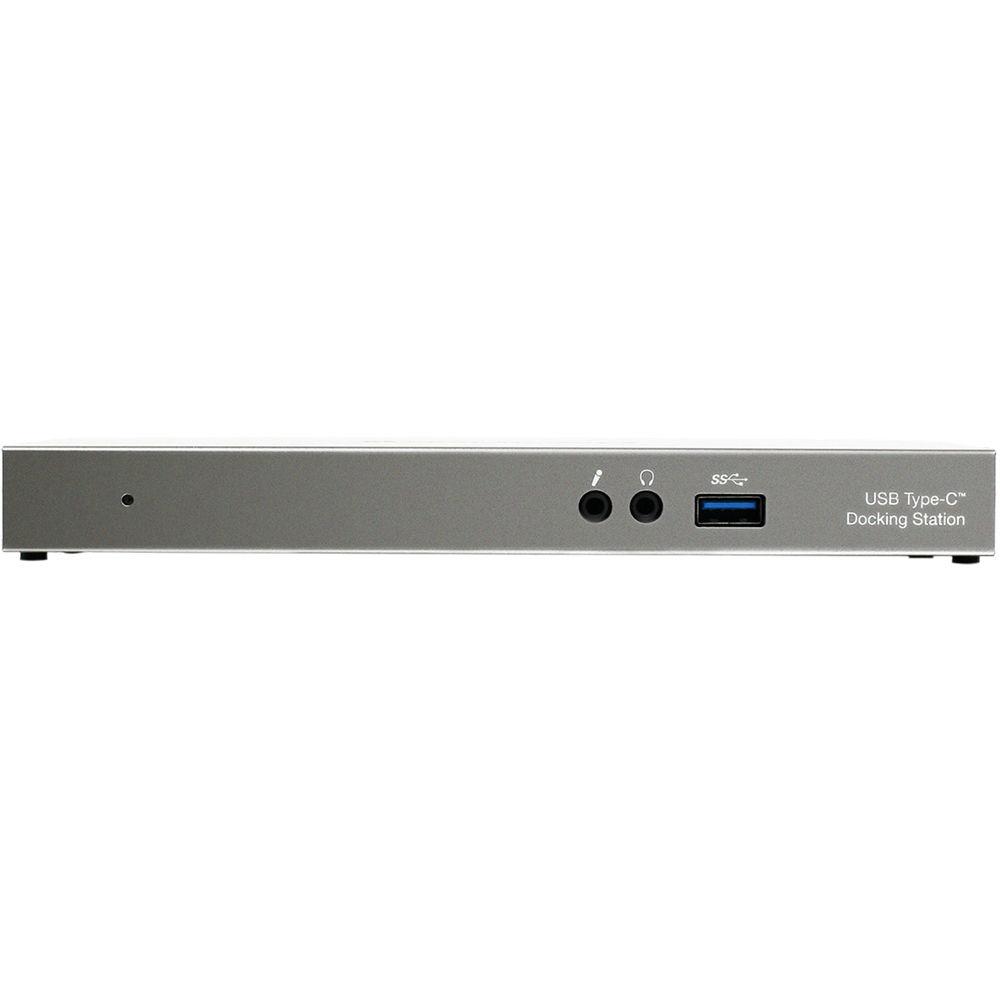

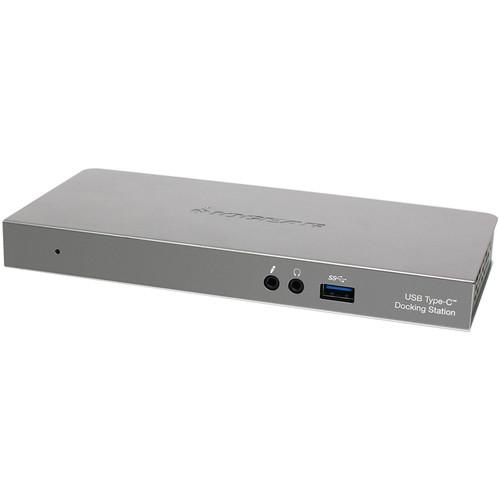

The IOGEAR USB Type-C Docking Station connects to your notebook's USB Type-C port to turn it into a complete workstation. This dock comes with one USB Type-C port and three USB 3.0 ports, so you can quickly access external hard drives, printers, and webcams. Additionally, one of these USB 3.0 ports supports fast charging for mobile devices. To expand the on-screen workspace, you can connect an external monitor to the dock's DisplayPort or HDMI port. Fast, reliable access to the Internet or network can be accomplished with the Gigabit Ethernet port. For audio, a headphone jack and microphone jack are available. Included along with this docking station are a 1.5' USB 3.0 Type-C male to male cable and a 90W AC power adapter, so you can start expanding your notebook's connectivity right away. - Supports Power Delivery 2.0 (PD 2.0) specification up to Profile 4 (20V/3A, 20V/1.8A, 12V/3A, 5V/3A)
- Supports DisplayPort Multi-Stream Transport (MST) with single, mirror, and extend mode
- Integrated 3-port USB 3.0 Hub for external USB drives, cameras, and smartphones
- USB 3.0 Type-A port supports Battery Charging specification revision 1.2 for Fast-Charging devices
- Integrated Gigabit (10/100/1000BASE-T) Ethernet port
- Audio line-in/line-out port for microphone input and audio line output
- Additional USB Type-C data port with 5V/3A power support

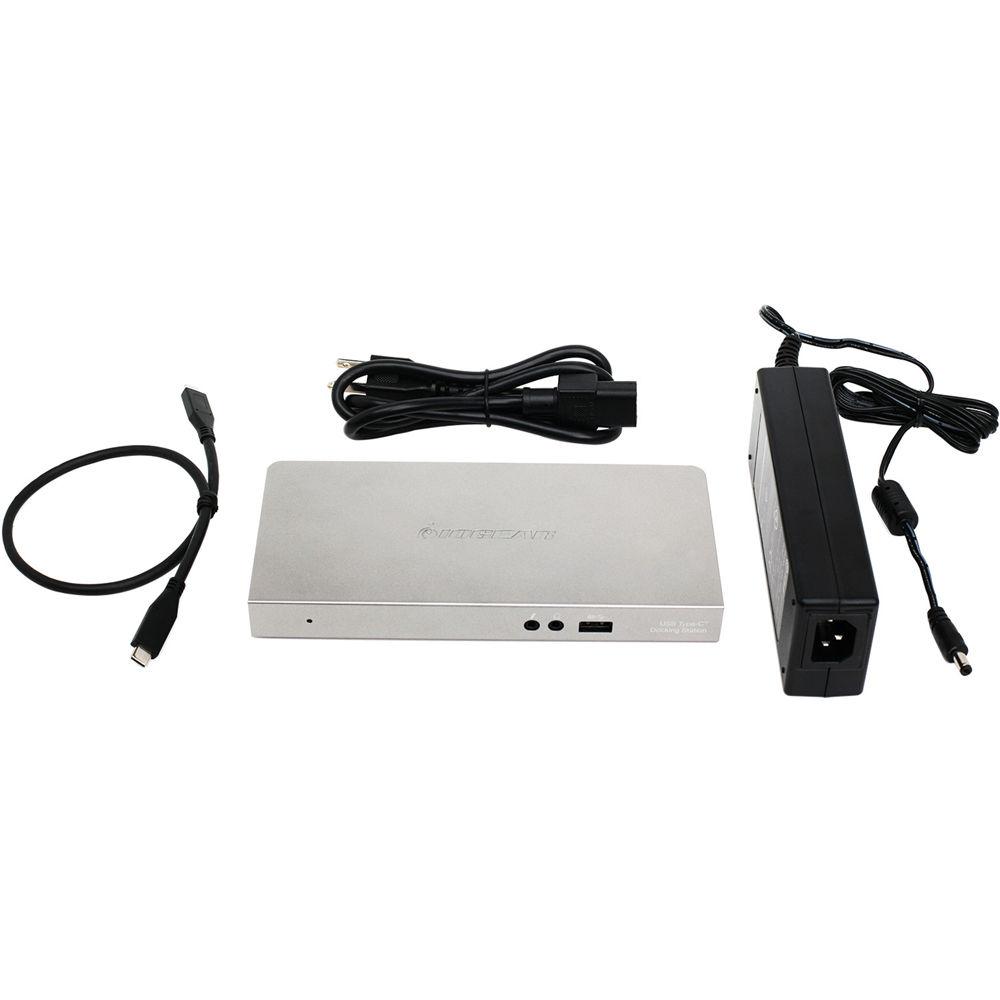

UPC: 881317513953 In the Box IOGEAR USB Type-C Docking Station USB Type-C Cable 90W AC Power Adapter Limited 1-Year Warranty More from Manufacturer More info from IOGEAR Table of Contents
|
Upload User Manual
Have you got an user manual for the IOGEAR USB Type-C Docking Station in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

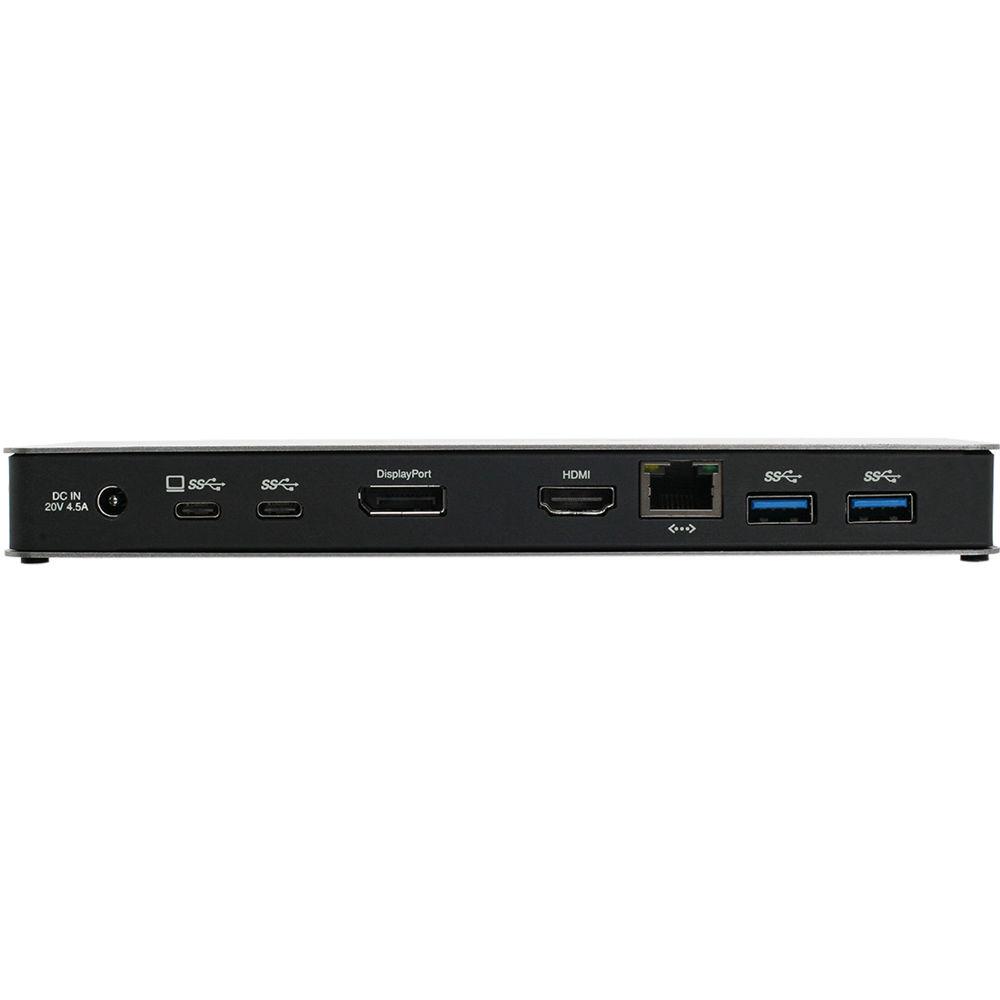

Technical parametersIOGEAR GUD3C01 Specs | | | USB | 1 x USB 3.1 Gen 1 Type-C
3 x USB 3.1 Gen 1 Type-A | | Thunderbolt | None | | Ethernet | 1 x RJ45 (10/100/1000 Mbps) | | FireWire | None | | Display | 1 x HDMI
1 x DisplayPort | | Audio | 1 x 1/8" / 3.5 mm Headphone
1 x 1/8" / 3.5 mm Line-In | | Memory Card Slots | None | | | | System Connection | 1 x USB 3.1 Gen 1 Type-C Female | | | | Operating System Support | Windows, macOS/OS X | | | | DC Input Power | 20 VDC at 4.5 A | | | | LED Indicator | Power | | Dimensions | 0.9 x 3.4 x 7.9" / 2.3 x 8.6 x 20.1 cm | | Weight | 1.2 lb / 0.6 kg | | | | Package Weight | 3.3 lb | | Box Dimensions (LxWxH) | 10.0 x 5.1 x 3.7" |
