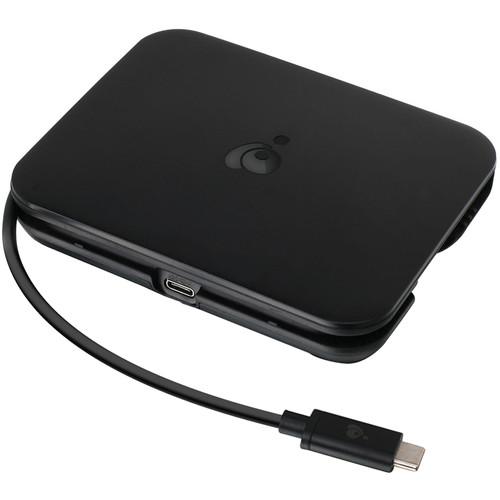

User Manual for IOGEAR USB Type-C Dual HD Portable Dock Click to enlarge the picture
Contents of the user manual for the IOGEAR USB Type-C Dual HD Portable
- Product category: Docking Stations & Port Replicators IOGEAR
- Brand: IOGEAR
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for IOGEAR Docking Stations & Port Replicators
 |
User manual for the IOGEAR USB Type-C Dual HD Portable contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any IOGEAR product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official IOGEAR user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a IOGEAR product will considerably shorten its lifespan!
|

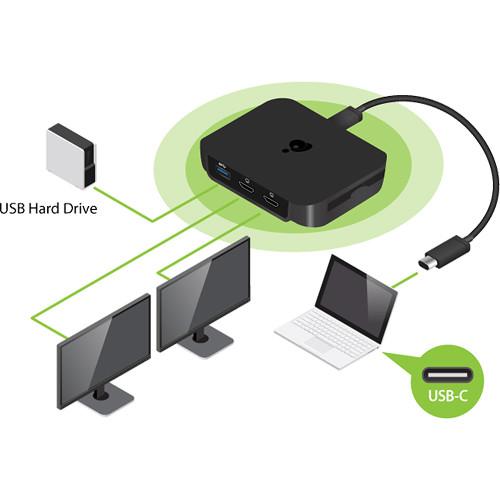

Product description Create a dual HDMI monitor setup and connect other compatible USB Type-A peripherals to your Thunderbolt 3 or USB Type-C notebook using USB Type-C Dual HD Portable Dock from IOGEAR. This dock is equipped with dual HDMI ports that support one 4K display (4096 x 2160 at 30 Hz) or dual Full HD (1920 x 1080) displays. When using dual Full HD displays, users will be able to mirror or extend the display of their notebook, and their notebook's display can be utilized as a third display for separate task windows. In addition, carrying video signals, the HDMI ports also transmit HD audio.

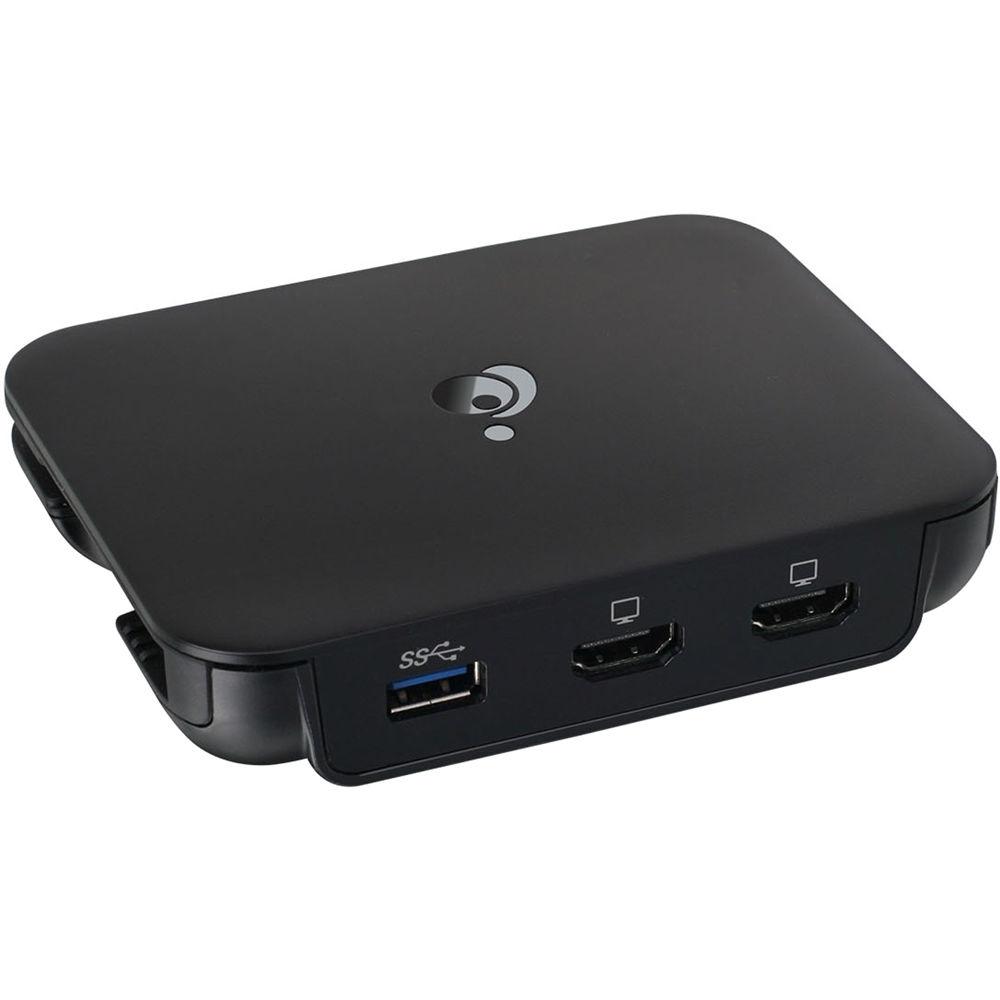

Aside from the HDMI ports, the USB Type-C Dual HD Portable Dock features one USB 3.1 Gen 1 Type-A port. Also known as USB 3.0, this port can be used to interface with peripherals such as keyboards, mice, hard drive, printers, memory card readers, and more. LED indicators will also alert users to power and connectivity issues with the dock. A white LED means the monitor and USB Type-C connection are working well, while an orange one means the USB Type-C cable doesn't have enough bus power to run the USB Type-A device. If the orange LED comes on, simply plug in the power adapter of any external devices.

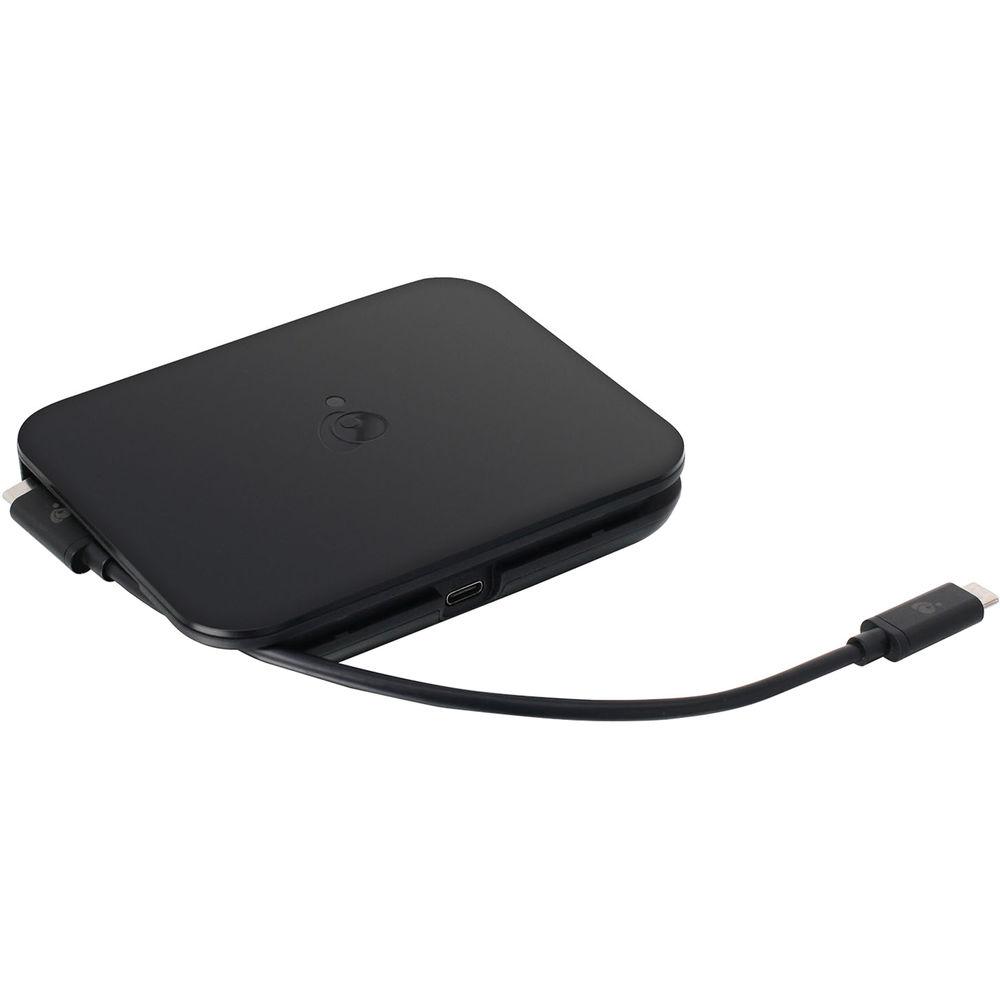

This dock connects to your host system using an included 3.3' USB Type-C cable, which folds into the dock when not in use. Please be aware that monitor extending (MST) is only supported in Windows. macOS does not support monitor extending and only operates in mirror mode. Furthermore, your system must support DP Alt mode to use this dock. Protection is provided by a limited 1-year warranty. General Features - USB Type-C to HDMI & USB Type-A Docking Station
- Get more out of your USB Type-C or Thunderbolt 3 laptop with the USB Type-C to Dual HD Portable Dock. Create a dual HDMI monitor workstation to expand your productivity and efficiency. The Portable Dock also provides a 5 Gb/s USB 3.1 Gen 1 Type-A port for use with a keyboard, mouse, hard drive, or printer, and is a good companion for quick, easy connectivity while on the go.
- Mirror or Extend Your Monitors
- The USB Type-C to Dual HD Portable Dock allows you to mirror or extend your Windows-based USB Type-C laptop to two additional monitors or mirror your USB Type-C or Thunderbolt 3 MacBook to another monitor. When using a Windows USB Type-C laptop with two other monitors, your laptop screen can be utilized as a third monitor for separate task windows. Please be aware that macOS does not support monitor extending (MST) and only operates in mirror mode.
- 4K or Dual HD Monitor Setup
- Experience the visuals of 4K at four times the resolution of standard HD. The Portable Dock's dual monitor functionality supports sharp, clear resolutions of up to 4096 x 2160 # 30 Hz for a higher level of enjoyment while streaming movies, playing video games, or working and creating from your office. 4K resolution is only supported using a single display, while dual displays support 1920 x 1080.
System Requirements - USB Type-C (Thunderbolt 3 compatible) device with DP Alt Mode support
- Host system with MST-enabled for extend mode; without MST, only mirror mode is supported
- Windows 10 or later, macOS 10.12 or later
UPC: 881317517319 In the Box IOGEAR USB Type-C Dual HD Portable Dock USB 3.1 Gen 1 Type-C Cable Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the IOGEAR USB Type-C Dual HD Portable Dock in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersIOGEAR GUC3CDHD Specs | | | USB | 1 x USB 3.1 Gen 1 Type-A | | Thunderbolt | None | | Ethernet | None | | FireWire | None | | Display | 2 x HDMI (Female) | | Audio | None | | Memory Card Slots | None | | | | System Connection | 1 x USB 3.1 Gen 1 Type-C Female | | Connection Type | Detachable Cable | | | | Number of Displays Supported | 2 | | Maximum Resolution Supported | 4096 x 2160 at 30 Hz (Single Display)
1920 x 1080 (Dual Display) | | Data Transfer Rate | 5 Gb/s USB 3.0/USB 3.1 Gen 1 | | Operating System Support | Windows, macOS/OS X | | UASP Support | No | | | | Cable Length | 3.3' / 1.01 m | | LED Indicator | Connection, Power | | Lock Slot | No | | Dimensions | 4.8 x 3.8 x 1" / 12.19 x 9.65 x 2.54 cm | | Weight | 0.2 lb / 0.1 kg | | | | Package Weight | 0.65 lb | | Box Dimensions (LxWxH) | 8.8 x 6.2 x 2.3" |
