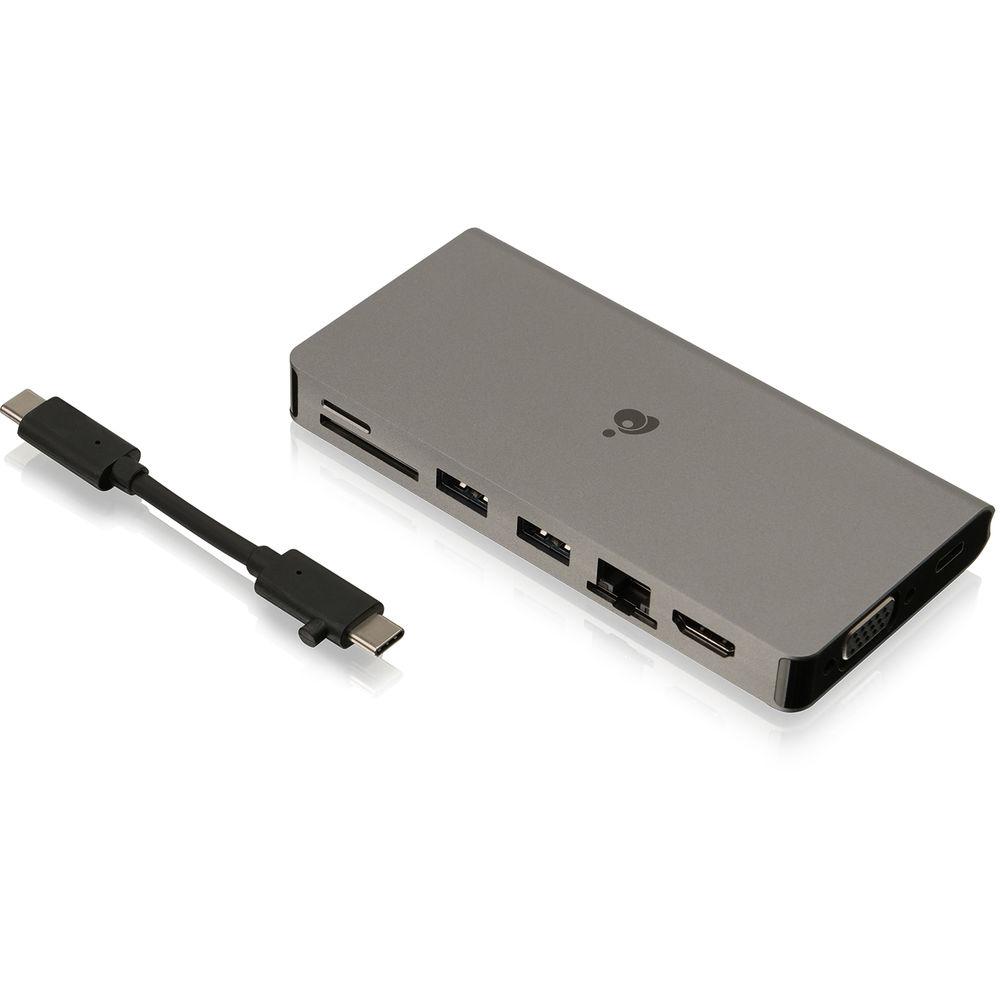

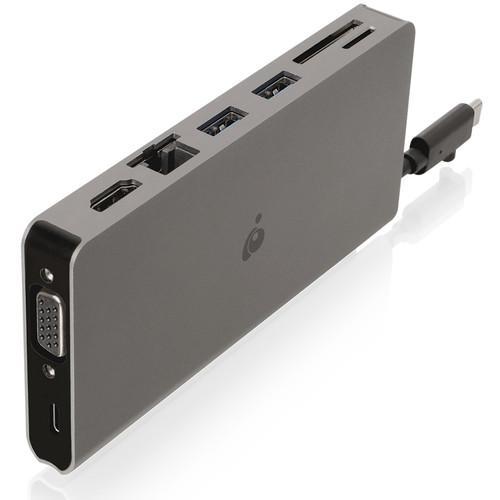

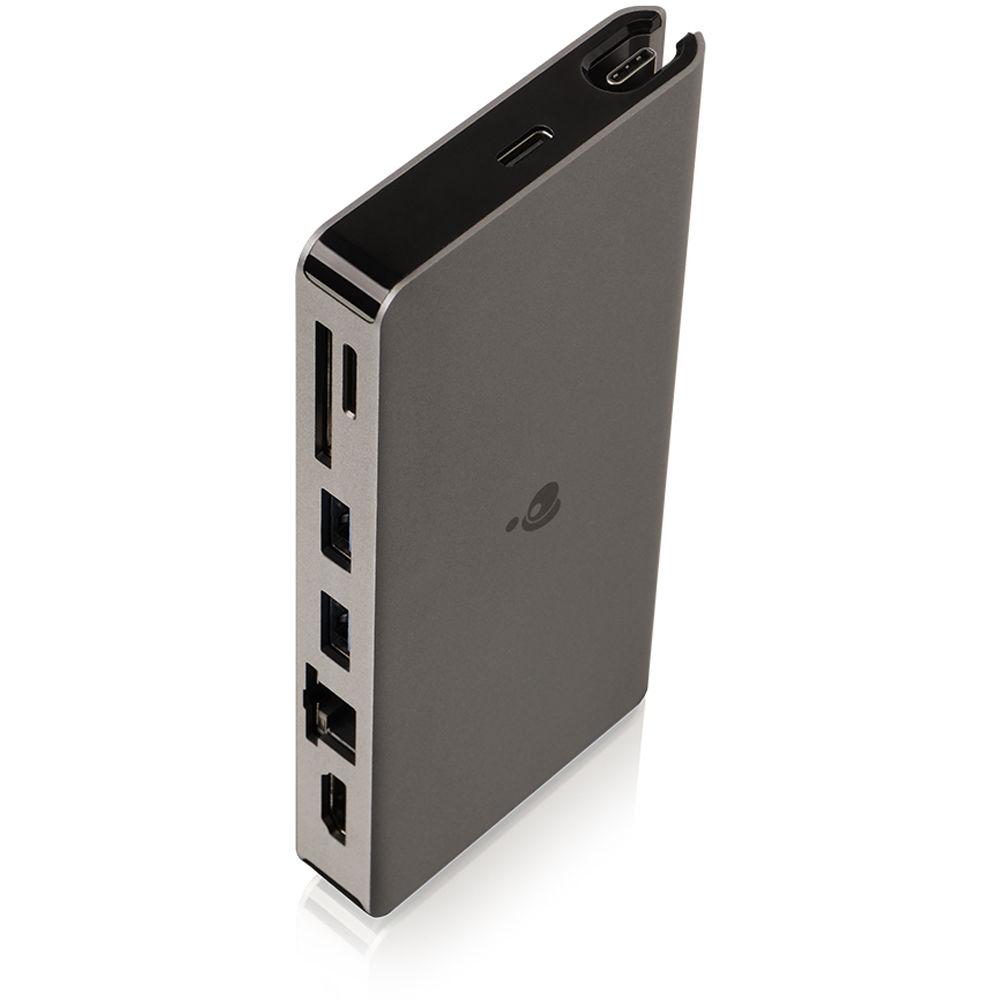

Product description The 8-in-1 USB Type-C Pocket Dock with Power Delivery 3.0 from IOGEAR provides you with a variety of connectivity options to help you stay productive with your USB Type-C equipped system. In total it has eight ports, including a single USB 3.0 Type-C port that offers Thunderbolt 3 and DisplayPort support, two USB 3.0 Type-A ports, an SD and microSD card reader, a Gigabit Ethernet LAN jack, as well as a VGA and 4K HDMI output. Furthermore, this USB Type-C dock is designed to deliver up to 100W of power for charging, so your connected devices will have full batteries even on-the-go.
Aside from its varied ports, the USB Type-C Pocket Dock is built to be durable with a rugged aluminum housing. It's also made for your convenience with an integrated USB Type-C cable hideaway storage. In addition to its easy-to-carry form, the USB Type-C Pocket Dock is compatible with Windows, MacOS, and ChromeOS systems. - 8-In-1 Pocket-Size USB Type-C Dock
- Take expanded USB Type-C connectivity on-the-go with you. The IOGEAR USB Type-C Pocket Dock with Power Delivery 3.0 is a compact travel companion that expands your laptop or tablet's USB Type-C port and is compatible with Thuderbolt 3-enabled computers with its eight ports that include a USB Type-C power charging pass-through port, two high-speed USB 3.0 expansion ports, a Gigabit Ethernet port, SD/MicroSD card read and write ports, a VGA, and 4K HDMI display connector.
- Charge Laptop & Devices With 100W Power Delivery
- Never worry about running out of power while using the IOGEAR USB Type-C Pocket Dock. Attach your laptop or tablet's original USB Type-C AC charger to the dock's USB Type-C port to deliver up to 100W of power to all dock-connected devices.
- USB Type-C to SD/MicroSD Card Reader
- Read and write both SD and MicroSD card content and efficiently transfer full-resolution photos, documents and videos between your laptop or tablet and external storage devices.
- 4K Resolution Video Output
- Add an HDMI monitor for a more complete visual experience. The Pocket Dock supports sharp, crystal clear image resolutions up to 4K quality or high-definition 1080p through its VGA connector. Dual monitors are not supported.
- Maintain Power
- Fast Role Swap is an advanced feature in the USB Power Delivery 3.0 specification which ensures the docking station will maintain power anytime it drops below a set threshold such as while unplugging the USB Type-C power adapter from the dock or during an unexpected loss of building power. This feature provides a smooth, safer operation of connected devices, so your work does not get interrupted.
- Easily Add USB Ports
- Add two USB Type-A 3.0 ports to your laptop or tablet's USB Type-C port to use your existing USB peripherals such as your favorite keyboard and mouse, printer, or HDD with your new USB Type-C-enabled device. The Pocket Dock is capable of transferring pictures, video and music at high-speed data rates reaching 5 Gb/s and is backwards compatible with USB 2.0 and 1.1 devices.
- Charge Deduction
- Maximum of up to 85W of power can be delivered to the laptop after deduction of 15W used by the docking station. Pass-through power delivered to the laptop is dependent upon the capacity of your USB Type-C power supply.
UPC: 881317518057 In the Box IOGEAR USB Type-C Pocket Dock with Power Delivery 3.0 USB Type-C Cable Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the IOGEAR USB Type-C Pocket Dock with Power Delivery 3.0 in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersIOGEAR Pocket Dock Specs | | | USB | 1 x USB 3.1 Gen 1 Type-C
2 x USB 3.1 Gen 1 Type-A | | Thunderbolt | 1 x Thunderbolt 3 | | Ethernet | 1 x RJ45 (10/100/1000 Mbps) | | FireWire | None | | Display | 1 x VGA (Female)
1 x HDMI 1.4 (Female) | | Audio | None | | Memory Card Slots | 1 x SDXC (UHS-I [104 MB/s]) | | | | System Connection | 1 x USB 3.1 Gen 1 Type-C Male | | Connection Type | Detachable Cable | | | | Maximum Resolution Supported | 3840 x 2160 at 30 Hz (Single Display)
1920 x 1080 at 60 Hz (Single Display) | | Data Transfer Rate | 5 Gb/s USB 3.0/USB 3.1 Gen 1 | | Operating System Support | ChromeOS, Windows, macOS/OS X | | UASP Support | No | | | | Power Source | AC Adapter | | Power Port | USB Type-C (Input/Output) | | Maximum Power Consumption | 100 W (AC Adapter) | | | | Lock Slot | No | | Dimensions | 4.9 x 2.4 x 0.5" / 12.45 x 6.1 x 1.27 cm | | Weight | 0.3 lb / 0.1 kg | | | | Package Weight | 0.42 lb | | Box Dimensions (LxWxH) | 5.9 x 5.35 x 1.75" |
