User Manual for IOGEAR USB VGA KVM Console Extender Click to enlarge the picture
Contents of the user manual for the IOGEAR USB VGA KVM Console Extender
- Product category: KVM Extenders IOGEAR
- Brand: IOGEAR
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for IOGEAR KVM Extenders
 |
User manual for the IOGEAR USB VGA KVM Console Extender contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any IOGEAR product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official IOGEAR user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a IOGEAR product will considerably shorten its lifespan!
|

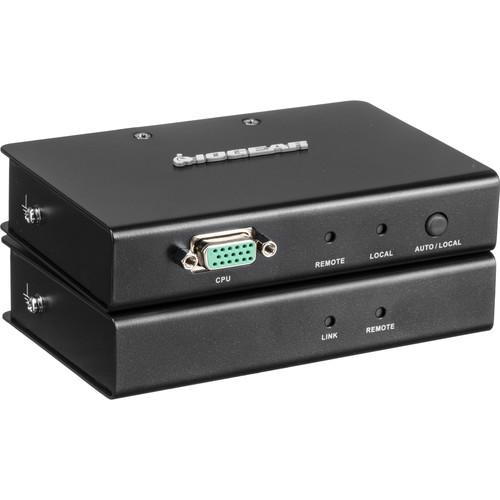

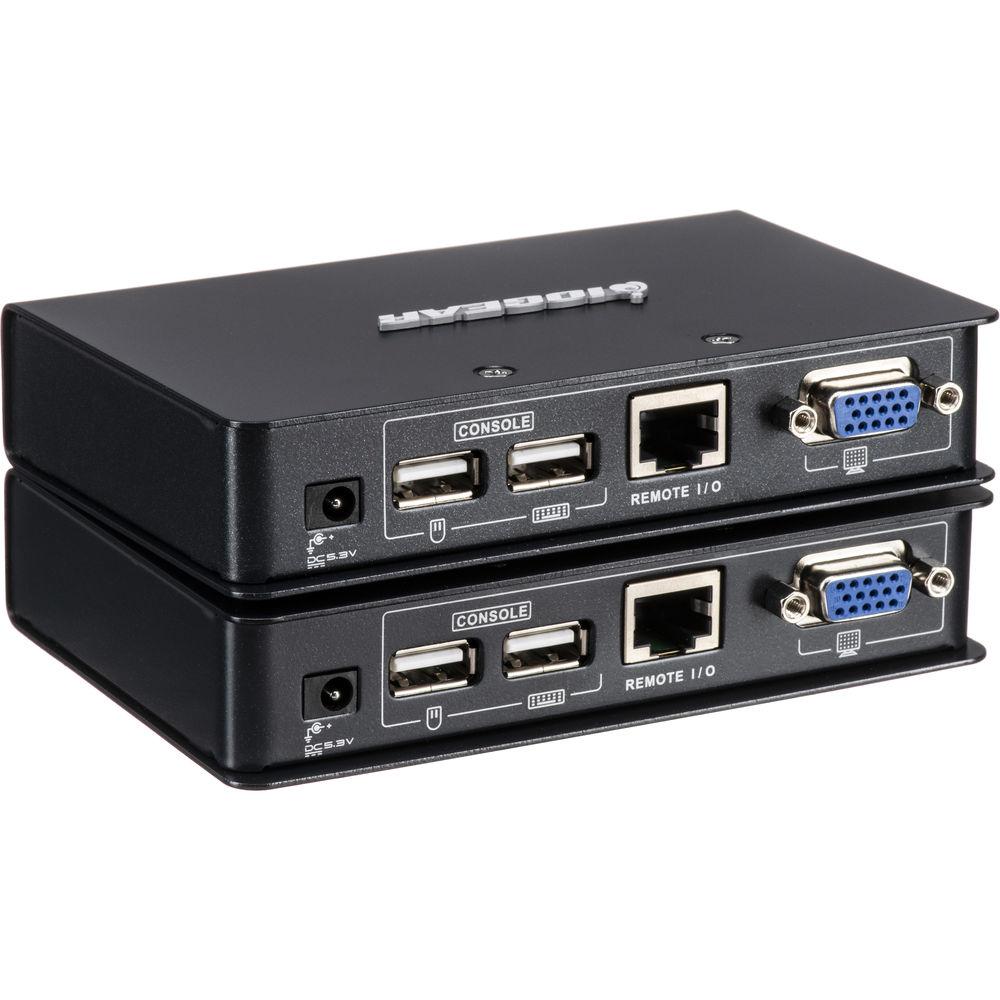

Product description The IOGEAR USB VGA KVM Console Extender is a solid solution if you want to setup a computer console (a mouse, keyboard, and monitor) that is up to 500 feet away from your PC or KVM switch. As part of the Extender, you receive a local unit and a remote unit. Both of these can be connected together via a CAT5e/6 cable up to 500 feet away. For the local unit, you can connect your computer as well as a VGA monitor, a USB mouse, and USB keyboard. Also from that local unit, you can then setup a far-away connection to your remote unit. From the remote unit, you can then setup another console.
In practice, the Extender has a few different functions. For instance, the local and remote units allow you to setup a console from a server room to another location that may be more comfortable and quieter. These units also allow you to setup your computer in one location securely while allowing other users access to it via a console in a more convenient location.
The Extender is also a cost effective solution because it uses inexpensive UTP (CAT5e/6) cabling to extend the distance, versus expensive and bulky coaxial cabling. It is easy to install and operate thanks to its Auto Signal Compensation (ASC) technology, which senses the distance and adjusts the signal levels accordingly so there is no need to do any DIP switch setting. It also provides a built-in Application-Specific Integrated Circuit (ASIC) for greater reliability and compatibility. - Extend your KVM console (VGA monitor, USB keyboard & mouse) connection up to 500 ft. via CAT5e cables
- Auto Signal Compensation (ASC) helps make installation easy, with no need to configure DIP switches
- Built-in Application-Specific Integrated Circuit (ASIC) for greater reliability and compatibility
- Dual Console Operation - Control your system from either the local or remote console
- Built-in 8KV ESD protection and 2KV surge protection
- Maximum video resolution up to:
1920 x 1200 @ 60Hz (100 ft. - 30m)
1600 x 1200 @ 60HZ (330 ft. - 100m)
1280 x 1024 @ 60Hz (500 ft. - 150m) - USB over-current detection and prevention
- Easy To Operate - Push button selection between local and remote console
- Local monitor supports DDC; DDC2; DDC2B
- Rack Mountable (rack mount kit included)
- Plug-N-Play - No need for any software driver installation
UPC: 881317506016 In the Box IOGEAR USB VGA KVM Console Extender 2 x Rack Mount Kit USB KVM Cable Grounding Wire Power Adapter Installation Guide 3-Year Limited Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the IOGEAR USB VGA KVM Console Extender in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersIOGEAR GCE500U Specs | | | Ports | Transmitter:
1 x SPHD-17 Female (Output)
1 x HD15 VGA Female (Input)
2 x USB Type-A Female (Input)
Receiver:
1 x HD15 VGA Female (Output)
2 x USB Type-A Female (Output)
1 x RJ45 Ethernet (Input) | | Supported Resolutions | 1920 x 1200 @ 60 Hz | | Maximum Transmission Distance | 492.1' / 150 m | | Transmission Method | CAT5e/CAT6 Cable | | | | Operating Temperature | 32 to 122°F / 0 to 50°C | | Storage Temperature | -4 to 140°F / -20 to 60°C | | Operating Humidity | 0 to 80% | | | | Status Monitoring | LED Indicator | | Dimensions | 5.0 x 1.0 x 3.4" / 12.7 x 2.5 x 8.6 cm | | Weight | 1.4 lb / 0.6 kg | | | | Package Weight | 3.25 lb | | Box Dimensions (LxWxH) | 11.2 x 7.0 x 4.1" |
