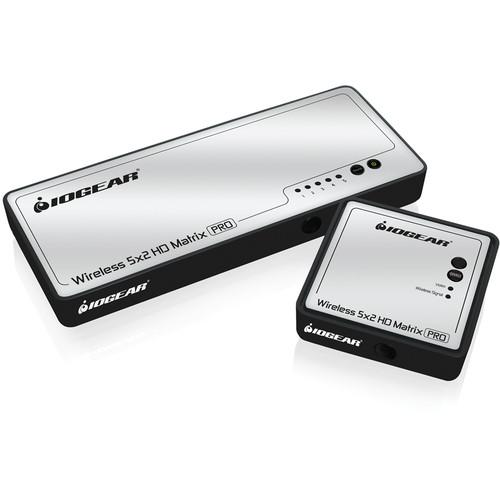

User Manual for IOGEAR Wireless 5 x 2 HD Matrix Pro Click to enlarge the picture
Contents of the user manual for the IOGEAR Wireless 5 x 2 HD
- Product category: HDMI Signal Extenders IOGEAR
- Brand: IOGEAR
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for IOGEAR HDMI Signal Extenders
|
User manual for the IOGEAR Wireless 5 x 2 HD contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any IOGEAR product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official IOGEAR user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a IOGEAR product will considerably shorten its lifespan!
|
Product description With a clear line of sight, wirelessly transmit 1080p video up to 200' with the IOGEAR Wireless 5 x 2 HD Matrix Pro. This system includes a wireless transmitter and receiver and allows you to wirelessly multicast video to up to 4 wireless receivers; additional receivers are optional and sold separately. The wireless transmitter has 4 HDMI and a component video input for interfacing high-definition video sources like Blu-ray players and gaming systems. The wireless receiver features an HDMI-port for outputting video to an external display. An HDMI cable is included for display connections and both the receiver and transmitter include remote controls for simplified operation. - Allows you to switch and independently select any of 5 sources between 2 HDTVs
- You can watch cable TV in one room while playing a video-game in another
- Multicast up to 5 HDTVs - Send content to up to 5 locations at the same time (4 wireless with additional wireless receivers)
- Supports the pass-through of 3D video signals when used 3D video source components and displays
UPC: 881317511799 In the Box IOGEAR Wireless 5 x 2 HD Matrix Pro Wireless Transmitter Wireless Receiver 2 x Remote Control Component Adapter Cable IR Blaster Cable IR Sensor Cable 2 x Power Adapter HDMI Cable Limited 1-Year Warranty Brochure PDF 2.9mb More info from IOGEAR Table of Contents
|
Upload User Manual
Have you got an user manual for the IOGEAR Wireless 5 x 2 HD Matrix Pro in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersIOGEAR GWHDMS52MB Specs | | | Resolution | 480p, 576p, 720p, 1080i, 1080p (24/30/60 fps) | | 3D Support | Yes | | Video Streaming | <1 ms latency | | Input | 4 x HDMI
1 x Component Video | | Output | 1 x HDMI loop-through (transmitter)
1 x HDMI (receiver) | | Other Ports | 1 x Power (transmitter and receiver) | | Cable Connection | Input: 1 x Mini-USB (female)
Output: 1 x USB Type A (female) | | Audio Output | Digital 6 Mb/s AC3 and DTS, Analog 48 kHz and 24-bit per sample | | Frequency | 4.9 - 5.9 GHz (includes non-DFS and DFS frequency bands) | | Antenna Type | High-performance internal | | Range | 200' (61 m), with a clear line of sight | | Power Switch | 1 x Port switching push-button (transmitter and receiver) | | Communication | Unit to Unit: 0.1" (2.5 mm) Blaster Extender (transmitter), sensor extender (receiver) | | | | LEDs | Port ID: 5 x blue LEDs on transmitter; 2 x blue LEDs on receiver
Power On: Blue/Red LED (transmitter and receiver)
Link: LED (transmitter and receiver) | | Voltage | 100 - 240 VAC, 5 VDC jack (transmitter)
5 VDC mini-USB (receiver) | | Amps | 2 A | | Operating Temperature | 32 to 104°F (0 to 40°C) | | Construction Material | Plastic | | | | Package Weight | 3.25 lb | | Box Dimensions (LxWxH) | 11.0 x 8.7 x 3.4" |
