Product description

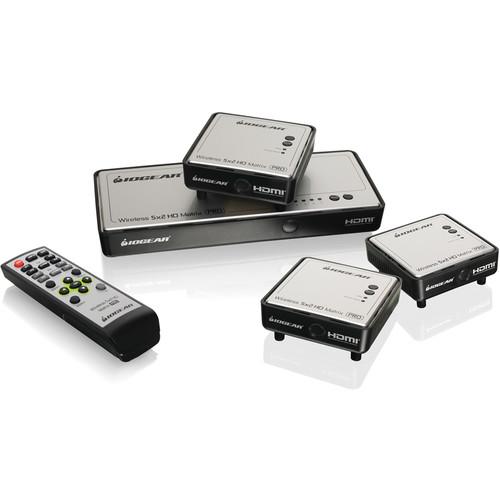

• Wireless 5 x 2 HD Matrix Pro With a clear line of sight, wirelessly transmit 1080p video up to 200' with the IOGEAR Wireless 5 x 2 HD Matrix Pro. This system includes a wireless transmitter and receiver and allows you to wirelessly multicast video to up to 4 wireless receivers; additional receivers are optional and sold separately. The wireless transmitter has 4 HDMI and a component video input for interfacing high-definition video sources like Blu-ray players and gaming systems. The wireless receiver features an HDMI-port for outputting video to an external display. An HDMI cable is included for display connections and both the receiver and transmitter include remote controls for simplified operation.
  • Allows you to switch and independently select any of 5 sources between 2 HDTVs
  • You can watch cable TV in one room while playing a video-game in another
  • Multicast up to 5 HDTVs - Send content to up to 5 locations at the same time (4 wireless with additional wireless receivers)
  • Supports the pass-through of 3D video signals when used 3D video source components and displays
  UPC: 881317511799
• Wireless HD Matrix Pro Receiver The IOGEAR Wireless HD Matrix Pro Receiver is designed for use with the IOGEAR HD Matrix Pro Transmitter. Once connected, this unit can receive high-definition video signals up to 200' away from the transmitter. Additional wireless receivers can be added to the system to multi-cast audio and video to separate locations in your viewing environment. This receiver also features an HDMI-port for outputting video to an external display, and supports resolutions up to 1080p.
  • Send content to up to 5 locations (4 wireless) at the same time when used with a transmitter and additional wireless receivers; the transmitter and additional receivers are sold separately
  • You can watch cable TV in one room while playing a video-game in another when used with additional wireless receivers
  • Supports the pass-through of 3D video signals when used 3D video source components and displays
  UPC: 881317511850

• Wireless Transmitter

• Wireless Receiver

• 2 x Remote Control

• Component Adapter Cable

• IR Blaster Cable

• IR Sensor Cable

• 2 x Power Adapter

• HDMI Cable

• Limited 1-Year Warranty

• Remote Control

• Power Adapter

• Limited 1-Year Warranty

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• Wireless 5 x 2 HD Matrix Pro

  Resolution	480p, 576p, 720p, 1080i, 1080p (24/30/60 fps)
  3D Support	Yes
  Video Streaming	<1 ms latency
  Input	4 x HDMI 1 x Component Video
  Output	1 x HDMI loop-through (transmitter) 1 x HDMI (receiver)
  Other Ports	1 x Power (transmitter and receiver)
  Cable Connection	Input: 1 x Mini-USB (female) Output: 1 x USB Type A (female)
  Audio Output	Digital 6 Mb/s AC3 and DTS, Analog 48 kHz and 24-bit per sample
  Frequency	4.9 - 5.9 GHz (includes non-DFS and DFS frequency bands)
  Antenna Type	High-performance internal
  Range	200' (61 m), with a clear line of sight
  Power Switch	1 x Port switching push-button (transmitter and receiver)
  Communication	Unit to Unit: 0.1" (2.5 mm) Blaster Extender (transmitter), sensor extender (receiver)

  LEDs	Port ID: 5 x blue LEDs on transmitter; 2 x blue LEDs on receiver Power On: Blue/Red LED (transmitter and receiver) Link: LED (transmitter and receiver)
  Voltage	100 - 240 VAC, 5 VDC jack (transmitter) 5 VDC mini-USB (receiver)
  Amps	2 A
  Operating Temperature	32 to 104°F (0 to 40°C)
  Construction Material	Plastic

  Box Dimensions (LxWxH)	11.0 x 8.7 x 3.4"

• Wireless HD Matrix Pro Receiver

  Resolution	480p, 576p, 720p, 1080i, 1080p (24/30/60 fps)
  3D Support	Yes
  Video Streaming	<1 ms latency
  Output	1 x HDMI
  Other Ports	1 x Mini USB-female (Power)
  Audio Output	Digital 6 Mb/s AC3 and DTS, Analog 48 kHz and 24-bit per sample
  Frequency	4.9 - 5.9 GHz (includes non-DFS and DFS frequency bands)
  Antenna Type	High-performance internal
  Range	Up to 200' (61 m) from the transmitter
  Power Switch	1 x Port switching push-button
  Communication	Unit to Unit: 0.1" (2.5 mm) Blaster Extender (transmitter), sensor extender (receiver)

  LEDs	Port ID: 2 x blue LEDs Power On: Blue/Red LED Link: LED
  Voltage	5 VDC mini-USB
  Construction Material	Plastic

  Box Dimensions (LxWxH)	10.1 x 7.5 x 2.5"
