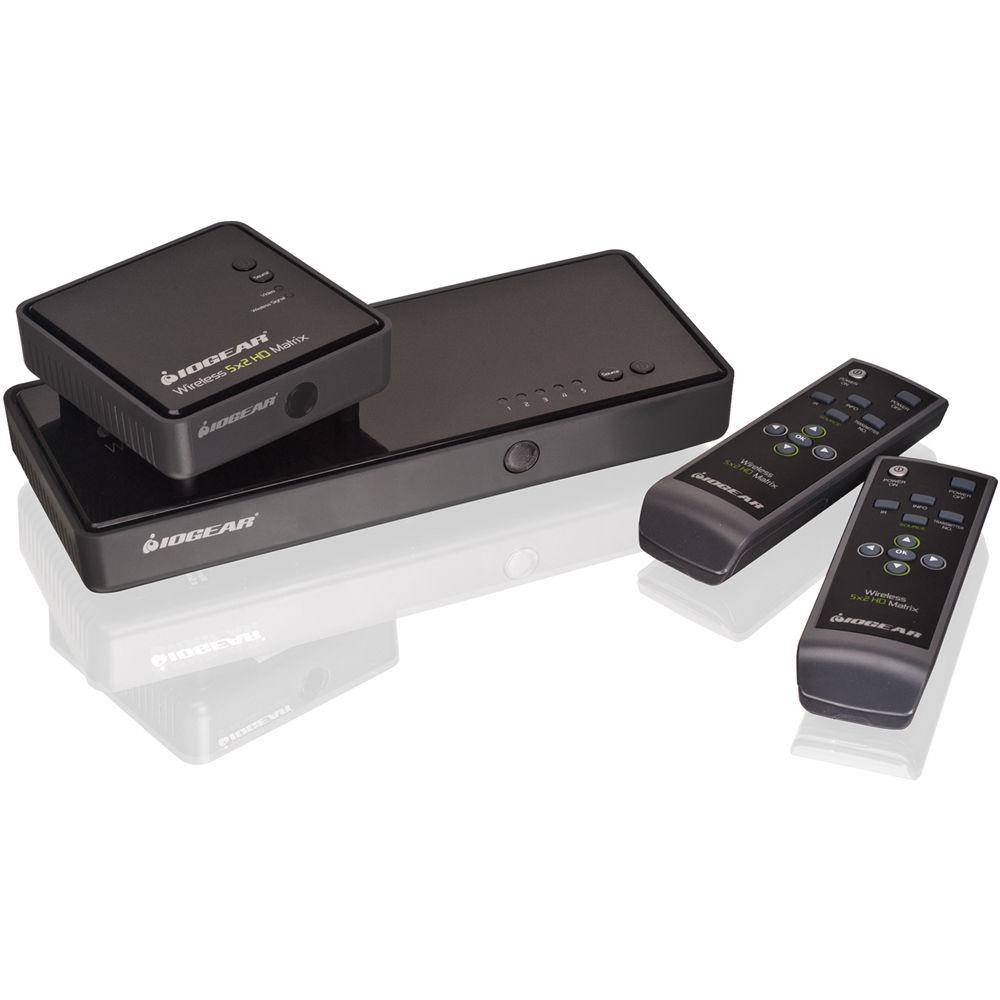

User Manual for IOGEAR Wireless 5x2 HD Matrix HDMI Adapter Click to enlarge the picture
Contents of the user manual for the IOGEAR Wireless 5x2 HD Matrix HDMI
- Product category: Routers & Switchers IOGEAR
- Brand: IOGEAR
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for IOGEAR Routers & Switchers
 |
User manual for the IOGEAR Wireless 5x2 HD Matrix HDMI contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any IOGEAR product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official IOGEAR user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a IOGEAR product will considerably shorten its lifespan!
|
Product description - Wireless HDMI 5x2 HD Matrix Demo

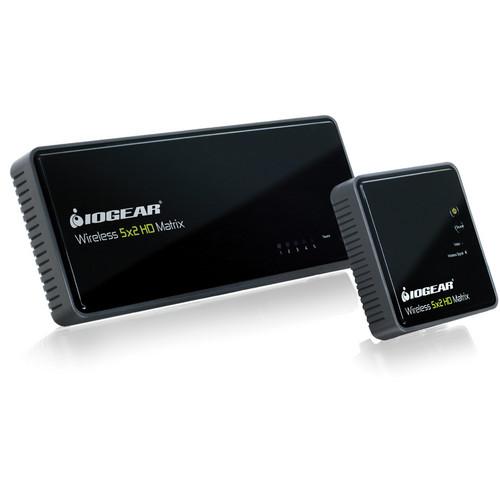

The Wireless 5x2 HD Matrix HDMI Adapter from IOGEAR allows you to connect up to five source devices and transmit that signal to two separate HDTVs. With the ability to stream content at distances up to 100 feet, this HDMI adapter lets you view streams from connected cable boxes, Blu-ray players, DVD players, game consoles and more throughout the house.
Independent streaming makes it possible to select different sources on each of the connected HDTVs, allowing one party to view content from a connected DVD player while the other party can watch content from a connected game console. Additionally, you can connect a computer or laptop to the included USB port for enhanced control of the connected devices.
The wireless HDMI adapter also comes equipped with infrared sensors providing complete control over each connected device eliminating the hassle of running wires throughout the house. Simply use the compatible remote control to manage your connected device from where you are viewing the stream. - Wirelessly transmit fully uncompressed HD video up to 100 feet through standard home walls for two HDTVs
- The built-in 5 x 2 matrix allows you to switch and independently select any of 5 sources between two HDTVs
- Deliver separate content to two locations at the same time
- Connect and wirelessly transmit content from your Blu-ray/DVD player, DVR/cable box, game console, computer/laptop, or media player
- Supports full uncompressed HD 1080p, 3D content, 5.1 channel digital audio, and home theater projectors
- Compatible video resolutions include 480p, 720p, 1080i, 1080p and 3D (24 / 30 / 60 fps)
- USB port on the Transmitter and Receiver enable wireless keyboard connectivity to control the attached computer or laptop
- Built-in Infrared (IR) pass-through with two IR blaster allows
- Includes two remotes for convenient switching in both locations. No software or driver installation is needed
UPC: 881317510983 In the Box IOGEAR Wireless 5x2 HD Matrix HDMI Adapter Wireless Transmitter Wireless Receiver 2 x Remote Controls w/ Batteries Component Adapter Cable IR Blaster Cable (Transmitter) IR Sensor Extender Cable (Receiver) 2 x Power Adapter HDMI Cable Limited 1-Year Manufacturer Warranty More from Manufacturer ctecttrrzddqwdzfrrdqfu More info from IOGEAR Table of Contents
|
Upload User Manual
Have you got an user manual for the IOGEAR Wireless 5x2 HD Matrix HDMI Adapter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

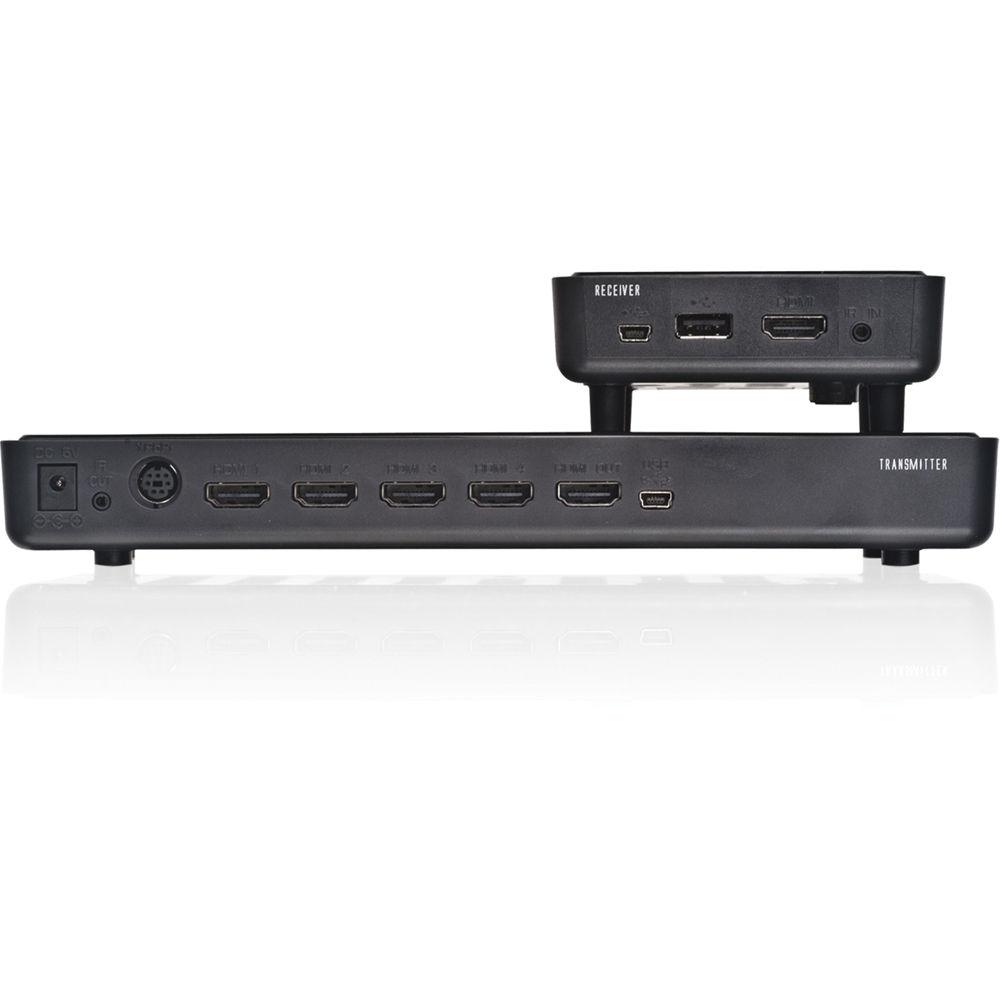

Technical parametersIOGEAR GWHDMS52 Specs | Connectors | Video Input
4 x HDMI, 1 x Component
Video Output
1 x HDMI loop through (transmitter)
1 x HDMI (receiver)
USB Input
1 x mini USB (female)
USB Output
1 x USB (female) type A
Power
1 x power jack (transmitter and receiver) | | Video Resolution Supported | 480p, 576p, 720p, 1080i, 1080p (24/30/60 fps) and 3D Support | | Video Streaming | <1 ms latency | | Audio Output | Digital 6Mbps AC3 and DTS, Analog 48KHz and 24-bit per sample | | Frequency | 4.9 ~ 5.9 GHz (includes non-DFS and DFS frequency bands) | | Antenna Type | High performance internal antenna | | Range | Maximum video transmission range is 100 ft (30 m) | | Power Switch | 1 x port switching push button (transmitter and receiver) | | Remote Module Connectors | Unit to Unit
2.5mm blaster extender (transmitter)
Sensor extender (receiver) | | LEDs | Port ID
5 x blue LEDs on transmitter
2 x blue LEDs on receiver
Power On
Blue/red LED (transmitter and receiver)
Link
LED (transmitter and receiver) | | Power | Voltage
100~240 V - 5 V DC Jack (Transmitter)
5 V DC mini USB (Receiver)
Amps
2 A | | Operating Temperature | 32 to 104°F / 0 to 40°C | | Housing | Plastic | | Security | 128 bit AES encryption | | Dimensions (HxDxL) | 1.13 x 3.75 x 9.13" / 2.87 x 9.53 x 23.19 cm | | Weight | 2.05 lb / 0.93 kg | | | | Package Weight | 3.0 lb | | Box Dimensions (LxWxH) | 11.2 x 8.6 x 2.4" |
