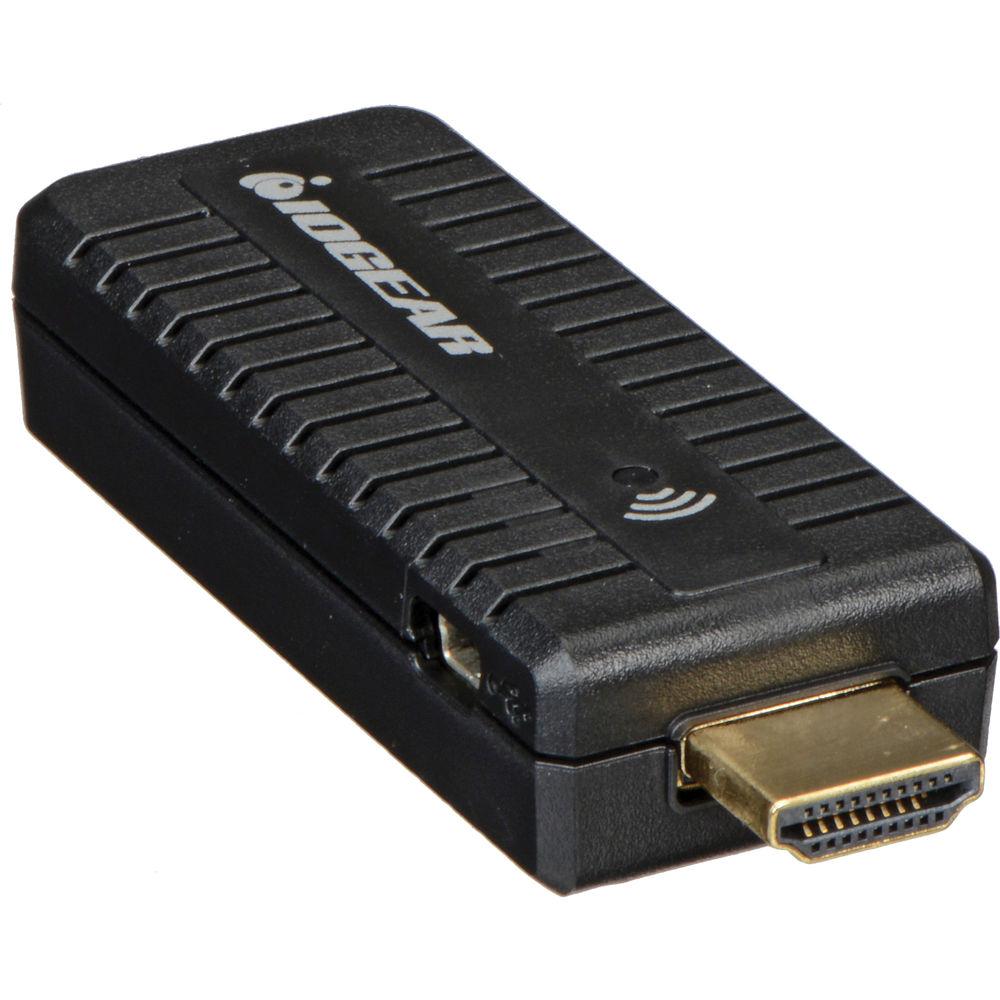

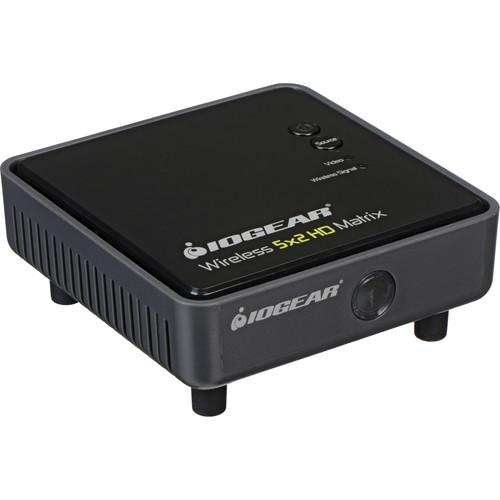

Product description The IOGEAR Wireless HDMI Transmitter and Receiver Kit includes a transmitter and receiver for streaming audio/video wirelessly via HDMI. The transmitter connects to a laptop or media player HDMI port, and the receiver connects to an HDTV or HD projector with an HDMI cable for wireless streaming. This kit is well-suited for use in home, office and educational applications. It sends uncompressed Full HD 1080p with 3D support from your laptop, computer, gaming console or other HDMI device.
The kit does not require a direct line-of-sight placement enabling a quick, simple and flexible wireless audio/video solution. It doesn't require any drivers or software installation - simply plug the transmitter into the HDMI port of your HDMI device to start streaming. Up to three additional separately sold transmitters can be paired with the receiver. - Kit containing one transmitter and one receiver for streaming wireless audio/video via HDMI
- Take advantage of your large screen HDTV and mirror or extend your computer's screen wirelessly
- Browse the Internet, view streaming video sites and share photos and videos for easier viewing
- Stream uncompressed Full HD 1080p audio/video, 3D video
- Connect and wirelessly transmit content from a laptop, gaming console, Blu-ray/DVD player or set-top box/DVR/cable box
- Supports a wireless range of up to 30'
- Supports 5.1-channel digital audio
- Supported video resolutions: 480p, 720p, 1080i and 1080p
- No software or driver installation needed
- Less than 1ms latency makes this kit well-suited for gaming
- Add up to three separately sold wireless HDMI transmitters (IOGEAR part# GWHDSTX)
UPC: 881317512208 In the Box IOGEAR Wireless HDMI Transmitter and Receiver Kit Mini-USB to USB Cable 2 x USB Power Adapters Remote Control 2 x AAA Batteries HDMI Cable Limited 1-Year Warranty More from Manufacturer More info from IOGEAR Table of Contents
|
Upload User Manual
Have you got an user manual for the IOGEAR Wireless HDMI Transmitter and Receiver Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersIOGEAR GWHD11 Specs | Requirements | Display:
HDTV or HD projector
HDMI input
Media source:
HDMI output | | Video Input | Transmitter: 1 x HDMI (type A, male) | | Video Output | Receiver: 1 x HDMI (type A, female) | | Power | 1 x mini-USB power jack (transmitter and receiver) | | Video Resolution | 480p, 720p, 1080i and 1080p with 3D support | | Video Streaming | < 1 ms latency | | Audio Output | Digital 6 Mbps, 2 to 8 channels 16 ~ 24 bits/sec by I2S and S/P DIF bus over WHDI transmission (Dolby Digtial and DTS) | | Range | 4.9 ~ 5.9 GHz (includes non-DFS and DFS frequency bands) | | Operating Distance | Up to 30' (10 m) Distances may vary depending on environment; solid objects such as steel, concrete and brick may cause shorter viewing distances or loss of signal | | LEDs | Transmitter: 1 x blue LED for power on
Receiver: 1 x LED (two-tone: green and red) for power on | | Power | Amps: 1 A (transmitter) and 1.5 A (receiver)
Voltage: 5 VDC mini-USB (transmitter and receiver) | | Operating Temperature | 32 ~ 104° F (0 ~ 40° C) | | Dimensions (LxHxD) | 3.78 x 1.50 x 3.78" (9.60 x 3.81 x 9.60 cm) | | Weight | 5.6 oz (158.8 g) | | | | Package Weight | 1.65 lb | | Box Dimensions (LxWxH) | 9.7 x 7.3 x 2.3" |
