User Manual for ION Audio Garage Rocker Wireless Worksite Speaker with Tool Storage Click to enlarge the picture
Contents of the user manual for the ION Audio Garage Rocker Wireless Worksite
- Product category: Portable PA Systems ION Audio
- Brand: ION Audio
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ION Audio Portable PA Systems
 |
User manual for the ION Audio Garage Rocker Wireless Worksite contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ION Audio product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ION Audio user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ION Audio product will considerably shorten its lifespan!
|
Product description 7 All-In-One Portable Speaker Systems for Special Events and Parties Read More The orange ION Audio Garage Rocker is a wireless worksite speaker offering portability, long-lasting wireless operation, and protection from the elements for construction workers and supervisors on jobsites inside or outdoors. Integrated carry handles allow easy transport while built-in holders and trays provide storage for tools, bits, screws, and sockets. Thanks to an IPX5-rated design, the Garage Rocker won't be damaged by the inevitable exposure to dust, light precipitation, and the occasional splash. The 2-way sound system pumps out 50W of peak power through a 6.5" woofer and 2" tweeter. Stream music wirelessly to the built-in Bluetooth receiver—its NFC support delivers fast, easy pairing—or utilize the on-board digital AM/FM radio for tunes and talk shows. A 3.5mm stereo aux input grants simple connectivity for a mobile device, which can be charged via the USB Type-A charging port. You can even plug in a dynamic microphone to the 1/4" jack for amplified announcements and verbal instructions. The Garage Rocker's internal battery provides up to 50 hours of operating time and recharges via an IEC connection. - Built-in Bluetooth receiver with NFC enables fast pairing and wireless music streaming from your Bluetooth device
- Internal antenna and built-in digital AM/FM radio with six preset buttons
- 3.5mm stereo aux input accommodates non-Bluetooth devices
- Connect a dynamic microphone (available separately) to the 1/4" mono microphone input for announcements
- USB port for easy device charging
- Built-in rechargeable battery provides up to 50 hours of continuous use on a single charge
- 2-way 50W sound system features a 6.5" woofer, 2" tweeter, and selectable bass boost

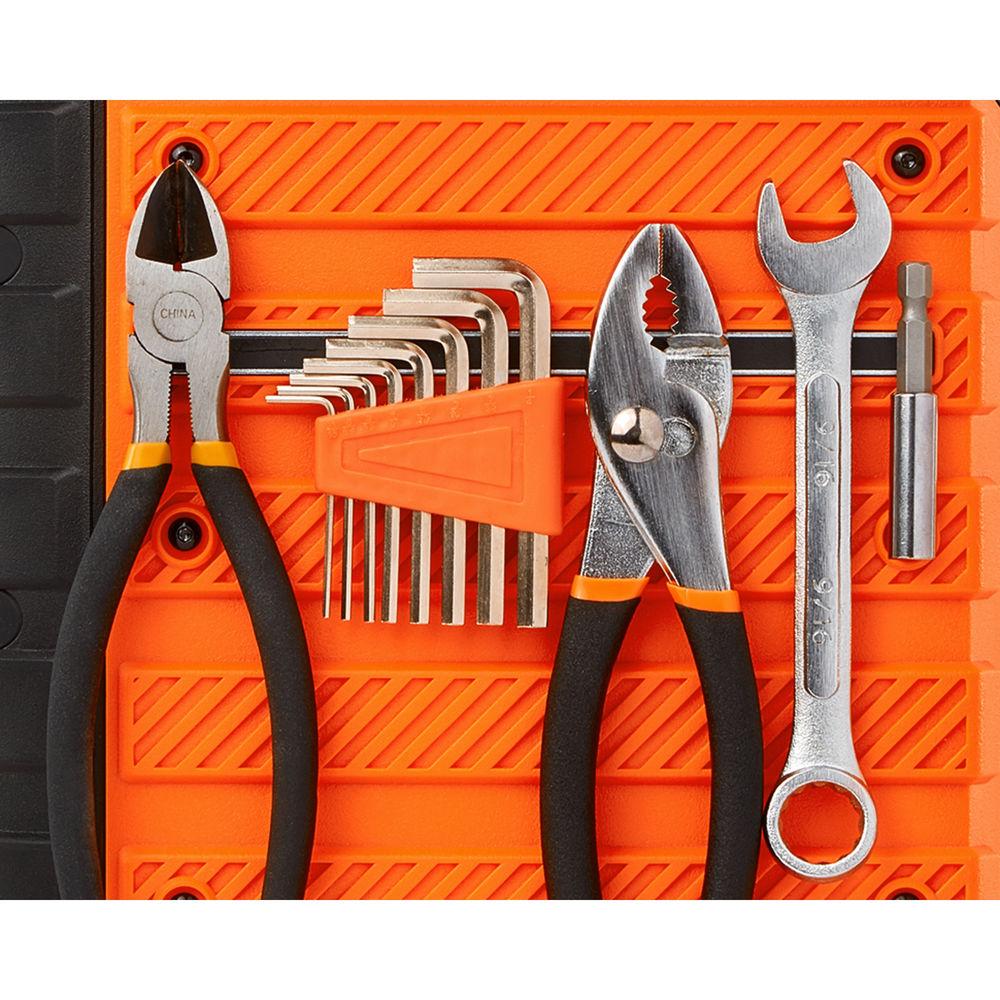

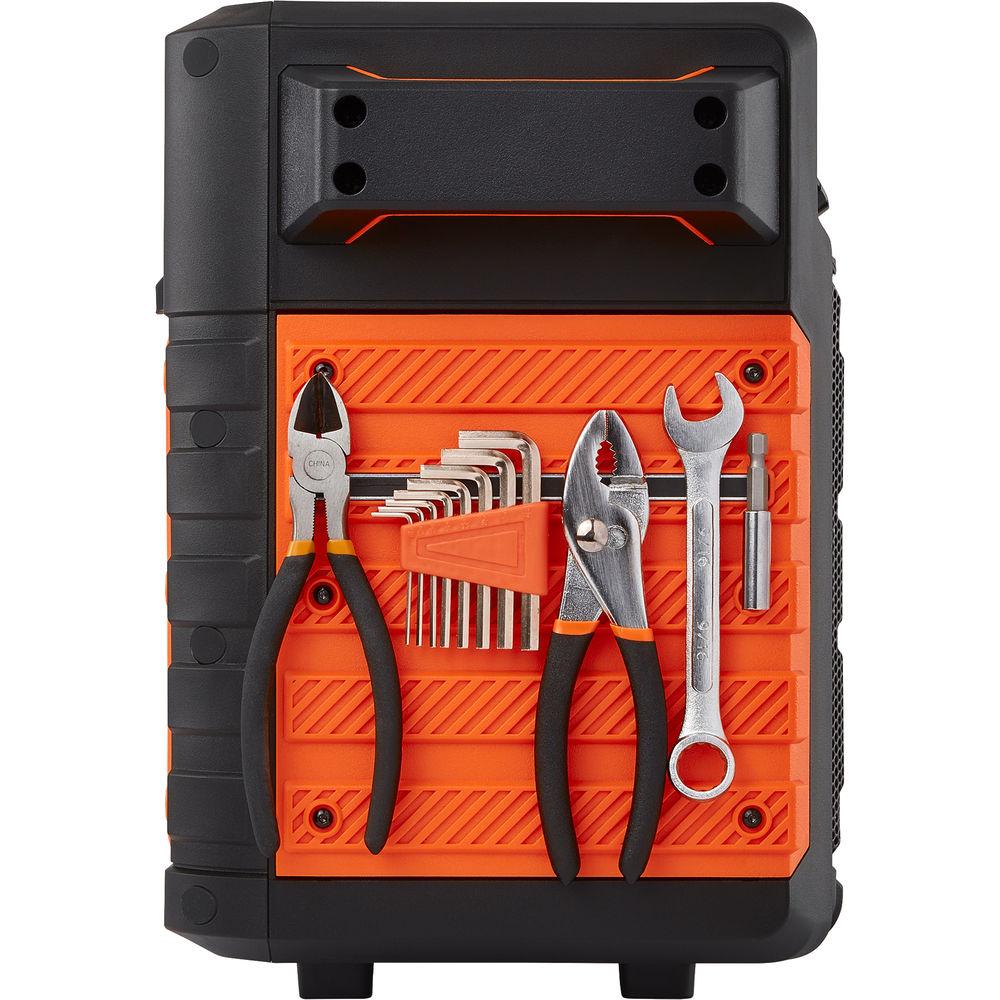

- Magnetic tool holder keeps your workspace organized and neat

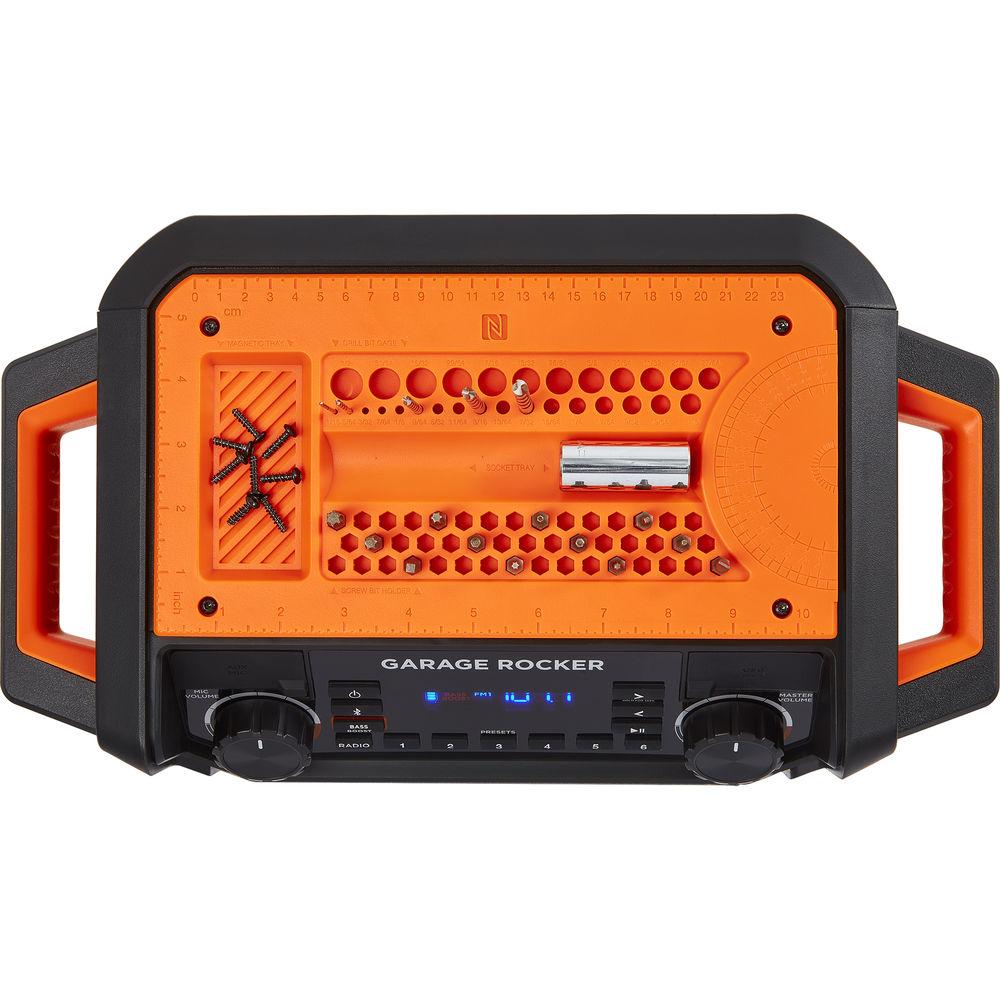

- Integrated ruler, protractor, drill bit holder, socket tray, and magnetized screw tray

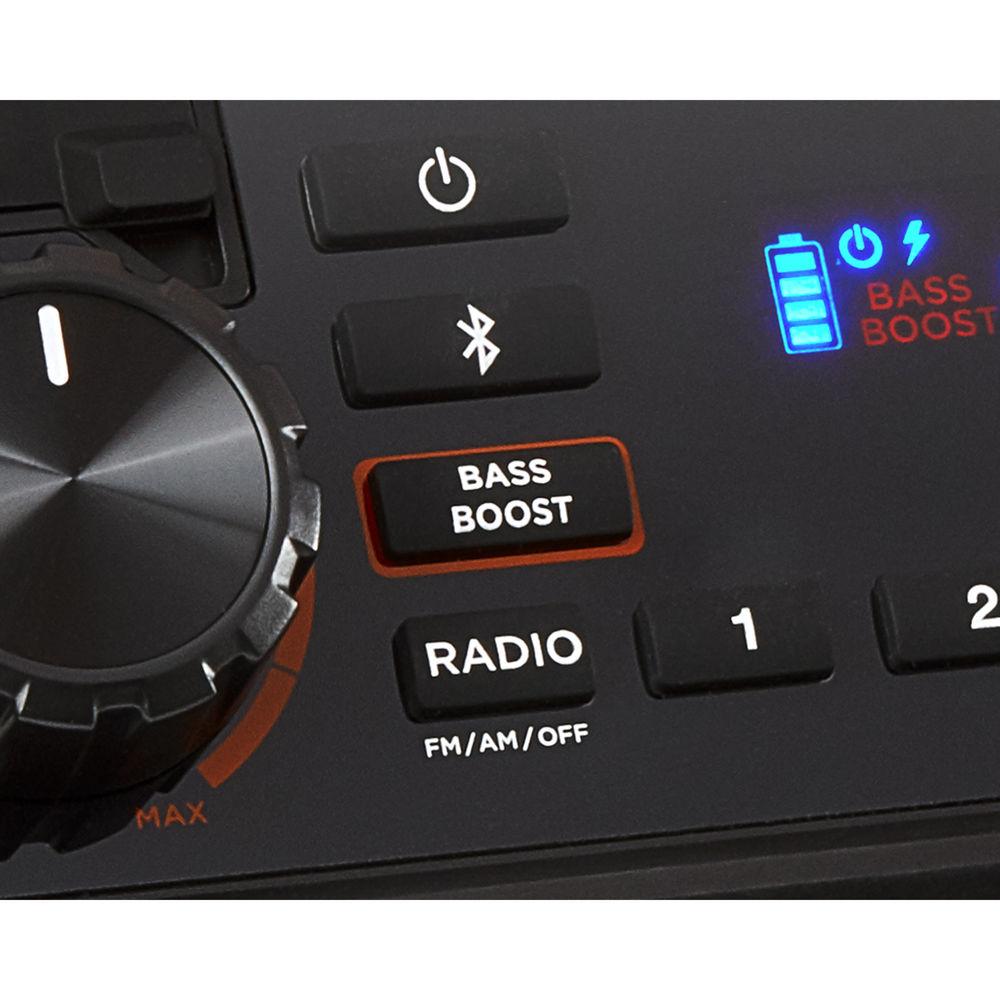

- Large rubberized buttons and controls are easy to use even while wearing gloves

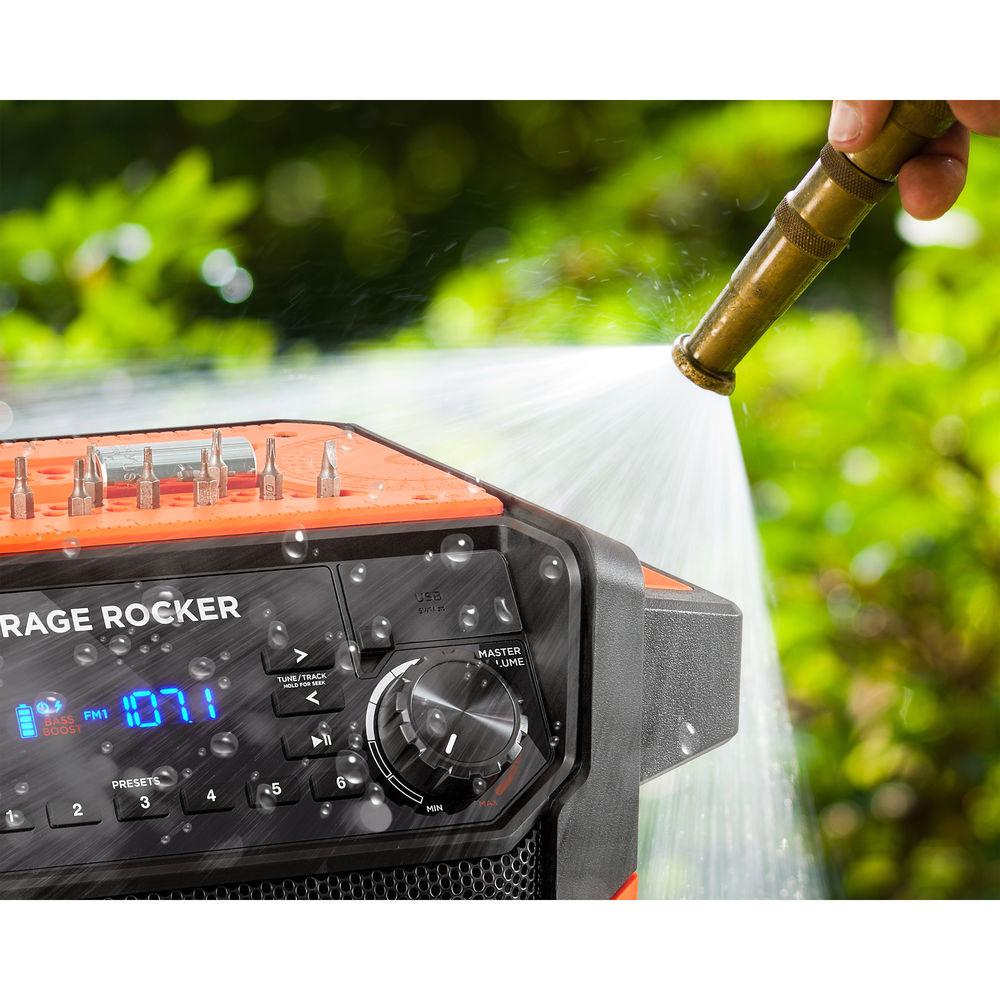

- IPX5 rating offers protection from a 1/4" spray of water at 12.5 liters per minute for up to three minutes
- Metal grille protects the speaker
- Includes 3.5mm stereo audio cable and power/charging cable
UPC: 812715010980 In the Box ION Audio Garage Rocker Wireless Worksite Speaker with Tool Storage (Orange) 3.5mm Stereo Audio Cable Power Cable Limited 90-Day Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the ION Audio Garage Rocker Wireless Worksite Speaker with Tool Storage in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersION Audio Garage Rocker Specs | LF Driver | 6.5" / 165 mm woofer | | HF Driver | 2" / 50 mm tweeter | | Output Power | 50 W peak | | Frequency Response ± 3dB | 65 Hz to 20 kHz | | Inputs | 1 x 1/8" / 3.5 mm stereo mini jack
1 x 1/4" mono microphone input | | Bluetooth Profile Support | A2DP
AVRCP
NFC pairing | | Bluetooth Range | Up to 100' / 30.5 m | | Radio Frequency Range | US: 520 to 1710 kHz (AM), 87.5 to 107.9 MHz (FM)
Europe: 522 to 1629 kHz (AM), 87.5 to 108 MHz (FM)
Japan: 522 to 1710 kHz (AM), 75.5 to 108 MHz (FM) | | USB Charging | 1 x USB Type-A port (5 V, 1 A) | | IP Rating | IPX5 | | Battery Type | 12 V, 5 Ah, SLA (sealed lead acid) | | Battery Dimensions | 2.8 x 3.5 x 4.0" / 71 x 89 x 102 mm | | Battery Life (approx.) | Up to 50 hours | | Recharge Time | 10 hours | | Power Requirements | Built-in battery or 100 to 240 VAC, 50/60 Hz via IEC connection | | Dimensions (W x D x H) | 16.1 x 9.6 x 13.7" / 410 x 244 x 348 mm | | Weight | 17.9 lb / 8.1 kg | | Specialties | Integrated ruler, protractor, drill bit holder, socket tray, magnetic tool holder, and magnetized screw tray | | | | Package Weight | 22.0 lb | | Box Dimensions (LxWxH) | 19.5 x 19.5 x 14.0" |
