User Manual for ION Audio Job Rocker Max Bluetooth All-Weather Portable PA System Click to enlarge the picture
Contents of the user manual for the ION Audio Job Rocker Max Bluetooth
- Product category: Portable PA Systems ION Audio
- Brand: ION Audio
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ION Audio Portable PA Systems
|
User manual for the ION Audio Job Rocker Max Bluetooth contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ION Audio product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ION Audio user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ION Audio product will considerably shorten its lifespan!
|

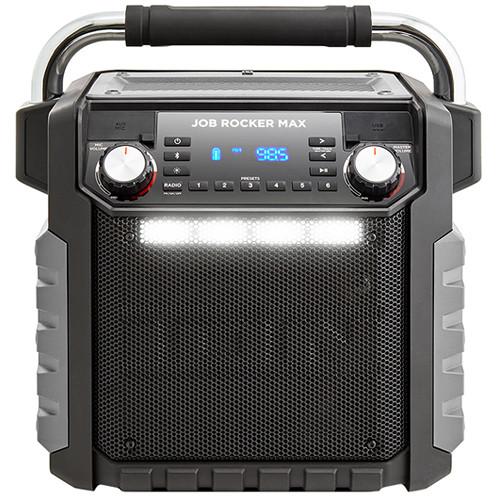

Product description 7 All-In-One Portable Speaker Systems for Special Events and Parties Read More The black ION Audio Job Rocker Max is a wireless, all-weather, portable PA system offering portability, long-lasting wireless operation, and protection from the elements for construction workers, home improvement enthusiasts, and supervisors on jobsites inside or outdoors. A large chrome-plated carry handle arcs over the top panel and is fitted with a thick grip for easy transport. Thanks to an IPX4-rated design, the Job Rocker Max won't be damaged by the inevitable exposure to light precipitation or the occasional splash. A bright LED light strip illuminates the area near the speaker and can be turned off via a dedicated button.The 2-way sound system pumps out 50W of peak power through a 6.5" woofer and 3" tweeter. Stream music wirelessly to the built-in Bluetooth receiver—its NFC support delivers fast, easy pairing—or utilize the on-board digital AM/FM radio for tunes and talk shows. A 3.5mm stereo aux input grants simple connectivity for a mobile device, which can be charged via the USB Type-A charging port. You can even plug in a dynamic microphone to the 1/4" jack for amplified announcements and verbal instructions. The Job Rocker Max's internal battery provides up to 50 hours of operating time and recharges via an IEC connection or hook-up to a 12 VDC source such as a vehicle. Two AC power outlets offer convenient powering of tools and lights. - IPX4 water-resistant for use in rain or near pools
- Built-in Bluetooth receiver for wireless music streaming
- Easy Pair links your NFC-enabled smartphone with a single tap
- Digital AM/FM radio with six preset buttons
- Two AC power outlets allow powering of lights, tools, and more
- Bright LED strip lights up for illumination of detail work
- Built-in rechargeable battery provides up to 50 hours of continuous use
- Integrated speaker system features 50W of peak output power driving a 6.5" woofer and 3" tweeter
- 12V input jack to power or charge from your vehicle
- Durable composite cabinet with rugged, chrome-plated handle and full-length metal grille
- Large rubberized buttons and controls
- Protective rubber dust covers over power outlets and audio ports
- Includes one IEC cable, one 12 VDC power cable, and a 3.5mm stereo audio cable
UPC: 812715019891 In the Box ION Audio Job Rocker Max Bluetooth All-Weather Portable PA System (Black) IEC Power Cable 12 VDC Power Cable 3.5mm Stereo Audio Cable Limited 90-Day Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the ION Audio Job Rocker Max Bluetooth All-Weather Portable PA System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersION Audio Job Rocker Max Specs | LF Driver | 1 x 6.5" / 165 mm woofer | | HF Driver | 1 x 3" / 76.2 mm tweeter | | Output Power | 50 W peak | | Frequency Response ± 3dB | 75 Hz to 20 kHz | | Inputs | 1 x 1/4" TS mono microphone input
1 x 3.5mm TRS stereo mini jack | | Bluetooth Profile Support | Audio: A2DP and AVRCP
Pairing: NFC | | Bluetooth Range | Up to 100' / 30.5 m | | Radio Frequency Range | AM: 520 to 1710 kHz
FM: 87.5 to 107.9 MHz | | USB | 1 x USB Type-A charging port (5 V, 1 A) | | IP Rating | IPX4 | | Battery Life | Up to 50 hours | | Battery Type | Rechargeable SLA (sealed lead-acid) | | Recharge Time | 10 hours | | Power Connections | 1 x Standard IEC (15 A) input
1 x 12 VDC, 10 A, center-positive input
2 x NEMA 5-15R AC outlets | | Power Requirements | Internal battery or power connection (100 to 120 VAC or 220 to 240 VAC, 50/60 Hz, 1050 W) | | Maximum Load | AC Outlets: 100 to 120 VAC, 10 A (combined) when using the included 15 A power cable or equivalent | | Construction Material | Composite cabinet, chrome-plated handle, metal grille, and rubberized buttons/controls | | Dimensions (W x D x H) | 16.5 x 9.4 x 15.7" / 420 x 239 x 398 mm | | Weight | 19.4 lb / 8.8 kg | | | | Package Weight | 25.25 lb | | Box Dimensions (LxWxH) | 20.0 x 18.0 x 15.0" |
