User Manual for ION Audio Pathfinder Waterproof Rechargeable Speaker System Click to enlarge the picture
Contents of the user manual for the ION Audio Pathfinder Waterproof Rechargeable Speaker
- Product category: Portable PA Systems ION Audio
- Brand: ION Audio
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ION Audio Portable PA Systems
 |
User manual for the ION Audio Pathfinder Waterproof Rechargeable Speaker contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ION Audio product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ION Audio user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ION Audio product will considerably shorten its lifespan!
|

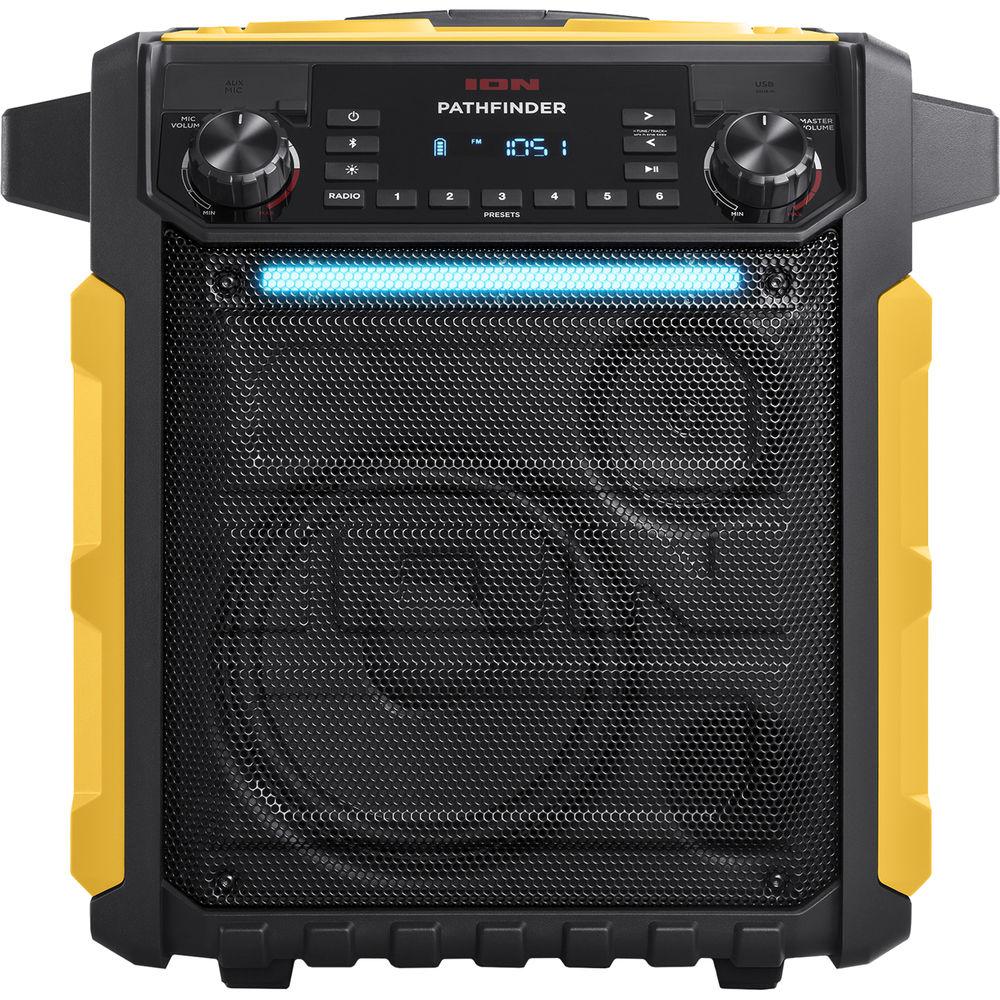

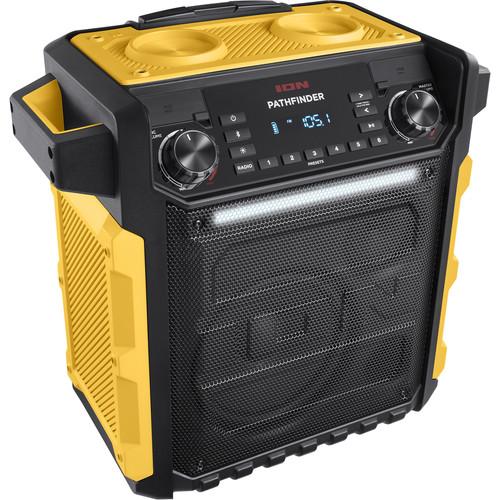

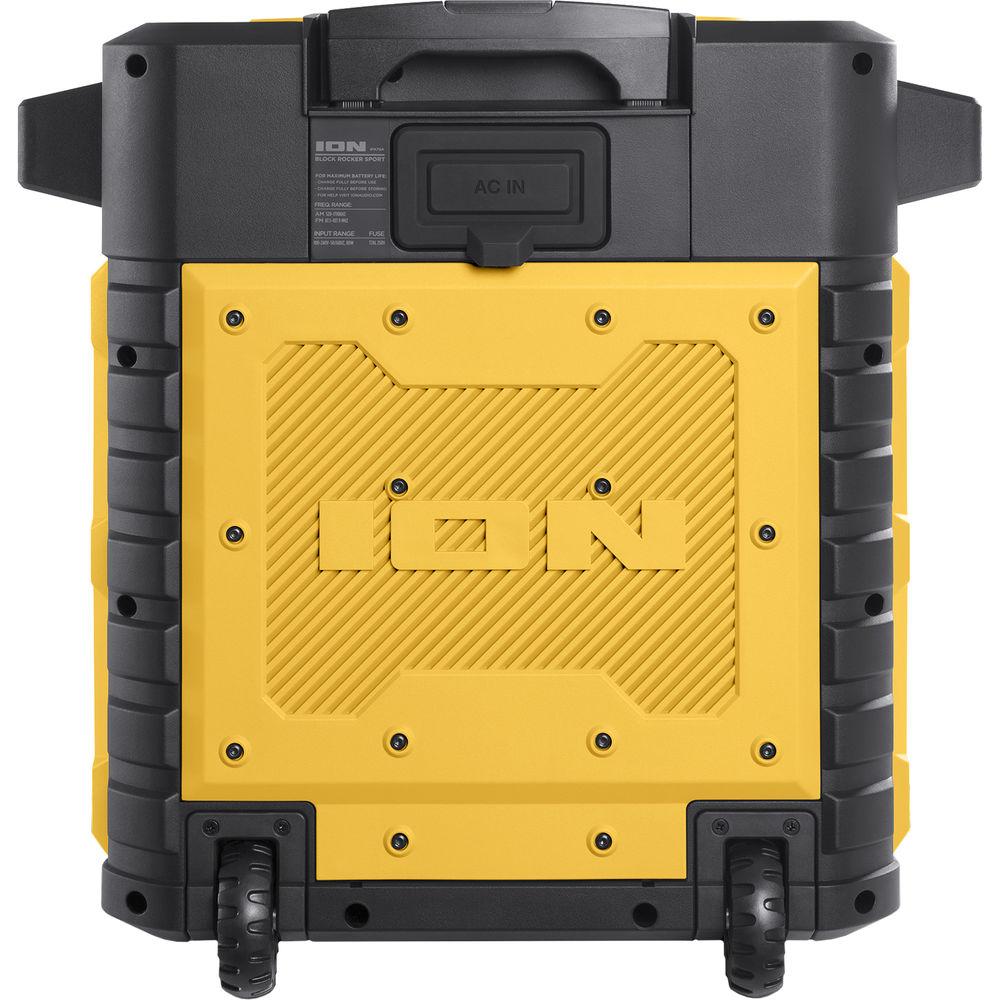

Product description 7 All-In-One Portable Speaker Systems for Special Events and Parties Read More The yellow Pathfinder from ION Audio is a waterproof portable speaker system with rechargeable battery that lets you wirelessly stream music for up to 75 hours on a single charge, without the need for any audio cable or power cord. Equipped with Bluetooth technology, it can pair with any Bluetooth device up to 100' away, so you can listen to your favorite songs when working in the garden, hosting a backyard barbecue or relaxing by the pool, in any weather. The Pathfinder delivers 100W of vibrant sound with a built-in LED light bar, which creates lighting effects that react to the beat of the music. It also features a built-in digital AM/FM radio for tuning in to your favorite music or the game, an Aux input to connect smartphones or MP3 players, and a 1/4" microphone input that lets you connect the included handheld microphone. With its rugged construction, telescoping handle, built-in wheels, and USB charging ports, the Pathfinder is well equipped to let you enjoy your music outdoors. - 100W (peak) speaker system with one 8" woofer and one 3" tweeter
- Rugged IPX4-rated waterproof enclosure - so you can leave it out in the rain
- Built-in Bluetooth receiver to stream audio wirelessly from any Bluetooth-compatible device
- Built-in rechargeable battery provides up to 75 hours of continuous use on a single charge
- One 1/4" input for dynamic microphone
- One 1/8" Aux input to connect smartphones and MP3 players
- Digital AM/FM radio with 6 preset buttons
- Two USB charging ports - charging functions only when the unit's power is turned on
- Built-in LED light bar provides festive multi-color lighting effects
- Rugged construction with telescoping handle, wheels, two carrying side handles, two cup holders on top
- Includes microphone and cable
UPC: 812715010072 In the Box ION Audio Pathfinder Waterproof Rechargeable Speaker System (Yellow) Microphone with Cable Power Cable Limited 90-Day Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the ION Audio Pathfinder Waterproof Rechargeable Speaker System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersION Audio Pathfinder Specs | Output Power | 100 W (peak) | | Speakers | 1 x 8" woofer
1 x 3" tweeter | | Inputs | 1 x 1/4" / 6.35 mm TS mono microphone input
1 x 1/8" / 3.5 mm stereo auxiliary input | | Bluetooth | Profiles: A2DP, AVRCP
Range: Up to 100' / 30.5 m | | Water Resistance | IPX4 | | Microphone Type | Dynamic microphone | | Battery Life | Up to 75 hours | | Battery Power | 12 V, 7.0 Ah SLA | | Charging Port | 2 x USB, 5 V, 1 A | | Power | 110-240 VAC, 50/60 Hz | | Dimensions (W x D x H) | 11.0 x 18.0 x 18.5" / 279 x 457 x 470 mm | | Weight | 30.9 lb / 14.0 kg | | | | Package Weight | 32.0 lb | | Box Dimensions (LxWxH) | 22.2 x 21.5 x 15.0" |
