User Manual for ION Audio Raptor Wireless Water-Resistant 100W Speaker System Click to enlarge the picture
Contents of the user manual for the ION Audio Raptor Wireless Water-Resistant 100W
- Product category: Portable PA Systems ION Audio
- Brand: ION Audio
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ION Audio Portable PA Systems
 |
User manual for the ION Audio Raptor Wireless Water-Resistant 100W contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ION Audio product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ION Audio user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ION Audio product will considerably shorten its lifespan!
|

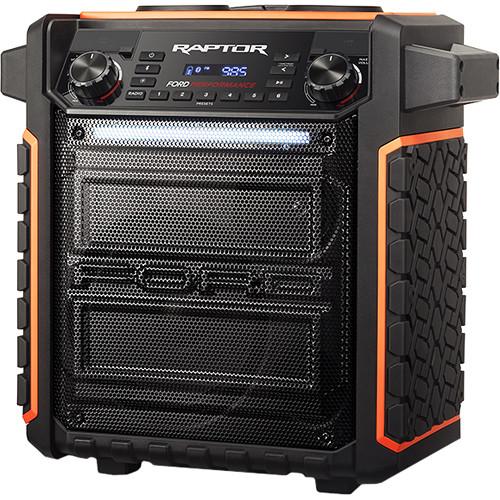

Product description 7 All-In-One Portable Speaker Systems for Special Events and Parties Read More The ION Audio Raptor is an IPX4 water-resistant, portable, battery-powered, all-in-one sound and lighting system for indoor and outdoor events such as parties, karaoke nights, and camping. It sports Ford pickup–styled looks and rugged tire-tread panels. The Raptor's 2-way sound system features 100W of power driving an 8" woofer and 3" tweeter. It offers a sound-reactive light bar, AM/FM radio, dual cup holders, and a built-in Bluetooth receiver.Wirelessly stream music from a Bluetooth device, such as a smartphone, tablet, or laptop. On-board controls are provided to play, pause, skip tracks, and adjust volume. Connect non-Bluetooth devices to the 3.5mm aux input jack with the supplied audio cable. Dual USB charging ports provide convenient device recharging. For announcements or karaoke, hook up the included dynamic microphone and cable to amplify your voice.The internal 75-hour rechargeable battery gives plenty of time for long-lasting events. When the battery gets low, plug the Raptor into a wall outlet via the supplied IEC cable or into your car via the supplied 12V jack. Transporting the speaker system is easy thanks to the built-in wheels, telescoping luggage handle, and side-panel carry handles. - Rugged tire-tread body panels
- Built-in Bluetooth receiver offers 100' range and NFC pairing
- 100W of power through an 8" woofer and 3" tweeter
- AM/FM radio and 3.5mm auxiliary line input
- Two USB Type-A charging ports
- Light bar can be set to react to music, stay on constantly, or be disabled
- 75-hour rechargeable battery
- Includes 12V jack to power the Raptor from your vehicle
- Includes dynamic microphone, mic cable, and 3.5mm auxiliary audio cable
- Built-in wheels, telescoping luggage handle, and two side-panel carrying handles
UPC: 812715019853 In the Box ION Audio Raptor Wireless Water-Resistant 100W Speaker System Microphone Microphone Cable 1/8" (3.5mm) Stereo Audio Cable IEC Power Cable 12 VDC Power Cable Storage Bag Limited 90-Day Warranty Quick start Guide PDF 5.3mbxebzrubrvfseqerucxtwa Table of Contents
|
Upload User Manual
Have you got an user manual for the ION Audio Raptor Wireless Water-Resistant 100W Speaker System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersION Audio Raptor Specs | Speakers | 8" / 203 mm woofer
3" / 76 mm tweeter | | Output Power | 100 W (peak) | | Inputs | 1 x 1/8" (3.5 mm) stereo auxiliary input
1 x 1/4" mono microphone input | | Outputs | 1 x 1/8" (3.5 mm) stereo Link output | | Charging Ports | 2 x USB Type-A (5 V, 1 A) | | Bluetooth Profiles | A2DP, AVRCP | | Bluetooth Pairing | Manual pairing and NFC pairing | | Bluetooth Range | Up to 100' / 30.5 m | | Radio | AM/FM | | Water Resistance | IPX4 | | Microphone Type | Dynamic | | Battery | 12 V, 7 Ah, SLA | | Battery Life | Up to 75 hours | | Power Requirements | Internal rechargeable battery, 12 VDC (10 A) power supply, or IEC power cable
Input Voltage: 100 - 240 VAC, 50/60 Hz | | Dimensions (W x D x H) | 11.0 x 18.0 x 18.5" / 279 x 457 x 470 mm | | Weight | 26.2 lb / 11.9 kg | | | | Package Weight | 30.0 lb | | Box Dimensions (LxWxH) | 22.0 x 21.5 x 14.5" |
Rating100% users recommend this product to others. And what about you?
This product has already been rated by 13 owners. Add your rating and experience with the product.
Discussion
Ask our technicians if you have a problem with your settings,
or if anything is unclear in the user manual you have downloaded.
You can make use of our moderated discussion.
The discussion is public and helps other users of our website who may be encountering similar problems.
Post new comment to ION Audio Raptor Wireless Water-Resistant 100W Speaker System
| Subject: Raptor | | Date: 14.04.2023 04:43:48 | Name: Michaela | | I have recently noticed the garble sound from speaker; while playing music thru Bluetooth from my IPhone 12. This only happens when I am using in a gym, while teaching my lube dance class. When I use in my house, I do not have a problem. The same thing happened with my older Ion speaker. I thought it was going out, and replaced w the Raptor. Like the Raptor, I do not have that problem w my Ion when at home. Is it something to do w the acoustics in gym. | | Post reply |
