User Manual for ION Audio Tailgater Express Compact Portable Bluetooth Speaker System Click to enlarge the picture
Contents of the user manual for the ION Audio Tailgater Express Compact Portable
- Product category: Mobile Bluetooth Speakers ION Audio
- Brand: ION Audio
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ION Audio Mobile Bluetooth Speakers
 |
User manual for the ION Audio Tailgater Express Compact Portable contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ION Audio product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ION Audio user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ION Audio product will considerably shorten its lifespan!
|

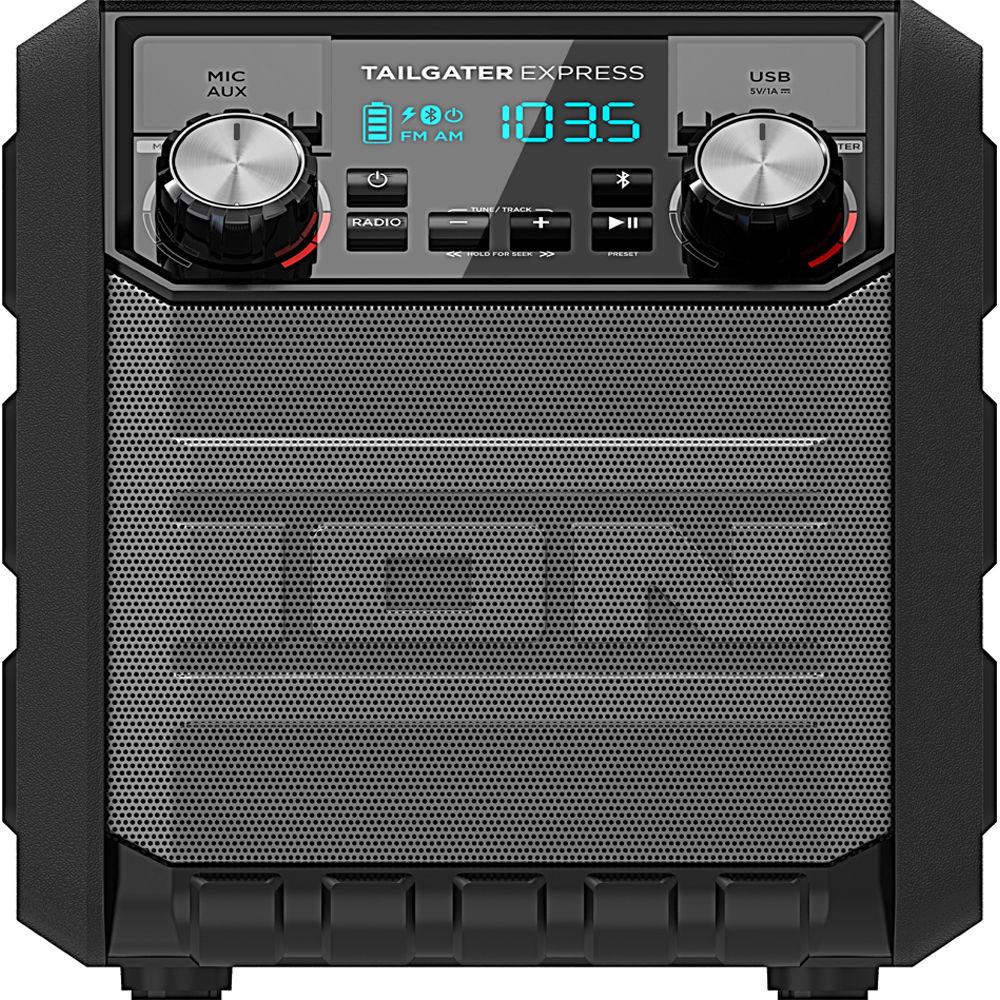

Product description The black Tailgater Express from ION Audio is a compact, portable speaker system capable of delivering 20W of power for your tailgate party before the game or a fun gathering in your backyard. It features a Bluetooth receiver that lets you listen to your audio wirelessly and a built-in rechargeable battery that provides up to 30 hours of continuous power-cable-free operation on a single charge. The unit is equipped with a built-in AM/FM radio so you can tune in to your favorite music or the game, an aux input to connect non-Bluetooth smartphones or MP3 players, and a 1/4" microphone input for public speaking, karaoke, and more. Other features include Near Field Communication Bluetooth pairing with just a single tap from your NFC-enabled smartphone, a USB charging port, and a bright, legible display for current radio station, battery status, and Bluetooth status. With its lightweight design, the Tailgater Express is easy to transport and quick to set up. Its IPX4 water-resistant rating makes it ideal for use close to the pool or on the beach. - 2-way, 20W speaker system with 4" woofer and wide-dispersion tweeter
- Built-in rechargeable battery provides up to 30 hours of continuous use on a single charge
- Built-in Bluetooth receiver to stream audio wirelessly from any Bluetooth-compatible device
- Pair your NFC-enabled smartphone with a single tap
- One 1/4" dynamic microphone input for public speaking, karaoke, and more
- One 1/8" Aux input to connect non-Bluetooth smartphones and MP3 players
- AM/FM radio with 10 preset locations and bright, legible display
- USB charging port - charging functions only when the unit's power is turned on
- Four-segment battery level indicator shows power left in the battery
- IPX4 water-resistant – perfect for beach or poolside use
UPC: 812715019082 In the Box ION Audio Tailgater Express Compact Portable Bluetooth Speaker System (Black) 3.5mm Stereo Aux Cable Power Adapter Limited 90-Day Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the ION Audio Tailgater Express Compact Portable Bluetooth Speaker System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersION Audio Tailgater Specs | Output Power | 20 W (peak) | | Tweeter | 1", wide-dispersion | | Woofer | 4" | | Frequency Response | 75 Hz to 16 kHz | | Inputs | Microphone: 1/4" / 6.3 mm (mono)
Auxiliary: 1/8" / 3.5 mm (stereo) | | Bluetooth | Profile: A2DP
Range: Up to 100' / 30.5 m
Near Field Communication (NFC) pairing available | | Radio | Station Presets: 10
FM Frequency Range: 87.5 to 107.9 MHz
AM Frequency Range: 520 to 1710 kHz | | Charging Port | USB: 5 V, 1 A | | Rechargeable Battery | Battery Life: Up to 30 hours
Recharge Time: Up to 7.5 hours | | Water Resistance | Rating: IPX4, offers protection from splash of water in any direction for at least 5 minutes | | Power | Power Adapter: 15 VDC, 2 A (center pin positive)
Input Voltage: 100-240 VAC, 50/60 Hz | | Dimensions (W x D x H) | 7.2 x 8.2 x 8.1" / 18.3 x 20.8 x 20.6 cm | | Weight | 5.8 lb / 2.6 kg | | | | Package Weight | 7.7 lb | | Box Dimensions (LxWxH) | 11.9 x 10.8 x 10.0" |
Rating84% users recommend this product to others. And what about you?
This product has already been rated by 35 owners. Add your rating and experience with the product.
Discussion
Ask our technicians if you have a problem with your settings,
or if anything is unclear in the user manual you have downloaded.
You can make use of our moderated discussion.
The discussion is public and helps other users of our website who may be encountering similar problems.
Post new comment to ION Audio Tailgater Express Compact Portable Bluetooth Speaker System
| Subject: Tailgater Express | | Date: 30.01.2021 19:29:21 | Name: Dave Holladay | | How do I remove a preset station? | | Post reply |
| Subject: power issue | | Date: 17.11.2020 19:44:22 | Name: Ben Parsons | | Both charger and battery lights are flashing | | Post reply |
| Subject: battery and charge lights bothe flashing | | Date: 17.11.2020 19:41:35 | Name: Ben Parsons | | whats wrong with my Tailgater Express my battery light and charging lights flashing shing | | Post reply |
