User Manual for ION Audio Total PA Pro 15" 2-Way 400W All-In-One Portable Bluetooth-Enabled PA System Click to enlarge the picture
Contents of the user manual for the ION Audio Total PA Pro 15"
- Product category: Portable PA Systems ION Audio
- Brand: ION Audio
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ION Audio Portable PA Systems
 |
User manual for the ION Audio Total PA Pro 15" contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ION Audio product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ION Audio user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ION Audio product will considerably shorten its lifespan!
|

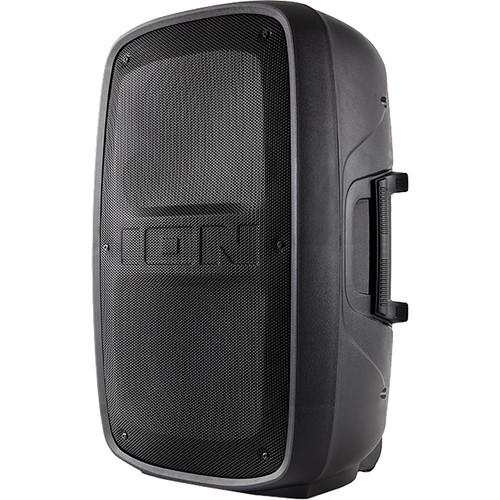

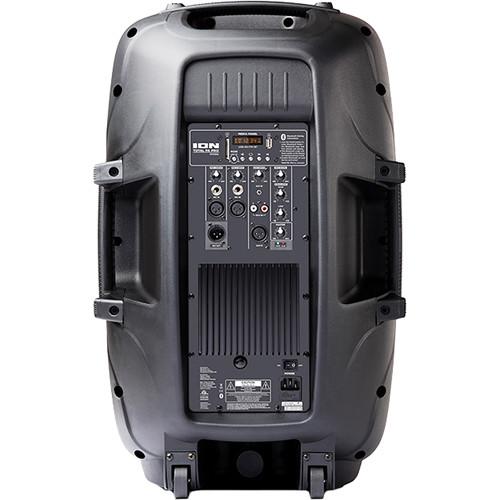

Product description 7 All-In-One Portable Speaker Systems for Special Events and Parties Read More The ION Audio Total PA Pro is a 15" 2-way 400W all-in-one portable Bluetooth-enabled PA system designed to deliver convenient signal mixing and amplification for DJs, musicians, vocalists, and presenters in clubs, special events, and small concert venues. 400W of amplification drive a 15" woofer and 1" tweeter to produce a frequency response of 55 Hz to 20 kHz. An XLR line output allows easy daisy-chaining of other PAs for additional sound reinforcement. The integrated mixer features XLR, RCA, 1/4", and 3.5mm inputs to accommodate signal from microphones, line sources, or non-Bluetooth devices. A built-in Bluetooth receiver enables wireless streaming of music from smartphones, tablets, and laptops. Enjoy the built-in FM radio or play music files via an SD card or USB flash drive (available separately). For announcements and sing-alongs, utilize the supplied handheld microphone and cable or hook up your own preferred dynamic mic. The built-in mixer offers controls for levels, echo, and 2-band EQ. Versatile transport options include three integrated carry handles and two rolling wheels. Mount the Total PA Pro on the included tripod speaker stand for elevated positioning and enhanced crowd coverage. - Multi-channel mixer with master volume, echo, and 2-band EQ
- Mono XLR and 1/4" inputs on the first two channels
- Stereo RCA and 3.5mm inputs on the third channel
- Built-in Bluetooth receiver and FM radio
- Play music files via an SD card or USB flash drive
- Rugged construction with integrated handles and steel speaker grille

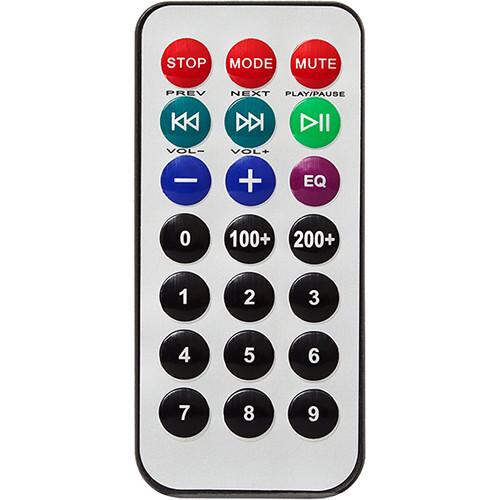

- Wireless remote control offers access to modes, mute, EQ, and more

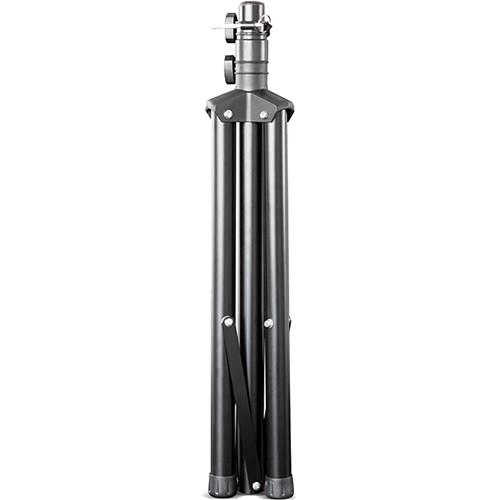

- Included tripod stand elevates speaker to optimum height
- Lightweight design, integrated carry handles, and built-in wheels for easy transport
- LEDs for power status and clip limiter indication
- Built-in over-excursion, thermal, and short-circuit protections
UPC: 812715019815 In the Box ION Audio Total PA Pro 15" 2-Way 400W All-In-One Portable Bluetooth-Enabled PA System Handheld Microphone Microphone Cable Telescoping Speaker Stand Remote Control IEC Power Cable Limited 90-Day Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the ION Audio Total PA Pro 15" 2-Way 400W All-In-One Portable Bluetooth-Enabled PA System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersION Audio Total PA Pro Specs | Inputs | 3 x XLR 3-pin
2 x 1/4" TRS
1 x 1/8" / 3.5 mm TRS
1 x RCA coaxial stereo pair | | Outputs | 1 x XLR 3-pin | | Media Slots | 1 x SD card slot
1 x USB Type-A | | LF Driver | 1 x 15" / 381 mm woofer (2" / 51 mm voice coil) | | HF Driver | 1 x 1" / 25 mm ferrite compression driver | | Output Power | 400 W peak | | Maximum SPL | 116 dB peak at 1 m (free space)
110 dB continuous at 1 m (C-weighted, free space) | | Crossover Frequency | 2.2 kHz | | Frequency Response | 55 Hz to 20 kHz (
Rating100% users recommend this product to others. And what about you?
This product has already been rated by 02 owners. Add your rating and experience with the product.
