User Manual for iOptron 6750 Handheld Digital Microscope Click to enlarge the picture
Contents of the user manual for the iOptron 6750 Handheld Digital Microscope
- Product category: Digital Microscopes iOptron
- Brand: iOptron
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for iOptron Digital Microscopes
|
User manual for the iOptron 6750 Handheld Digital Microscope contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any iOptron product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official iOptron user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a iOptron product will considerably shorten its lifespan!
|

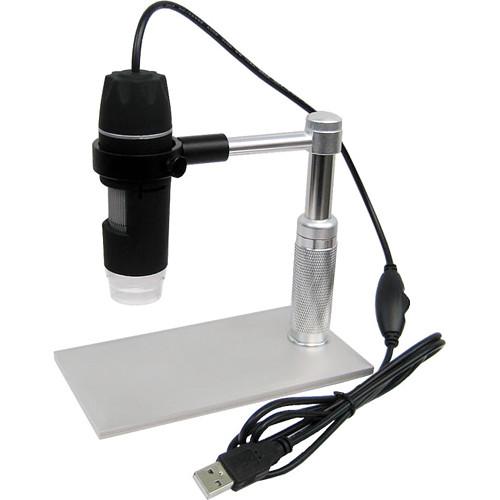

Product description iOptron's Handheld Digital Microscope is equally well-suited for home, office, or a laboratory. Using the included aluminum stand and L-shaped pillar-type arm, it allows you to adjust its working distance as well as horizontal position above the base. The arm also features an adapter ring with thumbscrews to provide a secure attachment for the microscope. With its 2.0MP, 1/3.2" CMOS imaging sensor (capable of capturing still images and videos) and an 8-LED illumination ring, you can capture bright and crisp high-resolution images and videos. Together with included software this tool offers you a control of such options as automatic or manual exposure and while balance. The compact and lightweight polymer microscope body offers an ergonomic grip with a focusing wheel, conveniently located by your thumb. To protect optics and illumination system it provides a clear polymer bezel, and to provide easy control of illumination it has a dimmer wheel switch on its USB cord. - Sensor, Optical System, & Illumination
-
- 2.0MP, 1/3.2" MI2010 CMOS sensor
- 10 - 200x magnification
- Automatic or manual exposure and white balance
- IR Cut filter limits optical transmission to 380 - 650nm range
- 8-LED illuminator ring with dimmer
- Photo/Video Capture, Memory, & Ports
-
- Captures 1600 x 1200 images
- Captures 1600 x 1200 videos at 15 fps and 800 x 600 at 30 fps
- Saves visual data to a PC via USB 2.0 connection
- Stage, Focusing, and Construction
-
- Polymer housing construction
- Clear bezel protects optics and illumination from dirt and damage
- Attached USB 2.0 cord provides power and allows data transfer
- Coarse-focusing adjustment with a knurled knob
- Handheld or mounted operation
- Aluminum stand with pillar-type L-shaped aluminum arm
- Rod allows adjusting height by 2" and horizontal position
UPC: 813578010490 In the Box iOptron 6750 Handheld Digital Microscope (Black) - Table Stand for 6700 Series Handheld Microscopes
- Software CD
- Limited 1-Year Warranty
Table of Contents
|
Upload User Manual
Have you got an user manual for the iOptron 6750 Handheld Digital Microscope in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersiOptron 6750 Specs | | | Optical Magnification | 10x to 200x | | Max Resolution | 2 MP: 640 x 480 | | Sensor | 1/3.2" CMOS | | Focusing | Coarse | | | | Video Format | 800 x 600 at 30 fps
1600 x 1200 at 15 fps | | | | Illumination Type | 8 x LED | | | | Wired Connectivity | USB 2.0 | | Compatible Operating Systems | Windows XP or Later | | | | Operating Temperature | 14 to 122°F / -10 to 50°C | | Storage Temperature | -4 to 140°F / -20 to 60°C | | Operating Humidity | 30 to 80% | | Storage Humidity | 10 to 60% | | | | Power | USB Power | | Material | Aluminum (Stand)
Polymer (Microscope) | | Dimensions | L: 6.0 x W: 3.1 x H: 5.8" / L: 150.0 x W: 80.0 x H: 147.0 mm (Stand) | | Weight | Not Specified by Manufacturer | | | | Package Weight | 1.1 lb | | Box Dimensions (LxWxH) | 6.3 x 6.2 x 3.2" |
