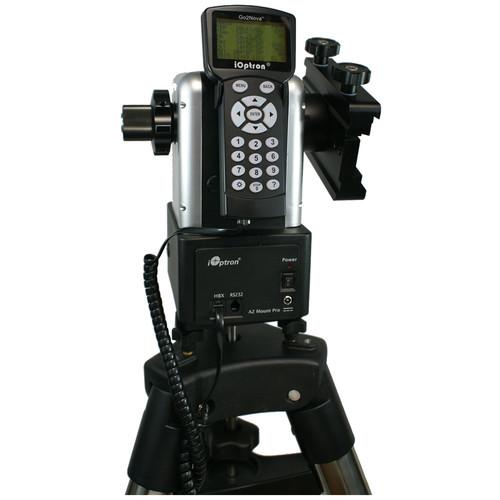

User Manual for iOptron AZ Mount Pro GoTo Alt-Az Mount with Tripod Click to enlarge the picture
Contents of the user manual for the iOptron AZ Mount Pro GoTo Alt-Az
- Product category: Mounts iOptron
- Brand: iOptron
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for iOptron Mounts
|
User manual for the iOptron AZ Mount Pro GoTo Alt-Az contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any iOptron product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official iOptron user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a iOptron product will considerably shorten its lifespan!
|
Product description iOptron's AZ Mount Pro Head combines multiple technologies to produce a mount that requires minimal input from the user while providing full GoTo capabilities. This technology is referred to as "Level and Go" by iOptron because that's about all you need to do. Using its built-in level indicator, you simply level the mount and turn on the power. Utilizing the onboard 32-channel GPS receiver and built-in position and angular detection sensors, the mount calculates its global position as well as the telescope orientation then automatically slews to an easily identifiable bright object in the night sky. All you need to do is confirm a bright object is in the center of the view, to activate tracking and GoTo functionality.Included with the mount is the Go2Nova 8407 computer controller. This handheld unit features a 212,000-object database with 60 user-defined customizable objects for your favorite celestial bodies. The easy-to-use menu-driven system displays on an 8-line, 21-character backlit screen. This fully GoTo-capable unit has automatic tracking for fast-moving near-space objects, such as the Moon and planets, and slower moving deep-sky objects like nebulae and galaxies. For setup or manual use it has nine slew speeds starting at 1x and topping out at 10°/sec. The Go2Nova controller is powered by the mount to make use easier and simple while reducing the unit's weight. For increased functionality, the mount is also equipped with a Wi-Fi module for wireless connectivity to smartphones, tablets, and computers.iOptron is offering the AZ Mount Pro GoTo Alt-Az Mount here with a sturdy 2" stainless steel tripod for users who already have an optical tube assembly (OTA) and are looking to upgrade their mounting system. To protect the head during transport and storage a hard aluminum case is included. - Mount
-
- Motorized alt-az mount
- Die-cast aluminum chassis
- Compact design: Stands just 10" (25.4 cm) tall
- Dual mount capability
- 33-pound primary
- 10-pound secondary
- Position and angular detection, with level indicator
- 32-channel GPS module for accurate day/time/location information without user input
- Built-in Wi-Fi for direct connection to smartphones, tablets, and computers running iOptron Commander software or Sky Safari app
- Retractable counterweight shaft
- 9.9 lb (4.5kg) counterweight
- Runs on built-in lithium-ion battery with a 10-hour runtime at 68°F
- Dual Losmandy/Vixen-style 6" dovetail saddle to mount compatible OTAs
- Motors and Gears
-
- 128x microstep stepper motor
- Aluminum worm wheel
- Brass worm gear
- Synchronous belt transmission
- Zero backlash driver system eliminates gear play
- Resolution: 0.1 arcsecond
- Go2Nova 8407 Controller
-
- Easy-to-navigate menu-driven interface
- Automatic GoTo and tracking
- Alignment:
- Auto-alignment process requires no user input or assistance other than leveling tripod/mount
- One Star
- Two Star
- Three Star
- Solar System
- Slew speeds: 1x, 2x, 8x, 16x, 64x, 128x, 256x, 512x, MAX (10°/sec, 2400x)
- Tracking rates: Sidereal, Lunar, Solar, King's, and User-Defined Speed
- Large 8-line, 21-character LCD screen with backlit LED buttons
- Firmware updates via the Internet
- Supports compatible electric focusers
- Works in Northern and Southern Hemispheres
- Built-in heater
- Go2Nova Database
-
- 212,000+ objects
- Solar System catalog:
- Deep Sky Objects:
- Named Objects: 60 popular deep-sky objects with their common names
- Messier Catalog: All 110 Messier objects
- NGC Catalog: 7,840 objects
- IC Catalog: 5,386 objects
- PGC Catalog: 73,197 objects
- Caldwell Catalog: 109 objects
- Abell Catalog: 4,076 objects
- Herschel Catalog: 400 objects
- Stars:
- Named Stars: 195 stars with their common names
- Binary Stars: 210 binary stars
- Hipparcos Catalog: 120,404 records
- 15 comets
- 116 asteroids
- 88 modern constellations with their common names
- Up to 60 user-defined objects
- Tripod
-
- 2" stainless steel legs
- Adjustable height, 54" max height
- Star leveling screws for head
- Weight: 18 lb
In the Box iOptron AZ Mount Pro GoTo Alt-Az Mount with Tripod AZ Mount Pro GoTo Alt-Az Mount (Head Only) 2" Tripod 3 x Leveling Screws 4.5kg Counterweight Limited Two-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the iOptron AZ Mount Pro GoTo Alt-Az Mount with Tripod in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersiOptron GoTo Alt-Az Specs Mount Type | Motorized alt-azimuth | Load Capacity | Primary: 33.0 lb / 15.0 kg Secondary: 10.0 lb / 4.5 kg | Motor | 128x microstep stepper motor | GoTo System | Go2Nova 8407 hand controller | Polar Axis Scope | None | Tripod | 2" Adjustable stainless steel Max height: 54.0" / 137.2 cm 18.0 lb / 8.2 kg | Battery | Built-in rechargeable lithium-ion battery 11.1 VDC, 4.4 Ah | Runtime | 10 h at 68°F / 20°C | Power Requirements | 100-240 VAC input | Operating Temperature | 14 to 104°F / -10 to 40°C | Dimensions | Base: 6.3 x 4.9 x 3.2" / 16.0 x 12.5 x 8.1 cm Top: 5.5 x 4.6 x 4.3" / 14.0 x 11.7 x 10.9 cm | Weight | Mount: 13.0 lb / 5.9 kg, including counterweight shaft and battery | | Package Weight | 58.6 lb | Box Dimensions (LxWxH) | 39.3 x 20.2 x 14.3" |
