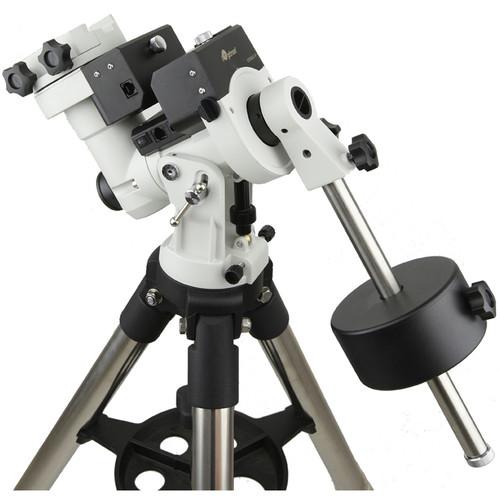

User Manual for iOptron CEM25P Equatorial GoTo Mount Click to enlarge the picture
Contents of the user manual for the iOptron CEM25P Equatorial GoTo Mount
- Product category: Mounts iOptron
- Brand: iOptron
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for iOptron Mounts
|
User manual for the iOptron CEM25P Equatorial GoTo Mount contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any iOptron product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official iOptron user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a iOptron product will considerably shorten its lifespan!
|
Product description This version of the iOptron CEM25P Equatorial GoTo Mount includes their updated mount, with a tripod, computer hand controller, 32-channel GPS module, AccuAlign illuminated polar scope, and hard case to safely carry and store the mount head and several accessories. - CEM25P Equatorial GoTo Mount (1.5" Tripod) With improved tracking accuracy thanks to its new low periodic error of less than ±10 arcsec, and larger gear switches on both axes to make access and adjustments easier, the iOptron CEM25P Equatorial GoTo Mount makes an ideal mount for most astronomy and astrophotography needs.It includes the motorized mount, the Go2Nova 8408 computer hand controller, a standard 1.5" tripod, and the AccuAlign illuminated polar scope. Its built-in 32-channel GPS receiver transmits accurate date, location, and time to the hand controller, so when you change your position, the telescope can be set up quickly with accurate information. For precise tracking, as required during long-exposure astrophotography or observation sessions, the CEM25P has the capability for you to program out the Periodic Error Correction (PEC) common to all worm gears. With a maximum payload capacity of up to 27 lb, this mount is ideal for most medium-to-large refractor, reflector, or catadioptric optical tube assemblies (OTAs) with Vixen-style dovetail plates, while still being able to handle imaging rigs.The stepper motor is controlled by the Go2Nova hand controller. This system has an internal database of 150,000+ celestial objects, multiple alignment assistance procedures, and updatable firmware through the built-in serial port. With nine slew speeds and automatic tracking capabilities, finding and keeping objects centered in the field of view is easy whether you're viewing the fast-moving Moon or much slower deep-space subjects.
- Mount
-
- German equatorial design for smoother and more accurate tracking
- Center-balanced "Z" design: Weight is placed over the center of gravity for greater stability, smoother movement, and quieter running
- 27 lb payload capacity, excluding included counterweight
- 0-60° latitude; ±10° azimuth adjustment range
- Built-in 32-channel GPS receiver for accurate day, date, time, and location information
- Spring-loaded Vixen-style dovetail saddle
- Adjustable polar alignment even during tracking
- Retractable counterweight bar prevents obstruction by the tripod; 20mm diameter accepts any compatible weights
- Includes 10.4 lb counterweight
- Integrated bubble level
- Works in the Northern and Southern Hemispheres
- Motors and Gears
-
- Improved periodic error over previous model, reduced to less than ±10 arcsec
- 1.8° stepper motor with 128x microdivision
- 88mm, 144-tooth aluminum right ascension (RA) and declination (dec) worm wheels
- Brass worm gears
- 55mm RA and dec ball bearings provide smooth movement with minimal vibration
- 35mm steel RA and dec axis shafts
- Synchronous belt transmission improves tracking accuracy, with reduced vibration, especially with heavy loads
- RA and dec gear switches release the gears for balancing OTA
- Gear tension adjustment eliminates play in gears
- Resolution: 0.17 arcsec
- Low-power consumption: 0.35A (tracking), 0.6A (using GoTo)
- Runs on included 110-240 VAC power adapter
- Go2Nova 8408 Hand Controller
-
- 150,000+ object database
- Alignment procedures: Pole-star, One-star, Two-star, Three-star, Polar, Solar system
- Slew speeds: 1x, 2x, 8x, 16x, 64x, 128x, 256x, 512x, 6°/sec (Max); Quiet mode
- Real-time Periodic Error Correction (PEC) eliminates tracking errors for long-exposure astrophotography
- Tracking rates: Sidereal, Lunar, Solar, King's, user-defined from 0.99x to 1.01x of Sidereal
- Track Below Horizon option allows mount to track objects below the horizon that are still visible, such as when observing from a hill or rooftop/balcony
- Computer control with planetarium software via integrated autoguiding port
- Adjustable key and display brightness
- Control for optional electronic focuser
- Control optional illuminated polar scope light intensity
- Fully compatible with mount's integrated GPS module to automatically determine day, date, time, location
- 4-line/21-character LCD screen; backlit 18-button user interface
- Database details:
- Solar system: 9 objects, including the Sun, Moon, and planets
- Named objects: 60 deep-sky objects with their common names
- Messier catalog: 110 objects
- NGC catalog: 7840 objects
- IC catalog: 5386 objects
- UGC catalog: 12,921 objects
- Caldwell catalog: 109 objects
- Abell catalog: 4076 objects
- Herschel catalog: 400 objects
- Named stars: 259 stars with their common names
- Double/multi stars: 208 binary stars
- Hipparcos catalog: 120,404 stars
- 88 modern constellations with their names
- 15 comets
- 116 asteroids
- 60 user-defined objects, including comets
- AccuAlign Polar Scope
-
- For accurate and fast polar alignment
- Dark-field illuminated dial
- Red LED illumination
- Polar scope is not blocked by the dec shaft, allowing for re-alignment while mount is running
- Tripod
-
- 1.5" stainless steel, two leg sections
- Adjustable height of 25-42"
- 48" maximum leg spread
- Accessory tray with a locking leg spreader
- Spiked feet for greater stability on uneven ground
- Weight: 11.0 lb / 5.0 kg
- Hard Case for ZEQ25 Mount This Hard Case for ZEQ25 Mount from iOptron protects your mount whether you're heading out for a night of observation, or when you need to store it. The case features custom-fit foam padding to hold the mount in place and cushion it from impacts. The exterior has reinforced edges on the outside to help minimize denting and damage. There are dual trigger latches to secure the lid in place, and a carry handle.
In the Box Bundle Items CEM25P Equatorial GoTo Mount (1.5" Tripod) tvzwubvtyfb - 1.5" Stainless Steel Tripod for ZEQ25/SkyGuider Mounts
- Go2Nova 8408 Hand Controller for CEM25/CEM25EC/CEM25P Mounts
- Dark-Field Illuminating LED Cable
- 110-240 VAC Power Adapter
Hard Case for ZEQ25 Mount Table of Contents
|
Upload User Manual
Have you got an user manual for the iOptron CEM25P Equatorial GoTo Mount in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - CEM25P Equatorial GoTo Mount (1.5" Tripod)
Mount Type | Equatorial | Load Capacity | 27.0 lb / 12.3 kg, excluding counterweight | Motor | 1.8° stepper motor, 128x microdivision Synchronous belt transmission | GoTo Capability | Go2Nova 8408 hand controller | Azimuth Adjustment Range | ±10° | Latitude Adjustment Range | 0 to 60° | Polar Axis Scope | AccuAlign polar scope with dark field illumination | Includes Tripod/Pier | 1.5" stainless steel 2 leg sections Adjustable Height: 25.0 - 42.0" / 63.5 - 106.6 cm Maximum Leg Spread: 48" / 122.0 cm | Counterweight(s) | 1 x 10.4 lb / 4.7 kg | GPS | 32-channel, internal | Power Requirement | Input: 100 - 240 VAC adapter Output: 9 - 15 VDC Consumption: 0.35 A (tracking), 0.6 A (GoTo) | Operating Temperature | 14 to 104°F / -10 to 40°C | Dimensions | Mount: 12.0 x 11.0 x 6.0" / 15.2 x 27.9 x 30.1 cm | Weight | Mount: 10.4 lb / 4.7 kg Tripod: 11.0 lb / 5.0 kg | - Hard Case for ZEQ25 Mount
| Box Dimensions (LxWxH) | 15.118 x 14.567 x 8.425" |
