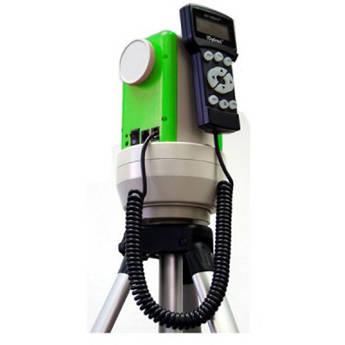

User Manual for iOptron Cube-E GoTo Alt-Az Mount Click to enlarge the picture
Contents of the user manual for the iOptron Cube-E GoTo Alt-Az Mount
- Product category: Mounts iOptron
- Brand: iOptron
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for iOptron Mounts
|
User manual for the iOptron Cube-E GoTo Alt-Az Mount contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any iOptron product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official iOptron user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a iOptron product will considerably shorten its lifespan!
|
Product description iOptron's terra green Cube-E GoTo Alt-Az Mount is a functional, flexible, motorized, and computer-controlled unit that is ideal for most stargazing duties, yet sports a compact design that measures a mere 8x5x5" and weighs just 3 pounds. The dual-axis servomotors are built into a small single unit that is compatible with all telescope optical tube assemblies (OTAs) with a Vixen-style dovetail plate up to 7 pounds including accessories. The unique design eliminates "dead spots," enabling you to point your telescope to any point above the horizon without the risk of blocking the telescope tube at certain points of rotation. This mount comes with a 110 VAC adapter to power it if you're near civilization, but if you're heading off the grid it can run on eight user-supplied AA batteries. A 1.25" stainless steel tripod is provided so all you need is a compatible OTA to start your observation session.Included with the mount is the GoTo Nova 8405 computer controller. This handheld unit features a 14000+ object database with 256 user-defined objects for your favorite celestial or terrestrial bodies. The easy-to-use menu-driven system displays on a 4-line, 21-character backlit screen. This fully GoTo-capable unit has automatic tracking for fast-moving near-space objects, such as the Moon and planets, and slower moving deep-sky objects like nebulae and galaxies. For setup or manual use it has five slew speeds starting at 2x and going up to 4°/second. The GoTo Nova controller is powered by the mount to make use easier and simple while reducing the unit's weight. - Mount
-
- 7-pound payload capacity
- Motorized alt-az mount
- Compact design
- Dual-axis DC servomotor
- Optical encoders monitor motors to improve tracking accuracy
- Acetal worm wheel, nylon 6 worm gear
- Four steel ball bearings for smooth, low-vibration tracking
- Zero "dead spots" that could block an OTA at certain points of rotation
- Vixen-style dovetail saddle to mount compatible OTAs
- Runs on included 110 VAC power adapter or eight user-supplied AA batteries
- Operating temperature: 32-104°F
- Integrated bubble level
- Weight: 3.1 pounds
- GoTo Nova Controller
-
- Easy-to-navigate menu-driven interface
- Easy One-star or Two-star alignment
- 14000+ object database, plus 256 user-defined objects
- Watch List: Create virtual custom tour by choosing objects to see and system will automatically GoTo each object in the list after successful alignment
- Accuracy 1 arcmin
- Slew speeds: 2x, 8x, 64x, 256x, Max (4°/sec)
- Average GoTo accuracy: 1 arcmin
- 4-line, 21-character LCD screen with backlit LED buttons
- Red LED reading light on back to see eyepieces or filters without affecting night-adjusted vision
- Database:
- Sun, Moon, planets
- Named deep-sky objects
- Messier catalog
- Comets and asteroids
- Named stars, double stars, SAO star catalog
- Major constellations
- 256 user-defined objects, including terrestrial locations
- Tripod
-
- Stainless steel legs
- 1.25" (2.5cm) leg diameter
- Accessory tray to hold eyepieces, filters, etc.
- Spiked feet for sure footing on soft ground
- Maximum height: 37.75" (95.9cm)
- Weight: 8.9 pounds
In the Box iOptron Cube-E GoTo Alt-Az Mount (Terra Green) 1.25" Steel Tripod with Tray GoTo Nova 8405 Hand Controller Controller Cable AC Adapter with Cord Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the iOptron Cube-E GoTo Alt-Az Mount in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersiOptron 8500G Specs | Mount Type | Motorized alt-azimuth | | Load Capacity | 7.0 lb / 3.2 kg | | Motor | Dual-axis DC servomotor with optical encoders | | GoTo System | GoToNova hand controller | | Polar Axis Scope | None | | Tripod | Yes
Stainless steel
1.25" / 3.2 cm leg diameter
Maximum height: 37.75" / 95.9 cm | | Power Source | 8 x AA batteries
110 VAC power adapter | | Power Requirements | 12 VDC | | Operating Temperature | 32 to 104°F / 0 to 40°C | | Dimensions | 8.0 x 5.0 x 5.0" / 20.3 x 12.7 x 12.7 cm | | Weight | Head: 3.1 lb / 1.4 kg
Tripod: 8.9 lb / 4.0 kg |
