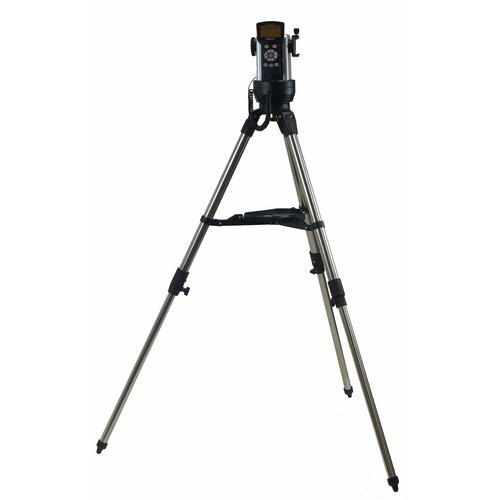

User Manual for iOptron CubePro GoTo Alt-Az Mount with Tripod Click to enlarge the picture
Contents of the user manual for the iOptron CubePro GoTo Alt-Az Mount with
- Product category: Mounts iOptron
- Brand: iOptron
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for iOptron Mounts
|
User manual for the iOptron CubePro GoTo Alt-Az Mount with contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any iOptron product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official iOptron user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a iOptron product will considerably shorten its lifespan!
|
Product description iOptron's CubePro GoTo Alt-Az Mount sports a compact mount design that measures a mere 8x5x5" while being a functional and flexible motorized computer-controlled unit for most stargazing duties. Both axis motors are built into a small single unit that is compatible with all telescope optical tube assemblies (OTAs) with a Vixen-style dovetail plate up to 8 lb including accessories. The unique design eliminates "dead spots," enabling you to point your telescope to any point above the horizon, unlike other mounts that tend to block the telescope tube at certain points of rotation. This mount comes with a 110 VAC adapter to power it if you're near civilization, but if you're heading off the grid it can run on eight user-supplied AA batteries. A 1.25" stainless steel tripod is provided so all you need is a compatible OTA to start your observation session.Included with the mount is the Go2Nova 8401 computer controller. This handheld unit features a 130,000-object database with 256 user-defined customizable objects for your favorite celestial bodies. The easy-to-use menu-driven system displays on an 8-line, 21-character backlit screen. This fully GoTo-capable unit has automatic tracking for fast-moving near-space objects, such as the Sun, Moon, and planets, and slower moving deep-sky objects like nebulae and galaxies. It also has custom speeds that users can program themselves if they are imaging or taking medium-exposure sky-scape photos. For setup or manual use it has nine slew speeds starting at 1x and topping out at 4°/sec. To make sure you get observing faster, the controller has multiple alignment procedures, plus a 32-channel GPS receiver that provides the mount with accurate date/time/location information. For improved tracking, you have the ability to program out periodic errors that might occur during long-duration tracking, and there is also backlash compensation to eliminate settling that might occur at certain points due to the gaps in the gears. The Go2Nova controller is powered by the mount to make use easier and simple while reducing the unit's weight. - Mount
-
- Motorized alt-az mount
- Compact design
- Dual-axis 12 VDC servomotor
- Zero "dead spots" compared with other mounts block the OTA at certain points of rotation
- 8 lb payload capacity
- Vixen-style dovetail saddle to mount compatible OTAs
- Runs on included 110 VAC power adapter or eight user-supplied AA batteries
- Operating temperature: 32-104°F
- Integrated bubble level
- 32-channel GPS module for accurate date/time/location information without user input
- 3.3lb (1.5kg) counterweight with bar for balancing larger gear
- Go2Nova Controller
-
- Easy-to-navigate menu-driven interface
- Automatic GoTo and tracking
- 130,000-object database
- Objects include galaxies, nebulae, star clusters, and the planets
- 256 user-defined objects
- One-star, Two-star, Three-star alignment processes
- Tracking rate: Celestial, solar, lunar, and user defined
- Anti-backlash compensation to eliminate the play between gears
- Periodic Error Correction (PEC) helps to correct errors in tracking over prolonged periods
- Slew speeds: 1x, 2x, 8x, 16x, 64x, 128x, 256x, Max (4%/sec)
- Large 8-line, 21-character LCD screen with backlit LED buttons
- USB port for computer/ASCOM interconnectivity to use planetarium computer software or firmware updates via the Internet
- Supports compatible electric focusers
- Tripod
-
- Stainless steel
- 1.25" (3.2cm) leg diameter
- Accessory tray
- Spiked feet for sure footing on soft ground
In the Box iOptron CubePro GoTo Alt-Az Mount with Tripod 1.25" Steel Tripod with Tray Go2Nova 8401 Hand Controller Controller Cable AC Adapter with Cord USB Cable Counterweight and Bar Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the iOptron CubePro GoTo Alt-Az Mount with Tripod in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersiOptron CubePro Specs | Mount Type | Motorized alt-azimuth | | Load Capacity | 8.0 lb / 3.6 kg | | Motor | Dual-axis 12 VDC servomotor | | GoTo System | Go2Nova 8401 hand controller | | Polar Axis Scope | None | | Tripod | Yes
Stainless steel
1.25" / 3.2 cm leg diameter | | Power Source | 8 x AA batteries
110 VAC power adapter | | Power Requirements | 12 VDC | | Operating Temperature | 32 to 104°F / 0 to 40°C | | Dimensions | Mount: 8.0 x 5.0 x 5.0" / 20.3 x 12.7 x 12.7 cm | | Weight | Mount: 3.75 lb / 1.7 kg
Tripod: 5.6 lb / 2.5 kg | | | | Package Weight | 16.5 lb | | Box Dimensions (LxWxH) | 36.0 x 12.0 x 7.0" |
Rating66% users recommend this product to others. And what about you?
This product has already been rated by 09 owners. Add your rating and experience with the product.
