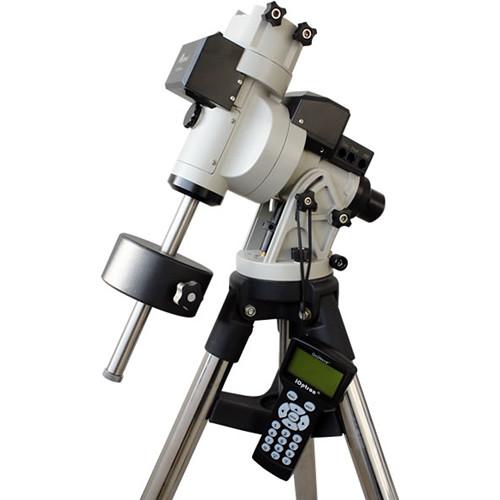

User Manual for iOptron iEQ30 Pro EQ GoTo Mount with 2" Tripod & Hard Case Click to enlarge the picture
Contents of the user manual for the iOptron iEQ30 Pro EQ GoTo Mount
- Product category: Mounts iOptron
- Brand: iOptron
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for iOptron Mounts
|
User manual for the iOptron iEQ30 Pro EQ GoTo Mount contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any iOptron product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official iOptron user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a iOptron product will considerably shorten its lifespan!
|
Product description The iEQ30 Pro EQ GoTo Mount from iOptron features a motorized equatorial mount, the Go2Nova 8407+ computer hand controller, a 2" stainless steel adjustable tripod, and a polar axis scope for faster alignment and setup. Employing the larger tripod offers increased stability with reduced vibrations versus smaller tripods, making the viewing experience more satisfying. The mount has a Vixen-style dovetail saddle for mounting compatible telescope optical tube assemblies (OTAs) and accessories of up to 30 pounds. Its built-in 32-channel GPS receiver sends your location and time to the Go2Nova hand controller for a more accurate and faster setup and alignment.The stepper motor is controlled by the Go2Nova 8407+ hand controller with an LCD screen that has internal heating in order to be operational in cold weather. It features 8 lines with 21 characters on each line, with an internal database of more than 359,000 celestial objects from comets and asteroids to galaxies and nebulae. With nine slew speeds up to 6° arcsec and automatic tracking capabilities, finding and keeping objects centered in the field of view is easy no matter whether you're viewing the fast-moving Moon or much slower deep-space subjects.The included AccuAligning polar axis scope can be installed through the body of the mount, and the design of the counterweight ensures an unimpeded view through the alignment scope regardless of its position. This is especially critical for long viewing periods or astrophotography where periodic adjustments might be required. For precise tracking, as required during long-exposure astrophotography, the iEQ30 Pro can be programmed for the Permanent Periodic Error Correction (PPEC) common in every worm gear. For safe transport and storage, this version of the iEQ30 comes with a hard carrying case with custom-cut die-cut foam for the mount and accessories. - German Equatorial Mount
-
- Vixen-style dovetail saddle
- 1.8° stepper motor with 128 microdivisions
- Adjustable counterweight bar to prevent obstruction with the tripod
- Built-in 32-channel GPS provides accurate date, time, and location information
- AccuAligning polar scope with dark-field illumination for polar alignment
- Includes 110 VAC wall plug and 12 VDC car/vehicle power adapters
- 9.9 lb (4.5kg) counterweight and shaft for balancing scope and accessories
- Go2Nova 8407+ Hand Controller
-
- 359,000 stellar object database
- Star recognition function
- Heated LCD display allows it to work at temperatures down to -4°F (-20°C)
- 8 lines with 21 characters on each line LCD screen
- 9-speed slew from 1x to 4° arcsec with quiet tracking
- Database includes stars, constellations, and comets
- Permanent Periodic Error Correction (PPEC) eliminates tracking errors
- Programmable anti-backlash adjustment for smoother tracking
- RS232 port and RS232-RJ9 cable allow for connectivity to a PC
- Compatible with ASCOM computer protocol
- Power interruption recovery feature
- Can be controlled with a PC and planetarium software
- Integrated autoguiding ST-4 port
- Tripod
-
- Stainless steel construction
- 2" diameter legs
- Center stabilizer adds rigidity to reduce vibrations
In the Box iOptron iEQ30 Pro EQ GoTo Mount with 2" Tripod & Hard Case AC Adapter 12V Car Plug RS232-RJ9 Cable Counterweight Counterweight Shaft Stainless Steel Tripod Hard Carrying Case Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the iOptron iEQ30 Pro EQ GoTo Mount with 2" Tripod & Hard Case in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersiOptron 3002E-HC Specs | Mount Type | German equatorial mount | | Load Capacity | 30 lb / 13.5 kg | | Gear | Right ascension: 180 teeth
Declination: 144 teeth | | Resolution | 0.14 arcsec (256 PPS) | | Adjustment Range | Latitude: 0 to 65°
Azimuth: ±6° | | GPS | 32-channel, internal | | Motor | 1.8° stepper motor, 128 microdivision
Motor control: open loop | | Transmission | 48MXL synchronous belt | | Tracking Rates | Sidereal, solar, lunar, King, user
Meridian treatment:
1. Stop: 0 to 15° pass 2. Auto flip | | Hand Controller | Go2Nova 8407+
Heated LCD display: 8 lines, 21 characters | | Polar Axis Scope | AccuAligning polar scope
Dark-field illumination | | Tripod | Leg diameter: 2.0" / 5.1 cm | | Power Requirement | Voltage: 12 VDC (11 - 15 V)
Current: 2 A | | Power Consumption | Tracking: 0.4 A
Go2Nova: 0.6 A | | Slew Rate | 9 speeds, 6° arcsec max | | PC Control | Protocol: ASCOM | | Port | 1 x RS232
Guiding port: 1 x ST-4 | | Operating Temperature | -4 to 113°F / -20 to 45°C | | Weight | Mount: 15 lb / 6.8 kg
Tripod: 10.6 lb / 4.8 kg
Counterweight: 9.9 lb / 4.5 kg |
