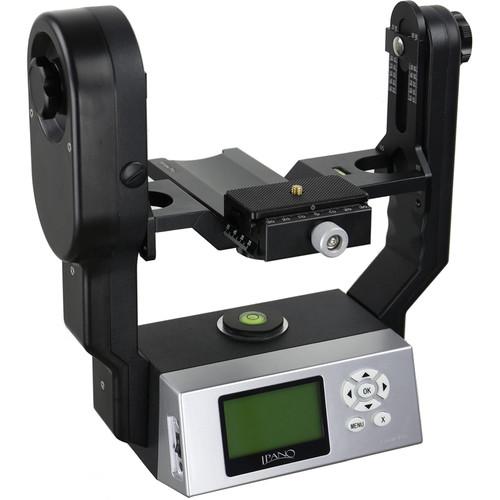

User Manual for iOptron iPANO AllView Pro Camera Mount Click to enlarge the picture
Contents of the user manual for the iOptron iPANO AllView Pro Camera Mount
- Product category: Astrophotography iOptron
- Brand: iOptron
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for iOptron Astrophotography
 |
User manual for the iOptron iPANO AllView Pro Camera Mount contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any iOptron product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official iOptron user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a iOptron product will considerably shorten its lifespan!
|

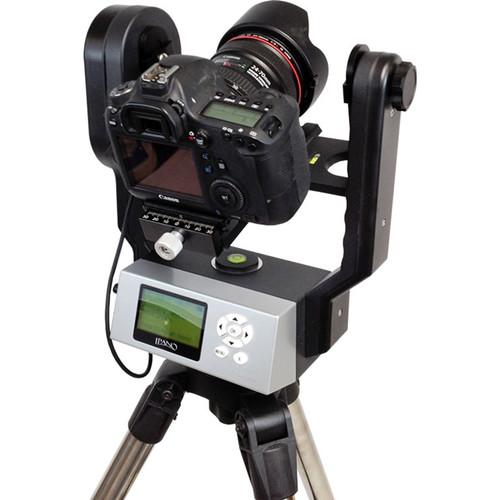

Product description Designed for time-lapse wide-field and starscape astrophotography or 360° panoramic imaging, iOptron's iPANO AllView Pro Camera Mount can be used with most DSLR cameras to capture stunning photos or video with virtually no vibration, backlash or play. Utilizing dual stepper motors that run at 0.0001°/step with pan/tilt precision to within 0.01°, it can be controlled from an iPhone or iPad running the IPan Commander app using the built-in WiFi or from a computer using the integrated RS232 port. The fully customizable system comes with an array of pre-configured panorama and time-lapse programs for inspiration for capturing the Moon and planets as they track across the sky, time-lapse images of traffic patterns, or breathtaking panoramics.The iPANO comes with seven electronic trigger leases for popular brands such as Canon, Nikon, Olympus and Sony with other options available separately. A basic 1/4"-20 quick-release plate attaches the camera, and the camera cradle adjusts to accommodate most camera and lens sizes and configurations for proper balance and weight distribution to ensure smooth and easy motion. The iPANO is offered here as just a mount head, so a tripod is required for proper operation. For convenience the head is outfitted with a 3/8"-16 tripod mount and a 1/4"-20 adapter for smaller support systems. - Use and Handling
-
- Works with most DSLR cameras
- Use for wide-field/starscape astrophotography or terrestrial 360° rotating rig
- Integrated Wi-Fi antenna for direct connection with iPano Commander iOS app enables remote operation and programming

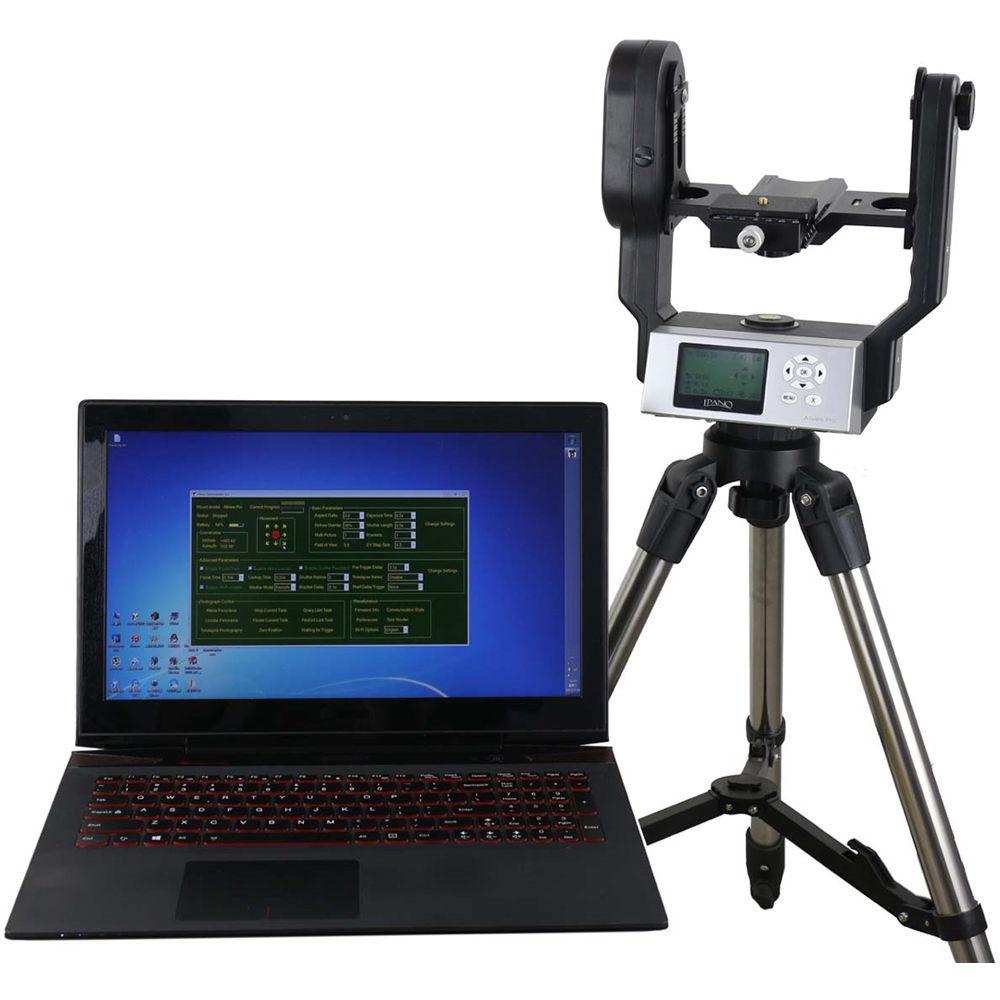

- RS232 port to connect to a computer for control
- LCD display with intuitive push-button user interface
- Multiple pre-programmed panorama and time-lapse shot patterns
- Low power consumption for long photography sessions
- Motor and Drive
-
- Payload capacity: Pan/tilt: 11 pounds; Pan only: 22 pounds
- Dual micro-stepper motors with 0.0001°/step
- Drive train: Metal worm and gear with synchronized belt
- Range of motion: 360° Pan, ±90° tilt
- Concurrent biaxial motion with no backlash, play, or vibration to produce sharp and crisp images
- Pan/Tilt precision within 0.01°
- Max slew speed: 15°/sec Pan, 8°/sec Tilt
- High-capacity internal lithium-ion battery
- Camera and Mounting
-
- 1/4"-20 quick-release camera mount
- Horizontal or vertical camera mounting options
- Adjustable mounting position for proper balance, weight distribution, and to set the no parallax point
- Includes Canon N3 & E3; Nikon 10 Pin, MC-DC1, and MC-DC2; Olympus RM-UC1; and Sony RM-S1AM electronic trigger releases
- 3/8"-16 or 1/4"-20 tripod mount
In the Box iOptron iPANO AllView Pro Camera Mount (Mount Only) 8.4V 2A Battery Charger RS232 Serial Cable (RS232-RJ9) 7 x Electronic Trigger Cables Vertical Mounting Dovetail Plate 2 x Vertical Mounting Dovetail Plate Screws 1/4" to 3/8" Camera Convert Screw Adapter Hex Key Wrench Padded Carrying Bag Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the iOptron iPANO AllView Pro Camera Mount in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersiOptron iPano AllView Specs | Payload Capacity | Head: 11.0 lb / 5.0 kg
Base: 22.0 lb / 10.0 kg | | Motors | Dual micro-stepper
0.0001° per step | | Adjustment Range | Pan: 360°
Tilt: +90° to -90° | | Mounting | Head: 1/4"-20 quick-release plate
Base: 3/8"-16, 1/4"-20 with included adapter | | Battery | Built-in rechargeable Li-ion
7.4 V, 4.4 A, 32.6Wh | | Operating Temperature | 14 to 104°F / -10 to 40°C | | Dimensions | 11.0 x 8.0 x 5.2" / 28.0 x 20.3 x 13.3 cm | | Weight | 7.3 lb / 3.3 kg, including battery | | | | Package Weight | 12.095 lb | | Box Dimensions (LxWxH) | 16.6 x 13.9 x 8.2" |
